A210A-GBLV (2019)

Toyota Raize

Production Oct 2019 - Oct 2021
Engine 1KRVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1910- )

Click highlighted areas on diagram

ｴｱｺﾝ ﾕﾆｯﾄ

diagram 5304 5501 81128B2010 87114L 87139D 88512 88539J 88548B 88569F 88648P 88650N 88899B1010 88899B2010 88899B2010 9004163014 9004163014 9004179111 9004179111 9004183025 9004183025 9011906A06 9011906A06 9165340620
Part # Description Qty Price
87114L - COVER, HEATER, NO.2
87114-B1050

A210

 1
87139D - ELEMENT, AIR REFINER
87139-50100

A200,210

脱臭ﾌｨﾙﾀ

 1
87139-52040

A200,210

粗塵ﾌｨﾙﾀ

 1
88512 - DUCT, AIR
87214-B1070

A200,210

 1
88539J - HOSE, DRAIN COOLER
88539-B2110

A200,210

 1
88548B - CASE, AIR FILTER
88548-B1030

A200,210

 1
88569F - CLAMP
C8899-B2010

A200,210

 1
88648P - WIRE,AIR CONDITIONER,NO.1
88648-B1180

A210..G,Z

 1
88648-B1190

A210..X

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-B1190

A210;A200..X

 1
Common parts
81128-B2010
88899-B1010
88899-B2010
90041-63014
90041-79111
90041-83025
90119-06A06
91653-40620
Linked diagrams
5304
5501

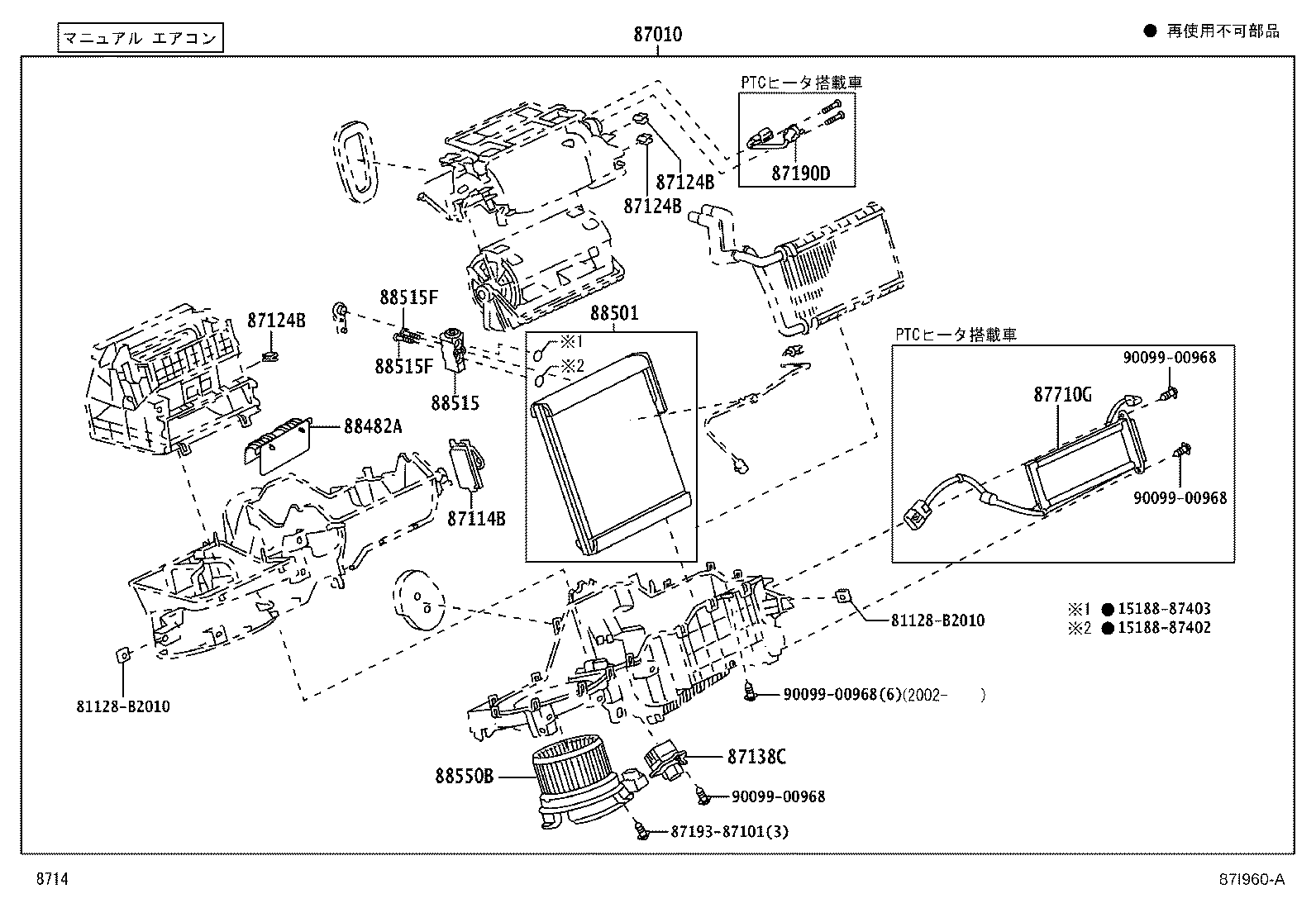

ILLUST NO. 2 OF 2(1910-2110)X

Click highlighted areas on diagram

ﾏﾆｭｱﾙ ｴｱｺﾝ

diagram 1518887402 1518887403 81128B2010 81128B2010 87010 87114B 87124B 87124B 87124B 87138C 87190D 8719387101 87710G 88482A 88501 88515 88515F 88515F 88550B 9009900968 9009900968 9009900968 9009900968
Part # Description Qty Price
87010 - UNIT ASSY, AIR CONDITIONER
87010-B1480

A210..X

 1
87010-B1500

A210..G,Z

 1
87114B - COVER, HEATER
87114-B1040

A200,210

 1
87124B - CLAMP, HEATER
87126-87501

A200,210..X

 3
87124B - CLAMP, HEATER
87126-87501

A200,210..X

 3
87124B - CLAMP, HEATER
87126-87501

A200,210..X

 3
87138C - RESISTOR, BLOWER
87138-B2040

A200,210..G,Z

 1
87138-B2050

A200,210..X

 1
87190D - SWITCH ASSY, TEMPERATURE CONTROL
87190-B1060

A210..X

 1
87710G - QUICK HEATER ASSY
87710-B1040

A210

 1
88482A - COVER
87114-B2090

A200,210

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-B1040

A200,210

 1
88515 - VALVE, COOLER EXPANSION
88515-B1050

A200,210

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
C9909-97201

A200,210

 2
88515F - BOLT(FOR COOLER EXPANSION VALVE)
C9909-97201

A200,210

 2
88550B - MOTOR ASSY, BLOWER
88550-B1150

A200,210

 1
Common parts
15188-87402
15188-87403
81128-B2010
87193-87101
90099-00968

ILLUST NO. 2 OF 2(1910-2110)G,Z

Click highlighted areas on diagram

ｵｰﾄ ｴｱｺﾝ

diagram 1518887402 1518887403 81128B2010 81128B2010 87010 87106H 87106J 87106Y 87114B 87138C 8719387101 87710G 88482A 88501 88515 88515F 88515F 88550B 88897U 9009900968 9009900968 9009900968 9009900968
Part # Description Qty Price
87010 - UNIT ASSY, AIR CONDITIONER
87010-B1480

A210..X

 1
87010-B1500

A210..G,Z

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
88660-B2040

A200,210..G,Z

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
88660-B2030

A200,210..G,Z

 1
87106Y - SERVO SUB-ASSY, DAMPER(FOR RECIRCULATION & FRESH)
88660-B2050

A200,210..G,Z

 1
87114B - COVER, HEATER
87114-B1040

A200,210

 1
87138C - RESISTOR, BLOWER
87138-B2040

A200,210..G,Z

 1
87138-B2050

A200,210..X

 1
87710G - QUICK HEATER ASSY
87710-B1040

A210

 1
88482A - COVER
87114-B2090

A200,210

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-B1040

A200,210

 1
88515 - VALVE, COOLER EXPANSION
88515-B1050

A200,210

 1
88515F - BOLT(FOR COOLER EXPANSION VALVE)
C9909-97201

A200,210

 2
88515F - BOLT(FOR COOLER EXPANSION VALVE)
C9909-97201

A200,210

 2
88550B - MOTOR ASSY, BLOWER
88550-B1150

A200,210

 1
88897U - PIPE, ASPIRATOR
88897-B2030

A200,210..G,Z

 1
Common parts
15188-87402
15188-87403
81128-B2010
87193-87101
90099-00968
