A210A-GBLV (2019)

Toyota Raize

Production Oct 2019 - Oct 2021
Engine 1KRVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1910- )

Click highlighted areas on diagram

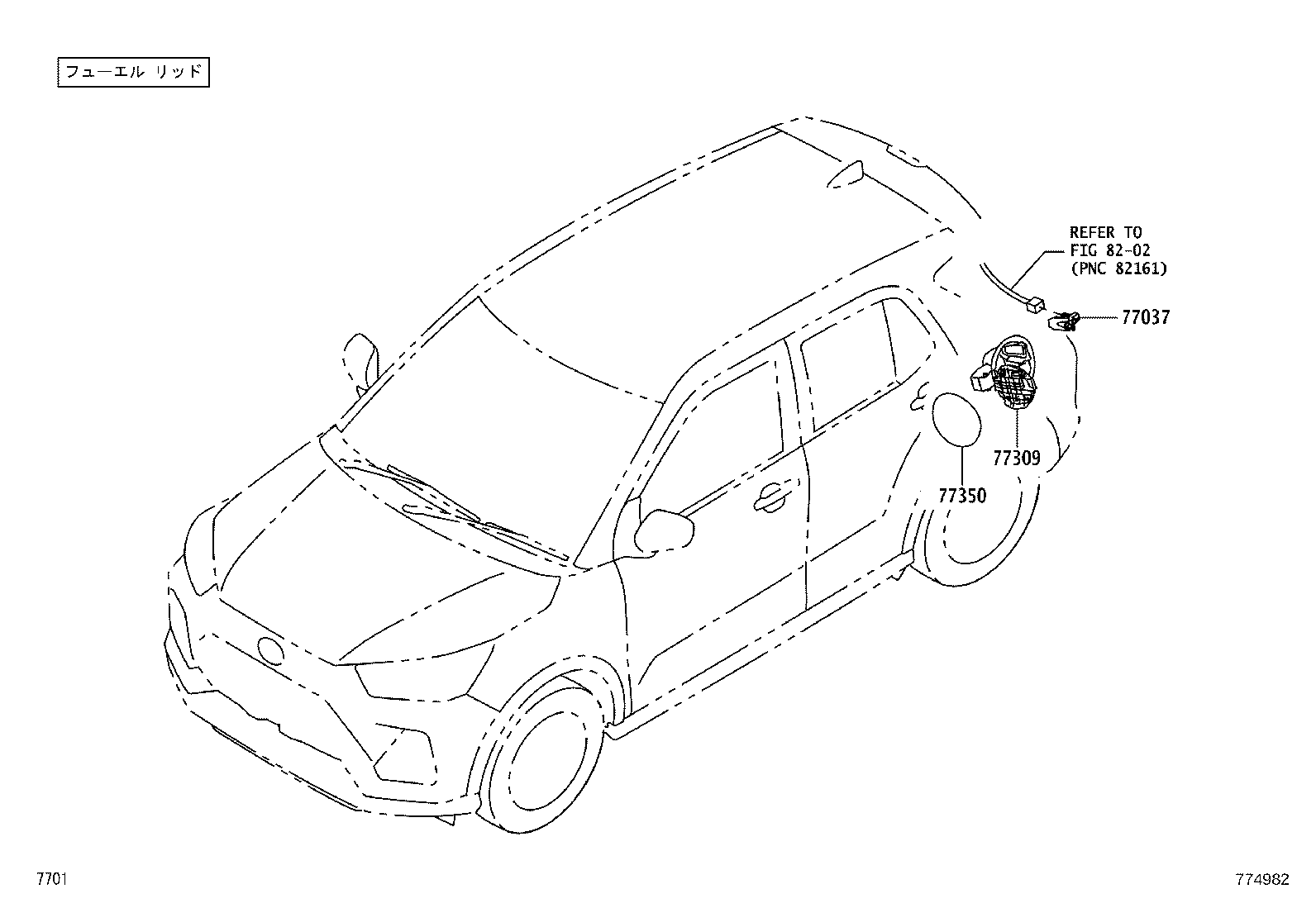

FUEL LID

diagram 77037 77309 77350 8202
Part # Description Qty Price
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-B2051

A200,210

 1
77037-B2050

A200,210

 1
77309 - HINGE SUB-ASSY, FUEL INLET BOX COVER
77308-B1031

A200,210

 1
77308-B1030

A200,210

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-B1050

A200,210

 1
Linked diagrams
8202

ILLUST NO. 2 OF 3(1910- )

Click highlighted areas on diagram

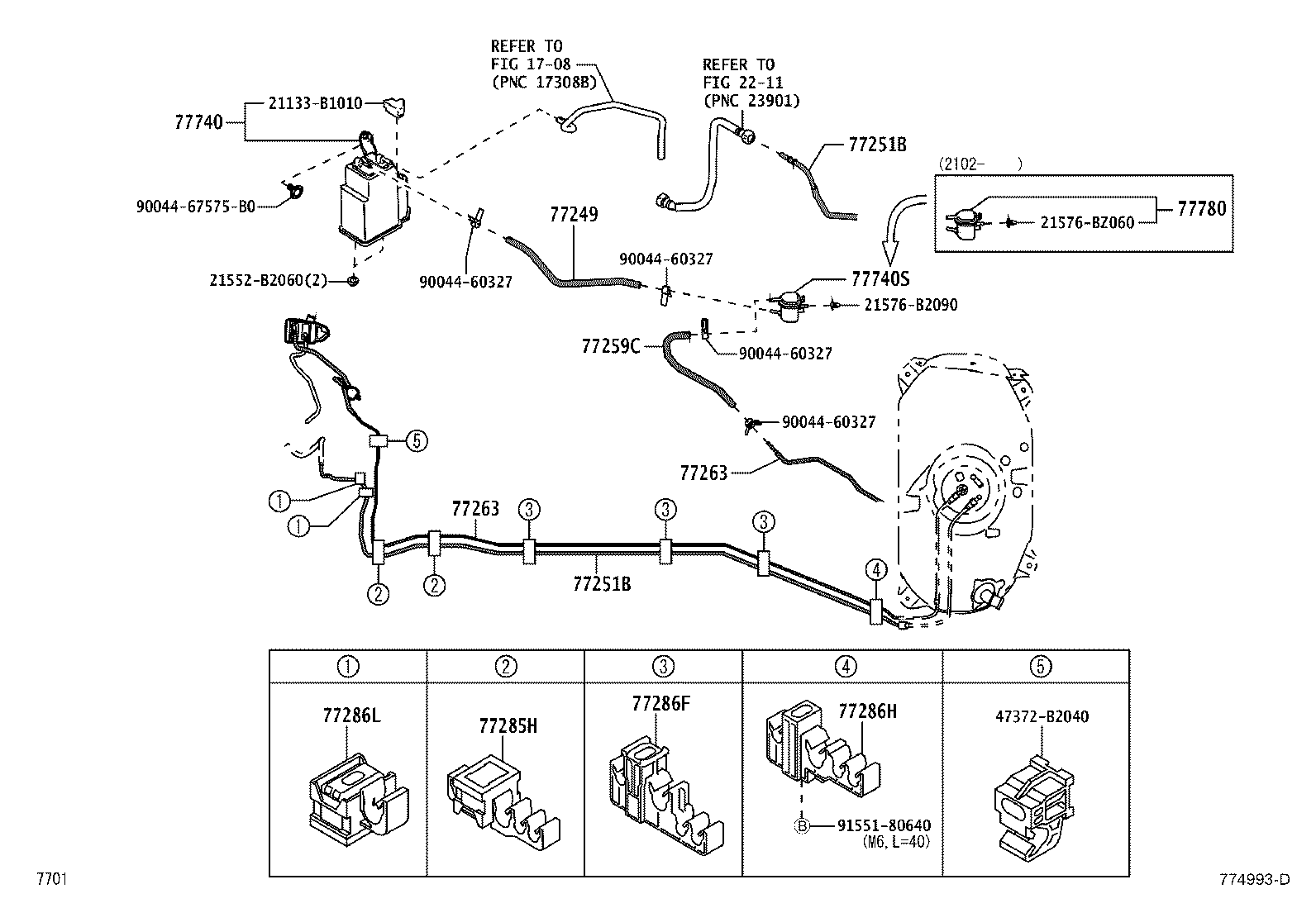

FUEL TUBE

diagram 1708 21133B1010 21552B2060 21576B2090 21576BZ060 2211 47372B2040 77249 77251B 77251B 77259C 77263 77263 77285H 77286F 77286H 77286L 77740 77740S 77780 9004460327 9004460327 9004460327 9004460327 9004467575B0 9155180640
Part # Description Qty Price
77249 - HOSE, FUEL EMISSION
77249-B1030

A200,210

 1
77251B - TUBE, FUEL MAIN
77251-B1070

A200,210

 1
77251B - TUBE, FUEL MAIN
77251-B1070

A200,210

 1
77259C - HOSE, FUEL
77259-B1030

A200,210

 1
77263 - TUBE, FUEL TANK TO CANISTER, NO.3
77263-B1070

A200,210

 1
77263 - TUBE, FUEL TANK TO CANISTER, NO.3
77263-B1070

A200,210

 1
77285H - CLAMP, FUEL TUBE, NO.1
77286-B2030

A200,210

 2
77286F - CLAMP, FUEL TUBE, NO.2
77299-B2010

A200,210

 3
77286H - CLAMP, FUEL TUBE, NO.3
77298-B2020

A200,210

 1
77286L - CLAMP, FUEL TUBE, NO.5
77286-B1010

A200,210

 2
77740 - CANISTER ASSY, CHARCOAL
77740-B1030

A200,210

 1
77740S - VALVE, CHECK
23122-B1010

A200,210

 1
77780 - VALVE ASSY, PURGE CONTROL
17660-B1030

A200,210

 1
Common parts
21133-B1010
21552-B2060
21576-B2090
21576-BZ060
47372-B2040
90044-60327
90044-67575B0
91551-80640
Linked diagrams
1708
2211

ILLUST NO. 1 OF 3(1910-2110)A210

Click highlighted areas on diagram

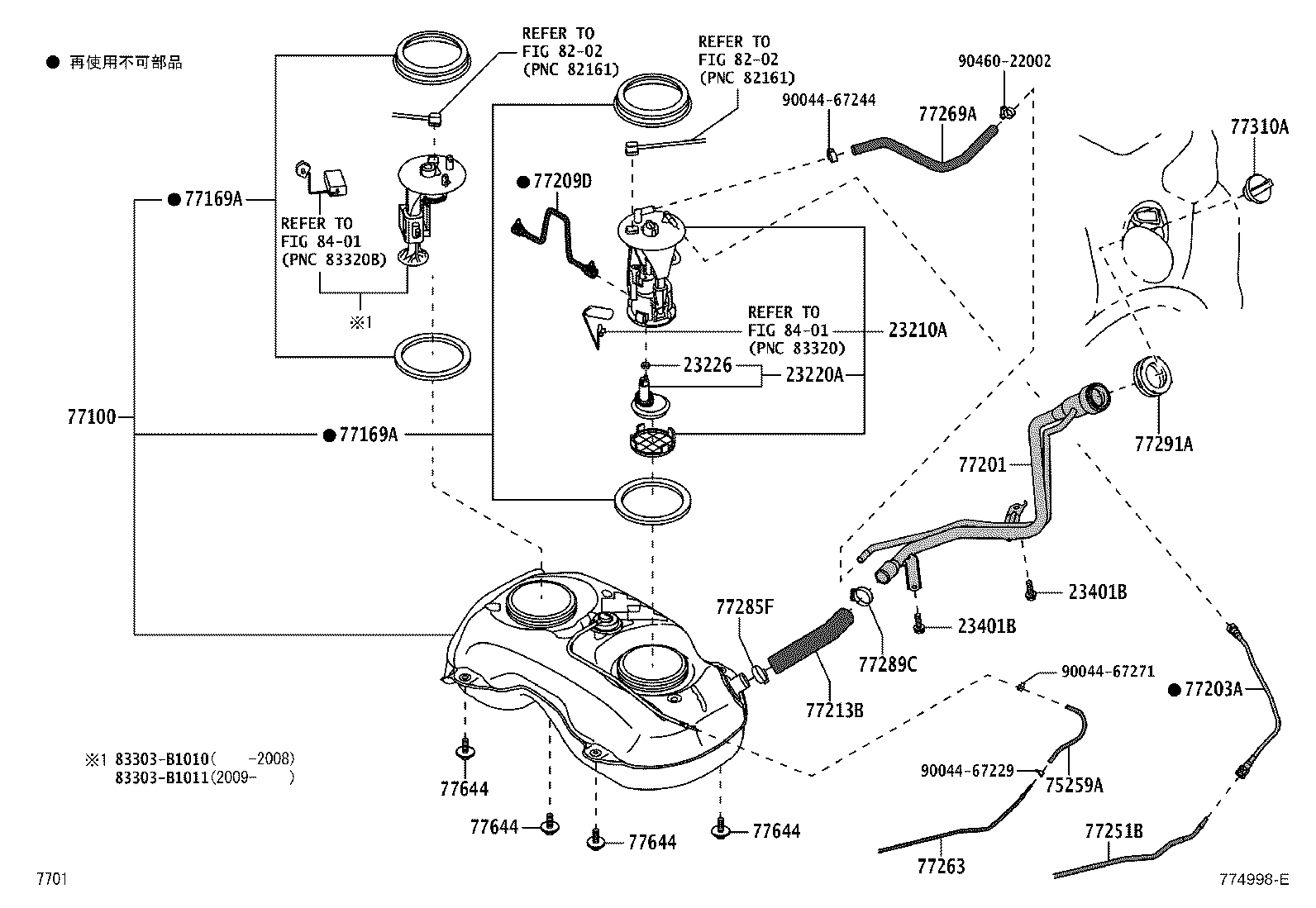

FUEL TANK(4WD)

diagram 23210A 23220A 23226 23401B 23401B 75259A 77100 77169A 77169A 77201 77203A 77209D 77213B 77251B 77263 77269A 77285F 77289C 77291A 77310A 77644 77644 77644 77644 8202 8202 83303B1010 83303B1011 8401 8401 9004467229 9004467244 9004467271 9046022002
Part # Description Qty Price
23210A - PUMP ASSY, FUEL W/MOTOR & BRACKET
23210-B1161

1KRVET..A210

 1
23210-B1160

1KRVET..A210

 1
23220A - PUMP ASSY, FUEL W/FILTER
23220-B1030

1KRVET..A210

 1
23226 - RING, O(FOR FUEL PUMP)
9004C-30006

1KRVET..A200,210

 1
23401B - BOLT
90041-20137

1KRVET..A200,210

M8,L=20

 2
23401B - BOLT
90041-20137

1KRVET..A200,210

M8,L=20

 2
75259A - HOSE, FUEL
77259-B2050

A200,210

 1
77100 - TANK ASSY, FUEL
77001-B1110

A210

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-B2030

A210

 2
77169A - GASKET, FUEL SUCTION TUBE SET
77169-B2030

A210

 2
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-B1240

A210

 1
77203A - TUBE SUB-ASSY, FUEL SUCTION
77203-B1060

A210

 1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-B1010

A210

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-B1070

A210

長さ=241

 1
77251B - TUBE, FUEL MAIN
77251-B1070

A200,210

 1
77263 - TUBE, FUEL TANK TO CANISTER, NO.3
77263-B1070

A200,210

 1
77269A - HOSE, FUEL TANK BREATHER
77269-B1060

A210

 1
77285F - CLAMP, FUEL TUBE, NO.1
90044-60129

A200,210

 1
77289C - CLAMP, FUEL TUBE, NO.4
90044-60129

A200,210

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-B2060

A200,210

 1
77310A - CAP ASSY, FUEL TANK
77300-52030

A200,210

 1
77644 - BOLT, FUEL TANK
90041-20292

A200,210

M8,L=29.5

 4
77644 - BOLT, FUEL TANK
90041-20292

A200,210

M8,L=29.5

 4
77644 - BOLT, FUEL TANK
90041-20292

A200,210

M8,L=29.5

 4
77644 - BOLT, FUEL TANK
90041-20292

A200,210

M8,L=29.5

 4
Common parts
83303-B1010
83303-B1011
90044-67229
90044-67244
90044-67271
90460-22002
Linked diagrams
8202
8401
