A210A-GBLV (2019)

Toyota Raize

Production Oct 2019 - Oct 2021
Engine 1KRVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1910-2110)

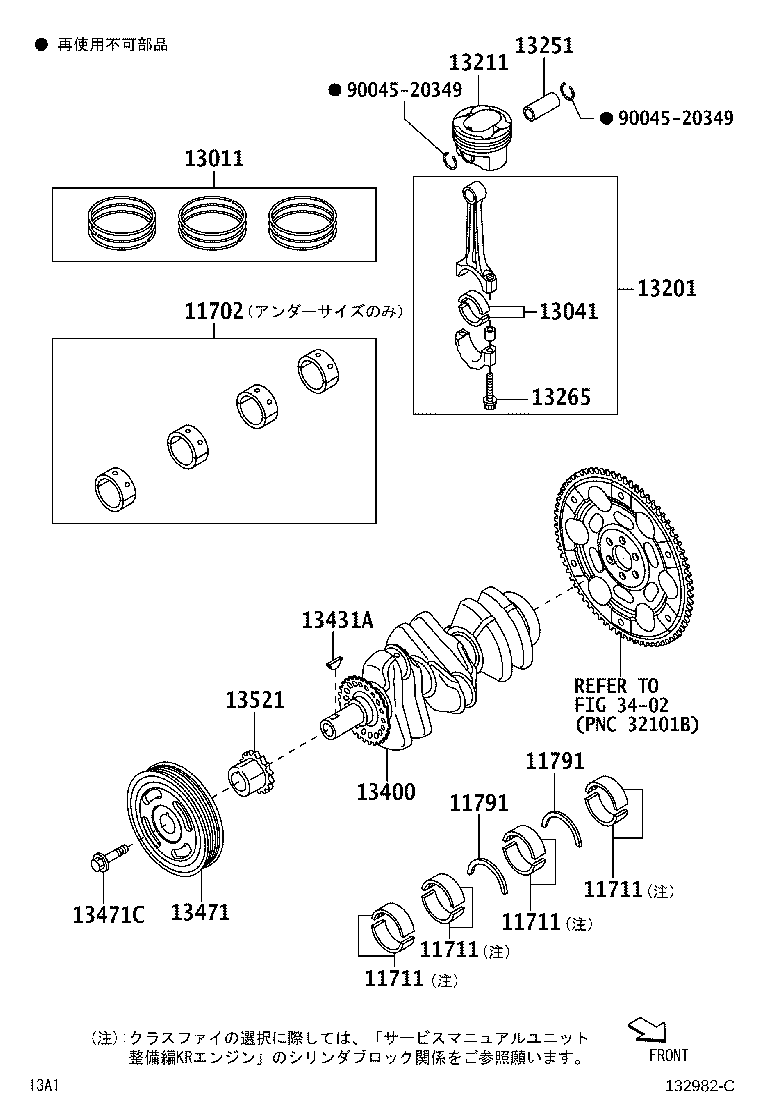

Click highlighted areas on diagram

diagram 11702 11711 11711 11711 11711 11791 11791 13011 13041 13201 13211 13251 13265 13400 13431A 13471 13471C 13521 3402 9004520349 9004520349
Part # Description Qty Price
11702 - BEARING SET, CRANKSHAFT
11704-40040

1KRVET..A200,210

U/S 0.25

 1
11711 - BEARING, CRANKSHAFT
11701-4004003

1KRVET..A200,210

MARK3,修理書参照

 4
11701-4004002

1KRVET..A200,210

MARK2,修理書参照

 4
11701-4004005

1KRVET..A200,210

MARK5,修理書参照

 4
11701-4004004

1KRVET..A200,210

MARK4,修理書参照

 4
11711 - BEARING, CRANKSHAFT
11701-4004002

1KRVET..A200,210

MARK2,修理書参照

 4
11701-4004003

1KRVET..A200,210

MARK3,修理書参照

 4
11701-4004005

1KRVET..A200,210

MARK5,修理書参照

 4
11701-4004004

1KRVET..A200,210

MARK4,修理書参照

 4
11711 - BEARING, CRANKSHAFT
11701-4004002

1KRVET..A200,210

MARK2,修理書参照

 4
11701-4004003

1KRVET..A200,210

MARK3,修理書参照

 4
11701-4004005

1KRVET..A200,210

MARK5,修理書参照

 4
11701-4004004

1KRVET..A200,210

MARK4,修理書参照

 4
11711 - BEARING, CRANKSHAFT
11701-4004002

1KRVET..A200,210

MARK2,修理書参照

 4
11701-4004003

1KRVET..A200,210

MARK3,修理書参照

 4
11701-4004005

1KRVET..A200,210

MARK5,修理書参照

 4
11701-4004004

1KRVET..A200,210

MARK4,修理書参照

 4
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11793-40040

1KRVET..A200,210

O/S 0.25

 2
11792-40040

1KRVET..A200,210

O/S 0.125

 2
11791-40040

1KRVET..A200,210

STD

 2
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11793-40040

1KRVET..A200,210

O/S 0.25

 2
11792-40040

1KRVET..A200,210

O/S 0.125

 2
11791-40040

1KRVET..A200,210

STD

 2
13011 - RING SET, PISTON
13011-40070

1KRVET..A200,210

STD

 1
13041 - BEARING, CONNECTING ROD
13041-4003202

1KRVET..A200,210

MARK2,修理書参照

 3
13041-4003203

1KRVET..A200,210

MARK3,修理書参照

 3
13041-4003201

1KRVET..A200,210

MARK1,修理書参照

 3
13201 - ROD SUB-ASSY, CONNECTING
13201-B91100X

1KRVET..A200,210

MARK X,修理書参照

 3
13201-B91100Z

1KRVET..A200,210

MARK Z,修理書参照

 3
13201-B91100Y

1KRVET..A200,210

MARK Y,修理書参照

 3
13211 - PISTON
13211-B1120YY

1KRVET..A200,210

MARK YY,修理書参照

 3
13211-B1120XX

1KRVET..A200,210

MARK XX,修理書参照

 3
13211-B1120ZZ

1KRVET..A200,210

MARK ZZ,修理書参照

 3
13251 - PIN, PISTON
13251-B10200Y

1KRVET..A200,210

MARK Y,修理書参照

 3
13251-B10200X

1KRVET..A200,210

MARK X,修理書参照

 3
13251-B10200Z

1KRVET..A200,210

MARK Z,修理書参照

 3
13265 - BOLT, CONNECTING ROD
13265-21020

1KRVET..A200,210

 6
13400 - CRANKSHAFT ASSY
13401-40060

1KRVET..A200,210

 1
13431A - KEY, WOODRUFF(FOR DISTRIBUTOR DRIVE GEAR)
90280-04001

1KRVET..A200,210

 1
13471 - PULLEY, CRANKSHAFT
13470-B1040

1KRVET..A200,210

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-14106

1KRVET..A200,210

M14,L=45

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-40020

1KRVET..A200,210

 1
Common parts
90045-20349
Linked diagrams
3402
