A200A-GBXV (2019)

Toyota Raize

Production Oct 2019 - Oct 2021
Engine 1KRVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1910-2110)

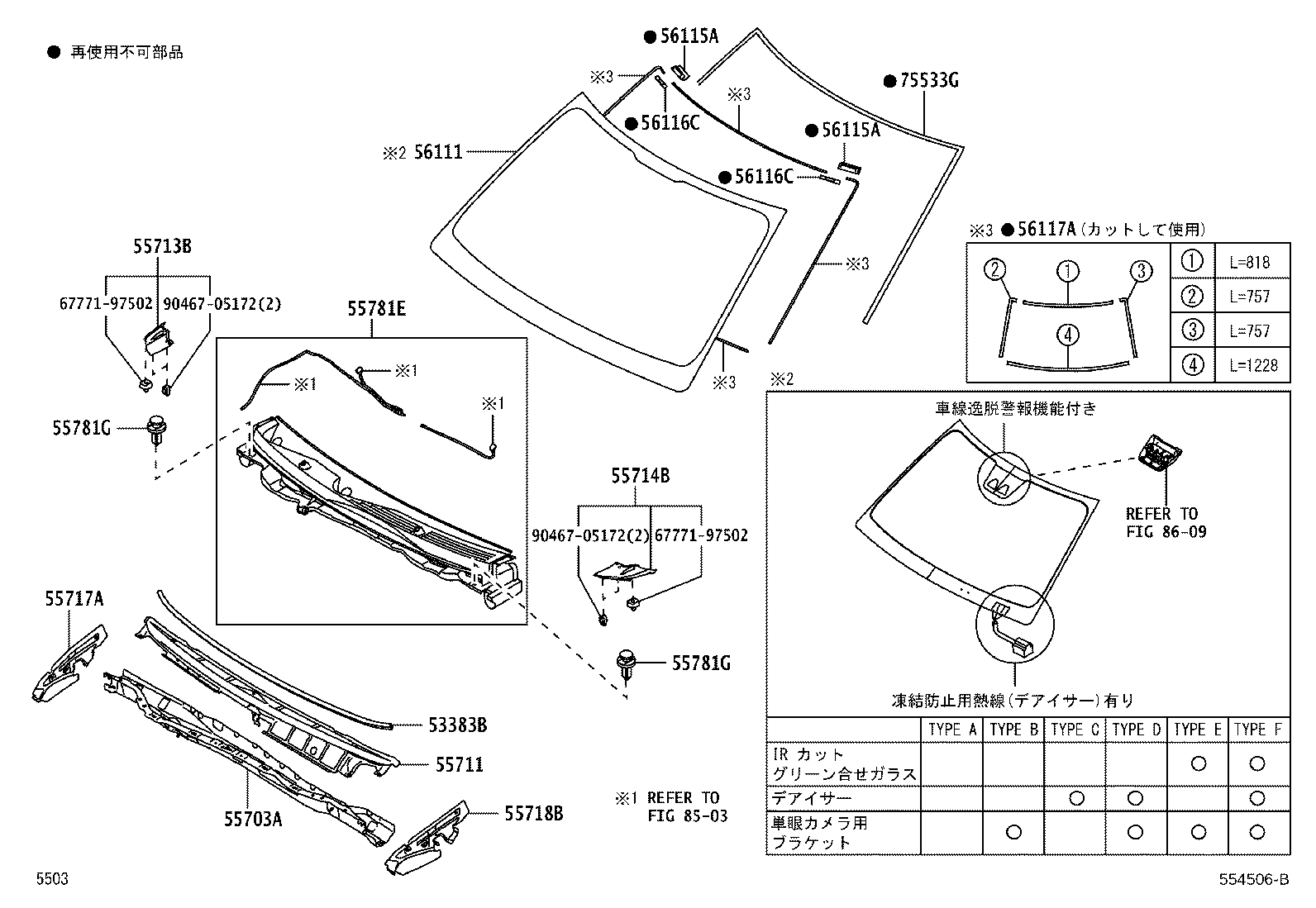

Click highlighted areas on diagram

diagram 53383B 55703A 55711 55713B 55714B 55717A 55718B 55781E 55781G 55781G 56111 56115A 56115A 56116C 56116C 56117A 6777197502 6777197502 75533G 8503 8609 9046705172 9046705172
Part # Description Qty Price
53383B - SEAL, HOOD TO COWL TOP
53383-B1070

A200,210

 1
55703A - PANEL SUB-ASSY, COWL TOP, INNER
55703-B1190

A200,210

 1
55711 - PANEL, COWL TOP, OUTER
55701-B1060

A200,210

 1
55713B - COVER, COWL SIDE PANEL HOLE, RH
53445-B1030

A200,210

 1
55714B - COVER, COWL SIDE PANEL HOLE, LH
53446-B1030

A200,210

 1
55717A - PANEL, COWL TOP SIDE, INNER RH
55717-B1080

A200,210

 1
55718B - PANEL, COWL TOP SIDE, INNER LH
55718-B1080

A200,210

 1
55781E - LOUVER SUB-ASSY, COWL TOP VENTILATOR
55708-B1090

A200,210

 1
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90044-68378

A200,210

 2
55781G - CLIP, COWL TOP VENTILATOR LOUVER
90044-68378

A200,210

 2
56111 - GLASS, WINDSHIELD
56101-B1400

A200..G,Z

ﾀｲﾌﾟ E

 1
56101-B1380

A200..X

予防安全ﾊﾟｯｹｰｼﾞ無し&寒冷地仕様(X/L),ﾀｲﾌﾟ C

 1
56101-B1390

A200..X

寒冷地仕様(X/L),ﾀｲﾌﾟ D

 1
56101-B1410

A200..G

寒冷地仕様(X/L),ﾀｲﾌﾟ F

 1
56111-B1340

A200..X

予防安全ﾊﾟｯｹｰｼﾞ無し,ﾀｲﾌﾟ A

 1
56101-B1370

A200..X

ﾀｲﾌﾟ B

 1
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-97402

A200,210

 2
56115A - STOPPER, WINDSHIELD GLASS, NO.1
56115-97402

A200,210

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-97401

A200,210

 2
56116C - STOPPER, WINDSHIELD GLASS, NO.2
56116-97401

A200,210

 2
56117A - DAM, WINDOW GLASS ADHESIVE
56117-B1070

A200,210

長さ=3560

 1
75533G - MOULDING, WINDSHIELD, OUTSIDE
75533-B1070

A200,210

 1
Common parts
67771-97502
90467-05172
Linked diagrams
8503
8609
