A200A-GBXV (2019)

Toyota Raize

Production Oct 2019 - Oct 2021
Engine 1KRVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1910- )

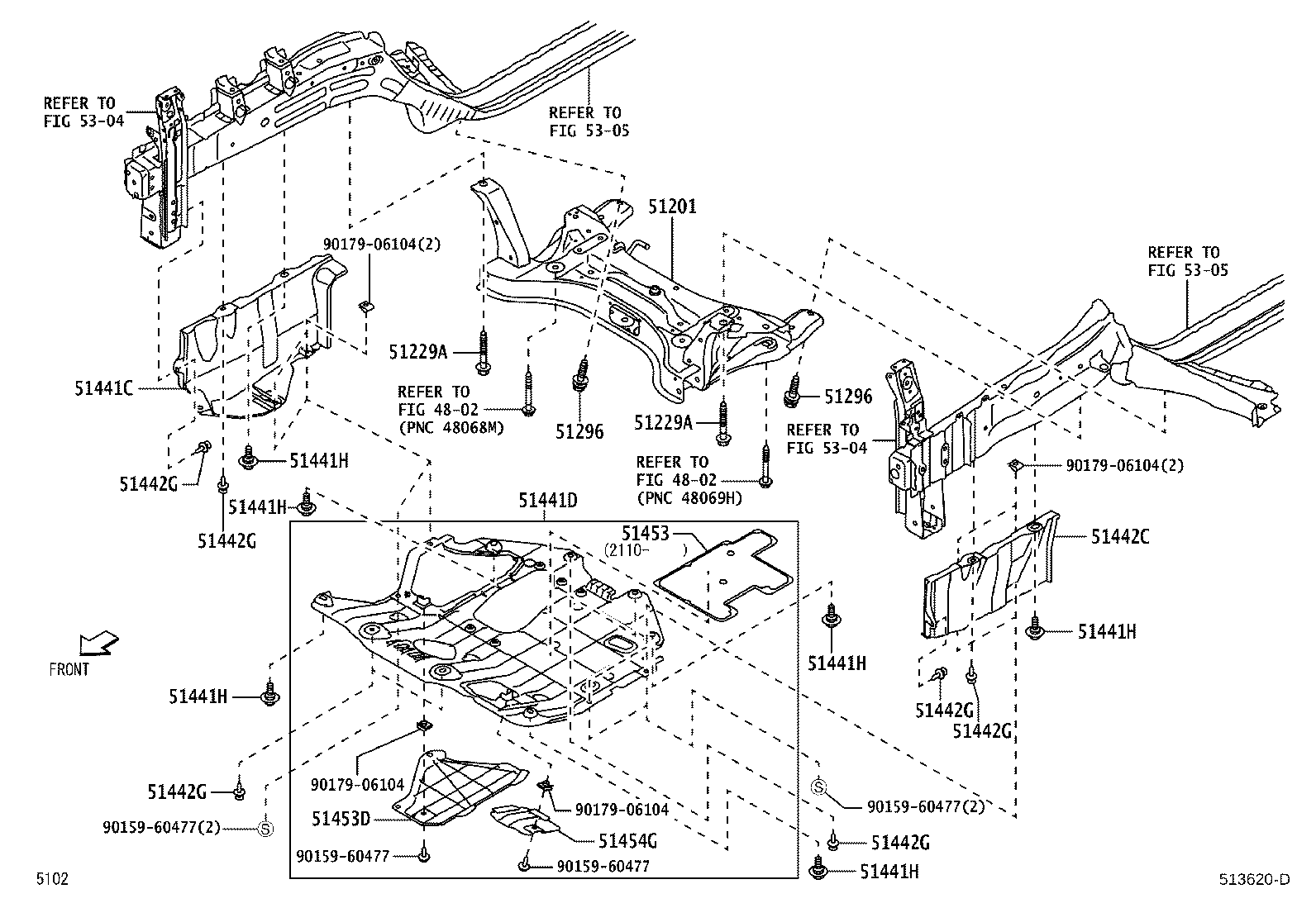

Click highlighted areas on diagram

diagram 4802 4802 51201 51229A 51229A 51296 51296 51441C 51441D 51441H 51441H 51441H 51441H 51441H 51441H 51442C 51442G 51442G 51442G 51442G 51442G 51442G 51453 51453D 51454G 5304 5304 5305 5305 9015960477 9015960477 9015960477 9015960477 9017906104 9017906104 9017906104 9017906104
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-B1170

A200,210

 1
51229A - BOLT, FRONT SUSPENSION MEMBER MOUNTING
90041-05594

A200,210

M12,L=91

 2
51229A - BOLT, FRONT SUSPENSION MEMBER MOUNTING
90041-05594

A200,210

M12,L=91

 2
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
91673-A1025

A200,210

M10,L=31

 2
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
91673-A1025

A200,210

M10,L=31

 2
51441C - COVER, ENGINE UNDER, RH
51441-B1100

A200,210

 1
51441D - COVER, ENGINE UNDER
51405-B1030

A200,210

 1
51441H - BOLT, W/WASHER(FOR ENGINE UNDER COVER)
90041-05546

A200,210

M6,L=18

 6
51441H - BOLT, W/WASHER(FOR ENGINE UNDER COVER)
90041-05546

A200,210

M6,L=18

 6
51441H - BOLT, W/WASHER(FOR ENGINE UNDER COVER)
90041-05546

A200,210

M6,L=18

 6
51441H - BOLT, W/WASHER(FOR ENGINE UNDER COVER)
90041-05546

A200,210

M6,L=18

 6
51441H - BOLT, W/WASHER(FOR ENGINE UNDER COVER)
90041-05546

A200,210

M6,L=18

 6
51441H - BOLT, W/WASHER(FOR ENGINE UNDER COVER)
90041-05546

A200,210

M6,L=18

 6
51442C - COVER, ENGINE UNDER, LH
51442-B1080

A200,210

 1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90044-68378

A200,210

 8
51442G - CLIP, ENGINE UNDER COVER, NO.1
90044-68378

A200,210

 8
51442G - CLIP, ENGINE UNDER COVER, NO.1
90044-68378

A200,210

 8
51442G - CLIP, ENGINE UNDER COVER, NO.1
90044-68378

A200,210

 8
51442G - CLIP, ENGINE UNDER COVER, NO.1
90044-68378

A200,210

 8
51442G - CLIP, ENGINE UNDER COVER, NO.1
90044-68378

A200,210

 8
51453D - COVER, ENGINE ROOM UNDER, RH
51453-B1030

A200,210

 1
51454G - COVER, ENGINE ROOM UNDER, LH
51454-B1030

A200,210

 1
Common parts
90159-60477
90179-06104
Linked diagrams
4802
5304
5305
