A200A-GBXV (2019)
Toyota Raize
Production
Oct 2019
-
Oct 2021
Engine
1KRVET
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1910-2110)A200

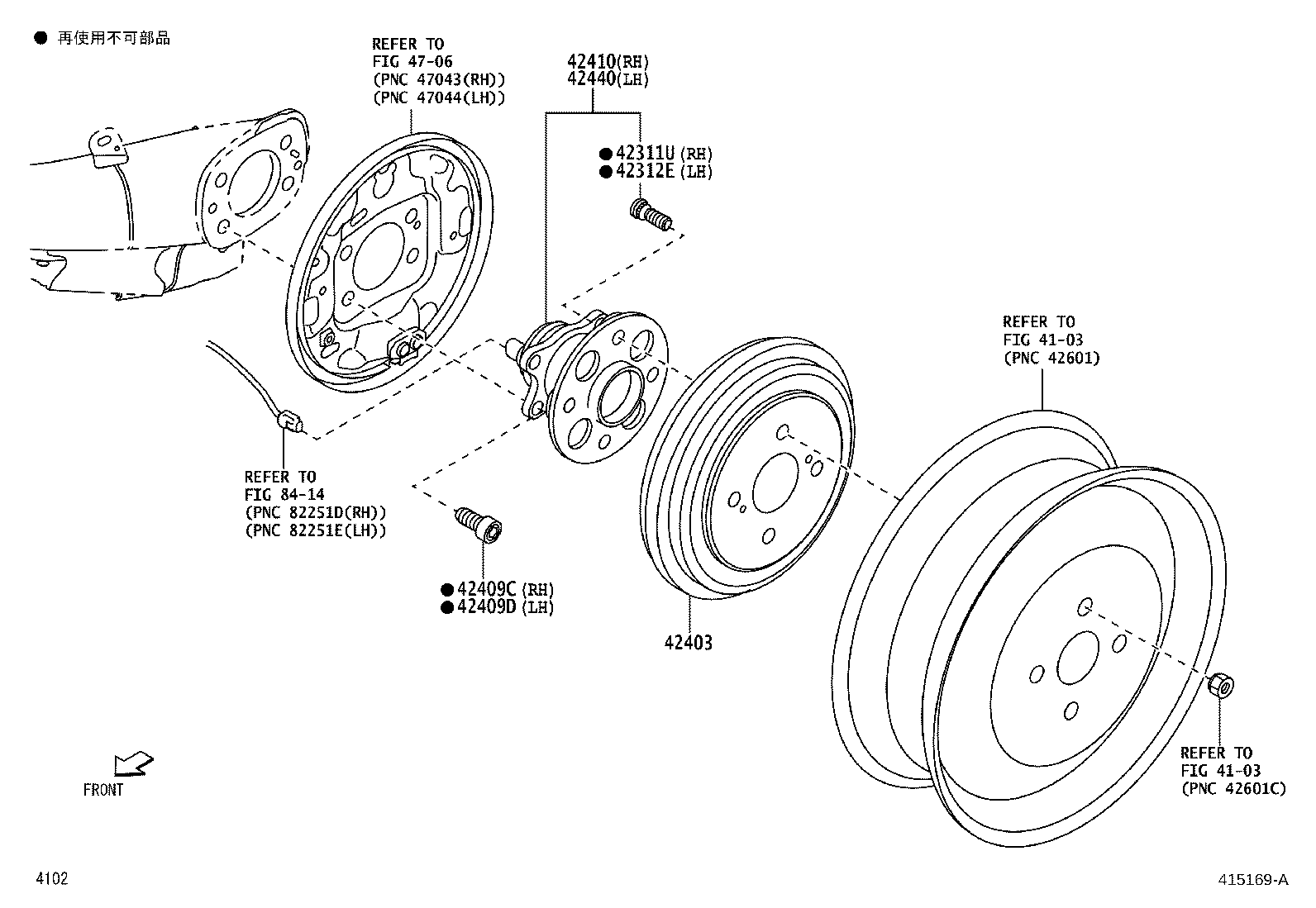

Click highlighted areas on diagram
2WD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90049-12056 |
A200 M12,L=39 |
4 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90049-12056 |
A200 M12,L=39 |
4 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-B1060 |
A200 |
2 | ||
| 42409C - BOLT (FOR REAR AXLE BEARING RH) | ||||
| 90041-01719 |
A200 M12,L=30 |
4 | ||
| 42409D - BOLT (FOR REAR AXLE BEARING LH) | ||||
| 90041-01719 |
A200 M12,L=30 |
4 | ||
| 42410 - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-B1100 |
A200 ｾﾝｻｰ付き |
1 | ||
| 42440 - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-B1100 |
A200 ｾﾝｻｰ付き |
1 | ||
| Linked diagrams | ||||
| 4103 | ||||
| 4706 | ||||
| 8414 | ||||
