A200A-GBSV (2019)

Toyota Raize

Production Oct 2019 - Oct 2021
Engine 1KRVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1910-2110)

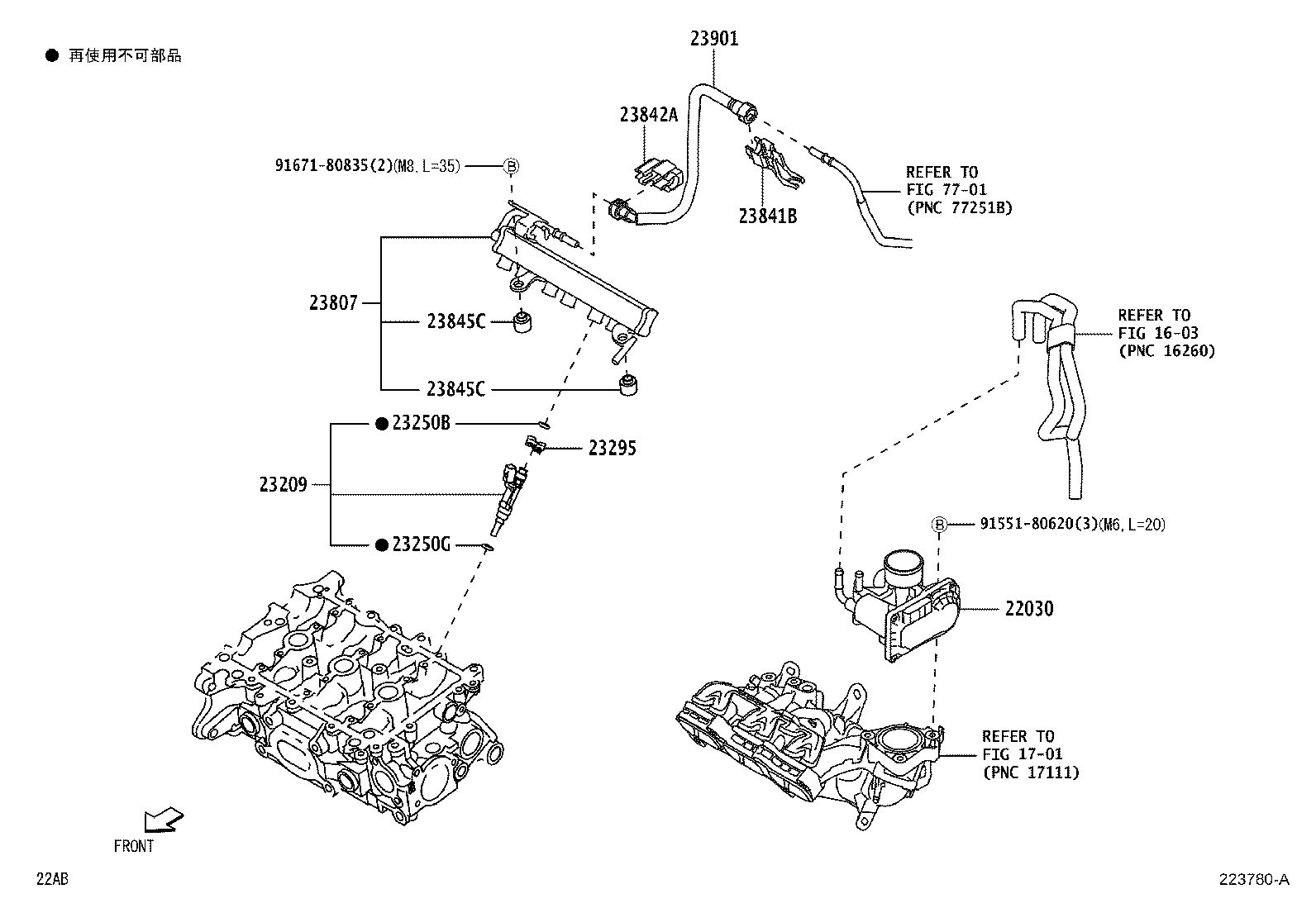

Click highlighted areas on diagram

diagram 1603 1701 22030 23209 23250B 23250G 23295 23807 23841B 23842A 23845C 23845C 23901 7701 9155180620 9167180835
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-B1040

1KRVET..A200,210

 1
23209 - INJECTOR SET, FUEL
23209-B1050

1KRVET..A200,210

 6
23250B - RING, O(FOR FUEL INJECTOR)
90043-01349

1KRVET..A200,210

 6
23250G - RING, O, NO.2(FOR FUEL INJECTOR)
90043-01372

1KRVET..A200,210

 6
23295 - HOLDER, INJECTOR, NO.1
23295-B1010

1KRVET..A200,210

 6
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-B1060

1KRVET..A200,210

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-B1010

1KRVET..A200,210

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-B5010

1KRVET..A200,210

 1
23845C - INSULATOR, FUEL PIPE
23845-40010

1KRVET..A200,210

 2
23845C - INSULATOR, FUEL PIPE
23845-40010

1KRVET..A200,210

 2
23901 - TUBE SUB-ASSY, FUEL
23901-B1070

1KRVET..A200,210

 1
Common parts
91551-80620
91671-80835
Linked diagrams
1603
1701
7701
