A200A-GBLV (2019)

Toyota Raize

Production Oct 2019 - Oct 2021
Engine 1KRVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1910- )

Click highlighted areas on diagram

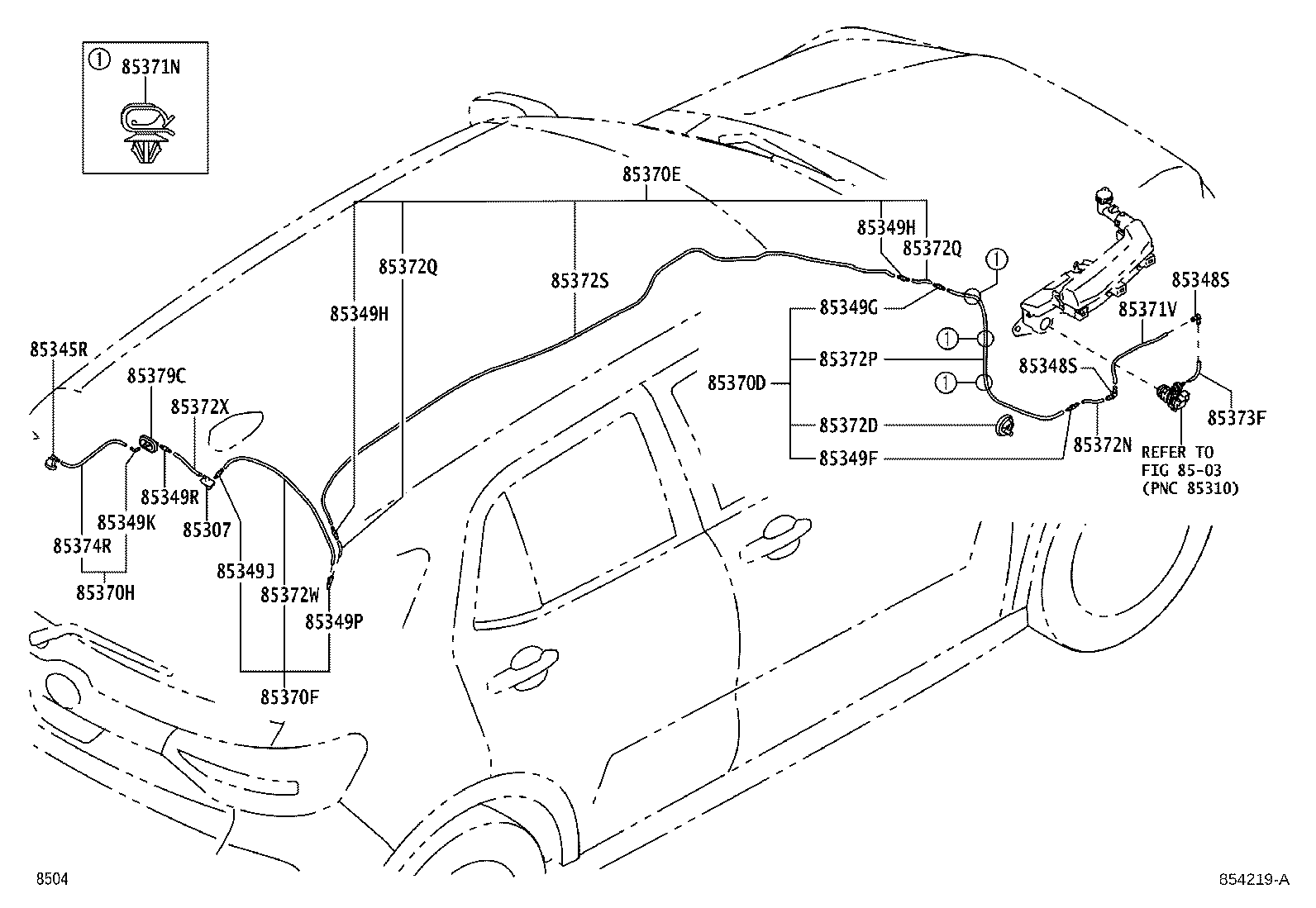

diagram 8503 85307 85345R 85348S 85348S 85349F 85349G 85349H 85349H 85349J 85349K 85349P 85349R 85370D 85370E 85370F 85370H 85371N 85371V 85372D 85372N 85372P 85372Q 85372Q 85372S 85372W 85372X 85373F 85374R 85379C
Part # Description Qty Price
85307 - GROMMET SUB-ASSY, WASHER
85307-B2040

A200,210

 1
85345R - NOZZLE, REAR WASHER
85391-B1060

A200,210

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85349-87602

A200,210

 2
85348S - JOINT, REAR WASHER ELBOW, NO.1
85349-87602

A200,210

 2
85349F - JOINT, REAR WASHER HOSE, NO.1
85349-87201

A200,210

 1
85349G - JOINT, REAR WASHER HOSE, NO.2
85349-87201

A200,210

 1
85349H - JOINT, REAR WASHER HOSE, NO.3
85349-87201

A200,210

 2
85349H - JOINT, REAR WASHER HOSE, NO.3
85349-87201

A200,210

 2
85349J - JOINT, REAR WASHER HOSE, NO.4
85349-87201

A200,210

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85349-87602

A200,210

 1
85349P - JOINT, REAR WASHER ELBOW, NO.3
85355-97202

A200,210

 1
85349R - JOINT, REAR WASHER HOSE, NO.5
85349-87201

A200,210

 1
85370D - HOSE ASSY, REAR WASHER, NO.1
85370-B1520

A200,210

 1
85370E - HOSE ASSY, REAR WASHER, NO.2
85370-B1530

A200,210

 1
85370F - HOSE ASSY, REAR WASHER, NO.3
85370-B1540

A200,210

 1
85370H - HOSE ASSY, REAR WASHER, NO.4
85370-B1450

A200,210

 1
85371N - CLAMP, REAR WASHER HOSE
82711-B2010

A200,210

 3
85371V - HOSE, REAR WASHER (FROM JOINT TO JOINT)
85376-87202

A200,210

長さ=1000,使用ｻｲｽﾞ L=170

 1
85372D - GROMMET, REAR WASHER HOSE
85373-B1020

A200,210

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85375-87502

A200,210

長さ=1000,使用ｻｲｽﾞ L=40

 1
85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85376-87202

A200,210

長さ=1000,使用ｻｲｽﾞ L=680

 1
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85343-97401

A200,210

長さ=1000,使用ｻｲｽﾞ L=120

 2
85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85343-97401

A200,210

長さ=1000,使用ｻｲｽﾞ L=120

 2
85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4
85374-97203

A200,210

長さ=3000,使用ｻｲｽﾞ L=2140

 1
85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5
85376-87202

A200,210

長さ=1000,使用ｻｲｽﾞ L=550

 1
85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
85375-87502

A200,210

長さ=1000,使用ｻｲｽﾞ L=100

 1
85373F - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.8
85376-87202

A200,210

長さ=1000,使用ｻｲｽﾞ L=70

 1
85374R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
85375-87502

A200,210

長さ=1000,使用ｻｲｽﾞ L=220

 1
85379C - GROMMET, REAR WASHER HOSE NO.1
85373-B2040

A200,210

 1
