A200A-GBLV (2019)

Toyota Raize

Production Oct 2019 - Oct 2021
Engine 1KRVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1910- )

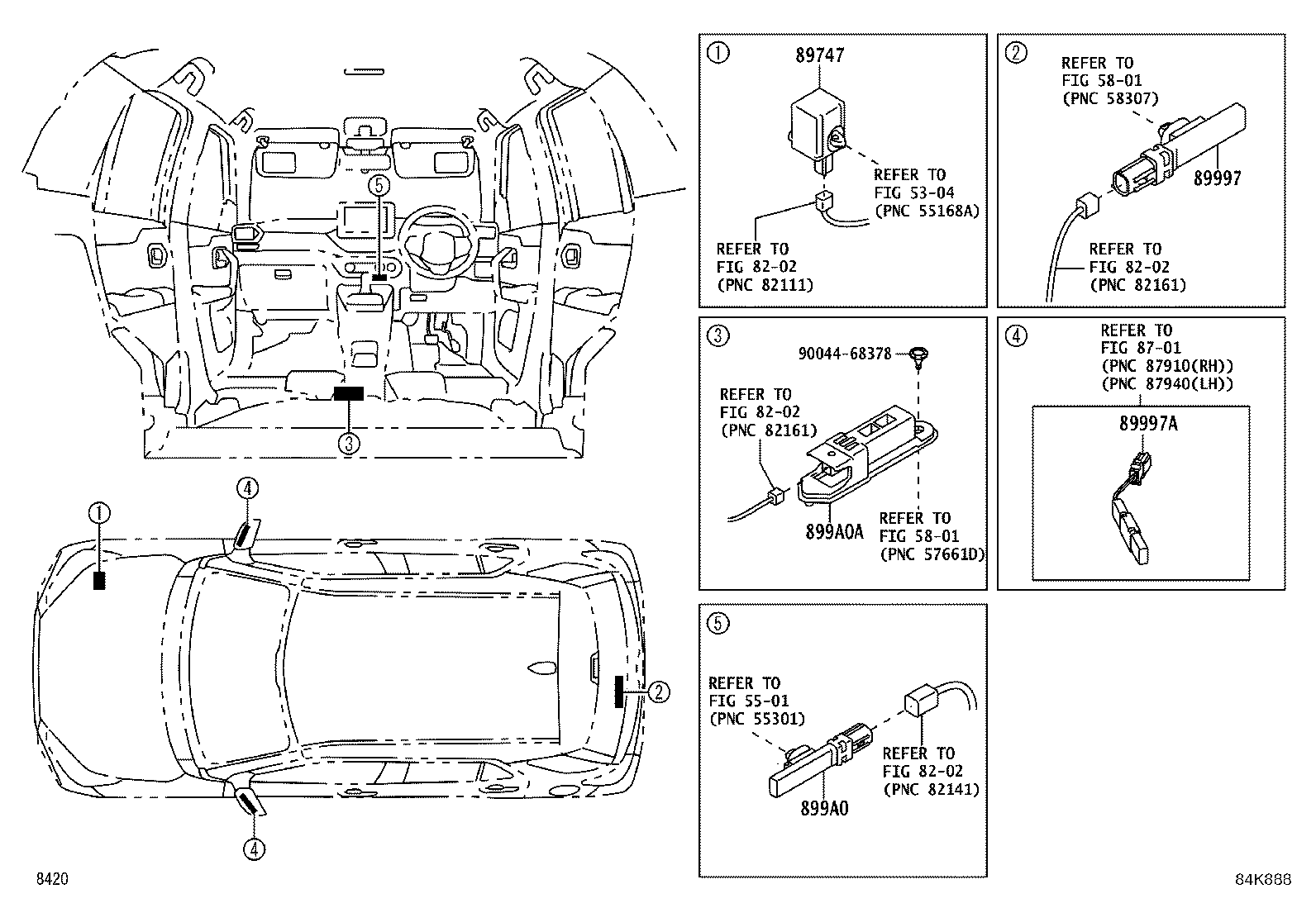

Click highlighted areas on diagram

diagram 5304 5501 5801 5801 8202 8202 8202 8202 8701 89747 89997 89997A 899A0 899A0A 9004468378
Part # Description Qty Price
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

A200,210

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-B1140

A200,210

 1
89997A - ANTENNA, ELECTRICAL KEY, NO.2
89997-B2380

A200,210

 2
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
89997-B2360

A200,210

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
89997-B1120

A200,210

 1
Common parts
90044-68378
Linked diagrams
5304
5501
5801
8202
8701
