A200A-GBLV (2019)

Toyota Raize

Production Oct 2019 - Oct 2021
Engine 1KRVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1910- )

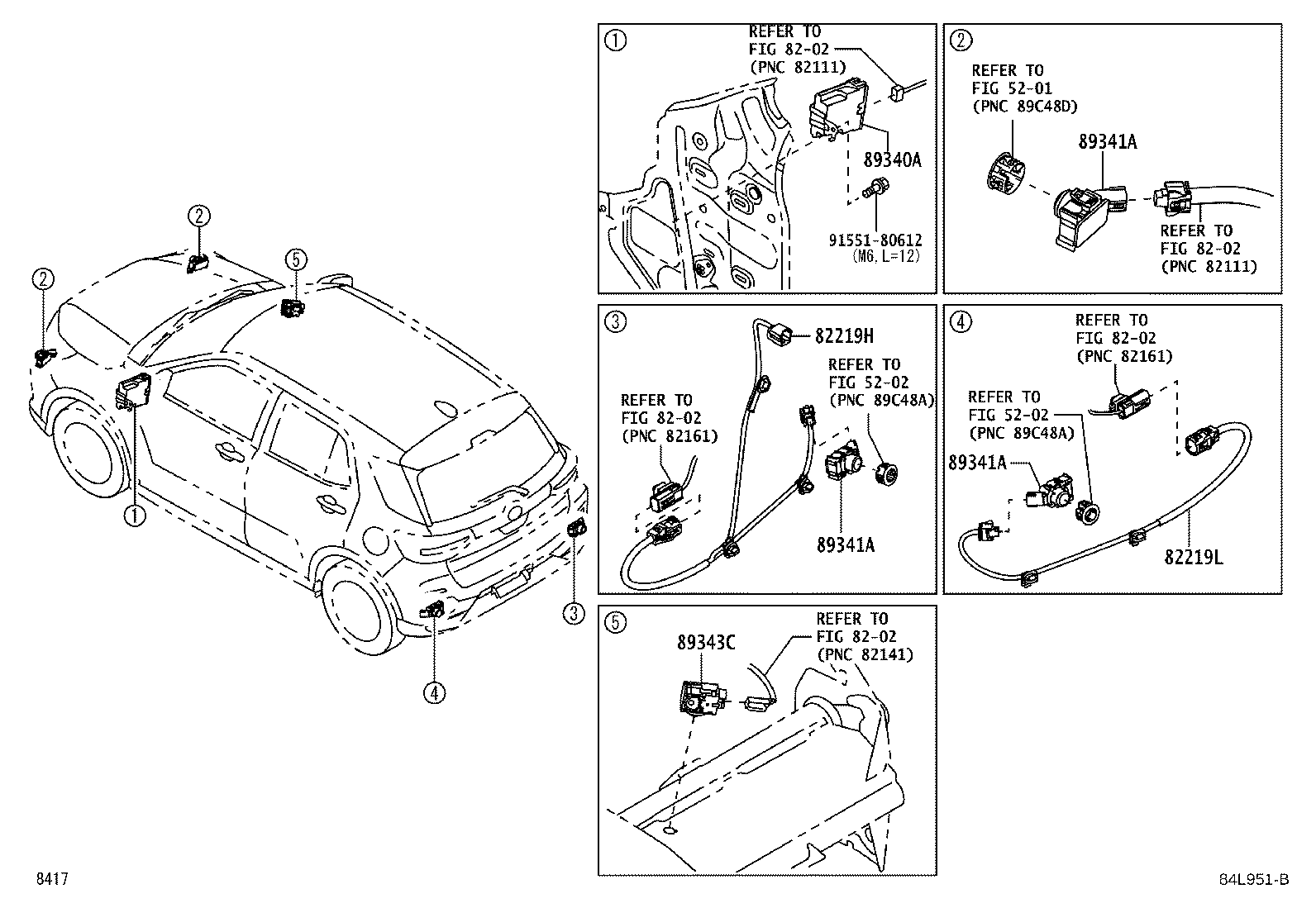

Click highlighted areas on diagram

diagram 5201 5202 5202 8202 8202 8202 8202 8202 82219H 82219L 89340A 89341A 89341A 89341A 89343C 9155180612
Part # Description Qty Price
82219H - WIRE, SENSOR
82219-B1230

A200,210..X

予防安全ﾊﾟｯｹｰｼﾞ無し,ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ 無し

 1
82219-B1230

A200,210..G,X

ﾘﾔ ﾌｫｸﾞﾗﾝﾌﾟ 無し

 1
82219L - WIRE, SENSOR
82219-B1230

A200,210

 1
82219-B1230

A200,210..X

予防安全ﾊﾟｯｹｰｼﾞ無し

 1
89340A - COMPUTER ASSY, CLEARANCE WARNING
89340-B1100

A200,210

 1
00000-00000

A200,210..X

予防安全ﾊﾟｯｹｰｼﾞ無し

 1
89340-B1101

A200,210

 1
89341A - SENSOR, ULTRASONIC, NO.1
89341-B2060C0

A200,210..G,X

BLACK M.M.,B82 ,B86 ,R67 ,S28 ,T32 ,W25 ,X07 ,Y15

 4
89341-B2060C0

A200,210..X

予防安全ﾊﾟｯｹｰｼﾞ無し,BLACK M.M.,B82 ,B86 ,R67 ,S28 ,T32 ,W25 ,X07 ,Y15

 4
89341A - SENSOR, ULTRASONIC, NO.1
89341-B2060C0

A200,210..G,X

BLACK M.M.,B82 ,B86 ,R67 ,S28 ,T32 ,W25 ,X07 ,Y15

 4
89341-B2060C0

A200,210..X

予防安全ﾊﾟｯｹｰｼﾞ無し,BLACK M.M.,B82 ,B86 ,R67 ,S28 ,T32 ,W25 ,X07 ,Y15

 4
89341A - SENSOR, ULTRASONIC, NO.1
89341-B2060C0

A200,210..G,X

BLACK M.M.,B82 ,B86 ,R67 ,S28 ,T32 ,W25 ,X07 ,Y15

 4
89341-B2060C0

A200,210..X

予防安全ﾊﾟｯｹｰｼﾞ無し,BLACK M.M.,B82 ,B86 ,R67 ,S28 ,T32 ,W25 ,X07 ,Y15

 4
89343C - BUZZER, CLEARANCE WARNING, NO.1
89343-48010

A200,210..X

予防安全ﾊﾟｯｹｰｼﾞ無し

 1
89343-48010

A200,210

 1
Common parts
91551-80612
Linked diagrams
5201
5202
8202
