A200A-GBLV (2019)

Toyota Raize

Production Oct 2019 - Oct 2021
Engine 1KRVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1910-2110)

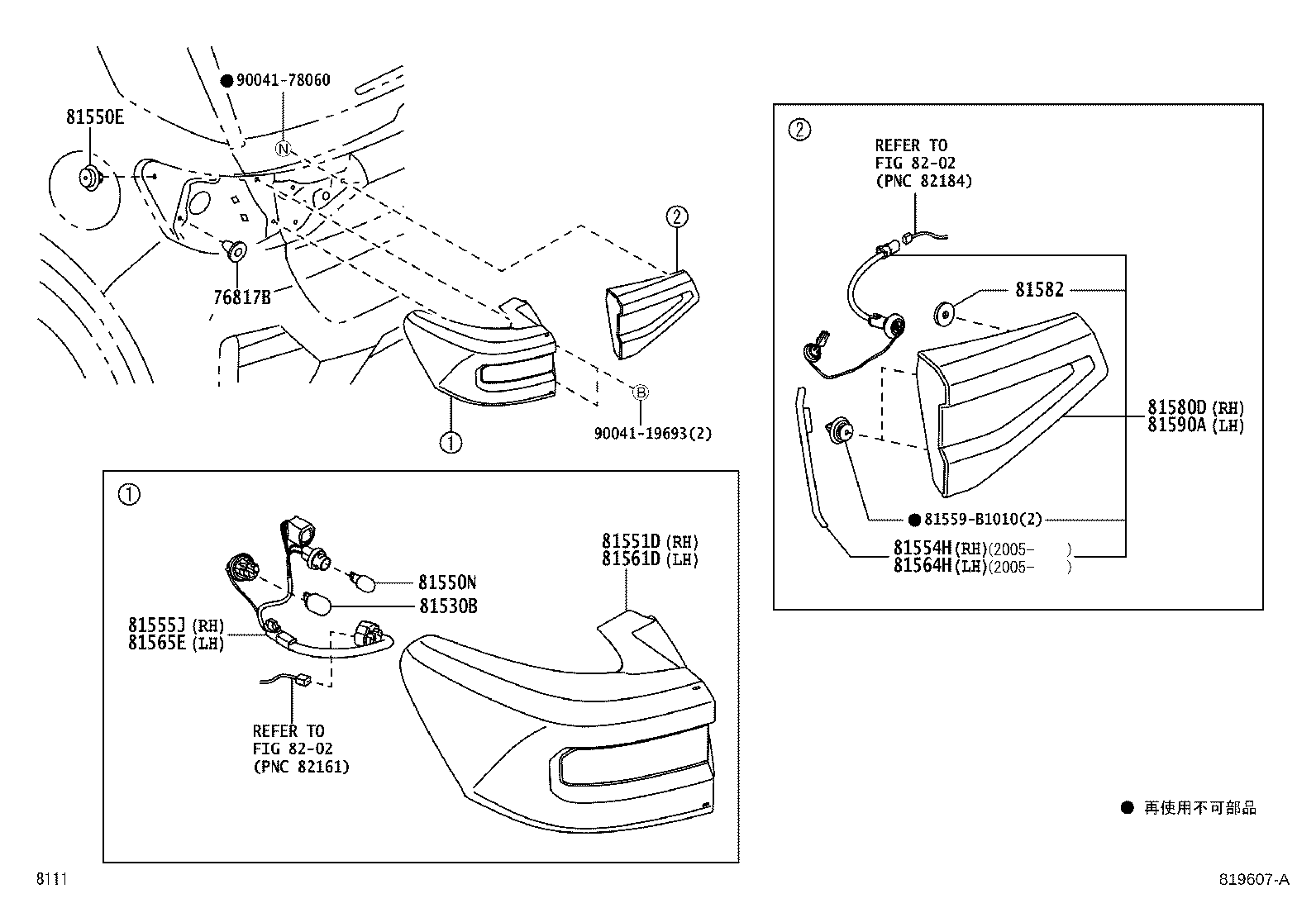

Click highlighted areas on diagram

diagram 76817B 81530B 81550E 81550N 81551D 81554H 81555J 81559B1010 81561D 81564H 81565E 81580D 81582 81590A 8202 8202 9004119693 9004178060
Part # Description Qty Price
76817B - CLIP, REAR LAMP
90044-67602

A200,210

 2
81530B - BULB, REAR TURN SIGNAL LAMP
90049-51143

A200,210

12V 21W

 2
81550E - CLIP(FOR REAR COMBINATION LAMP)
81559-B2230

A200,210

 2
81550N - BULB, BACK UP LAMP
90981-11055

A200,210

12V 16W

 2
81551D - LENS & BODY, REAR COMBINATION LAMP, RH
81551-B1200

A200,210

 1
81554H - PACKING, REAR COMBINATION LAMP, RH
81554-B1020

A200,210

 1
81555J - SOCKET & WIRE, REAR COMBINATION LAMP, RH
81555-B1150

A200,210

 1
81561D - LENS & BODY, REAR COMBINATION LAMP, LH
81561-B1170

A200,210

 1
81564H - PACKING, REAR COMBINATION LAMP, LH
81554-B1030

A200,210

 1
81565E - SOCKET & WIRE, REAR COMBINATION LAMP, LH
81565-B1030

A200,210

 1
81580D - LAMP ASSY, REAR, RH
81580-B1011

A200,210

 1
81580-B1010

A200,210

 1
81582 - GASKET, REAR LAMP
81584-B1010

A200,210

 2
81590A - LAMP ASSY, REAR, LH
81590-B1011

A200,210

 1
81590-B1010

A200,210

 1
Common parts
81559-B1010
90041-19693
90041-78060
Linked diagrams
8202
