A200A-GBLV (2019)

Toyota Raize

Production Oct 2019 - Oct 2021
Engine 1KRVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

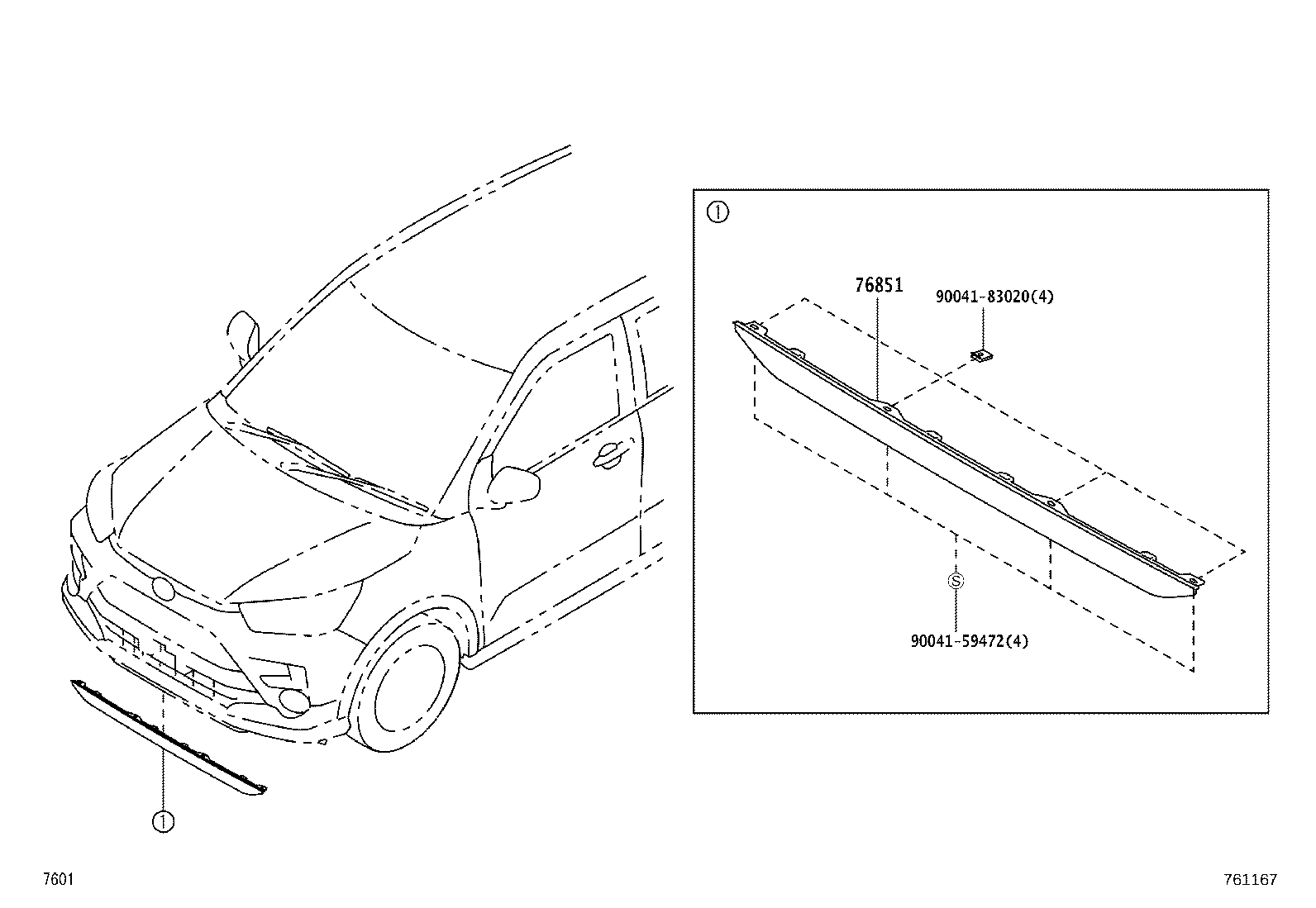

ILLUST NO. 1 OF 2(1910- )

Click highlighted areas on diagram

ﾌﾛﾝﾄｽﾎﾟｲﾗ

diagram 76851 9004159472 9004183020
Part # Description Qty Price
76851 - COVER, FRONT SPOILER
76851-B1060

A200,210

 1
Common parts
90041-59472
90041-83020

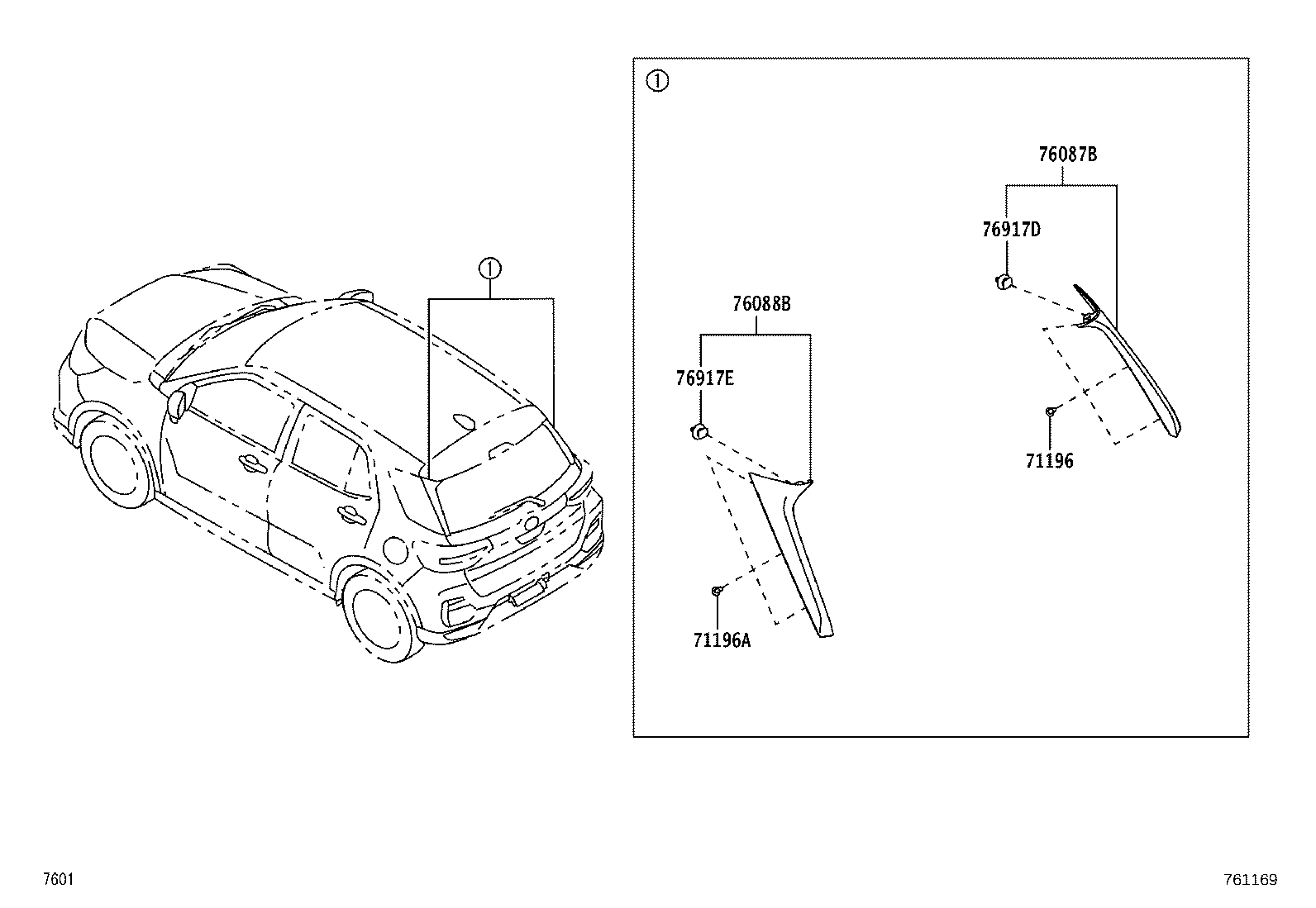

ILLUST NO. 2 OF 2(1910- )

Click highlighted areas on diagram

ﾘﾔｽﾎﾟｲﾗ

diagram 71196 71196A 76087B 76088B 76917D 76917E
Part # Description Qty Price
71196 - CLIP(FOR REAR SPOILER)
90467-05170

A200,210

 3
71196A - CLIP
90467-05170

A200,210

 3
76087B - SPOILER SUB-ASSY, REAR SIDE, RH
76087-B1010

A200,210

 1
76088B - SPOILER SUB-ASSY, REAR SIDE, LH
76088-B1010

A200,210

 1
76917D - CLIP
53145-B2030

A200,210

 1
76917E - CLIP
53145-B2030

A200,210

 1
