A200A-GBLV (2019)

Toyota Raize

Production Oct 2019 - Oct 2021
Engine 1KRVET
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1910-2110)A200

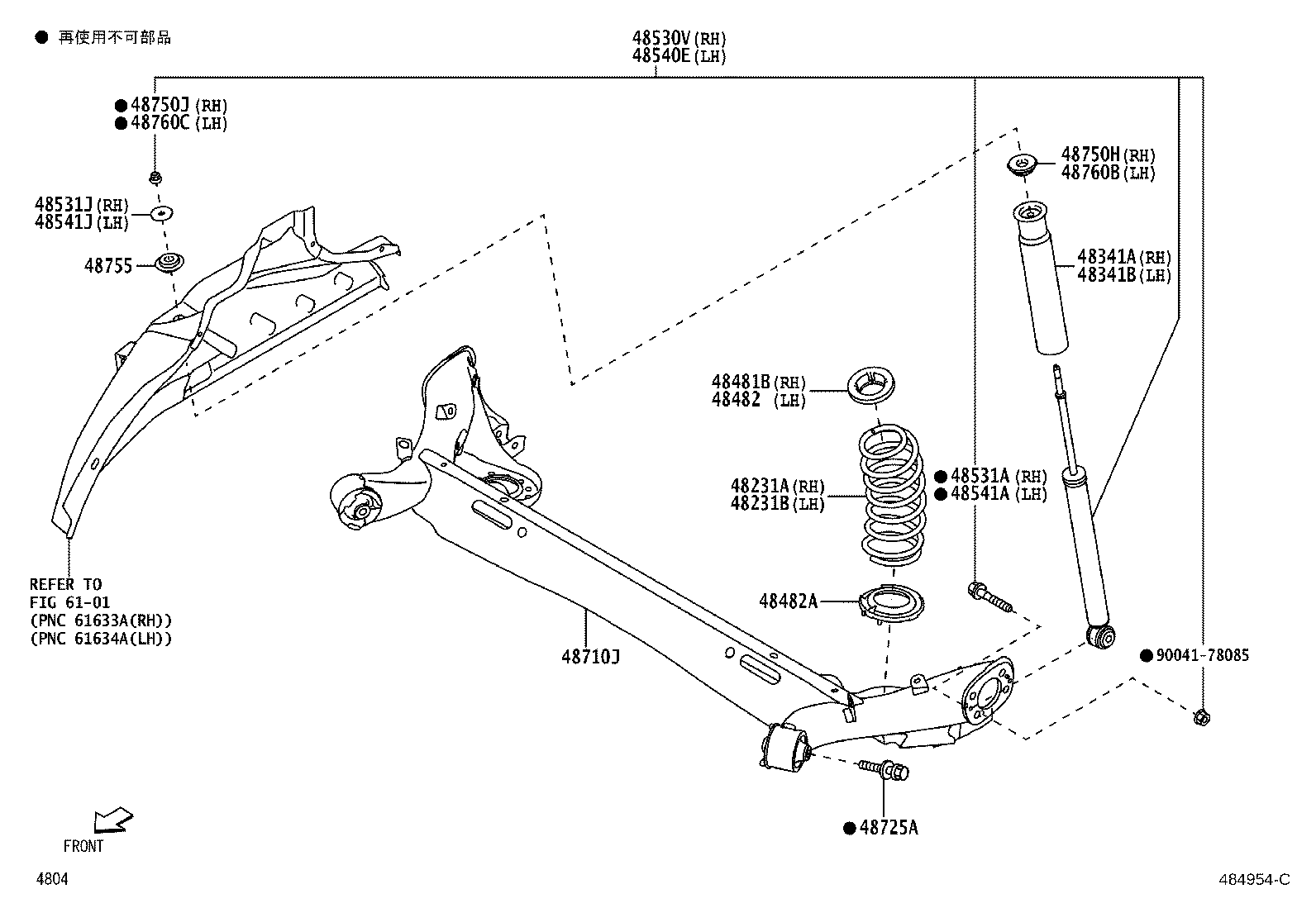

Click highlighted areas on diagram

2WD

diagram 48231A 48231B 48341A 48341B 48481B 48482 48482A 48530V 48531A 48531J 48540E 48541A 48541J 48710J 48725A 48750H 48750J 48755 48760B 48760C 6101 9004178085
Part # Description Qty Price
48231A - SPRING, COIL, REAR RH
48231-B1340

A200

 1
48231B - SPRING, COIL, REAR LH
48231-B1340

A200

 1
48341A - BUMPER, REAR SPRING, NO.1 RH
48341-B1050

A200,210

 1
48341B - BUMPER, REAR SPRING, NO.1 LH
48341-B1050

A200,210

 1
48481B - SEAT, REAR SPRING, UPPER RH
48481-B2040

A200,210

 1
48482 - SEAT, REAR SPRING, UPPER LH
48481-B2040

A200,210

 1
48482A - SEAT, REAR SPRING, LOWER
48482-B1050

A200,210

 2
48530V - ABSORBER SET, SHOCK, REAR RH
48530-B9335

A200

ﾏｰｸ 48531−B1390

 1
48530-B9336

A200

ﾏｰｸ 48531−B1270

 1
48531A - BOLT, UNION(FOR REAR SHOCK ABSORBER RH)
90041-01716

A200,210

M12,L=64.5

 1
48531J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 RH
90042-01758

A200,210

 1
48540E - ABSORBER SET, SHOCK, REAR LH
48530-B9336

A200

ﾏｰｸ 48531−B1270

 1
48530-B9335

A200

ﾏｰｸ 48531−B1390

 1
48541A - BOLT, UNION(FOR REAR SHOCK ABSORBER LH)
90041-01716

A200,210

M12,L=64.5

 1
48541J - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 LH
90042-01758

A200,210

 1
48710J - ARM ASSY, REAR SUSPENSION, NO.1
48710-B1140

A200

 1
48725A - BOLT(FOR LOWER CONTROL ARM)
90041-19A37

A200,210

M12,L=117

 2
90041-19A48

A200,210

M12,L=117

 2
48750H - SUPPORT ASSY, REAR SUSPENSION, RH
48750-B1010

A200,210

 1
48750J - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
94188-01001

A200,210

M10

 1
48755 - SUPPORT, REAR SUSPENSION
48755-B2040

A200,210

 2
48760B - SUPPORT ASSY REAR SUSPENSION, LH
48750-B1010

A200,210

 1
48760C - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
94188-01001

A200,210

M10

 1
Common parts
90041-78085
Linked diagrams
6101
