SCP100-CHXNK (2005)
Toyota Ractis
Production
Sep 2005
-
Dec 2007
Engine
2SZFE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0509- )

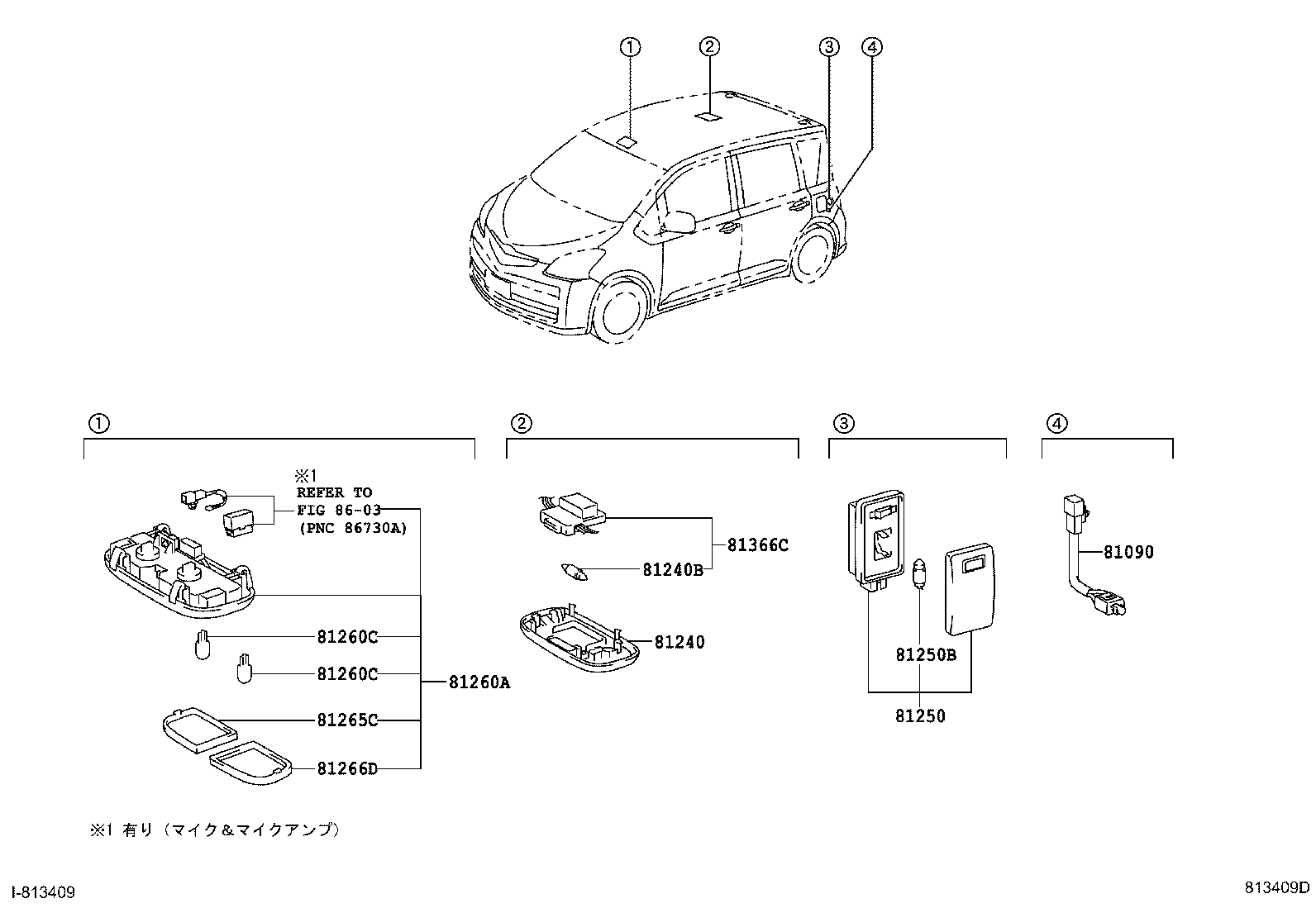

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81090 - LAMP ASSY, INTERIOR ILLUMINATION, NO.2 | ||||
| 81090-50010 |
NCP100,SCP100 ｳｪﾙｷｬﾌﾞ(ｽﾛｰﾌﾟ=障害者向け) |
1 | ||
| 81090-50010 |
NCP100,SCP100 ｳｪﾙｷｬﾌﾞ(ｽﾛｰﾌﾟ=一般向け) |
1 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81240-68010B0 |
NCP105,SCP100..X LT.GRAY,TRIM1# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-14011 |
NCP10#,SCP100 12V 8W |
1 | ||
| 81250 - LAMP ASSY, ROOM, NO.2 | ||||
| 81250-48010 |
NCP10#,SCP100 |
1 | ||
| 81250B - BULB, ROOM LAMP, NO.2 | ||||
| 99132-13050 |
NCP100,SCP100 12V 5W,ｳｪﾙｷｬﾌﾞ(ｽﾛｰﾌﾟ=一般向け) |
1 | ||
| 99132-13050 |
NCP10#,SCP100 12V 5W |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-52040B1 |
NCP10#,SCP100 ｵｰﾃﾞｨｵ−ﾅﾋﾞｹﾞｰｼｮﾝｼｽﾃﾑ,6ｽﾋﾟｰｶ,LT.GRAY,TRIM1#,4# |
1 | ||
| 81260-52030B1 |
NCP10#,SCP100 LT.GRAY,TRIM1#,4# |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
NCP10#,SCP100 12V 8W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
NCP10#,SCP100 12V 8W |
2 | ||
| 81265C - LENS, MAP LAMP, NO.1 | ||||
| 81265-52020 |
NCP10#,SCP100 |
1 | ||
| 81266D - LENS, MAP LAMP, NO.2 | ||||
| 81266-52020 |
NCP10#,SCP100 |
1 | ||
| 81366C - BASE, ROOM LAMP SWITCH | ||||
| 81366-68010 |
NCP10#,SCP100 |
1 | ||
| Linked diagrams | ||||
| 8603 | ||||
