NSP120-CHXXB (2014)

Toyota Ractis

Production May 2014 - Jul 2016
Engine 1NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )

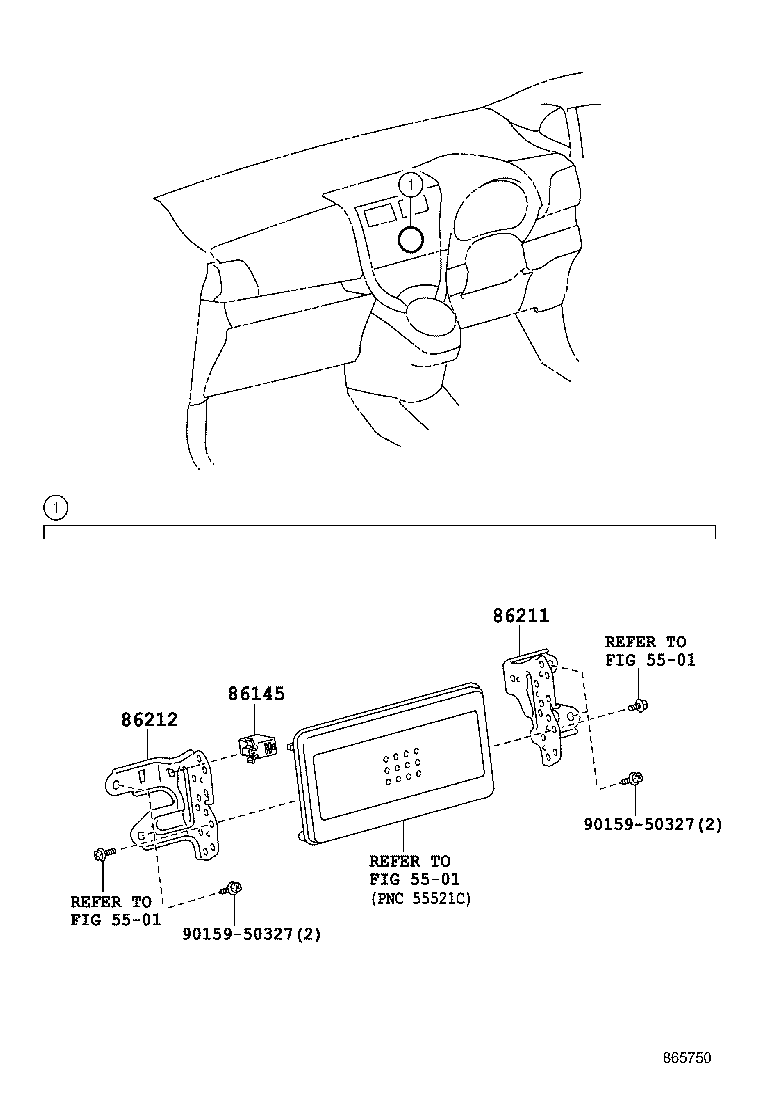

Click highlighted areas on diagram

diagram 5501 5501 5501 86145 86211 86212 9015950327 9015950327
Part # Description Qty Price
86145 - CONNECTOR, ANTENNA MALE
86145-52010

NCP120,125,NSP12#..LEPIC,X

ｵｰﾃﾞｨｵ(日本向け)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ

 1
86145-52010

NCP12#,NSP120..G,S

ｵｰﾃﾞｨｵ(日本向け)−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰｶ

 1
86145-52010

NCP12#,NSP12#

 1
86211 - BRACKET, RADIO, NO.1
86211-52130

NCP12#,NSP12#

 1
86211-52130

NCP12#,NSP12#

 1
86212 - BRACKET, RADIO, NO.2
86212-52140

NCP12#,NSP12#

 1
86212-52140

NCP12#,NSP12#

 1
Common parts
90159-50327
Linked diagrams
5501
