NSP120-CHXLK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011-1405)

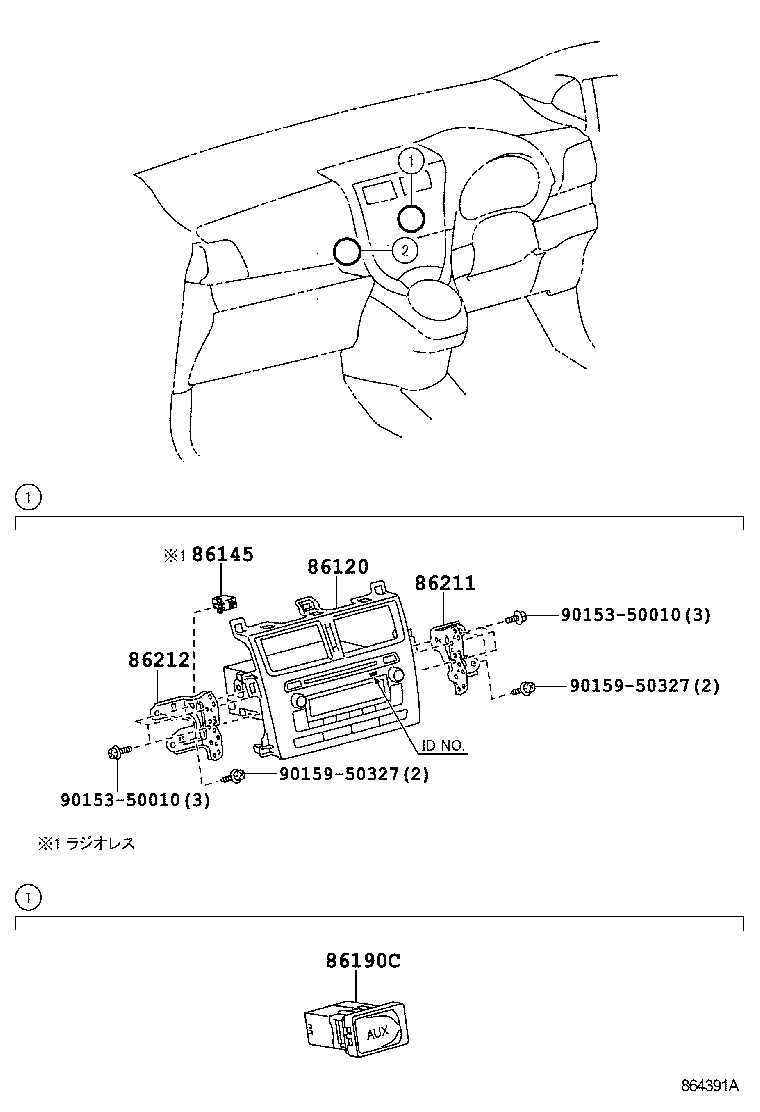

Click highlighted areas on diagram

diagram 86120 86145 86190C 86211 86212 9015350010 9015350010 9015950327 9015950327
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-52B10

NCP120,125,NSP120..LEPIC

PANASONIC,ID=50836,ｵｰﾃﾞｨｵ(日本向け)−CD 4ｽﾋﾟｰｶ

 1
86120-52B10

NCP120,125,NSP120..LEPIC

PANASONIC,ID=50836

 1
86120-52A90

NCP12#,NSP120..G,S

PANASONIC,ID=50835,ｵｰﾃﾞｨｵ(日本向け)−CD 6ｽﾋﾟｰｶ

 1
86120-52B10

NCP120,125,NSP120..LEPIC

PANASONIC,ID=50836,ｵｰﾃﾞｨｵ(日本向け)−CD 4ｽﾋﾟｰｶ

 1
86120-52A90

NCP12#,NSP12#..G,S,X

PANASONIC,ID=50835

 1
86120-52A90

NCP120,125,NSP12#..X

PANASONIC,ID=50835,ｵｰﾃﾞｨｵ(日本向け)−CD 4ｽﾋﾟｰｶ

 1
86145 - CONNECTOR, ANTENNA MALE
86145-52010

NCP120,125,NSP12#..LEPIC,X

ｵｰﾃﾞｨｵ(日本向け)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ

 1
86145-52010

NCP12#,NSP12#

 1
86145-52010

NCP12#,NSP120..G,S

ｵｰﾃﾞｨｵ(日本向け)−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰｶ

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-48010

NCP12#,NSP120..G,S

ｵｰﾃﾞｨｵ(日本向け)−CD 6ｽﾋﾟｰｶ

 1
86190-48010

NCP12#,NSP12#

 1
86190-48010

NCP120,125,NSP12#..X

ｵｰﾃﾞｨｵ(日本向け)−CD 4ｽﾋﾟｰｶ

 1
86190-48010

NCP120,125,NSP120..LEPIC

ｵｰﾃﾞｨｵ(日本向け)−CD 4ｽﾋﾟｰｶ

 1
86211 - BRACKET, RADIO, NO.1
86211-52130

NCP12#,NSP12#

 1
86212 - BRACKET, RADIO, NO.2
86212-52140

NCP12#,NSP12#

 1
Common parts
90153-50010
90159-50327
