NSP120-CHXGK (2010)
Toyota Ractis
Production
Nov 2010
-
May 2014
Engine
1NRFE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)

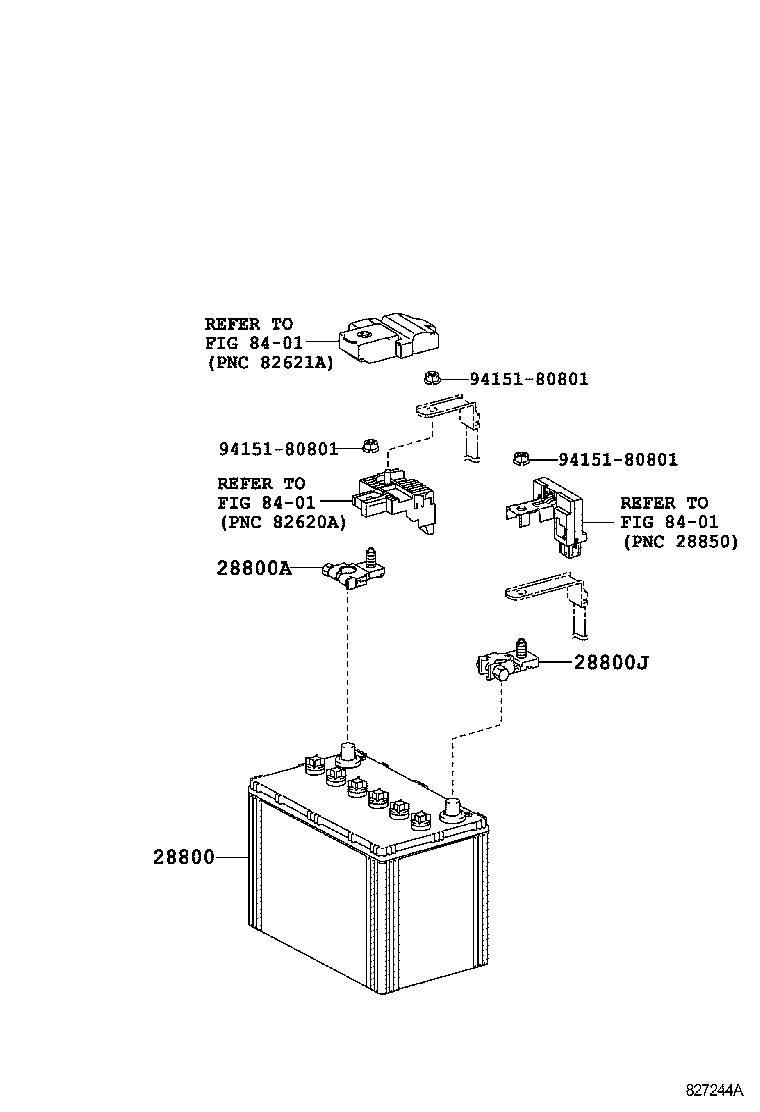

ILLUST NO. 1 OF 2(1011- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800 - BATTERY | ||||
| 28800-47080 |
1NRFE..NSP120 S−85,有り(STOP & STARTｼｽﾃﾑ) |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05055 |
1NRFE..NSP12# |
1 | ||
| 90982-05061 |
1NRFE..NSP120 有り(STOP & STARTｼｽﾃﾑ) |
1 | ||
| 28800J - TERMINAL, BATTERY NEGATIVE | ||||
| 90982-06059 |
1NRFE..NSP120 有り(STOP & STARTｼｽﾃﾑ) |
1 | ||
| 90982-06058 |
1NRFE..NSP12# |
1 | ||
| Common parts | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8401 | ||||

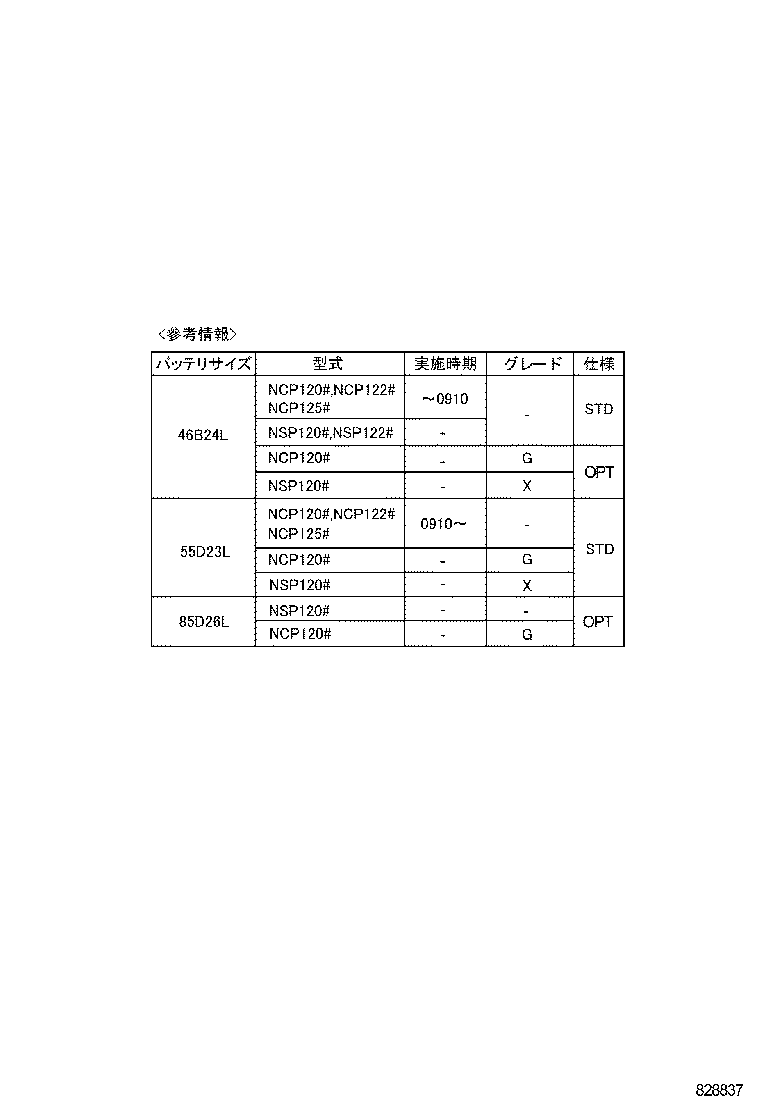

ILLUST NO. 2 OF 2(1011- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
