NSP120-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

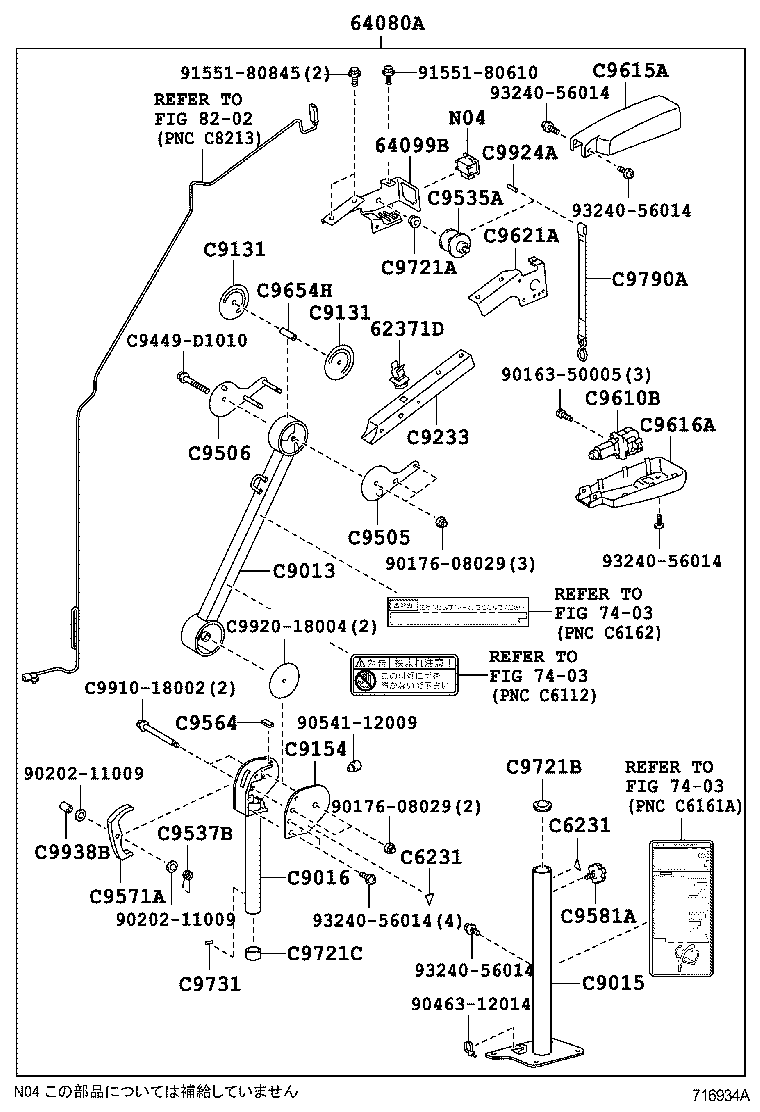

ILLUST NO. 2 OF 2(1011- )NCP120..G ; (1011- )NSP120..X ; (1011- )NCP125..G,X

Click highlighted areas on diagram

ﾊﾟﾜｰﾘﾌﾄ(ｼﾞｮｼｭｾｷ ﾘﾌﾄｱｯﾌﾟ ｼｰﾄ)

diagram 62371D 64080A 64099B 7403 7403 7403 8202 9016350005 9017608029 9017608029 9020211009 9020211009 9046312014 9054112009 9155180610 9155180845 9324056014 9324056014 9324056014 9324056014 9324056014 C6231 C6231 C9013 C9015 C9016 C9131 C9131 C9154 C9233 C9449D1010 C9505 C9506 C9535A C9537B C9564 C9571A C9581A C9610B C9615A C9616A C9621A C9654H C9721A C9721B C9721C C9731 C9790A C991018002 C992018004 C9924A C9938B
Part # Description Qty Price
62371D - CATCH, LOCK
62371-43010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
64080A - ARM ASSY, POWER LIFT
64080-52010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
64099B - BASE SUB-ASSY, POWER LIFT ARM GUIDE
64099-D1010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C6231 - MARK, SIDE
C6231-18010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 2
C6231 - MARK, SIDE
C6231-18010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 2
C9013 - ARM SUB-ASSY, POWER LIFT, NO.1
C9013-52010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9015 - POST SUB-ASSY, POWER LIFT
C9015-52010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9016 - POST SUB-ASSY, POWER LIFT, INNER
C9016-52010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9131 - PLATE, CHAIR LIFT ARM
C9131-D1010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 2
C9131 - PLATE, CHAIR LIFT ARM
C9131-D1010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 2
C9154 - SUPPORT, POWER LIFT ARM HINGE
C9154-D1060

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9233 - ARM, POWER LIFT
C9233-52010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9505 - SUPPORT SUB-ASSY, RETURN SPRING PIPE, RH
C9505-D1020

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9506 - SUPPORT SUB-ASSY, RETURN SPRING PIPE, LH
C9506-12010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9506-D1010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9535A - PULLEY, POWER LIFT
C9535-D1060

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9537B - SPRING, POWER LIFT RETURN
C9537-D1010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9564 - PROTECTOR, POWER LIFT CYLINDER COVER
C9564-18010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9571A - LEVER, POWER LIFT ARM LOCK
C9571-18010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9581A - HANDLE, POWER LIFT LOCK
C9581-D1030

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9610B - MOTOR ASSY, POWER LIFT
C9610-18030

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9615A - COVER, POWER LIFT MOTOR, NO.1
C9615-12020

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9616A - COVER, POWER LIFT MOTOR, NO.2
C9616-12010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9621A - BASE, POWER LIFT MOTOR
C9621-D1020

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9654H - COLLAR, POWER LIFT CYLINDER
C9654-D1150

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9721A - BEARING, NO.2 WINCH, NO.1
C9721-D1010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9721B - BEARING, NO.2 WINCH, NO.2
C9721-D1070

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9721C - BEARING, NO.2 WINCH, NO.3
C9721-D1080

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9731 - PIN, WINCH ROLLER, NO.1
C9731-D1050

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9790A - BELT ASSY, WINCH
C9790-18020

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9924A - PIN
C9924-18001

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C9938B - COLLAR
C9938-18020

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
Common parts
90163-50005
90176-08029
90202-11009
90463-12014
90541-12009
91551-80610
91551-80845
93240-56014
C9449-D1010
C9910-18002
C9920-18004
Linked diagrams
7403
8202

(1011- )

Click highlighted areas on diagram

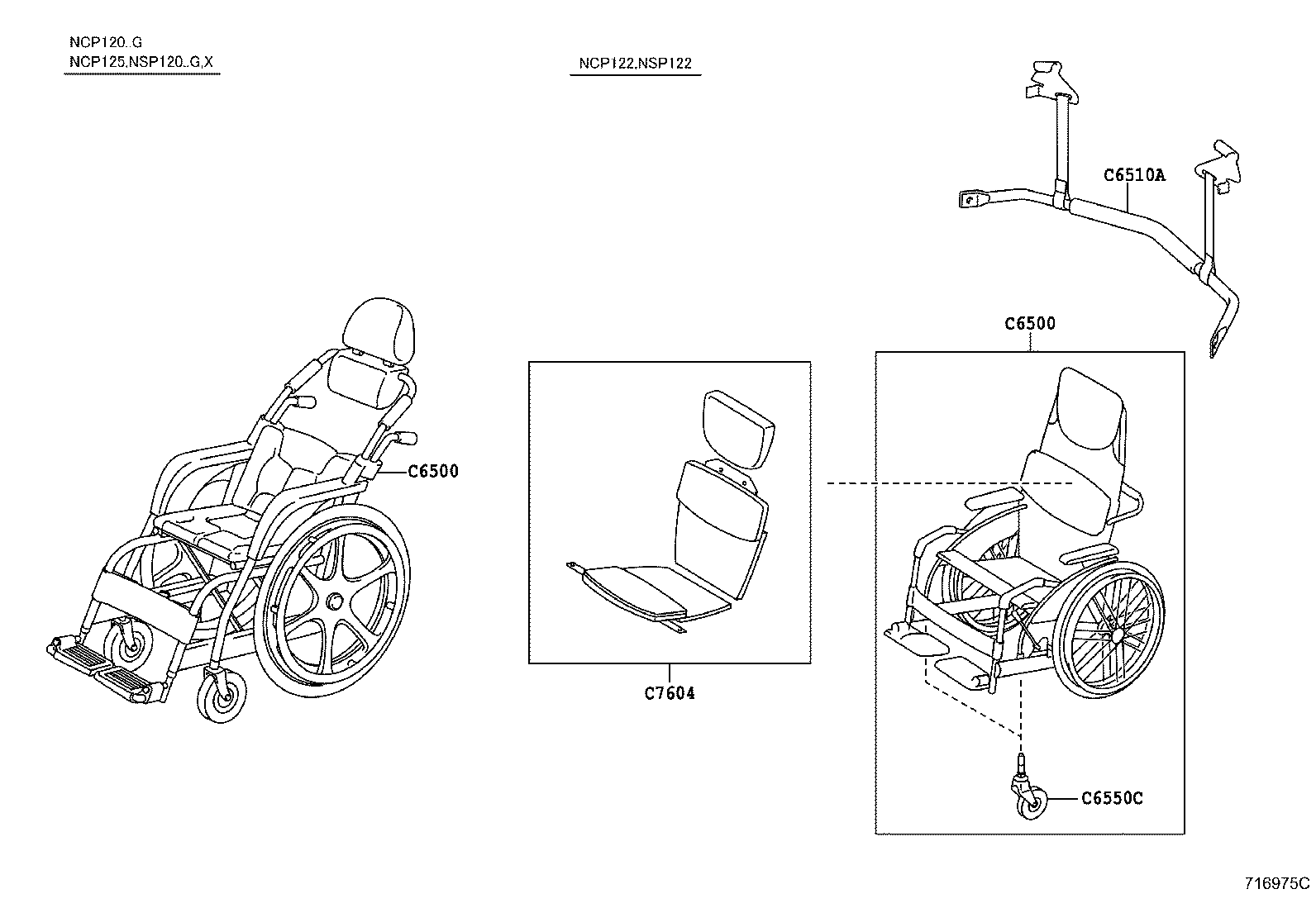

ｸﾙﾏｲｽ

diagram C6500 C6500 C6510A C6550C C7604
Part # Description Qty Price
C6500 - WHEEL CHAIR ASSY
C7950-18010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&車いす−有り

 1
C7950-18010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&車いす−有り

 1
C7950-18010

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&車いす−有り

 1
C7950-18010

NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟU)&車いす−有り

 1
C7950-18010

NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟW)&車いす−有り

 1
C7950-18010

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟV)&車いす−有り

 1
C6500 - WHEEL CHAIR ASSY
C7950-18010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&車いす−有り

 1
C7950-18010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&車いす−有り

 1
C7950-18010

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&車いす−有り

 1
C7950-18010

NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟU)&車いす−有り

 1
C7950-18010

NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟW)&車いす−有り

 1
C7950-18010

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟV)&車いす−有り

 1

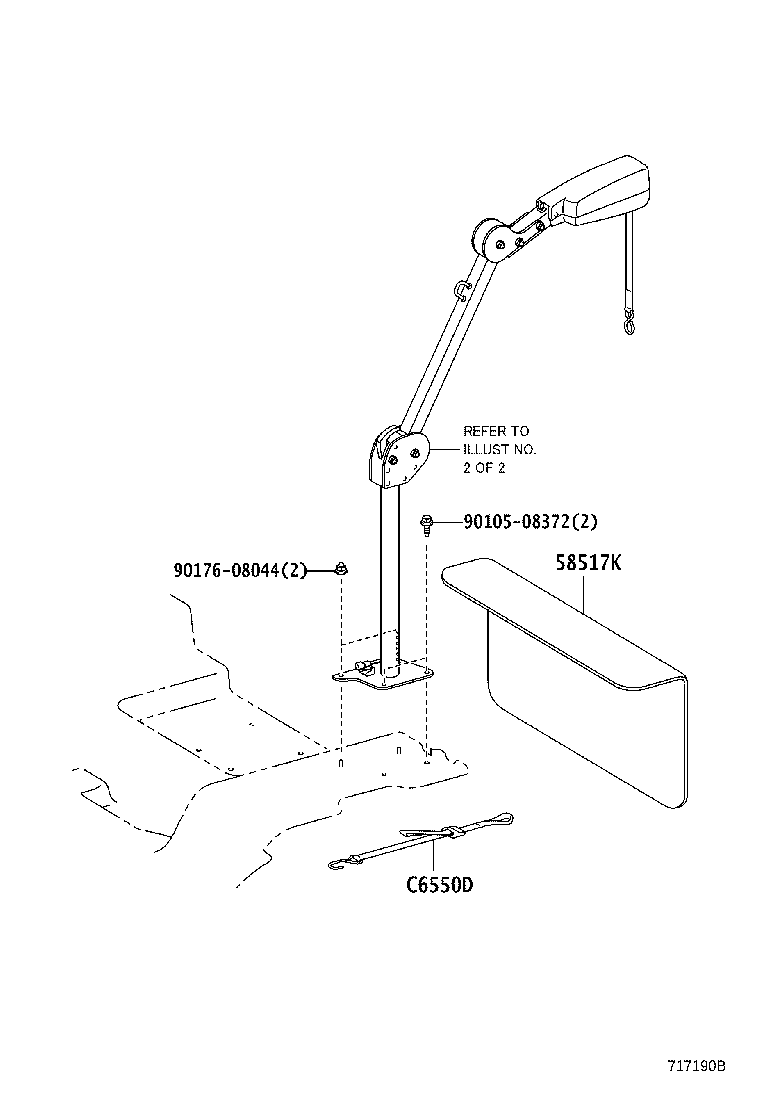

ILLUST NO. 1 OF 2(1011- )NCP120..G ; (1011- )NSP120..X ; (1011- )NCP125..G,X

Click highlighted areas on diagram

ﾊﾟﾜｰﾘﾌﾄ(ｼﾞｮｼｭｾｷ ﾘﾌﾄｱｯﾌﾟ ｼｰﾄ)

diagram 58517K 9010508372 9017608044 C6550D
Part # Description Qty Price
58517K - MAT, GUARD
58517-13010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)

 1
58517-13010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
C6550D - BELT ASSY, WHEEL CHAIR SET, NO.1
C6550-12020

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)

 3
C6550-12020

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 3
Common parts
90105-08372
90176-08044
