NSP120-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

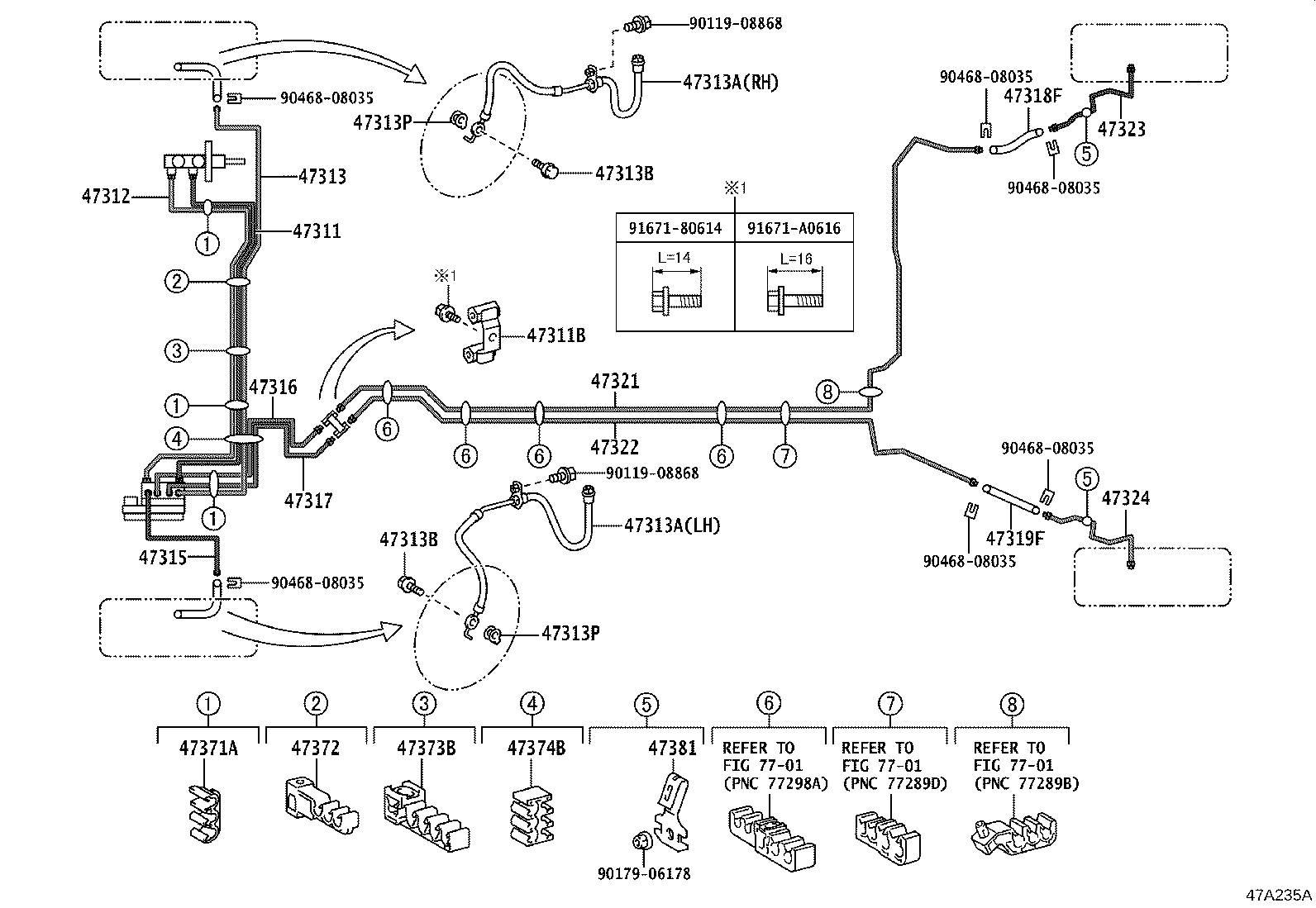

ILLUST NO. 1 OF 2(1011-1405)S

Click highlighted areas on diagram

diagram 47311 47311B 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47315 47316 47317 47318D 47318D 47318E 47318E 47318F 47319F 47321 47321B 47321B 47322 47323 47324 47371A 47372 47373B 47374B 47381 7701 7701 7701 9011908868 9011908868 9017906178 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9167180614 91671A0616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-52470

NCP12#,NSP12#..G,S,X

 1
47311-52610

NCP12#,NSP12#..G,S,X

 1
47311-52610

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

NCP12#,NSP12#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-52570

NCP12#,NSP12#..G,S,X

 1
47312-52570

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
47312-52430

NCP12#,NSP12#..G,S,X

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-52230

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
47313-52220

NCP12#,NSP12#..G,S,X

 1
47313-52230

NCP12#,NSP12#..G,S,X

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02G35

NCP12#,NSP12#

左側

 1
90947-02E08

NCP12#,NSP12#

左側

 1
90947-02E07

NCP12#,NSP12#

右側

 1
90947-02G34

NCP12#,NSP12#

右側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02G35

NCP12#,NSP12#

左側

 1
90947-02E08

NCP12#,NSP12#

左側

 1
90947-02E07

NCP12#,NSP12#

右側

 1
90947-02G34

NCP12#,NSP12#

右側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP12#,NSP12#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP12#,NSP12#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP12#,NSP12#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP12#,NSP12#

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-52230

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
47315-52220

NCP12#,NSP12#..G,S,X

 1
47315-52230

NCP12#,NSP12#..G,S,X

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-52150

NCP12#,NSP12#..G,S,X

 1
47316-52190

NCP12#,NSP12#..G,S,X

 1
47316-52190

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-52150

NCP12#,NSP12#..G,S,X

 1
47317-52190

NCP12#,NSP12#..G,S,X

 1
47317-52190

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02E09

NCP120,122,NSP12#

 1
90947-02G36

NCP120,122,NSP12#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02G38

NCP120,122,NSP12#

 1
90947-02E10

NCP120,122,NSP12#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-52320

NCP120,122,NSP12#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-52300

NCP120,122,NSP12#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-52130

NCP120,122,NSP12#..G,LEPIC,X

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-52120

NCP120,122,NSP12#..G,LEPIC,X

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00899

NCP12#,NSP12#..G,S,X

 1
90464-00899

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
90464-00868

NCP12#,NSP12#..G,S,X

 3
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D84

NSP120

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
90464-00929

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
90464-00929

NCP12#,NSP12#..G,S,X

 1
90949-01D02

NCP12#,NSP12#..G,S,X

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D85

NSP120

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
90949-01D84

NCP12#,NSP12#..G,S,X

 1
90949-01D84

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
90949-01D83

NCP12#,NSP12#..G,S,X

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90464-00925

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
90464-00929

NSP120

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
90464-00925

NCP12#,NSP12#..G,S,X

 1
90949-01969

NCP12#,NSP12#..G,S,X

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-52020

NCP120,122,NSP12#

 2
Common parts
90119-08868
90179-06178
90468-08035
91671-80614
91671-A0616
Linked diagrams
7701

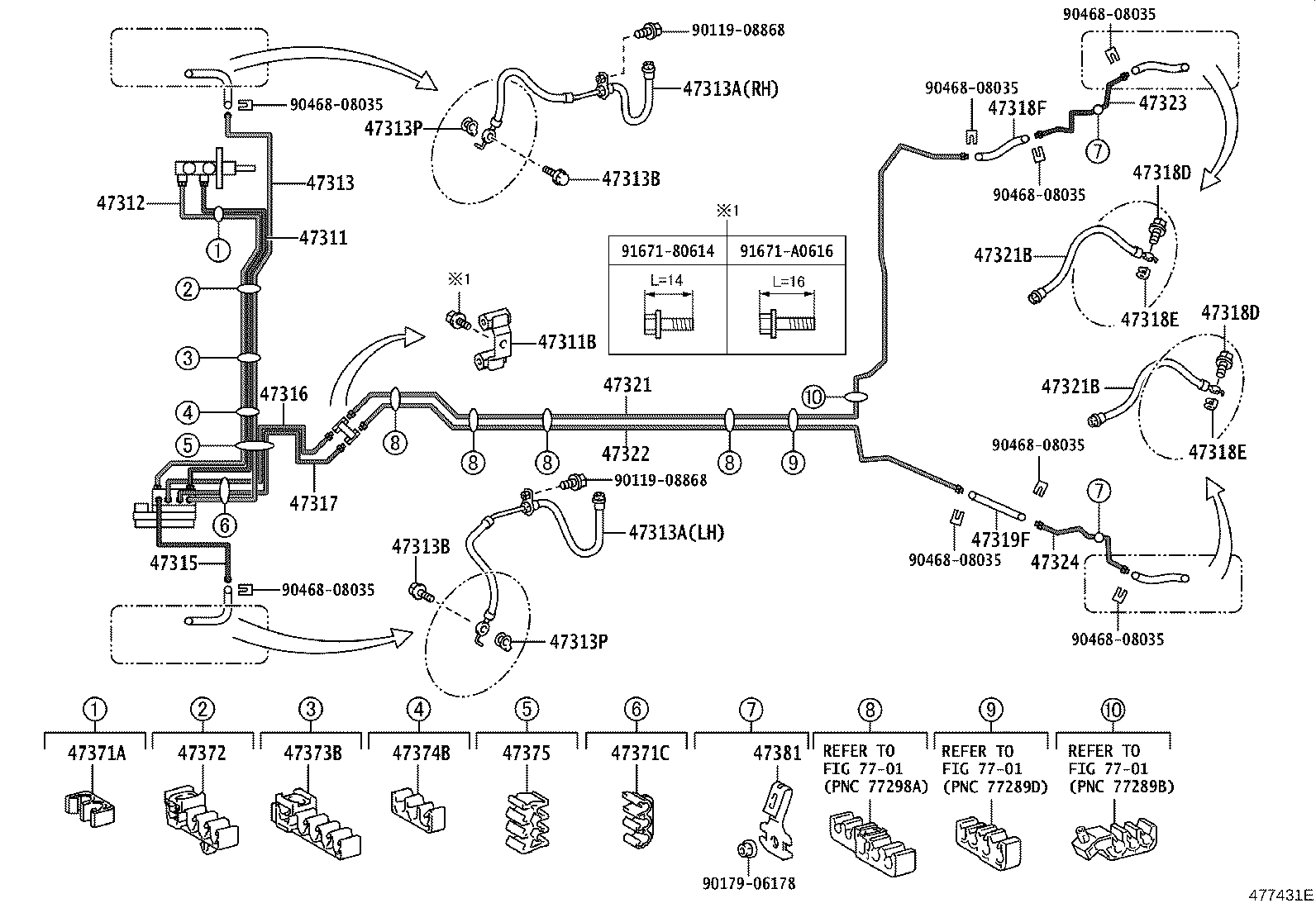

ILLUST NO. 1 OF 2(1011-1405)NCP12#,NSP122 ; (1111-1405)NSP120

Click highlighted areas on diagram

ｱﾘ(VSC)

diagram 47311 47311B 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47315 47316 47317 47318D 47318D 47318E 47318E 47318F 47319F 47321 47321B 47321B 47322 47323 47324 47371A 47371C 47372 47373B 47374B 47375 47381 7701 7701 7701 9011908868 9011908868 9017906178 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9167180614 91671A0616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-52470

NCP12#,NSP12#..G,S,X

 1
47311-52610

NCP12#,NSP12#..G,S,X

 1
47311-52610

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

NCP12#,NSP12#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-52570

NCP12#,NSP12#..G,S,X

 1
47312-52570

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
47312-52430

NCP12#,NSP12#..G,S,X

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-52230

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
47313-52220

NCP12#,NSP12#..G,S,X

 1
47313-52230

NCP12#,NSP12#..G,S,X

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02G35

NCP12#,NSP12#

左側

 1
90947-02E08

NCP12#,NSP12#

左側

 1
90947-02E07

NCP12#,NSP12#

右側

 1
90947-02G34

NCP12#,NSP12#

右側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02G35

NCP12#,NSP12#

左側

 1
90947-02E08

NCP12#,NSP12#

左側

 1
90947-02E07

NCP12#,NSP12#

右側

 1
90947-02G34

NCP12#,NSP12#

右側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP12#,NSP12#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP12#,NSP12#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP12#,NSP12#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP12#,NSP12#

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-52230

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
47315-52220

NCP12#,NSP12#..G,S,X

 1
47315-52230

NCP12#,NSP12#..G,S,X

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-52150

NCP12#,NSP12#..G,S,X

 1
47316-52190

NCP12#,NSP12#..G,S,X

 1
47316-52190

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-52150

NCP12#,NSP12#..G,S,X

 1
47317-52190

NCP12#,NSP12#..G,S,X

 1
47317-52190

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02E09

NCP120,122,NSP12#

 1
90947-02G36

NCP120,122,NSP12#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02G38

NCP120,122,NSP12#

 1
90947-02E10

NCP120,122,NSP12#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-52320

NCP120,122,NSP12#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-52300

NCP120,122,NSP12#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-52130

NCP120,122,NSP12#..G,LEPIC,X

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-52120

NCP120,122,NSP12#..G,LEPIC,X

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00899

NCP12#,NSP12#..G,S,X

 1
90464-00899

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
90464-00868

NCP12#,NSP12#..G,S,X

 3
47371C - CLAMP, BRAKE TUBE, NO.7
90464-00868

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
90464-00868

NCP12#,NSP12#..G,S,X

 1
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D84

NSP120

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
90464-00929

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
90464-00929

NCP12#,NSP12#..G,S,X

 1
90949-01D02

NCP12#,NSP12#..G,S,X

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D85

NSP120

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
90949-01D84

NCP12#,NSP12#..G,S,X

 1
90949-01D84

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
90949-01D83

NCP12#,NSP12#..G,S,X

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90464-00925

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
90464-00929

NSP120

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
90464-00925

NCP12#,NSP12#..G,S,X

 1
90949-01969

NCP12#,NSP12#..G,S,X

 1
47375 - CLAMP, BRAKE TUBE, NO.5
90464-00925

NSP120

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
90949-01D85

NCP12#,NSP12#..G,S,X

 1
90949-01D85

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-52020

NCP120,122,NSP12#

 2
Common parts
90119-08868
90179-06178
90468-08035
91671-80614
91671-A0616
Linked diagrams
7701

ILLUST NO. 2 OF 2(1011-1405)

Click highlighted areas on diagram

diagram 44510 4452112050 4452112050 4452112050 44546A 44546A 44546A 44590 9011906844 9011906844 9011906844 9163160825 9163160825 9163160825
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-52D30

NCP120,122,NSP12#..G,X

 1
44050-52K80

NSP120

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
44050-52K82

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
44050-52K82

NCP120,NSP120..G,X

 1
44050-52K81

NSP120

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NCP12#,NSP12#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NCP12#,NSP12#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-12110

NCP12#,NSP12#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-52230

NSP120

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
44590-52230

NCP12#,NSP12#..G,S,X

 1
44590-52180

NCP12#,NSP12#

 1
Common parts
44521-12050
90119-06844
91631-60825

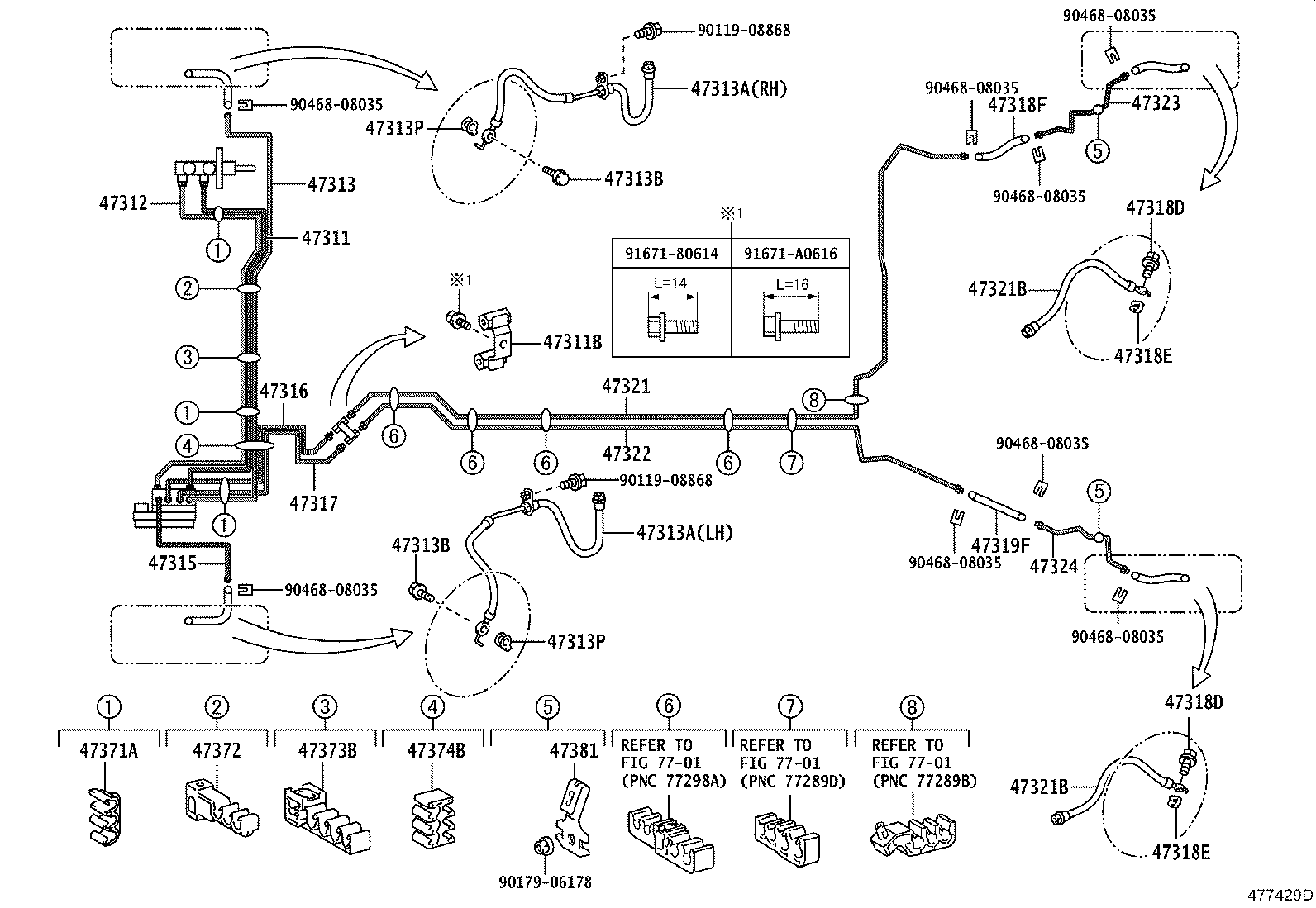

ILLUST NO. 1 OF 2(1011-1405)NCP120,122,NSP12#..G,LEPIC,X

Click highlighted areas on diagram

diagram 47311 47311B 47312 47313 47313A 47313A 47313B 47313B 47313P 47313P 47315 47316 47317 47318F 47319F 47321 47322 47323 47324 47371A 47372 47373B 47374B 47381 7701 7701 7701 9011908868 9011908868 9017906178 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9167180614 91671A0616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-52470

NCP12#,NSP12#..G,S,X

 1
47311-52610

NCP12#,NSP12#..G,S,X

 1
47311-52610

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90412-10260

NCP12#,NSP12#

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-52570

NCP12#,NSP12#..G,S,X

 1
47312-52570

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
47312-52430

NCP12#,NSP12#..G,S,X

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-52230

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
47313-52220

NCP12#,NSP12#..G,S,X

 1
47313-52230

NCP12#,NSP12#..G,S,X

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02G35

NCP12#,NSP12#

左側

 1
90947-02E08

NCP12#,NSP12#

左側

 1
90947-02E07

NCP12#,NSP12#

右側

 1
90947-02G34

NCP12#,NSP12#

右側

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02G35

NCP12#,NSP12#

左側

 1
90947-02E08

NCP12#,NSP12#

左側

 1
90947-02E07

NCP12#,NSP12#

右側

 1
90947-02G34

NCP12#,NSP12#

右側

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP12#,NSP12#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

NCP12#,NSP12#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP12#,NSP12#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

NCP12#,NSP12#

 2
47315 - TUBE, FRONT BRAKE, NO.5
47315-52230

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
47315-52220

NCP12#,NSP12#..G,S,X

 1
47315-52230

NCP12#,NSP12#..G,S,X

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-52150

NCP12#,NSP12#..G,S,X

 1
47316-52190

NCP12#,NSP12#..G,S,X

 1
47316-52190

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-52150

NCP12#,NSP12#..G,S,X

 1
47317-52190

NCP12#,NSP12#..G,S,X

 1
47317-52190

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02E09

NCP120,122,NSP12#

 1
90947-02G36

NCP120,122,NSP12#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02G38

NCP120,122,NSP12#

 1
90947-02E10

NCP120,122,NSP12#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-52320

NCP120,122,NSP12#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-52300

NCP120,122,NSP12#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-52130

NCP120,122,NSP12#..G,LEPIC,X

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-52120

NCP120,122,NSP12#..G,LEPIC,X

 1
47371A - CLAMP, BRAKE TUBE, NO.1
90464-00899

NCP12#,NSP12#..G,S,X

 1
90464-00899

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
90464-00868

NCP12#,NSP12#..G,S,X

 3
47372 - CLAMP, BRAKE TUBE, NO.2
90949-01D84

NSP120

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
90464-00929

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
90464-00929

NCP12#,NSP12#..G,S,X

 1
90949-01D02

NCP12#,NSP12#..G,S,X

 1
47373B - CLAMP, BRAKE TUBE, NO.3
90949-01D85

NSP120

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
90949-01D84

NCP12#,NSP12#..G,S,X

 1
90949-01D84

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
90949-01D83

NCP12#,NSP12#..G,S,X

 1
47374B - CLAMP, BRAKE TUBE, NO.4
90464-00925

NSP120..G,X

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
90464-00929

NSP120

有り(STOP & STARTｼｽﾃﾑ)&VSC−有り

 1
90464-00925

NCP12#,NSP12#..G,S,X

 1
90949-01969

NCP12#,NSP12#..G,S,X

 1
47381 - BRACKET, BRAKE TUBE CLAMP NO.1
47381-52020

NCP120,122,NSP12#

 2
Common parts
90119-08868
90179-06178
90468-08035
91671-80614
91671-A0616
Linked diagrams
7701
