NSP120-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NRFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )

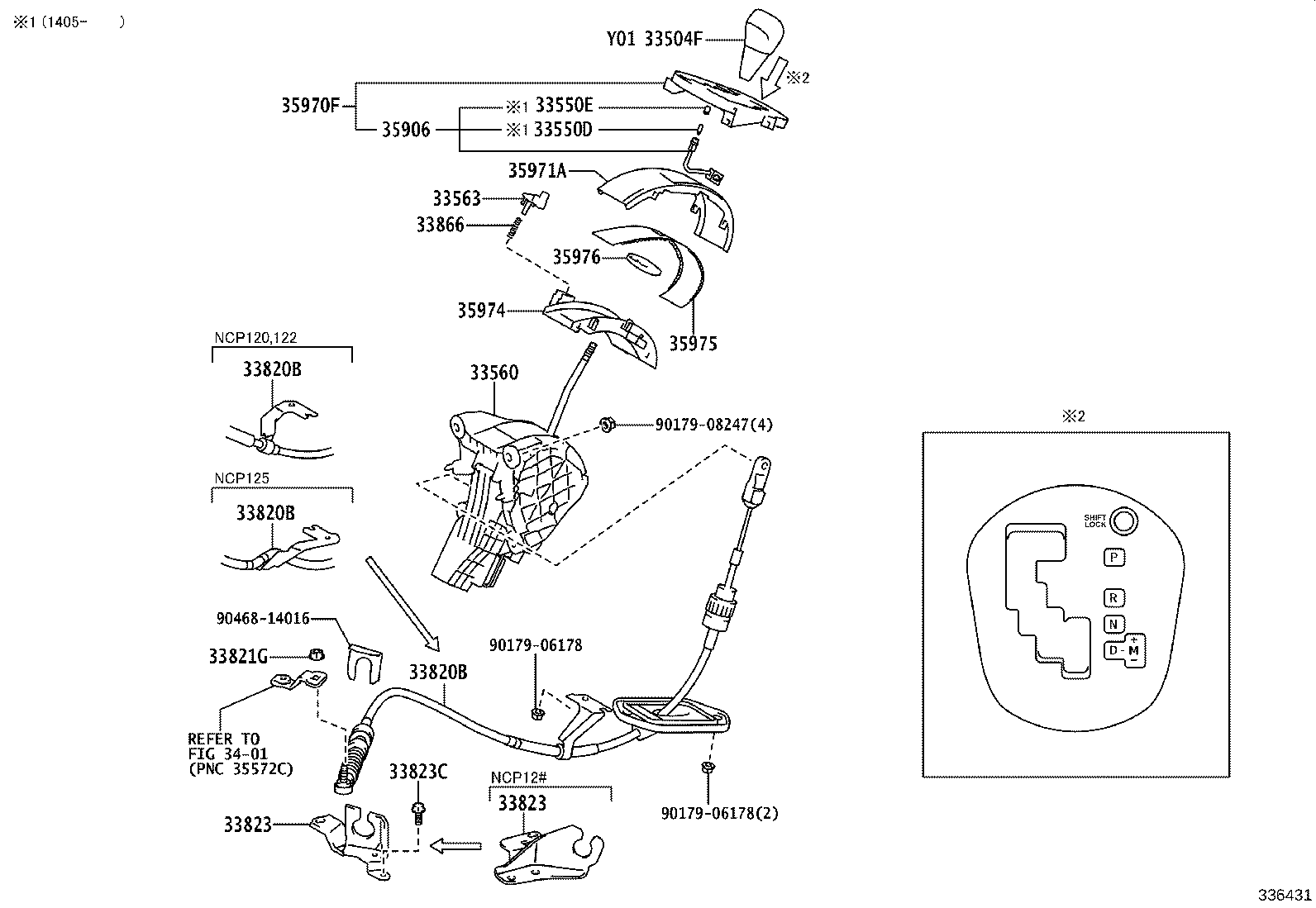

Click highlighted areas on diagram

diagram 33504F 33550D 33550E 33560 33563 33820B 33820B 33820B 33821G 33823 33823 33823C 33866 3401 35906 35970F 35971A 35974 35975 35976 9017906178 9017906178 9017908247 9046814016
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-74011C0

NCP125,NSP120..X

BLACK,TRIM2#,4#,8#

 1
33504-52180C0

NSP120..X

“Vﾊﾟｯｹｰｼﾞ”*(V)or*(W),BLACK,TRIM2#

 1
33504-74020C1

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
33560 - UNIT ASSY, SHIFT LOCK CONTROL
33560-52360

NSP120..G

 1
33560-52350

NSP12#..LEPIC,X

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-52110

NCP12#,NSP12#

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-52710

NSP12#

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-52710

NSP12#

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-52710

NSP12#

 1
33821G - NUT (FOR TRANSMISSION CONTROL CABLE)
94151-80800

NCP12#,NSP12#

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-52100

NSP12#

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-52100

NSP12#

 1
33823C - BOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
91611-B0816

NCP12#,NSP12#

 2
33866 - SPRING, SHIFT LOCK RELEASE
33866-64010

NCP12#,NSP12#

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-52130

NCP12#,NSP12#

 1
35970F - HOUSING ASSY, POSITION INDICATOR
35970-52090

NSP12#

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-52450

NCP12#,NSP12#

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-52020

NCP12#,NSP12#

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-52120

NCP12#,NSP12#

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-48050

NCP12#,NSP12#

 1
Common parts
90179-06178
90179-08247
90468-14016
Linked diagrams
3401
