NSP120-CHXGB (2014)
Toyota Ractis
Production
May 2014
-
Jul 2016
Engine
1NRFKE
Transmission
CVT
Displacement
2500cc
Power
168 HP (125 kW)
(1405- )NSP12#

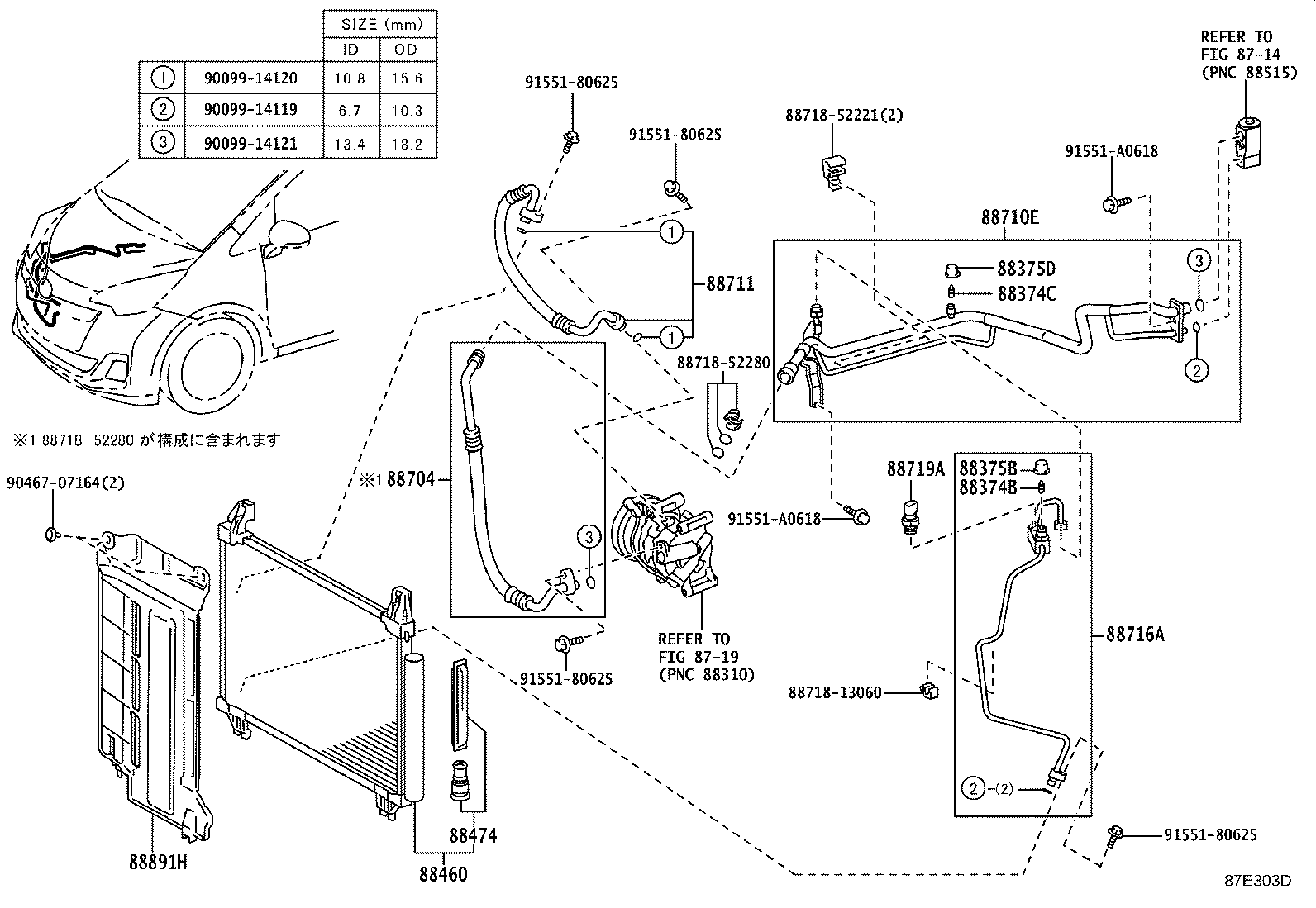

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
NCP12#,NSP12# |
1 | ||
| 88374-30010 |
NCP12#,NSP12# |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
NCP12#,NSP12# |
1 | ||
| 88374-30010 |
NCP12#,NSP12# |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30280 |
NCP12#,NSP12# |
1 | ||
| 88375-30280 |
NCP12#,NSP12# |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30290 |
NCP12#,NSP12# |
1 | ||
| 88375-30290 |
NCP12#,NSP12# |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-52130 |
NCP12#,NSP12# |
1 | ||
| 88460-52130 |
NCP12#,NSP12# |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-12030 |
NCP12#,NSP12# |
1 | ||
| 88474-12030 |
NCP12#,NSP12# |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-52220 |
NSP12# |
1 | ||
| 88704-52360 |
NSP12# |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-52100 |
NSP12# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-52370 |
NSP12# |
1 | ||
| 88711-52370 |
NSP12# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-52780 |
NSP12# |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
NCP12#,NSP12# |
1 | ||
| 88719-33020 |
NCP12#,NSP12# |
1 | ||
| 88891H - COVER, COOLER, NO.1 | ||||
| 88891-52140 |
NSP12# |
1 | ||
| 88891-52090 |
NSP12# |
1 | ||
| Common parts | ||||
| 88718-13060 | ||||
| 88718-52221 | ||||
| 88718-52280 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90467-07164 | ||||
| 91551-80625 | ||||
| 91551-A0618 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
