NSP120-CHXGB (2014)

Toyota Ractis

Production May 2014 - Jul 2016
Engine 1NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )NSP12#

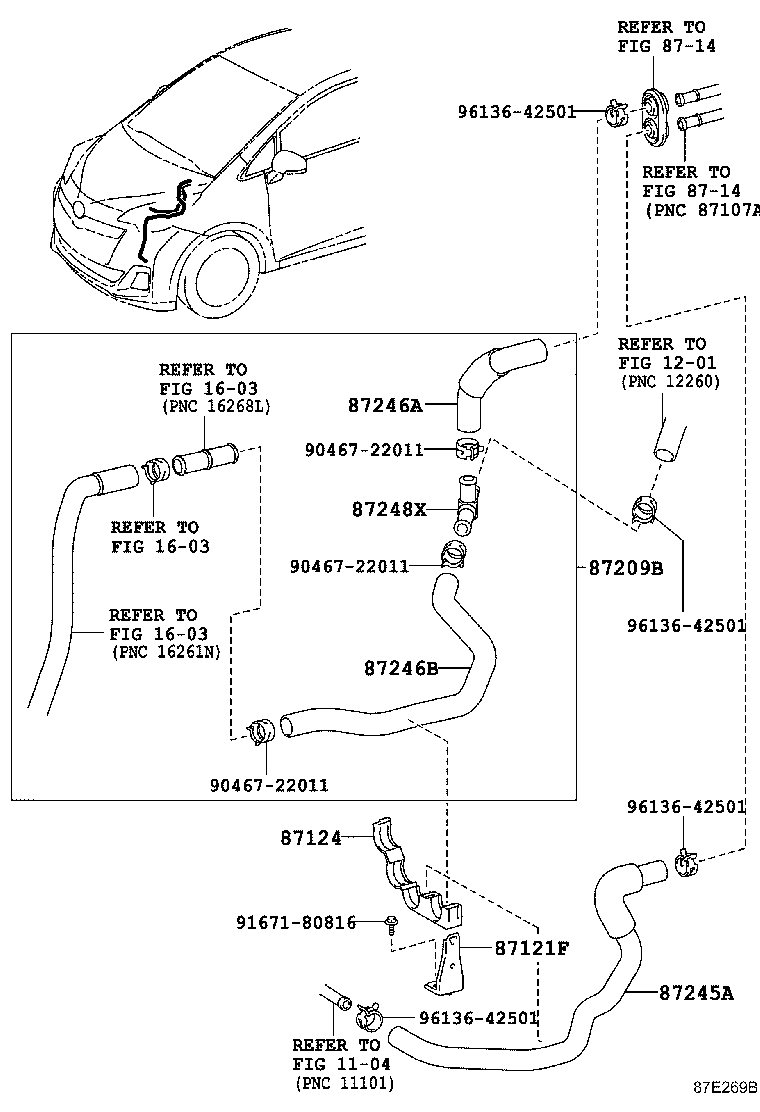

Click highlighted areas on diagram

diagram 1104 1201 1603 1603 1603 87121F 87124 8714 8714 87209B 87245A 87246A 87246B 87248X 9046722011 9046722011 9046722011 9167180816 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87121F - BRACKET, HEATER
87121-52050

NSP12#

 1
87124 - CLAMP, HEATER
87124-60110

NSP12#

 1
87209B - HOSE SUB-ASSY, WATER, B
87209-52330

NSP12#

 1
87209-52280

NSP12#

 1
87245A - HOSE, HEATER WATER, INLET A
87245-52220

NSP12#

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-52330

NSP12#

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-52340

NSP12#

 1
87248X - PIPE, HEATER WATER
87248-26880

NSP12#

 1
Common parts
90467-22011
91671-80816
96136-42501
Linked diagrams
1104
1201
1603
8714
