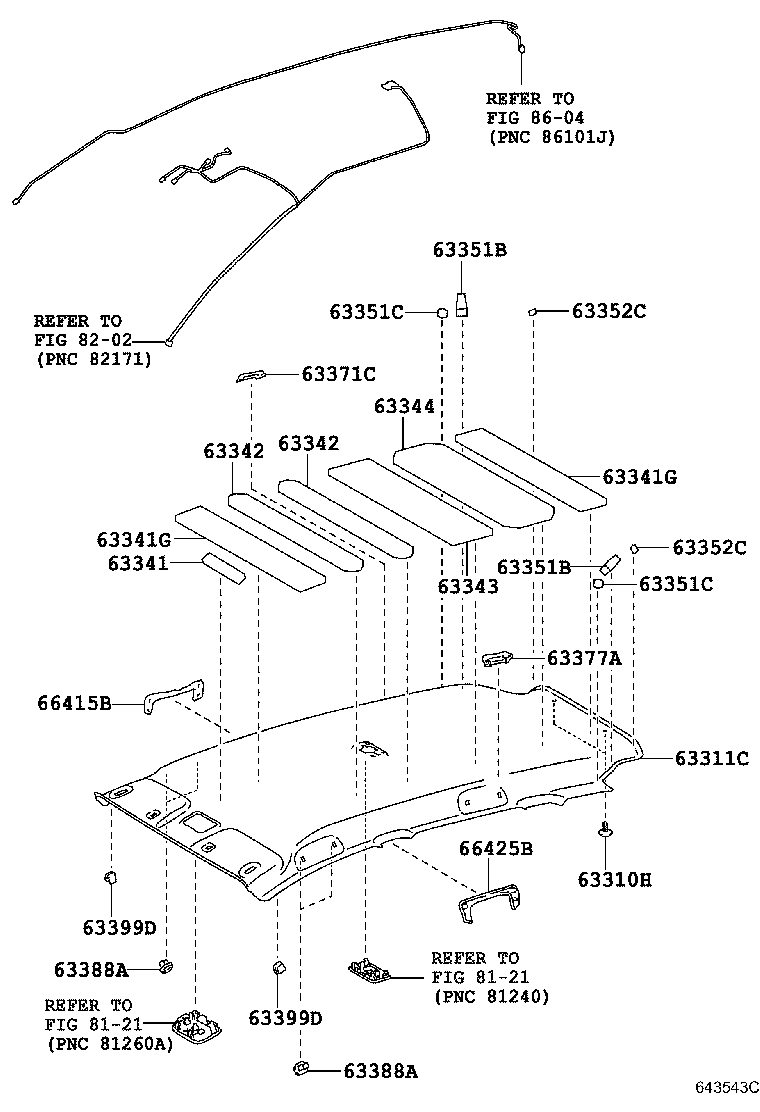

NSP120-CHXGB (2014)
Toyota Ractis
(1405- )NSP120
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-05164B0 |
NCP125,NSP120..X LT.GRAY,TRIM2#,4#,8# |
2 | ||
| 90467-05164B0 |
NCP12#,NSP120..G LT.GRAY,TRIM2#,4# |
2 | ||
| 90467-05164B0 |
NCP120,125,NSP12#..S,X LT.GRAY,TRIM2# |
2 | ||
| 90467-05164B0 |
NCP12#,NSP120..G LT.GRAY,TRIM2#,4# |
2 | ||
| 63311C - HEADLINING, ROOF | ||||
| 63311-52040B0 |
NCP120,125,NSP120..S,X LT.GRAY,TRIM2# |
1 | ||
| 63311-52050B0 |
NCP120,125,NSP120..G LT.GRAY,TRIM2#,4# |
1 | ||
| 63311-52040B0 |
NCP120,125,NSP120..G LT.GRAY,TRIM2#,4# |
1 | ||
| 63311-52050B0 |
NCP120,125,NSP120..S,X LT.GRAY,TRIM2# |
1 | ||
| 63339A - COVER, ROOF HEADLINING SERVICE HOLE | ||||
| 63339-52030B0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟV),LT.GRAY,TRIM2#,4# |
2 | ||
| 63339-52030B0 |
NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟW),LT.GRAY,TRIM2#,4# |
2 | ||
| 63339-52030B0 |
NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟW),LT.GRAY,TRIM2#,4# |
2 | ||
| 63339-52030B0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT),LT.GRAY,TRIM2#,4# |
2 | ||
| 63339-52030B0 |
NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟU),LT.GRAY,TRIM2#,4# |
2 | ||
| 63339-52030B0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟV),LT.GRAY,TRIM2#,4# |
2 | ||
| 63339-52030B0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT),LT.GRAY,TRIM2#,4# |
2 | ||
| 63339-52030B0 |
NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟU),LT.GRAY,TRIM2#,4# |
2 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52220 |
NCP120,125,NSP120 |
1 | ||
| 63341-52220 |
NCP120,125,NSP120 |
1 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-52230 |
NCP120,125,NSP120 |
3 | ||
| 63341-52410 |
NSP120 |
2 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-52230 |
NCP120,125,NSP120 |
3 | ||
| 63341-52410 |
NSP120 |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63341-52420 |
NSP120 |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63341-52420 |
NSP120 |
2 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63341-52430 |
NSP120 |
1 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63341-52440 |
NSP120 |
1 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-52110 |
NCP12#,NSP12# |
2 | ||
| 63351-52110 |
NCP12#,NSP12# |
2 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-52110 |
NCP12#,NSP12# |
2 | ||
| 63351-52110 |
NCP12#,NSP12# |
2 | ||
| 63351C - PAD, ROOF HEADLINING | ||||
| 63351-52120 |
NCP120,125,NSP120 |
2 | ||
| 63351-52120 |
NCP120,125,NSP120 |
2 | ||
| 63351C - PAD, ROOF HEADLINING | ||||
| 63351-52120 |
NCP120,125,NSP120 |
2 | ||
| 63351-52120 |
NCP120,125,NSP120 |
2 | ||
| 63352C - PAD, ROOF HEADLINING, END | ||||
| 63351-52060 |
NCP12#,NSP12# |
2 | ||
| 63351-52060 |
NCP12#,NSP12# |
2 | ||
| 63352C - PAD, ROOF HEADLINING, END | ||||
| 63351-52060 |
NCP12#,NSP12# |
2 | ||
| 63351-52060 |
NCP12#,NSP12# |
2 | ||
| 63371C - RETAINER, ROOF HEADLINING, NO.1 RH | ||||
| 63371-52010 |
NCP12#,NSP12# |
1 | ||
| 63371-52010 |
NCP12#,NSP12# |
1 | ||
| 63377A - RETAINER, ROOF HEADLINING SUPPORT, NO.1 | ||||
| 63374-52010 |
NCP12#,NSP12# |
1 | ||
| 63374-52010 |
NCP12#,NSP12# |
1 | ||
| 66413B - SPACER, SIDE RAIL, FRONT RH | ||||
| 66413-52280 |
NCP12#,NSP12# |
1 | ||
| 66413-52280 |
NCP12#,NSP12# |
1 | ||
| 66414A - SPACER, SIDE RAIL, REAR RH | ||||
| 66414-52290 |
NCP12#,NSP12# |
1 | ||
| 66414-52290 |
NCP12#,NSP12# |
1 | ||
| 66423 - SPACER, SIDE RAIL, FRONT LH | ||||
| 66423-52280 |
NCP12#,NSP12# |
1 | ||
| 66423-52280 |
NCP12#,NSP12# |
1 | ||
| 66424 - SPACER, SIDE RAIL, REAR LH | ||||
| 66424-52280 |
NCP12#,NSP12# |
1 | ||
| 66424-52280 |
NCP12#,NSP12# |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8604 | ||||
(1405- )NSP120
ｱﾘ(ｶｰﾃﾝｼｰﾙﾄﾞ ｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63310H - CLIP(FOR ROOF HEADLINING) | ||||
| 90467-05164B0 |
NCP125,NSP120..X LT.GRAY,TRIM2#,4#,8# |
2 | ||
| 90467-05164B0 |
NCP12#,NSP120..G LT.GRAY,TRIM2#,4# |
2 | ||
| 90467-05164B0 |
NCP120,125,NSP12#..S,X LT.GRAY,TRIM2# |
2 | ||
| 90467-05164B0 |
NCP12#,NSP120..G LT.GRAY,TRIM2#,4# |
2 | ||
| 63311C - HEADLINING, ROOF | ||||
| 63311-52040B0 |
NCP120,125,NSP120..S,X LT.GRAY,TRIM2# |
1 | ||
| 63311-52050B0 |
NCP120,125,NSP120..G LT.GRAY,TRIM2#,4# |
1 | ||
| 63311-52040B0 |
NCP120,125,NSP120..G LT.GRAY,TRIM2#,4# |
1 | ||
| 63311-52050B0 |
NCP120,125,NSP120..S,X LT.GRAY,TRIM2# |
1 | ||
| 63341 - PAD, ROOF SILENCER, NO.1 | ||||
| 63341-52220 |
NCP120,125,NSP120 |
1 | ||
| 63341-52220 |
NCP120,125,NSP120 |
1 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-52230 |
NCP120,125,NSP120 |
3 | ||
| 63341-52410 |
NSP120 |
2 | ||
| 63341G - PAD, ROOF SILENCER | ||||
| 63341-52230 |
NCP120,125,NSP120 |
3 | ||
| 63341-52410 |
NSP120 |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63341-52420 |
NSP120 |
2 | ||
| 63342 - PAD, ROOF SILENCER, NO.2 | ||||
| 63341-52420 |
NSP120 |
2 | ||
| 63343 - PAD, ROOF SILENCER, NO.3 | ||||
| 63341-52430 |
NSP120 |
1 | ||
| 63344 - PAD, ROOF SILENCER, NO.4 | ||||
| 63341-52440 |
NSP120 |
1 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-52110 |
NCP12#,NSP12# |
2 | ||
| 63351-52110 |
NCP12#,NSP12# |
2 | ||
| 63351B - PAD, ROOF HEADLINING | ||||
| 63351-52110 |
NCP12#,NSP12# |
2 | ||
| 63351-52110 |
NCP12#,NSP12# |
2 | ||
| 63351C - PAD, ROOF HEADLINING | ||||
| 63351-52120 |
NCP120,125,NSP120 |
2 | ||
| 63351-52120 |
NCP120,125,NSP120 |
2 | ||
| 63351C - PAD, ROOF HEADLINING | ||||
| 63351-52120 |
NCP120,125,NSP120 |
2 | ||
| 63351-52120 |
NCP120,125,NSP120 |
2 | ||
| 63352C - PAD, ROOF HEADLINING, END | ||||
| 63351-52060 |
NCP12#,NSP12# |
2 | ||
| 63351-52060 |
NCP12#,NSP12# |
2 | ||
| 63352C - PAD, ROOF HEADLINING, END | ||||
| 63351-52060 |
NCP12#,NSP12# |
2 | ||
| 63351-52060 |
NCP12#,NSP12# |
2 | ||
| 63371C - RETAINER, ROOF HEADLINING, NO.1 RH | ||||
| 63371-52010 |
NCP12#,NSP12# |
1 | ||
| 63371-52010 |
NCP12#,NSP12# |
1 | ||
| 63377A - RETAINER, ROOF HEADLINING SUPPORT, NO.1 | ||||
| 63374-52010 |
NCP12#,NSP12# |
1 | ||
| 63374-52010 |
NCP12#,NSP12# |
1 | ||
| 63388A - COVER, ROOF HEADLINING HOLDER | ||||
| 63388-60030B0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),LT.GRAY,TRIM2#,4# |
2 | ||
| 63388-60030B0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟV)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),LT.GRAY,TRIM2#,4# |
2 | ||
| 63388-60030B0 |
NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟU)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=助手席のみ&ｶｰﾃﾝ),LT.GRAY,TRIM2#,4# |
2 | ||
| 63388-60030B0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM2#,4# |
2 | ||
| 63388-60030B0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟV)&SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM2#,4# |
2 | ||
| 63388-60030B0 |
NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟW)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=助手席のみ&ｶｰﾃﾝ),LT.GRAY,TRIM2#,4# |
2 | ||
| 63388-60030B0 |
NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟU)&SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*PASのみ & *CUSA),LT.GRAY,TRIM2#,4# |
2 | ||
| 63388-60030B0 |
NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟW)&SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*PASのみ & *CUSA),LT.GRAY,TRIM2#,4# |
2 | ||
| 63388A - COVER, ROOF HEADLINING HOLDER | ||||
| 63388-60030B0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),LT.GRAY,TRIM2#,4# |
2 | ||
| 63388-60030B0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟV)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),LT.GRAY,TRIM2#,4# |
2 | ||
| 63388-60030B0 |
NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟU)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=助手席のみ&ｶｰﾃﾝ),LT.GRAY,TRIM2#,4# |
2 | ||
| 63388-60030B0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM2#,4# |
2 | ||
| 63388-60030B0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟV)&SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA),LT.GRAY,TRIM2#,4# |
2 | ||
| 63388-60030B0 |
NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟW)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=助手席のみ&ｶｰﾃﾝ),LT.GRAY,TRIM2#,4# |
2 | ||
| 63388-60030B0 |
NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟU)&SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*PASのみ & *CUSA),LT.GRAY,TRIM2#,4# |
2 | ||
| 63388-60030B0 |
NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟW)&SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*PASのみ & *CUSA),LT.GRAY,TRIM2#,4# |
2 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-52020 |
NCP120,125,NSP120..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ)&ｵｰﾃﾞｨｵ(日本向け)−AVN 4ｽﾋﾟｰｶ |
2 | ||
| 63399-52020 |
NCP120,125,NSP120 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
2 | ||
| 63399-52020 |
NCP125,NSP120..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ)&ｵｰﾃﾞｨｵ(日本向け)−AVN 4ｽﾋﾟｰｶ |
2 | ||
| 63399-52020 |
NSP120..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=助手席のみ&ｶｰﾃﾝ) |
2 | ||
| 63399-52020 |
NCP120..G;NSP120..X;NCP125..G,X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
2 | ||
| 63399-52020 |
NCP120,125,NSP120 SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 63399-52020 |
NSP120..G SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*PASのみ & *CUSA) |
2 | ||
| 63399-52020 |
NCP120,125,NSP120..G,S SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ)&ｵｰﾃﾞｨｵ(日本向け)−AVN 6ｽﾋﾟｰｶ |
2 | ||
| 63399-52020 |
NCP125;NCP120..G;NSP120..X SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
2 | ||
| 63399D - CLIP, ROOF HEADLINING | ||||
| 63399-52020 |
NCP120,125,NSP120..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ)&ｵｰﾃﾞｨｵ(日本向け)−AVN 4ｽﾋﾟｰｶ |
2 | ||
| 63399-52020 |
NCP120,125,NSP120 SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
2 | ||
| 63399-52020 |
NCP125,NSP120..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ)&ｵｰﾃﾞｨｵ(日本向け)−AVN 4ｽﾋﾟｰｶ |
2 | ||
| 63399-52020 |
NSP120..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=助手席のみ&ｶｰﾃﾝ) |
2 | ||
| 63399-52020 |
NCP120..G;NSP120..X;NCP125..G,X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
2 | ||
| 63399-52020 |
NCP120,125,NSP120 SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
2 | ||
| 63399-52020 |
NSP120..G SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*PASのみ & *CUSA) |
2 | ||
| 63399-52020 |
NCP120,125,NSP120..G,S SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ)&ｵｰﾃﾞｨｵ(日本向け)−AVN 6ｽﾋﾟｰｶ |
2 | ||
| 63399-52020 |
NCP125;NCP120..G;NSP120..X SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
2 | ||
| 66415B - SPACER, SIDE RAIL, REAR NO.2 RH | ||||
| 66415-52070 |
NCP12#,NSP12# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
1 | ||
| 66415-52070 |
NSP120..X;NCP125..G,X;NCP120,122..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| 66415-52070 |
NCP125;NSP120..X;NCP120,122..G SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| 66415-52070 |
NCP12#,NSP12# SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 66415-52070 |
NSP120..G SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*PASのみ & *CUSA) |
1 | ||
| 66415-52070 |
NSP120..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=助手席のみ&ｶｰﾃﾝ) |
1 | ||
| 66425B - SPACER, SIDE RAIL, REAR NO.2 LH | ||||
| 66425-52070 |
NCP12#,NSP12# SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ & *CUSA) |
1 | ||
| 66425-52070 |
NSP120..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=助手席のみ&ｶｰﾃﾝ) |
1 | ||
| 66425-52070 |
NCP12#,NSP12# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
1 | ||
| 66425-52070 |
NSP120..G SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*PASのみ & *CUSA) |
1 | ||
| 66425-52070 |
NSP120..X;NCP125..G,X;NCP120,122..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| 66425-52070 |
NCP125;NSP120..X;NCP120,122..G SRS ｴｱﾊﾞｯｸﾞ−有り(*DRS & *PAS & ｻｲﾄﾞ=*DRSのみ & *CUSA) |
1 | ||
| Linked diagrams | ||||
| 8121 | ||||
| 8202 | ||||
| 8604 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
