NSP120-CHXGB (2014)

Toyota Ractis

Production May 2014 - Jul 2016
Engine 1NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )NSP12#

Click highlighted areas on diagram

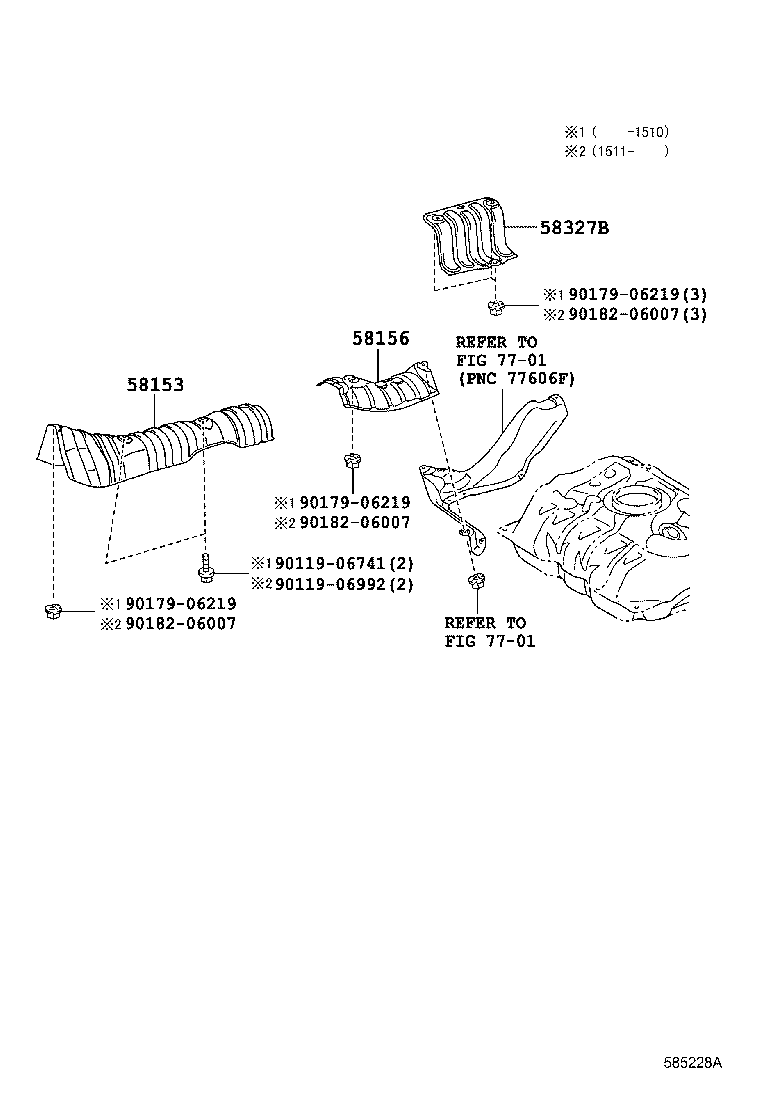

diagram 58153 58156 58327B 7701 7701 9011906741 9011906992 9017906219 9017906219 9017906219 9018206007 9018206007 9018206007
Part # Description Qty Price
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-52090

NSP12#

 1
58153-52091

NSP12#

 1
58156 - INSULATOR, FRONT FLOOR HEAT, NO.4
58156-52020

NCP120,122,NSP12#

 1
58156-52020

NCP120,122,NSP12#

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-52111

NCP120,122,NSP12#

 1
Common parts
90119-06741
90119-06992
90179-06219
90182-06007
Linked diagrams
7701
