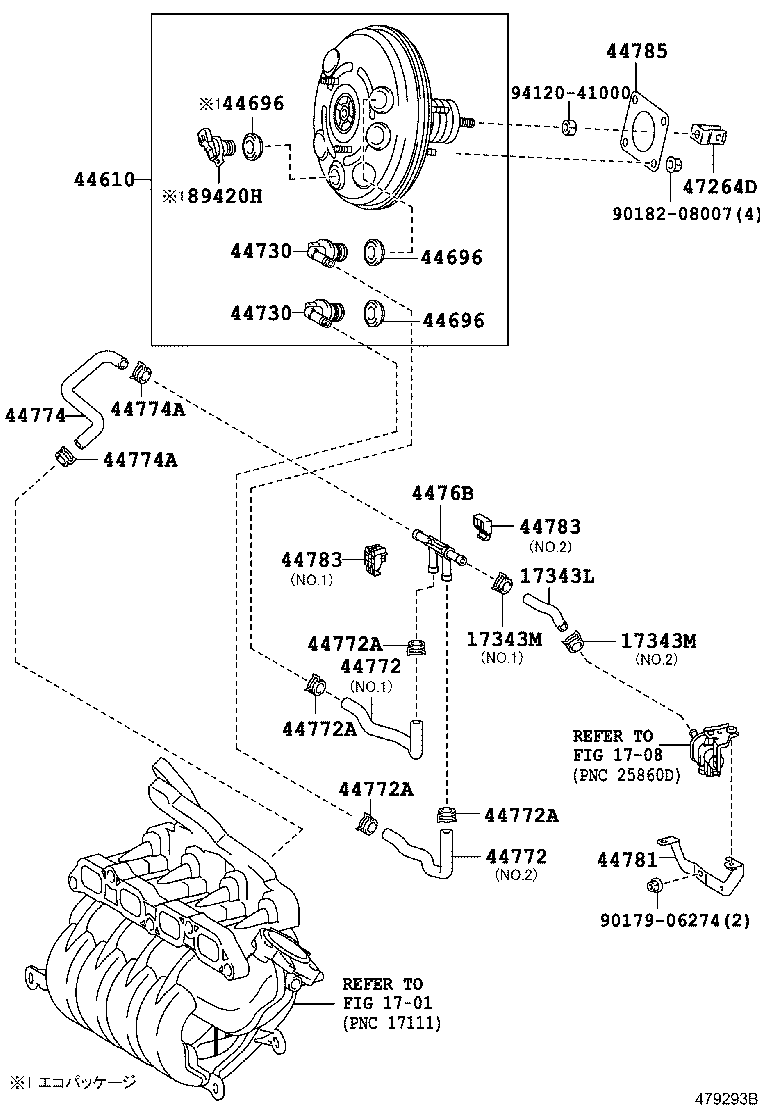

NSP120-CHXGB (2014)
Toyota Ractis
(1405- )NSP12#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17343L - HOSE, AIR, NO.3 | ||||
| 44727-52010 |
1NRFKE..NSP12# |
1 | ||
| 17343M - CLIP(FOR AIR HOSE NO.3) | ||||
| 90467-16014 |
1NRFKE..NSP12# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 96132-41500 |
1NRFKE..NSP12# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96133-41501 |
1NRFKE..NSP12# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 17343M - CLIP(FOR AIR HOSE NO.3) | ||||
| 90467-16014 |
1NRFKE..NSP12# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 96132-41500 |
1NRFKE..NSP12# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96133-41501 |
1NRFKE..NSP12# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-52F80 |
NSP120 有り(STOP & STARTｼｽﾃﾑ) |
1 | ||
| 44610-52810 |
NCP12#,NSP12# |
1 | ||
| 44610-52F70 |
NSP12# |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
NCP12#,NSP12# |
1 | ||
| 90480-24439 |
NSP120 有り(STOP & STARTｼｽﾃﾑ) |
3 | ||
| 90480-24439 |
NSP12# |
2 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
NCP12#,NSP12# |
1 | ||
| 90480-24439 |
NSP120 有り(STOP & STARTｼｽﾃﾑ) |
3 | ||
| 90480-24439 |
NSP12# |
2 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
NCP12#,NSP12# |
1 | ||
| 90480-24439 |
NSP120 有り(STOP & STARTｼｽﾃﾑ) |
3 | ||
| 90480-24439 |
NSP12# |
2 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20170 |
NSP12# |
2 | ||
| 44730-20170 |
NCP12#,NSP12# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20170 |
NSP12# |
2 | ||
| 44730-20170 |
NCP12#,NSP12# |
1 | ||
| 4476B - EJECTOR, BRAKE BOOSTER VACUUM | ||||
| 4476B-48010 |
NSP12# |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-52230 |
NSP12# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 44772-52220 |
NSP12# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-52230 |
NSP12# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 44772-52220 |
NSP12# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
NSP12# |
4 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
NSP12# |
4 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
NSP12# |
4 | ||
| 44772A - CLIP(FOR CHECK VALVE TO CONNECTOR TUBE) | ||||
| 90467-16014 |
NSP12# |
4 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-52170 |
NSP12# |
1 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16014 |
NSP12# |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 90467-16014 |
NSP12# |
2 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-52040 |
NSP12# |
1 | ||
| 44783 - CLAMP, VACUUM HOSE | ||||
| 44783-52090 |
NSP12# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 44783-52100 |
NSP12# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 44783 - CLAMP, VACUUM HOSE | ||||
| 44783-52090 |
NSP12# NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 44783-52100 |
NSP12# NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-16020 |
NCP12#,NSP12# |
1 | ||
| 44785-16020 |
NCP12#,NSP12# |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-52040 |
NCP12#,NSP12# |
1 | ||
| 47264-52040 |
NCP12#,NSP12# |
1 | ||
| 89420H - SENSOR ASSY, VACUUM | ||||
| 89421-52020 |
NCP120,NSP120 有り(STOP & STARTｼｽﾃﾑ) |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 90182-08007 | ||||
| 94120-41000 | ||||
