NSP120-CHXGB (2014)

Toyota Ractis

Production May 2014 - Jul 2016
Engine 1NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )1NRFKE

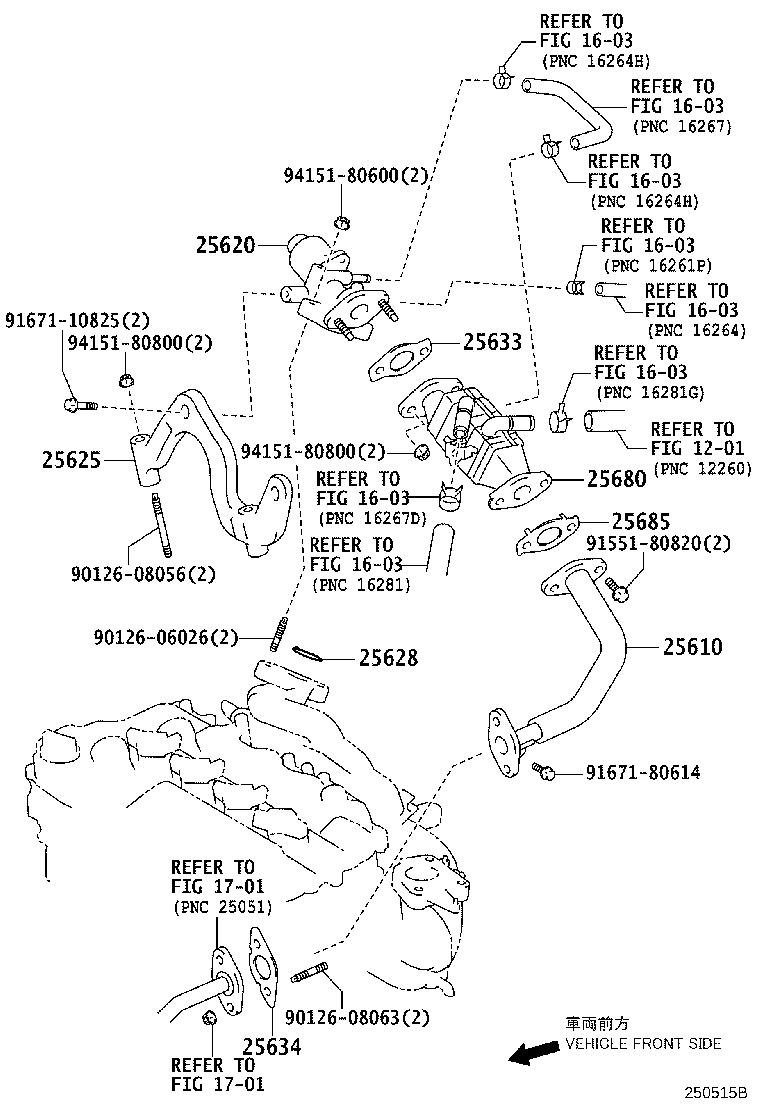

Click highlighted areas on diagram

diagram 1201 1603 1603 1603 1603 1603 1603 1603 1603 1701 1701 25610 25620 25625 25628 25633 25634 25680 25685 9012606026 9012608056 9012608063 9155180820 9167110825 9167180614 9415180600 9415180800 9415180800
Part # Description Qty Price
25610 - PIPE ASSY, EGR
25610-47010

1NRFKE..NSP12#

 1
25620 - VALVE ASSY, EGR
25620-47030

1NRFKE..NSP12#

 1
25625 - BRACKET, EGR VALVE
25625-47010

1NRFKE..NSP12#

 1
25628 - GASKET, EGR INLET
25628-36010

1NRFKE..NSP12#

 1
25633 - GASKET, EGR VALVE
25633-47020

1NRFKE..NSP12#

 1
25634 - GASKET, EGR PIPE
25685-37010

1NRFKE..NSP12#

 1
25680 - COOLER ASSY, EGR
25680-47011

1NRFKE..NSP12#

 1
25680-47012

1NRFKE..NSP12#

 1
25680-47010

1NRFKE..NSP12#

 1
25685 - GASKET, EGR COOLER, NO.1
25685-47010

1NRFKE..NSP12#

 1
Common parts
90126-06026
90126-08056
90126-08063
91551-80820
91671-10825
91671-80614
94151-80600
94151-80800
Linked diagrams
1201
1603
1701
