NSP120-CHXGB (2014)

Toyota Ractis

Production May 2014 - Jul 2016
Engine 1NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )1NRFKE..NSP120

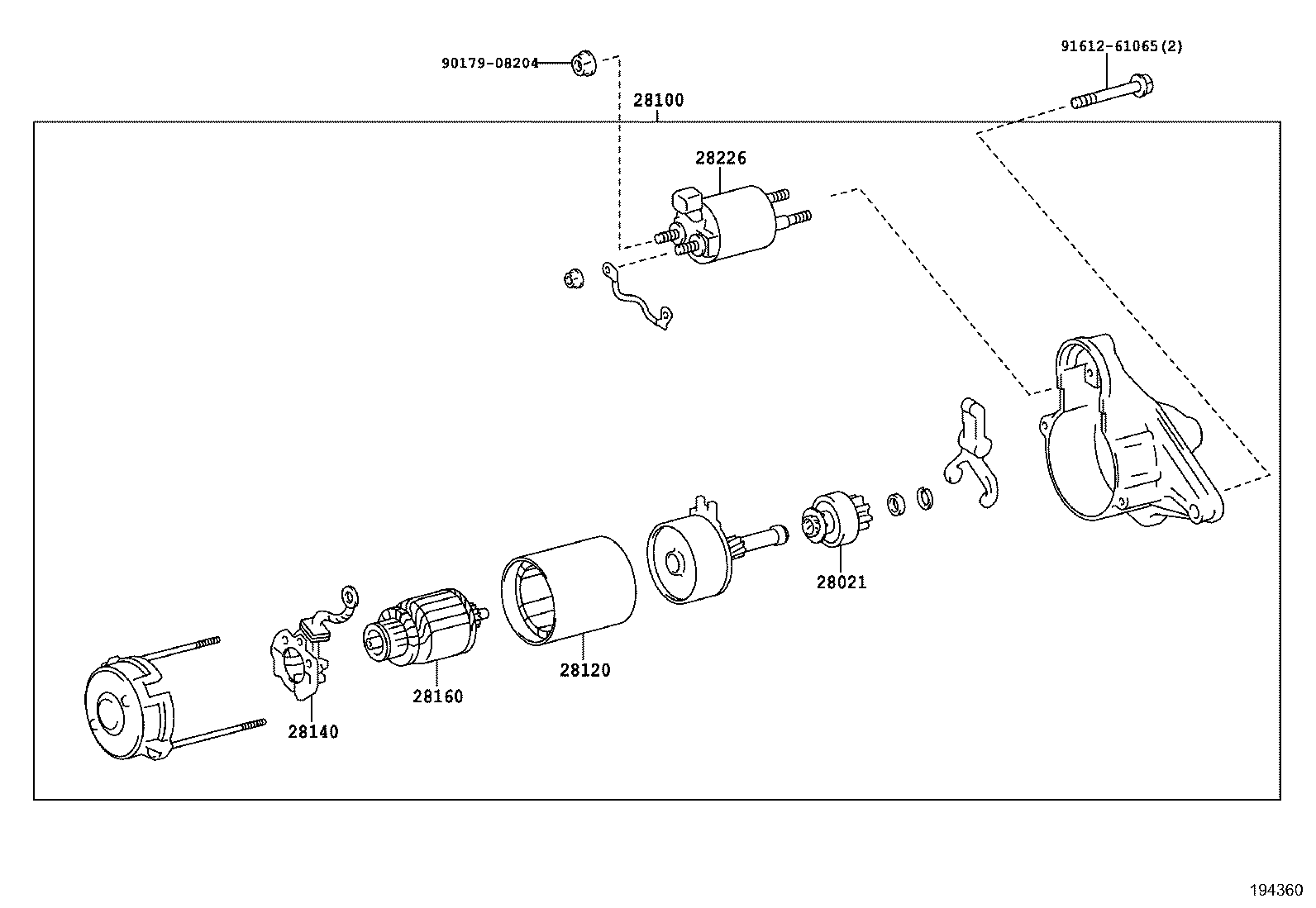

Click highlighted areas on diagram

12V 1.6KW

diagram 28021 28100 28120 28140 28160 28226 9017908204 9161261065
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-21100

1N#..NCP120,NSP120

有り(STOP & STARTｼｽﾃﾑ)

 1
28021-21100

1N#..NCP120,NSP120

有り(STOP & STARTｼｽﾃﾑ)&寒冷地仕様

 1
28100 - STARTER ASSY
28100-47180

1NRFKE..NSP12#

12V 1.2KW,寒冷地仕様

 1
28100-47170

1NRFKE..NSP12#

12V 1.0KW

 1
28100-47171

1NRFKE..NSP12#

12V 1.0KW

 1
28100-47210

1NRFKE..NSP120

12V 1.6KW,有り(STOP & STARTｼｽﾃﾑ)&寒冷地仕様

 1
28100-47181

1NRFKE..NSP12#

12V 1.2KW,寒冷地仕様

 1
28100-47210

1NRFKE..NSP120

12V 1.6KW,有り(STOP & STARTｼｽﾃﾑ)

 1
28120 - YOKE ASSY, STARTER
28120-47210

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)&寒冷地仕様

 1
28120-47210

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-21100

1N#..NCP120,NSP120

有り(STOP & STARTｼｽﾃﾑ)&寒冷地仕様

 1
28140-21070

1N#..NCP125,NSP12#

 1
28140-21100

1N#..NCP120,NSP120

有り(STOP & STARTｼｽﾃﾑ)

 1
28140-21070

1N#..NCP12#,NSP12#

 1
28160 - ARMATURE ASSY, STARTER
28160-21070

1N#..NCP125,NSP12#

 1
28160-21070

1N#..NCP12#,NSP12#

 1
28160-21100

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)&寒冷地仕様

 1
28160-21100

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)

 1
28160-47210

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)

 1
28160-21080

1N#..NCP125,NSP12#

寒冷地仕様

 1
28160-47210

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)&寒冷地仕様

 1
28160-21080

1NRFKE..NSP12#

寒冷地仕様

 1
28226 - STARTER KIT, BATTERY TERMINAL
28226-21080

1N#..NCP125,NSP12#

 1
28226-21081

1N#..NCP12#,NSP12#

 1
28226-21080

1N#..NCP12#,NSP12#

 1
28226-47210

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)&寒冷地仕様

 1
28226-47210

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)

 1
Common parts
90179-08204
91612-61065
