NSP120-CHXGB (2014)

Toyota Ractis

Production May 2014 - Jul 2016
Engine 1NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )1NRFKE

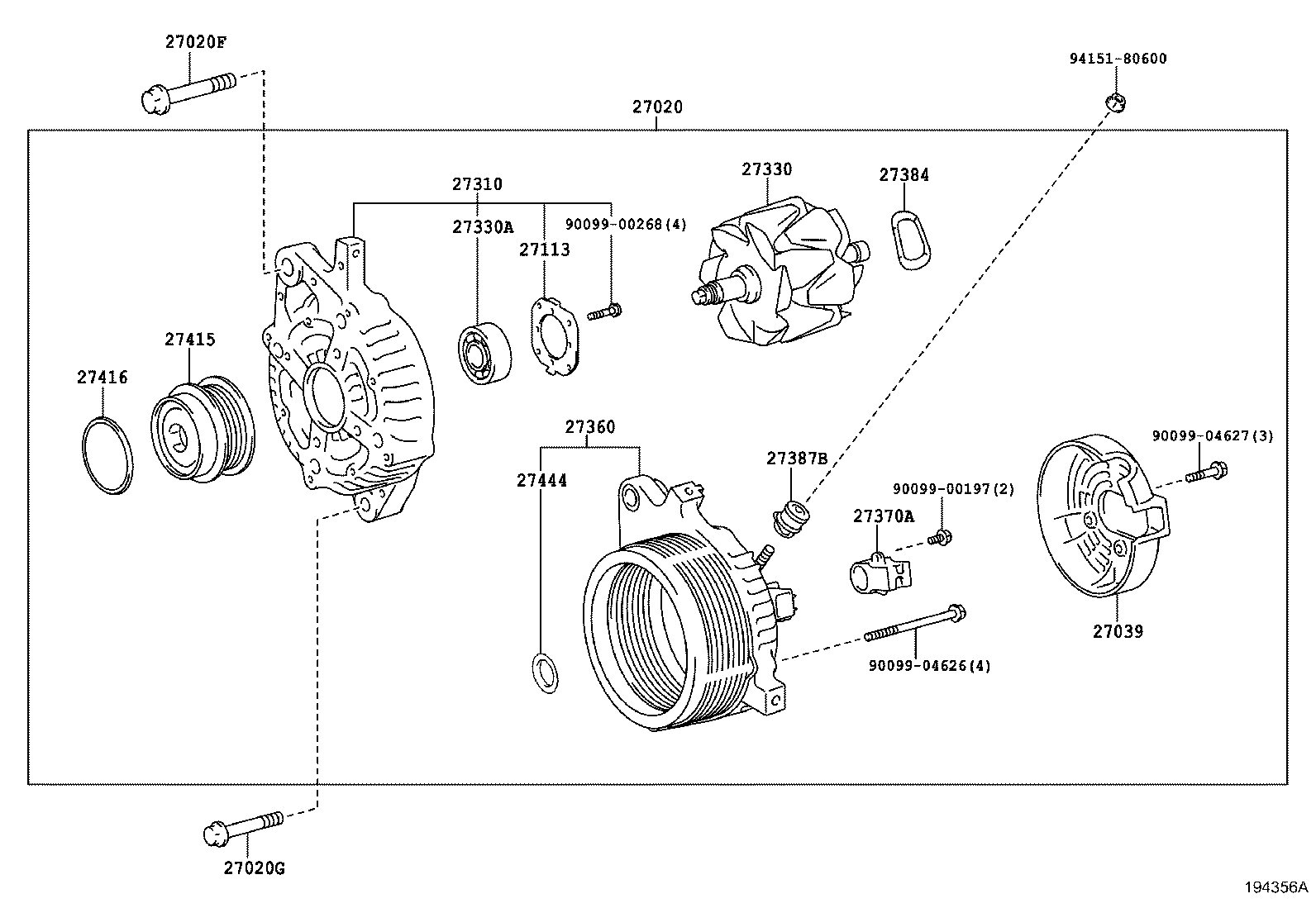

Click highlighted areas on diagram

12V 100A

diagram 27020 27020F 27020G 27039 27113 27310 27330 27330A 27360 27370A 27384 27387B 27415 27416 27444 9009900197 9009900268 9009904626 9009904627 9415180600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-47270

1NRFKE..NSP12#

12V 100A,寒冷地仕様

 1
27060-47270

1NRFKE..NSP120

12V 100A,有り(STOP & STARTｼｽﾃﾑ)&寒冷地仕様

 1
27060-47270

1NRFKE..NSP120

12V 100A,有り(STOP & STARTｼｽﾃﾑ)

 1
27060-47280

1NRFKE..NSP12#

12V 80A

 1
27020F - BOLT, NO.1(FOR ALTERNATOR)
90105-10075

1NRFKE..NSP12#

 1
27020G - BOLT, NO.2(FOR ALTERNATOR)
91671-80845

1NRFKE..NSP12#

 1
27039 - COVER, ALTERNATOR REAR END
27039-47330

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)

 1
27039-47330

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)&寒冷地仕様

 1
27039-47330

1NRFKE..NSP12#

寒冷地仕様

 1
27039-47310

1N#..NCP12#,NSP12#

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-72100

1N#..NCP12#,NSP12#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-47310

1NRFKE..NSP12#

 1
27310-47330

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)&寒冷地仕様

 1
27310-47330

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)

 1
27310-47330

1NRFKE..NSP12#

寒冷地仕様

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-47310

1N#..NCP12#,NSP12#

 1
27330-47330

1NRFKE..NSP12#

寒冷地仕様

 1
27330-47330

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)&寒冷地仕様

 1
27330-47330

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)

 1
27330-30130

1N#..NCP12#,NSP12#

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10227

1N#..NCP12#,NSP12#

 1
90099-10223

1NRFKE..NSP12#

寒冷地仕様

 1
90099-10223

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)

 1
90099-10223

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)&寒冷地仕様

 1
27360 - COIL ASSY, ALTERNATOR
27360-47411

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)&寒冷地仕様

 1
27360-47420

1NRFKE..NSP12#

 1
27360-47411

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)

 1
27360-47411

1NRFKE..NSP12#

寒冷地仕様

 1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-31220

1N#..NCP12#,NSP12#

 1
27384 - WASHER
27384-38130

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)&寒冷地仕様

 1
27384-38130

1NRFKE..NSP12#

寒冷地仕様

 1
27384-38130

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)

 1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-20130

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)

 1
27387-20130

1NRFKE..NSP12#

寒冷地仕様

 1
27387-47310

1N#..NCP12#,NSP12#

 1
27387-20130

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)&寒冷地仕様

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0Y061

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)

 1
27415-0Y061

1NRFKE..NSP120

有り(STOP & STARTｼｽﾃﾑ)&寒冷地仕様

 1
27415-0Y051

1NRFKE..NSP12#

 1
27415-0Y061

1NRFKE..NSP12#

寒冷地仕様

 1
27416 - CAP, ALTERNATOR PULLEY
27416-0W050

1N#..NCP120,122,NSP12#

 1
27444 - PACKING, ALTERNATOR BEARING COVER
27444-21190

1N#..NCP12#,NSP12#

 1
Common parts
90099-00197
90099-00268
90099-04626
90099-04627
94151-80600
