NSP120-CHXGB (2014)

Toyota Ractis

Production May 2014 - Jul 2016
Engine 1NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )1NRFKE

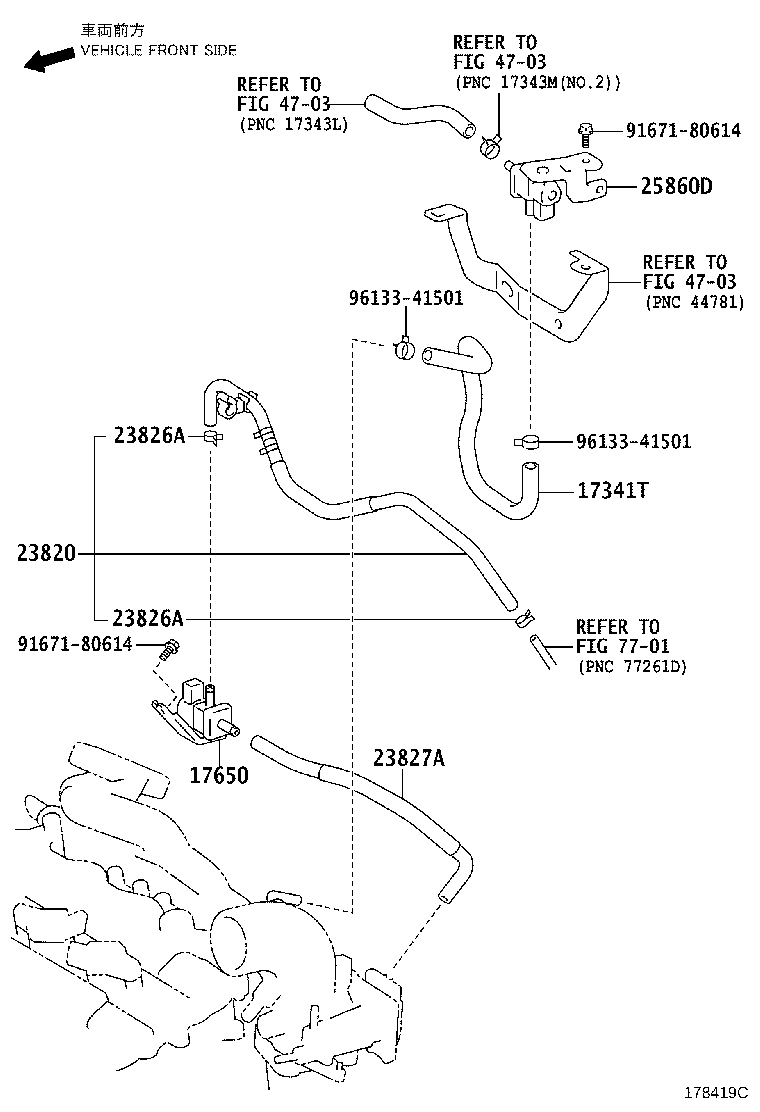

Click highlighted areas on diagram

diagram 17341T 17650 23820 23826A 23826A 23827A 25860D 4703 4703 4703 7701 9167180614 9167180614 9613341501 9613341501
Part # Description Qty Price
17341T - HOSE, AIR, NO.1
44726-52010

1NRFKE..NSP12#

 1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-47030

1NRFKE..NSP12#

 1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-47040

1NRFKE..NSP12#

 1
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90466-11003

1NRFKE..NSP12#

 2
23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1)
90466-11003

1NRFKE..NSP12#

 2
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-47090

1NRFKE..NSP12#

 1
25860D - VALVE ASSY, VACUUM SWITCHING, NO.2
25860-47040

1NRFKE..NSP12#

 1
Common parts
91671-80614
96133-41501
Linked diagrams
4703
7701
