NSP120-CHXGB (2014)

Toyota Ractis

Production May 2014 - Jul 2016
Engine 1NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )1NRFKE

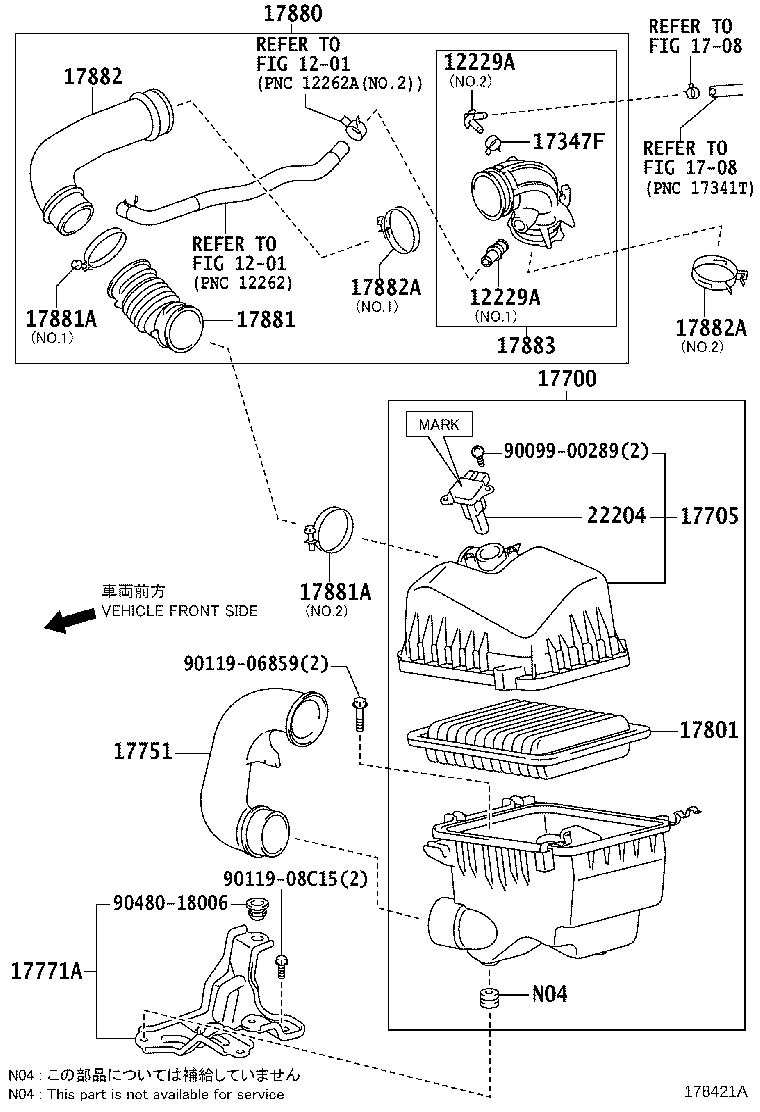

Click highlighted areas on diagram

diagram 1201 1201 12229A 12229A 1708 1708 17347F 17700 17705 17751 17771A 17801 17880 17881 17881A 17881A 17882 17882A 17882A 17883 22204 9009900289 9011906859 9011908C15 9048018006
Part # Description Qty Price
12229A - PIPE, VENTILATION
12229-47010

1NRFKE..NSP12#

NO.2:ｲﾗｽﾄ参照

 1
12229-36010

1NRFKE..NSP12#

NO.2:ｲﾗｽﾄ参照

 1
12229-21010

1NRFKE..NSP12#

NO.1:ｲﾗｽﾄ参照

 1
12229A - PIPE, VENTILATION
12229-47010

1NRFKE..NSP12#

NO.2:ｲﾗｽﾄ参照

 1
12229-36010

1NRFKE..NSP12#

NO.2:ｲﾗｽﾄ参照

 1
12229-21010

1NRFKE..NSP12#

NO.1:ｲﾗｽﾄ参照

 1
17347F - CLAMP OR CLIP(FOR AIR HOSE)
96136-41901

1NRFKE..NSP12#

 1
17700 - CLEANER ASSY, AIR
17700-47160

1NRFKE..NSP12#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-47130

1NRFKE..NSP12#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-47080

1NRFKE..NSP12#

 1
17771A - BRACKET, AIR CLEANER
17771-21050

1N#..NCP12#,NSP12#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-21050

1NRFKE..NSP12#

 1
17880 - HOSE ASSY, AIR CLEANER
17880-47051

1NRFKE..NSP12#

 1
17880-47050

1NRFKE..NSP12#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-47070

1NRFKE..NSP12#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690

1NRFKE..NSP12#

NO.2:ｲﾗｽﾄ参照

 1
96111-10730

1NRFKE..NSP12#

NO.1:ｲﾗｽﾄ参照

 1
96111-10690

1N#..NCP12#,NSP12#

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690

1NRFKE..NSP12#

NO.2:ｲﾗｽﾄ参照

 1
96111-10730

1NRFKE..NSP12#

NO.1:ｲﾗｽﾄ参照

 1
96111-10690

1N#..NCP12#,NSP12#

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-47040

1NRFKE..NSP12#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10730

1NRFKE..NSP12#

NO.1:ｲﾗｽﾄ参照

 1
90466-62002

1NRFKE..NSP12#

NO.2:ｲﾗｽﾄ参照

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10730

1NRFKE..NSP12#

NO.1:ｲﾗｽﾄ参照

 1
90466-62002

1NRFKE..NSP12#

NO.2:ｲﾗｽﾄ参照

 1
17883 - HOSE, AIR CLEANER, NO.3
17883-47041

1NRFKE..NSP12#

 1
17883-47040

1NRFKE..NSP12#

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0T040

1NRFKE..NSP12#

ﾏｰｸ 22204−0T040

 1
22204-28010

1NRFKE..NSP12#

ﾏｰｸ 22204−28010

 1
22204-0V010

1NRFKE..NSP12#

ﾏｰｸ 22204−0V010

 1
22204-0V020

1NRFKE..NSP12#

ﾏｰｸ 22204−0V020

 1
Common parts
90099-00289
90119-06859
90119-08C15
90480-18006
Linked diagrams
1201
1708
