NSP120-CHXGB (2014)

Toyota Ractis

Production May 2014 - Jul 2016
Engine 1NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )1NRFKE

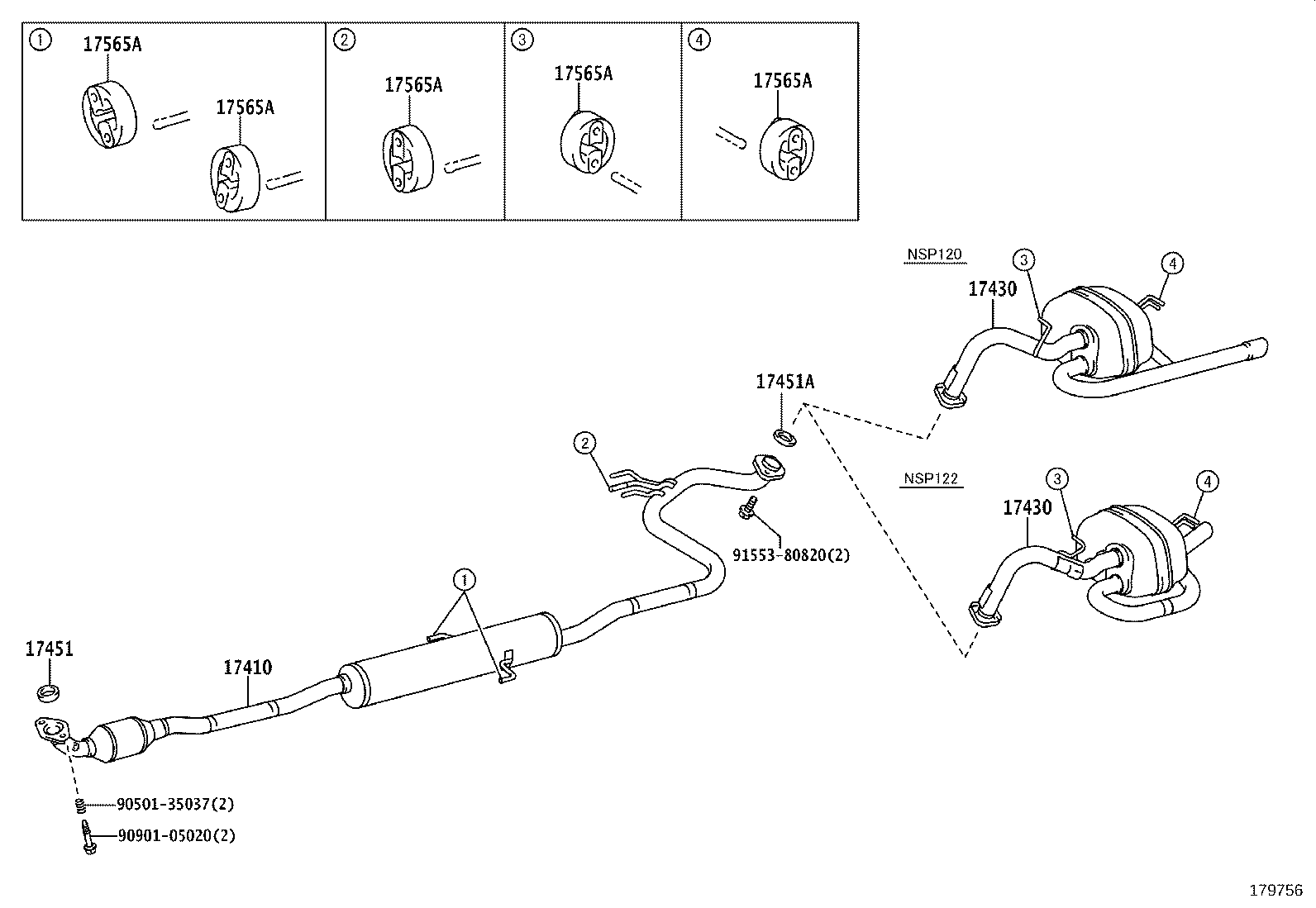

Click highlighted areas on diagram

diagram 17410 17430 17430 17451 17451A 17565A 17565A 17565A 17565A 17565A 9050135037 9090105020 9155380820
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-47290

1NRFKE..NSP12#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-47190

1NRFKE..NSP120

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-47190

1NRFKE..NSP120

 1
17451 - GASKET, EXHAUST PIPE
17451-21070

1N#..NCP12#,NSP12#

 1
17451-21070

1N#..NCP12#,NSP12#

 1
17451A - GASKET, EXHAUST PIPE, NO.2
17451-23042

1N#..NCP120,122,NSP12#

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1N#..NCP125,NSP12#

 4
17565-47010

1N#..NCP120,122,NSP12#

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1N#..NCP125,NSP12#

 4
17565-47010

1N#..NCP120,122,NSP12#

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1N#..NCP125,NSP12#

 4
17565-47010

1N#..NCP120,122,NSP12#

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1N#..NCP125,NSP12#

 4
17565-47010

1N#..NCP120,122,NSP12#

 5
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-47010

1N#..NCP125,NSP12#

 4
17565-47010

1N#..NCP120,122,NSP12#

 5
Common parts
90501-35037
90901-05020
91553-80820
