NSP120-CHXGB (2014)

Toyota Ractis

Production May 2014 - Jul 2016
Engine 1NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )1NRFKE

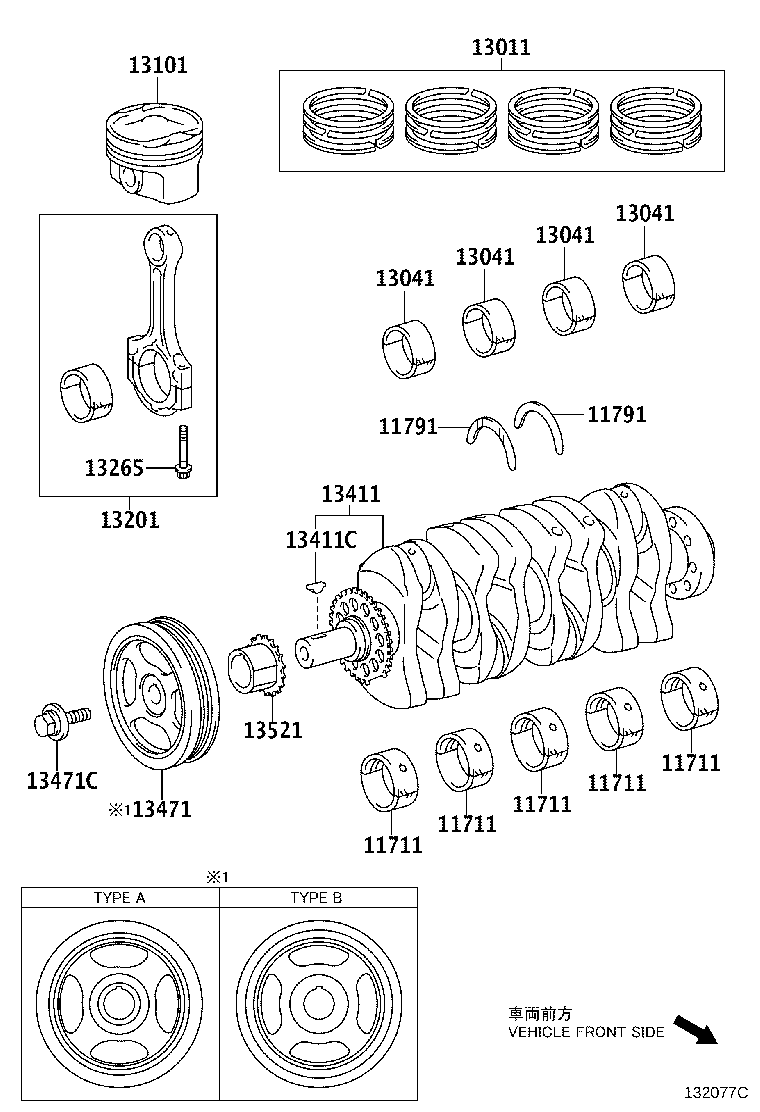

Click highlighted areas on diagram

diagram 11711 11711 11711 11711 11711 11791 11791 13011 13041 13041 13041 13041 13101 13201 13265 13411 13411C 13471 13471C 13521
Part # Description Qty Price
11711 - BEARING, CRANKSHAFT
11701-4703105

1NRFKE..NSP12#

MARK5,修理書参照

 5
11701-4703104

1NRFKE..NSP12#

MARK4,修理書参照

 5
11701-4703102

1NRFKE..NSP12#

MARK2,修理書参照

 5
11701-4703002

1NRFKE..NSP12#

MARK2,修理書参照

 5
11701-4703004

1NRFKE..NSP12#

MARK4,修理書参照

 5
11701-4703003

1NRFKE..NSP12#

MARK3,修理書参照

 5
11701-4703005

1NRFKE..NSP12#

MARK5,修理書参照

 5
11701-4703103

1NRFKE..NSP12#

MARK3,修理書参照

 5
11711 - BEARING, CRANKSHAFT
11701-4703105

1NRFKE..NSP12#

MARK5,修理書参照

 5
11701-4703104

1NRFKE..NSP12#

MARK4,修理書参照

 5
11701-4703102

1NRFKE..NSP12#

MARK2,修理書参照

 5
11701-4703002

1NRFKE..NSP12#

MARK2,修理書参照

 5
11701-4703004

1NRFKE..NSP12#

MARK4,修理書参照

 5
11701-4703003

1NRFKE..NSP12#

MARK3,修理書参照

 5
11701-4703005

1NRFKE..NSP12#

MARK5,修理書参照

 5
11701-4703103

1NRFKE..NSP12#

MARK3,修理書参照

 5
11711 - BEARING, CRANKSHAFT
11701-4703105

1NRFKE..NSP12#

MARK5,修理書参照

 5
11701-4703104

1NRFKE..NSP12#

MARK4,修理書参照

 5
11701-4703102

1NRFKE..NSP12#

MARK2,修理書参照

 5
11701-4703002

1NRFKE..NSP12#

MARK2,修理書参照

 5
11701-4703004

1NRFKE..NSP12#

MARK4,修理書参照

 5
11701-4703003

1NRFKE..NSP12#

MARK3,修理書参照

 5
11701-4703005

1NRFKE..NSP12#

MARK5,修理書参照

 5
11701-4703103

1NRFKE..NSP12#

MARK3,修理書参照

 5
11711 - BEARING, CRANKSHAFT
11701-4703105

1NRFKE..NSP12#

MARK5,修理書参照

 5
11701-4703104

1NRFKE..NSP12#

MARK4,修理書参照

 5
11701-4703102

1NRFKE..NSP12#

MARK2,修理書参照

 5
11701-4703002

1NRFKE..NSP12#

MARK2,修理書参照

 5
11701-4703004

1NRFKE..NSP12#

MARK4,修理書参照

 5
11701-4703003

1NRFKE..NSP12#

MARK3,修理書参照

 5
11701-4703005

1NRFKE..NSP12#

MARK5,修理書参照

 5
11701-4703103

1NRFKE..NSP12#

MARK3,修理書参照

 5
11711 - BEARING, CRANKSHAFT
11701-4703105

1NRFKE..NSP12#

MARK5,修理書参照

 5
11701-4703104

1NRFKE..NSP12#

MARK4,修理書参照

 5
11701-4703102

1NRFKE..NSP12#

MARK2,修理書参照

 5
11701-4703002

1NRFKE..NSP12#

MARK2,修理書参照

 5
11701-4703004

1NRFKE..NSP12#

MARK4,修理書参照

 5
11701-4703003

1NRFKE..NSP12#

MARK3,修理書参照

 5
11701-4703005

1NRFKE..NSP12#

MARK5,修理書参照

 5
11701-4703103

1NRFKE..NSP12#

MARK3,修理書参照

 5
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-47030

1NRFKE..NSP12#

STD

 2
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-47030

1NRFKE..NSP12#

STD

 2
13011 - RING SET, PISTON
13011-47100

1NRFKE..NSP12#

STD

 1
13011-47120

1NRFKE..NSP12#

STD

 1
13041 - BEARING, CONNECTING ROD
13041-4701101

1NRFKE..NSP12#

MARK1,修理書参照

 4
13041-4701103

1NRFKE..NSP12#

MARK3,修理書参照

 4
13041-4701102

1NRFKE..NSP12#

MARK2,修理書参照

 4
13041 - BEARING, CONNECTING ROD
13041-4701101

1NRFKE..NSP12#

MARK1,修理書参照

 4
13041-4701103

1NRFKE..NSP12#

MARK3,修理書参照

 4
13041-4701102

1NRFKE..NSP12#

MARK2,修理書参照

 4
13041 - BEARING, CONNECTING ROD
13041-4701101

1NRFKE..NSP12#

MARK1,修理書参照

 4
13041-4701103

1NRFKE..NSP12#

MARK3,修理書参照

 4
13041-4701102

1NRFKE..NSP12#

MARK2,修理書参照

 4
13041 - BEARING, CONNECTING ROD
13041-4701101

1NRFKE..NSP12#

MARK1,修理書参照

 4
13041-4701103

1NRFKE..NSP12#

MARK3,修理書参照

 4
13041-4701102

1NRFKE..NSP12#

MARK2,修理書参照

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-47100

1NRFKE..NSP12#

STD

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-49086

1NRFKE..NSP12#

 4
13265 - BOLT, CONNECTING ROD
13265-21020

1N#..NCP12#,NSP12#

 8
13265-21020

1N#..NCP12#,NSP12#

 8
13411 - CRANKSHAFT
13401-47070

1NRFKE..NSP12#

 1
13411C - PIN, STRAIGHT(FOR CRANKSHAFT)
90280-04001

1NRFKE..NSP12#

 1
13471 - PULLEY, CRANKSHAFT
13470-47080

1NRFKE..NSP12#

TYPE A:ｲﾗｽﾄ参照

 1
13470-47090

1NRFKE..NSP12#

TYPE B:ｲﾗｽﾄ参照

 1
13470-47080

1NRFKE..NSP12#

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-14175

1NRFKE..NSP12#

 1
90119-12345

1N#..NCP12#,NSP12#

 1
90119-14106

1NRFKE..NSP12#

 1
90119-14106

1NRFKE..NSP12#

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-47020

1NRFKE..NSP12#

 1
