NSP120-CHXGB (2014)

Toyota Ractis

Production May 2014 - Jul 2016
Engine 1NRFKE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1405- )1NRFKE

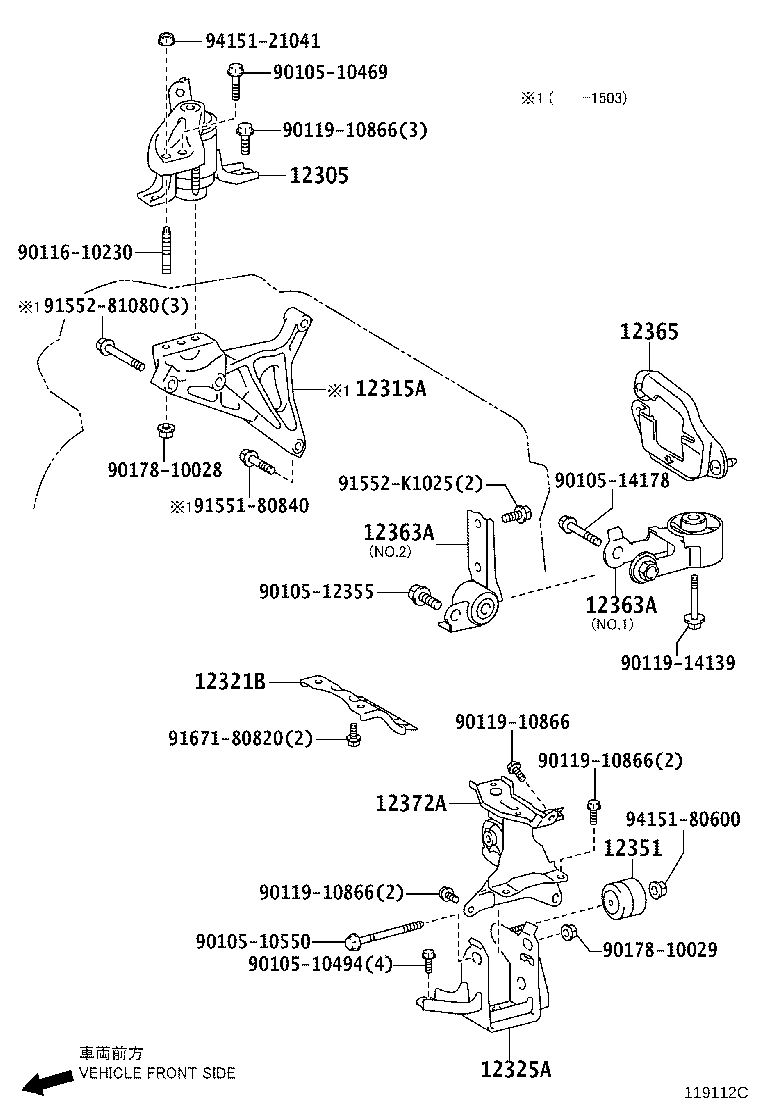

Click highlighted areas on diagram

diagram 12305 12315A 12321B 12325A 12351 12363A 12363A 12365 12372A 9010510469 9010510494 9010510550 9010512355 9010514178 9011610230 9011910866 9011910866 9011910866 9011910866 9011914139 9017810028 9017810029 9155180840 9155281080 91552K1025 9167180820 9415121041 9415180600
Part # Description Qty Price
12305 - INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12305-47040

1NRFKE..NSP12#

 1
12305-47041

1NRFKE..NSP12#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-47070

1NRFKE..NSP12#

 1
12321B - INSULATOR SUB-ASSY, DRIVE SHAFT HEAT
43498-52110

1NRFKE..NSP12#

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-47120

1NRFKE..NSP12#

 1
12351 - DAMPER, ENGINE MOUNTING
12351-37100

1NRFKE..NSP12#

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-47051

1NRFKE..NSP12#

NO.1

 1
12364-47010

1NRFKE..NSP12#

NO.2

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-47051

1NRFKE..NSP12#

NO.1

 1
12364-47010

1NRFKE..NSP12#

NO.2

 1
12365 - COVER, ENGINE MOVING CONTROL ROD
12365-40010

1N#..NCP12#,NSP12#

寒冷地仕様

 1
12365-40010

1N#..NCP12#,NSP12#

寒冷地仕様

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-47090

1NRFKE..NSP12#

 1
Common parts
90105-10469
90105-10494
90105-10550
90105-12355
90105-14178
90116-10230
90119-10866
90119-14139
90178-10028
90178-10029
91551-80840
91552-81080
91552-K1025
91671-80820
94151-21041
94151-80600
