NCP125-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

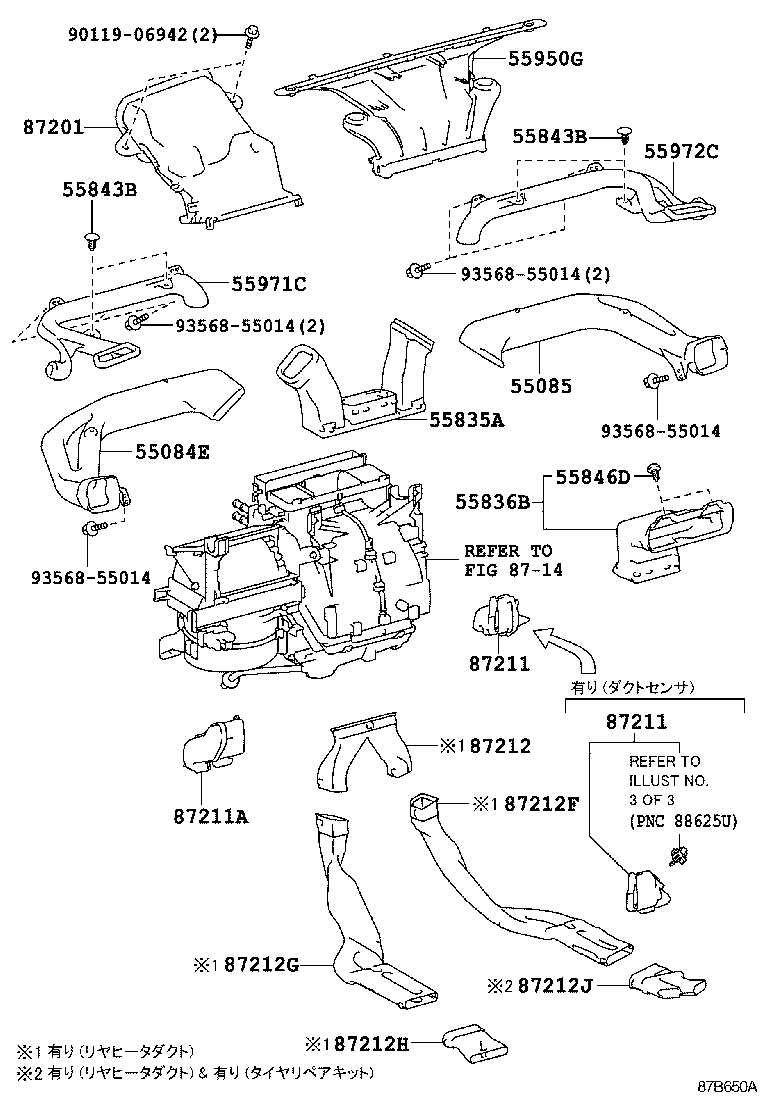

ILLUST NO. 2 OF 3(1011-1405)

Click highlighted areas on diagram

ｴｱﾀﾞｸﾄ

diagram 55084E 55085 55835A 55836B 55843B 55843B 55846D 55950G 55971C 55972C 8714 87201 87211 87211 87211A 87212 87212F 87212G 87212H 87212J 9011906942 9356855014 9356855014 9356855014 9356855014
Part # Description Qty Price
55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1
55084-52030

NCP12#,NSP12#

 1
55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2
55086-52010

NCP12#,NSP12#

 1
55835A - DUCT, HEATER TO REGISTER, CENTER
55835-52060

NCP12#,NSP12#

 1
55836B - DUCT, HEATER TO RESISTER, CENTER, NO.2
55836-52080

NCP12#,NSP12#

 1
55843B - CLIP, HEATER TO REGISTER DUCT
90467-05161B0

NCP12#,NSP12#

DK.GRAY

 4
55843B - CLIP, HEATER TO REGISTER DUCT
90467-05161B0

NCP12#,NSP12#

DK.GRAY

 4
55846D - CLIP, HEATER TO REGISTER DUCT
90467-05161B0

NCP12#,NSP12#

DK.GRAY

 2
55950G - NOZZLE ASSY, DEFROSTER
55950-52160

NCP12#,NSP12#

 1
55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-52050

NCP12#,NSP12#

 1
55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-52050

NCP12#,NSP12#

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-52110

NCP12#,NSP12#

 1
87211 - DUCT, AIR, NO.1
87211-52090

NCP12#,NSP12#

 1
87211 - DUCT, AIR, NO.1
87211-52090

NCP12#,NSP12#

 1
87211A - DUCT, AIR, NO.2
87211-52050

NCP12#,NSP12#

 1
87212 - DUCT, AIR, REAR NO.1
87215-52050

NCP125

 1
87212F - DUCT, AIR, REAR NO.2
87212-52100

NCP125

 1
87212G - DUCT, AIR, REAR NO.3
87213-52070

NCP125

 1
87212H - DUCT, AIR, REAR NO.4
87216-52040

NCP125

 1
87212J - DUCT, AIR, REAR NO.5
87217-52030

NCP125

 1
Common parts
90119-06942
93568-55014
Linked diagrams
8714

ILLUST NO. 1 OF 3(1011- )G,S

Click highlighted areas on diagram

ｺﾝﾄﾛｰﾙﾊﾟﾈﾙ---ｵｰﾄ

diagram 55900
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-52680

NCP12#,NSP120..G,S

ﾏｰｸ=55900−52680

 1
55900-52830

NCP12#,NSP120..G,S

ﾏｰｸ=55900−52830

 1

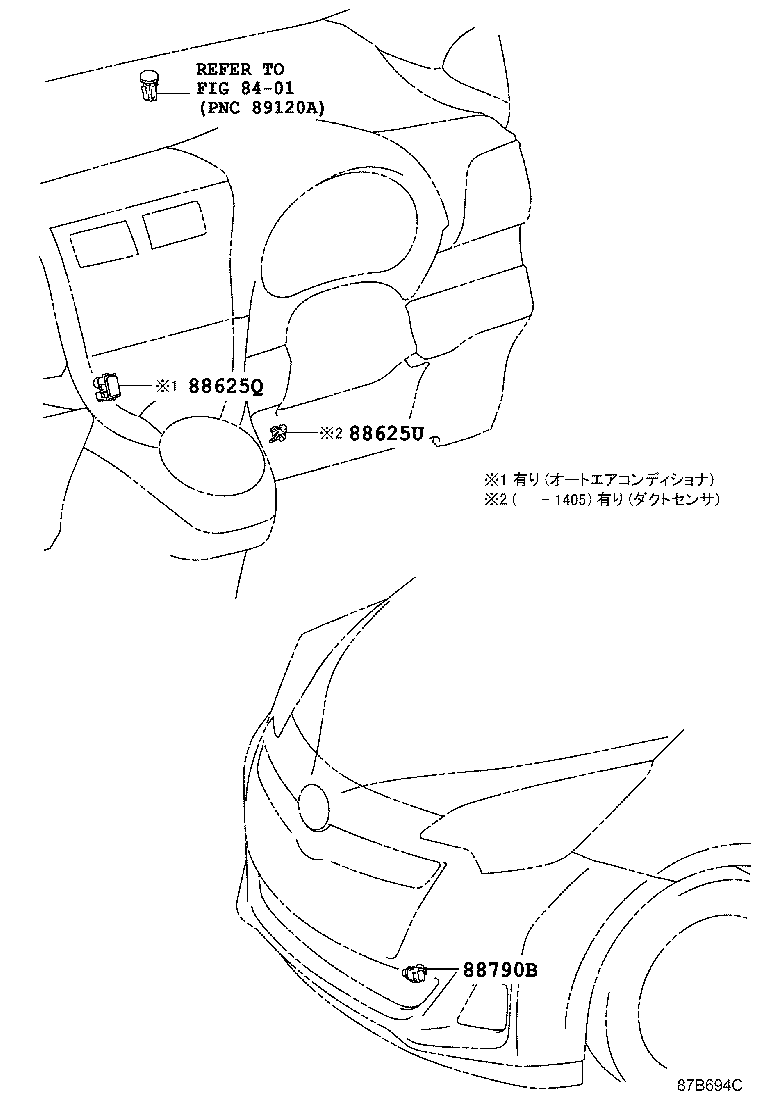

ILLUST NO. 3 OF 3(1011- )

Click highlighted areas on diagram

ｾﾝｻ

diagram 8401 88625Q 88625U 88790B
Part # Description Qty Price
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

NCP12#,NSP120..G,S

 1
88790B - THERMISTOR ASSY
88790-22131

NCP12#,NSP12#

 1
Linked diagrams
8401

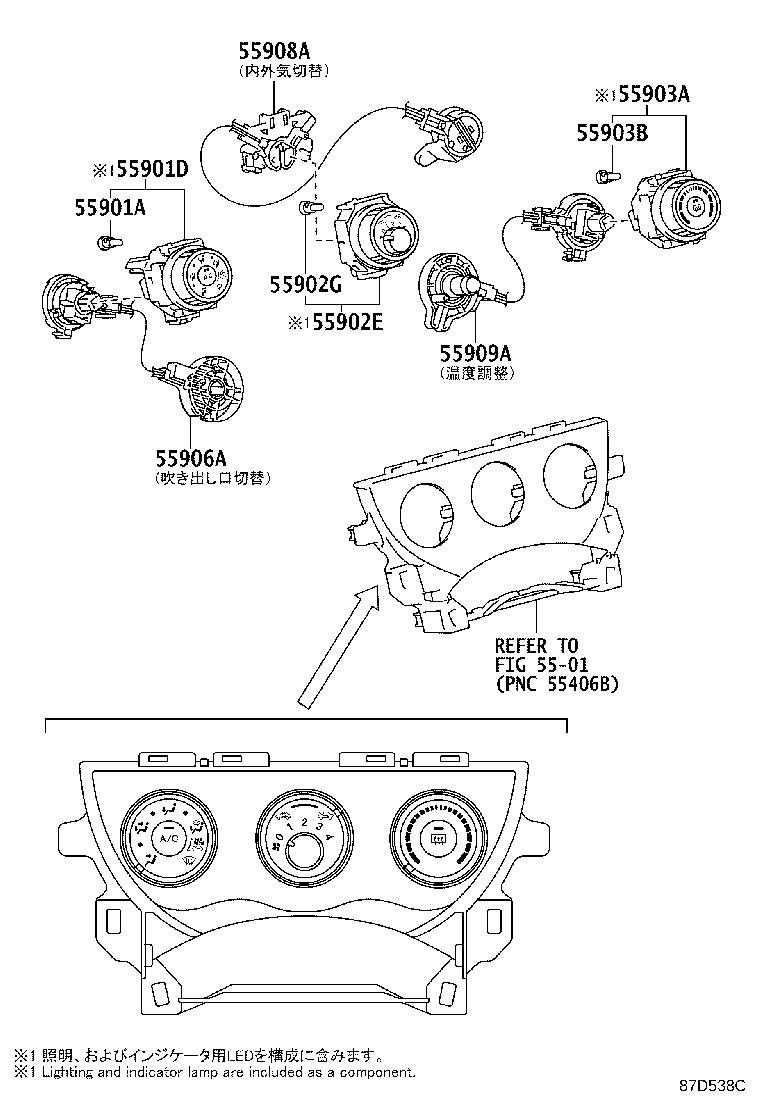

ILLUST NO. 1 OF 3(1011- )LEPIC,X

Click highlighted areas on diagram

ｺﾝﾄﾛｰﾙﾊﾟﾈﾙ---ﾏﾆｭｱﾙ

diagram 5501 55901A 55901D 55902E 55902G 55903A 55903B 55906A 55908A 55909A
Part # Description Qty Price
55901A - BULB, HEATER CONTROL SUB-ASSY, NO.1
90010-01142

NCP120,125,NSP12#..LEPIC,X

 1
55901D - CONTROL SUB-ASSY, HEATER, NO.1
55901-52230

NCP120,125,NSP12#..LEPIC,X

 1
55902E - CONTROL SUB-ASSY, HEATER, NO.2
55902-52180

NCP120,125,NSP12#..LEPIC,X

 1
55902G - BULB, HEATER CONTROL SUB-ASSY, NO.2
90010-01142

NCP120,125,NSP12#..LEPIC,X

 1
55903A - CONTROL SUB-ASSY, HEATER, NO.3
55903-52241

NCP120,125,NSP12#..LEPIC,X

寒冷地仕様

 1
55903-52231

NCP120,125,NSP12#..LEPIC,X

 1
55903B - BULB, HEATER CONTROL SUB-ASSY, NO.3
90010-01142

NCP120,125,NSP12#..LEPIC,X

 1
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-52132

NCP120,125,NSP12#..LEPIC,X

 1
55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL
55908-52130

NCP120,125,NSP12#..LEPIC,X

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-52120

NCP120,125,NSP12#..LEPIC,X

 1
Linked diagrams
5501
