NCP125-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )NCP125..X ; (1011- )NCP120,NSP12#..LEPIC,X..HTWC

Click highlighted areas on diagram

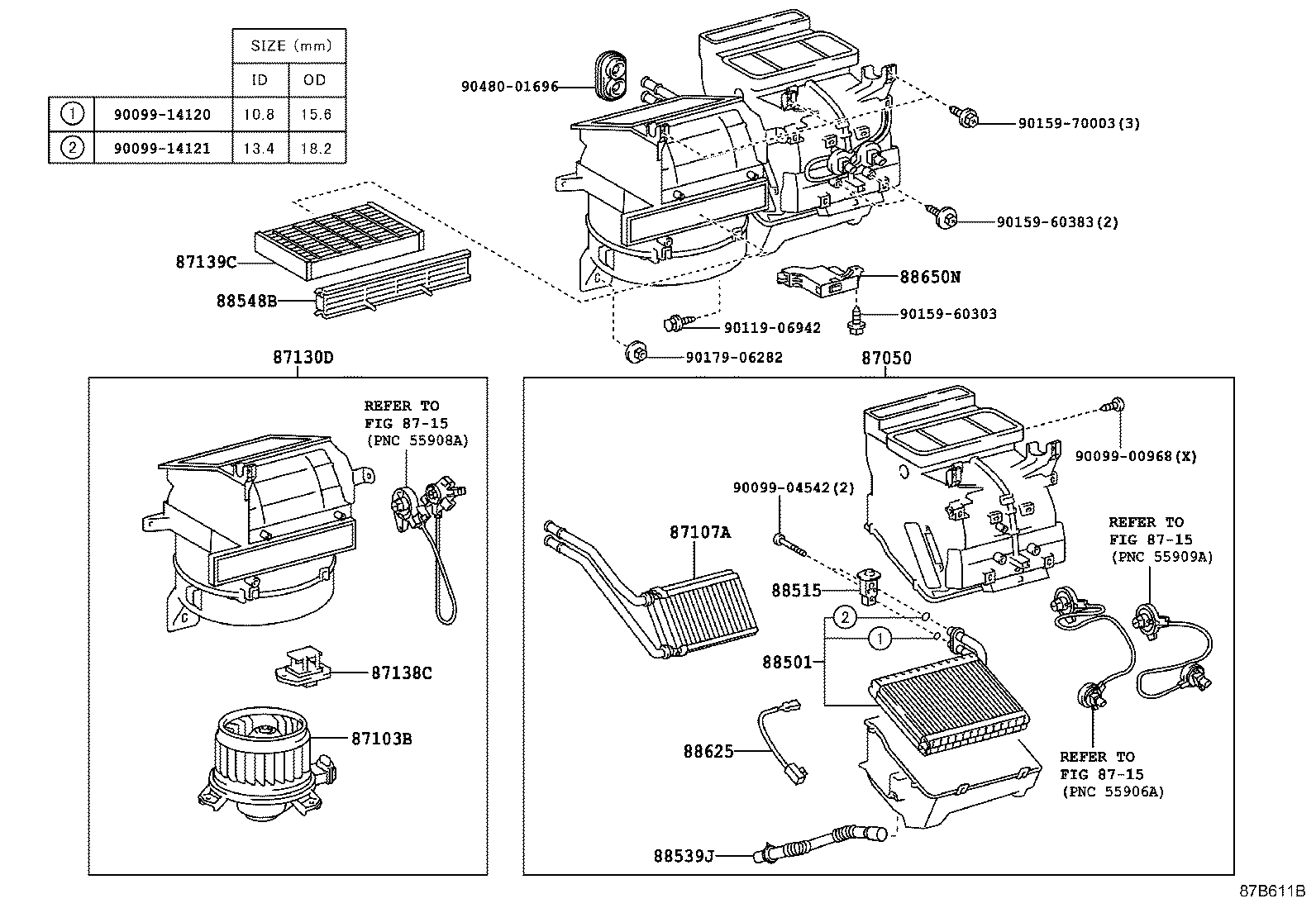

ﾏﾆｭｱﾙｴｱｺﾝ

diagram 87050 87103B 87107A 87130D 87138C 87139C 8715 8715 8715 88501 88515 88539J 88548B 88625 88650N 9009900968 9009904542 9009914120 9009914121 9011906942 9015960303 9015960383 9015970003 9017906282 9048001696
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52161

NCP125..G

 1
87050-52151

NCP125..LEPIC,X

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52121

NCP120,125,NSP12#..LEPIC,X

 1
87103-52132

NCP12#,NSP120..G,S

 1
87103-52120

NCP120,125,NSP12#..LEPIC,X

 1
87103-52131

NCP12#,NSP120..G,S

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52061

NCP12#,NSP12#

 1
87130D - BLOWER ASSY
87130-52050

NCP120,125,NSP12#..LEPIC,X

 1
87130-52061

NCP12#,NSP120..G,S

 1
87138C - RESISTOR, BLOWER
87138-52030

NCP120,125,NSP12#..LEPIC,X

 1
87139C - FILTER, CLEAN AIR
87139-30040

NCP12#,NSP12#

花粉ﾌｨﾙﾀ

 1
87139-52020

NCP12#,NSP12#

微細塵ﾌｨﾙﾀ

 1
87139-50100

NCP12#,NSP12#

脱臭 & 花粉ﾌｨﾙﾀ

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52103

NCP12#,NSP12#

 1
88501-52102

NCP12#,NSP12#

 1
88515 - VALVE, COOLER EXPANSION
88515-68010

NCP12#,NSP12#

 1
88539J - HOSE, DRAIN COOLER
88539-52030

NCP12#,NSP12#

 1
88539-52020

NCP12#,NSP12#

 1
88548B - CASE, AIR FILTER
88548-52040

NCP12#,NSP12#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-26090

NCP12#,NSP12#

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-52680

NCP120,125,NSP12#..LEPIC,X

 1
88650-52880

NCP125,NSP12#..LEPIC,X

 1
88650-52710

NCP125,NSP120..G

 1
88650-52690

NCP125,NSP12#..LEPIC,X

寒冷地仕様

 1
Common parts
90099-00968
90099-04542
90099-14120
90099-14121
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
90480-01696
Linked diagrams
8715

(1011- )LEPIC,X..HTWC

Click highlighted areas on diagram

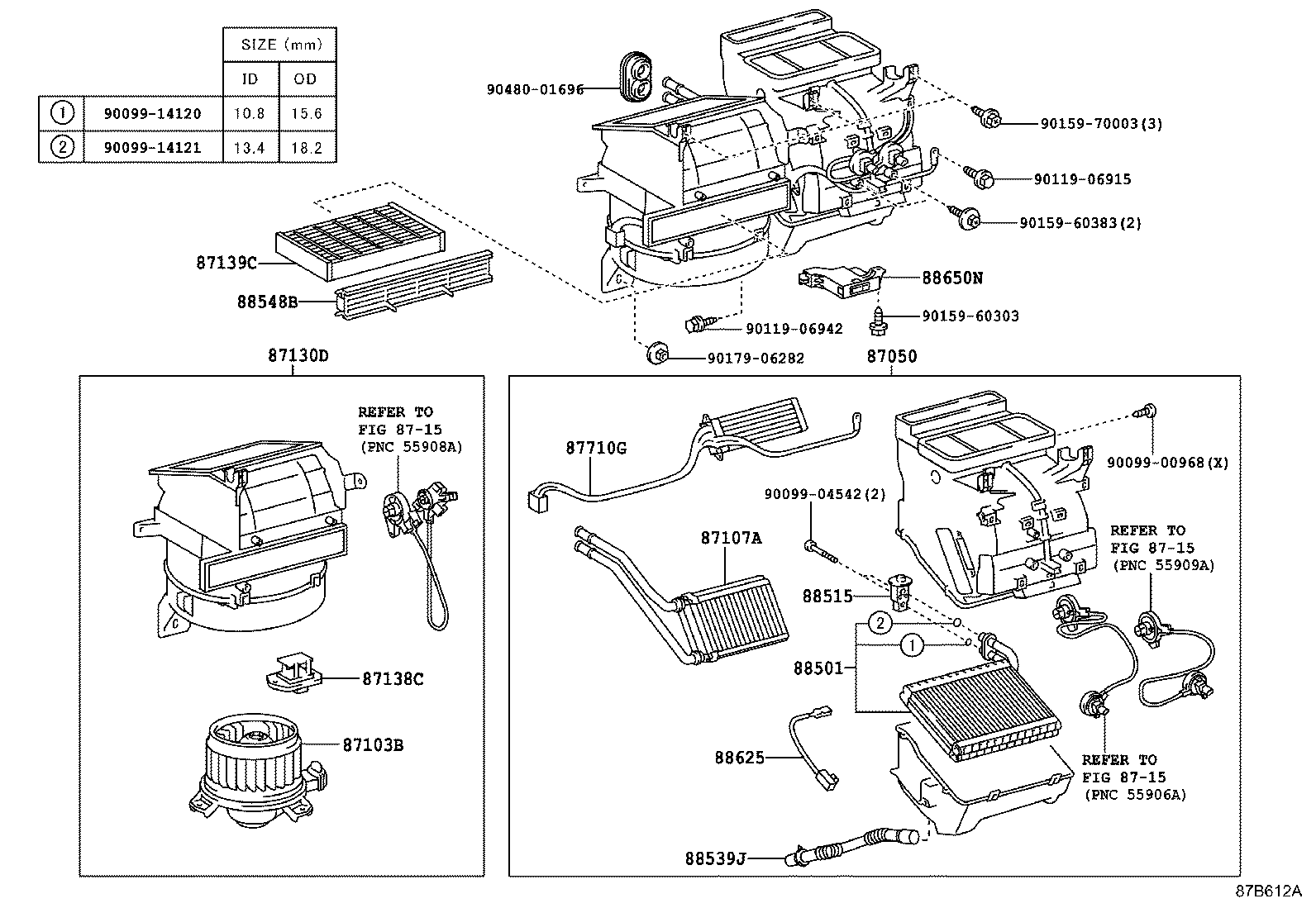

ﾏﾆｭｱﾙｴｱｺﾝ---ｶﾝﾚｲﾁｼﾖｳ

diagram 87050 87103B 87107A 87130D 87138C 87139C 8715 8715 8715 87710G 88501 88515 88539J 88548B 88625 88650N 9009900968 9009904542 9009914120 9009914121 9011906915 9011906942 9015960303 9015960383 9015970003 9017906282 9048001696
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52161

NCP125..G

 1
87050-52151

NCP125..LEPIC,X

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52121

NCP120,125,NSP12#..LEPIC,X

 1
87103-52132

NCP12#,NSP120..G,S

 1
87103-52120

NCP120,125,NSP12#..LEPIC,X

 1
87103-52131

NCP12#,NSP120..G,S

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52061

NCP12#,NSP12#

 1
87130D - BLOWER ASSY
87130-52050

NCP120,125,NSP12#..LEPIC,X

 1
87130-52061

NCP12#,NSP120..G,S

 1
87138C - RESISTOR, BLOWER
87138-52030

NCP120,125,NSP12#..LEPIC,X

 1
87139C - FILTER, CLEAN AIR
87139-30040

NCP12#,NSP12#

花粉ﾌｨﾙﾀ

 1
87139-52020

NCP12#,NSP12#

微細塵ﾌｨﾙﾀ

 1
87139-50100

NCP12#,NSP12#

脱臭 & 花粉ﾌｨﾙﾀ

 1
87710G - QUICK HEATER ASSY
87710-52060

NCP125

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52103

NCP12#,NSP12#

 1
88501-52102

NCP12#,NSP12#

 1
88515 - VALVE, COOLER EXPANSION
88515-68010

NCP12#,NSP12#

 1
88539J - HOSE, DRAIN COOLER
88539-52030

NCP12#,NSP12#

 1
88539-52020

NCP12#,NSP12#

 1
88548B - CASE, AIR FILTER
88548-52040

NCP12#,NSP12#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-26090

NCP12#,NSP12#

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-52680

NCP120,125,NSP12#..LEPIC,X

 1
88650-52880

NCP125,NSP12#..LEPIC,X

 1
88650-52710

NCP125,NSP120..G

 1
88650-52690

NCP125,NSP12#..LEPIC,X

寒冷地仕様

 1
Common parts
90099-00968
90099-04542
90099-14120
90099-14121
90119-06915
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
90480-01696
Linked diagrams
8715

(1011- )G,S..HTWC

Click highlighted areas on diagram

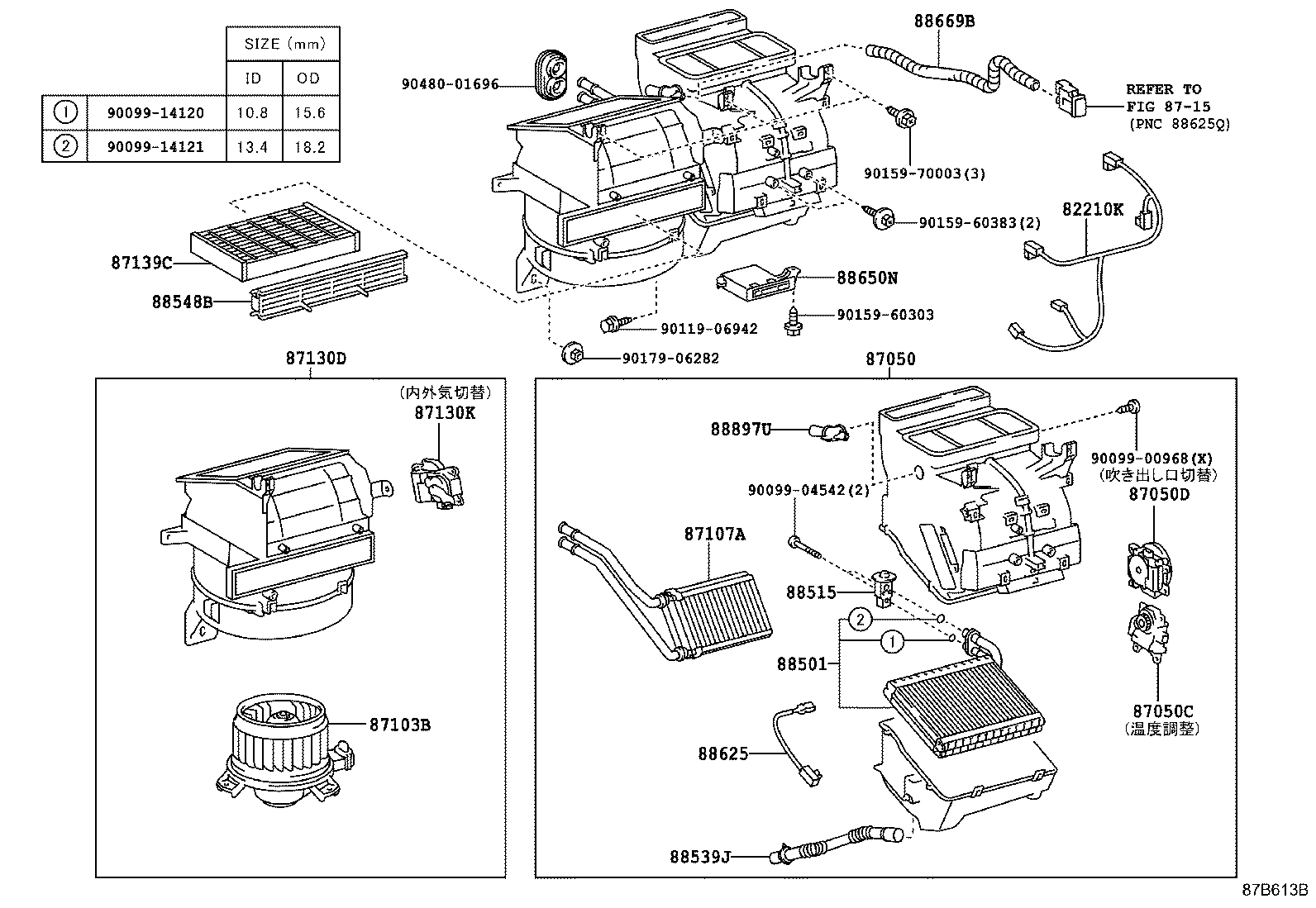

ｵｰﾄｴｱｺﾝ

diagram 82210K 87050 87050C 87050D 87103B 87107A 87130D 87130K 87139C 8715 88501 88515 88539J 88548B 88625 88650N 88669B 88897U 9009900968 9009904542 9009914120 9009914121 9011906942 9015960303 9015960383 9015970003 9017906282 9048001696
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-52030

NCP12#,NSP120..G,S

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52161

NCP125..G

 1
87050-52151

NCP125..LEPIC,X

 1
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-52080

NCP12#,NSP120..G,S

 1
87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87106-52090

NCP12#,NSP120..G,S

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52121

NCP120,125,NSP12#..LEPIC,X

 1
87103-52132

NCP12#,NSP120..G,S

 1
87103-52120

NCP120,125,NSP12#..LEPIC,X

 1
87103-52131

NCP12#,NSP120..G,S

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52061

NCP12#,NSP12#

 1
87130D - BLOWER ASSY
87130-52050

NCP120,125,NSP12#..LEPIC,X

 1
87130-52061

NCP12#,NSP120..G,S

 1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-52100

NCP12#,NSP120..G,S

 1
87139C - FILTER, CLEAN AIR
87139-30040

NCP12#,NSP12#

花粉ﾌｨﾙﾀ

 1
87139-52020

NCP12#,NSP12#

微細塵ﾌｨﾙﾀ

 1
87139-50100

NCP12#,NSP12#

脱臭 & 花粉ﾌｨﾙﾀ

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52103

NCP12#,NSP12#

 1
88501-52102

NCP12#,NSP12#

 1
88515 - VALVE, COOLER EXPANSION
88515-68010

NCP12#,NSP12#

 1
88539J - HOSE, DRAIN COOLER
88539-52030

NCP12#,NSP12#

 1
88539-52020

NCP12#,NSP12#

 1
88548B - CASE, AIR FILTER
88548-52040

NCP12#,NSP12#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-26090

NCP12#,NSP12#

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-52680

NCP120,125,NSP12#..LEPIC,X

 1
88650-52880

NCP125,NSP12#..LEPIC,X

 1
88650-52710

NCP125,NSP120..G

 1
88650-52690

NCP125,NSP12#..LEPIC,X

寒冷地仕様

 1
88669B - HOSE, COOLER AIR
88669-52050

NCP12#,NSP120..G,S

 1
88897U - PIPE, ASPIRATOR
88897-32090

NCP12#,NSP120..G,S

 1
Common parts
90099-00968
90099-04542
90099-14120
90099-14121
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
90480-01696
Linked diagrams
8715

(1011- )G,S..HTWC

Click highlighted areas on diagram

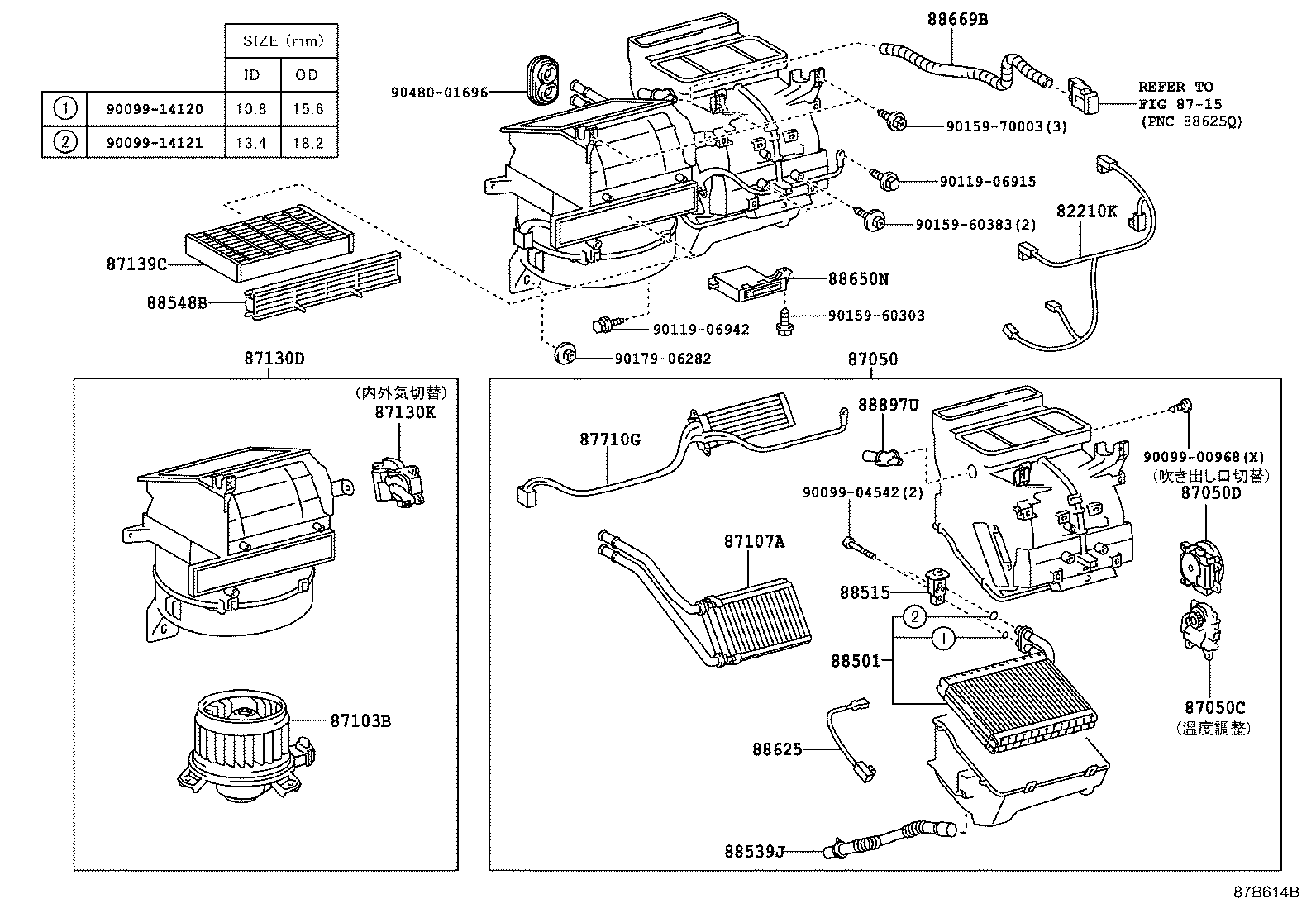

ｵｰﾄｴｱｺﾝ---ｶﾝﾚｲﾁｼﾖｳ

diagram 82210K 87050 87050C 87050D 87103B 87107A 87130D 87130K 87139C 8715 87710G 88501 88515 88539J 88548B 88625 88650N 88669B 88897U 9009900968 9009904542 9009914120 9009914121 9011906915 9011906942 9015960303 9015960383 9015970003 9017906282 9048001696
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-52030

NCP12#,NSP120..G,S

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52161

NCP125..G

 1
87050-52151

NCP125..LEPIC,X

 1
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-52080

NCP12#,NSP120..G,S

 1
87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87106-52090

NCP12#,NSP120..G,S

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52121

NCP120,125,NSP12#..LEPIC,X

 1
87103-52132

NCP12#,NSP120..G,S

 1
87103-52120

NCP120,125,NSP12#..LEPIC,X

 1
87103-52131

NCP12#,NSP120..G,S

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52061

NCP12#,NSP12#

 1
87130D - BLOWER ASSY
87130-52050

NCP120,125,NSP12#..LEPIC,X

 1
87130-52061

NCP12#,NSP120..G,S

 1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-52100

NCP12#,NSP120..G,S

 1
87139C - FILTER, CLEAN AIR
87139-30040

NCP12#,NSP12#

花粉ﾌｨﾙﾀ

 1
87139-52020

NCP12#,NSP12#

微細塵ﾌｨﾙﾀ

 1
87139-50100

NCP12#,NSP12#

脱臭 & 花粉ﾌｨﾙﾀ

 1
87710G - QUICK HEATER ASSY
87710-52060

NCP125

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52103

NCP12#,NSP12#

 1
88501-52102

NCP12#,NSP12#

 1
88515 - VALVE, COOLER EXPANSION
88515-68010

NCP12#,NSP12#

 1
88539J - HOSE, DRAIN COOLER
88539-52030

NCP12#,NSP12#

 1
88539-52020

NCP12#,NSP12#

 1
88548B - CASE, AIR FILTER
88548-52040

NCP12#,NSP12#

 1
88625 - THERMISTOR, COOLER, NO.1
88625-26090

NCP12#,NSP12#

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-52680

NCP120,125,NSP12#..LEPIC,X

 1
88650-52880

NCP125,NSP12#..LEPIC,X

 1
88650-52710

NCP125,NSP120..G

 1
88650-52690

NCP125,NSP12#..LEPIC,X

寒冷地仕様

 1
88669B - HOSE, COOLER AIR
88669-52050

NCP12#,NSP120..G,S

 1
88897U - PIPE, ASPIRATOR
88897-32090

NCP12#,NSP120..G,S

 1
Common parts
90099-00968
90099-04542
90099-14120
90099-14121
90119-06915
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
90480-01696
Linked diagrams
8715
