NCP125-CHXGK (2010)
Toyota Ractis
(1011- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-52041 |
NCP12#,NSP12# ﾀｲﾌﾟ A |
1 | ||
| 87810-AA011 |
NCP12#,NSP12# ﾀｲﾌﾟ B |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-52B80 |
NCP125..X 塗装不要,“Vﾊﾟｯｹｰｼﾞ”*(V)or*(W) |
1 | ||
| 87910-52E80 |
NCP12#,NSP12# 塗装不要,寒冷地仕様 |
1 | ||
| 87910-52B50 |
NCP12#,NSP12# 塗装不要 |
1 | ||
| 87910-52B80 |
NCP125..X 塗装不要,“Vﾊﾟｯｹｰｼﾞ”*(V)or*(W)&寒冷地仕様 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-52B80 |
NCP125..X 塗装不要,“Vﾊﾟｯｹｰｼﾞ”*(V)or*(W) |
1 | ||
| 87910-52E80 |
NCP12#,NSP12# 塗装不要,寒冷地仕様 |
1 | ||
| 87910-52B50 |
NCP12#,NSP12# 塗装不要 |
1 | ||
| 87910-52B80 |
NCP125..X 塗装不要,“Vﾊﾟｯｹｰｼﾞ”*(V)or*(W)&寒冷地仕様 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-74010C1 |
NCP12#,NSP12# BLACK MC.,209 |
1 | ||
| 87915-74010A0 |
NCP120,122..G;NCP125,NSP12#..G,X SUPER WHITE 2,040 |
1 | ||
| 87915-74010J7 |
NCP12#,NSP12# SATIN BLUE M.M.,8V9 |
1 | ||
| 87915-74010K0 |
NCP12#,NSP12# DEEP AMETHYST M.M.,9AH |
1 | ||
| 87915-74010A1 |
NCP12#,NSP12# WHITE PEARL CS.,070 |
1 | ||
| 87915-74010D6 |
NCP120,125,NSP120..G,LEPIC,X BORDEAUX MC.,3P3 |
1 | ||
| 87915-74010D1 |
NCP12#,NSP12# SUPER RED 5,3P0 |
1 | ||
| 87915-74010B0 |
NCP12#,NSP12# SILVER ME.,1F7 |
1 | ||
| 87915-74010E2 |
NCP12#,NSP12# DK. BROWN M.M.,4U3 |
1 | ||
| 87915-74010J6 |
NCP12#,NSP12# LT.BLUE M.M.,8S7 |
1 | ||
| 87915-74010H5 |
NCP12#,NSP12#..G,LEPIC,X TURQUOISE ME.,777 |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-74010C1 |
NCP12#,NSP12# BLACK MC.,209 |
1 | ||
| 87915-74010A0 |
NCP120,122..G;NCP125,NSP12#..G,X SUPER WHITE 2,040 |
1 | ||
| 87915-74010J7 |
NCP12#,NSP12# SATIN BLUE M.M.,8V9 |
1 | ||
| 87915-74010K0 |
NCP12#,NSP12# DEEP AMETHYST M.M.,9AH |
1 | ||
| 87915-74010A1 |
NCP12#,NSP12# WHITE PEARL CS.,070 |
1 | ||
| 87915-74010D6 |
NCP120,125,NSP120..G,LEPIC,X BORDEAUX MC.,3P3 |
1 | ||
| 87915-74010D1 |
NCP12#,NSP12# SUPER RED 5,3P0 |
1 | ||
| 87915-74010B0 |
NCP12#,NSP12# SILVER ME.,1F7 |
1 | ||
| 87915-74010E2 |
NCP12#,NSP12# DK. BROWN M.M.,4U3 |
1 | ||
| 87915-74010J6 |
NCP12#,NSP12# LT.BLUE M.M.,8S7 |
1 | ||
| 87915-74010H5 |
NCP12#,NSP12#..G,LEPIC,X TURQUOISE ME.,777 |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-47260 |
NCP125..X “Vﾊﾟｯｹｰｼﾞ”*(V)or*(W) |
1 | ||
| 87931-52B70 |
NCP12#,NSP12# 寒冷地仕様 |
1 | ||
| 87931-52B50 |
NCP12#,NSP12# |
1 | ||
| 87931-47260 |
NCP125..X “Vﾊﾟｯｹｰｼﾞ”*(V)or*(W)&寒冷地仕様 |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-47260 |
NCP125..X “Vﾊﾟｯｹｰｼﾞ”*(V)or*(W) |
1 | ||
| 87931-52B70 |
NCP12#,NSP12# 寒冷地仕様 |
1 | ||
| 87931-52B50 |
NCP12#,NSP12# |
1 | ||
| 87931-47260 |
NCP125..X “Vﾊﾟｯｹｰｼﾞ”*(V)or*(W)&寒冷地仕様 |
1 | ||
| 87939 - COVER, OUTER MIRROR HOLE, RH | ||||
| 87939-52B50 |
NCP12#,NSP12# |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-52E70 |
NCP12#,NSP12# 塗装不要,寒冷地仕様 |
1 | ||
| 87940-52B80 |
NCP125..X 塗装不要,“Vﾊﾟｯｹｰｼﾞ”*(V)or*(W)&寒冷地仕様 |
1 | ||
| 87940-52B50 |
NCP12#,NSP12# 塗装不要 |
1 | ||
| 87940-52B80 |
NCP125..X 塗装不要,“Vﾊﾟｯｹｰｼﾞ”*(V)or*(W) |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-52E70 |
NCP12#,NSP12# 塗装不要,寒冷地仕様 |
1 | ||
| 87940-52B80 |
NCP125..X 塗装不要,“Vﾊﾟｯｹｰｼﾞ”*(V)or*(W)&寒冷地仕様 |
1 | ||
| 87940-52B50 |
NCP12#,NSP12# 塗装不要 |
1 | ||
| 87940-52B80 |
NCP125..X 塗装不要,“Vﾊﾟｯｹｰｼﾞ”*(V)or*(W) |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-74010A1 |
NCP12#,NSP12# WHITE PEARL CS.,070 |
1 | ||
| 87945-74010D6 |
NCP120,125,NSP120..G,LEPIC,X BORDEAUX MC.,3P3 |
1 | ||
| 87945-74010E2 |
NCP12#,NSP12# DK. BROWN M.M.,4U3 |
1 | ||
| 87945-74010C1 |
NCP12#,NSP12# BLACK MC.,209 |
1 | ||
| 87945-74010D1 |
NCP12#,NSP12# SUPER RED 5,3P0 |
1 | ||
| 87945-74010B0 |
NCP12#,NSP12# SILVER ME.,1F7 |
1 | ||
| 87945-74010H5 |
NCP12#,NSP12#..G,LEPIC,X TURQUOISE ME.,777 |
1 | ||
| 87945-74010A0 |
NCP120,122..G;NCP125,NSP12#..G,X SUPER WHITE 2,040 |
1 | ||
| 87945-74010J6 |
NCP12#,NSP12# LT.BLUE M.M.,8S7 |
1 | ||
| 87945-74010K0 |
NCP12#,NSP12# DEEP AMETHYST M.M.,9AH |
1 | ||
| 87945-74010J7 |
NCP12#,NSP12# SATIN BLUE M.M.,8V9 |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-74010A1 |
NCP12#,NSP12# WHITE PEARL CS.,070 |
1 | ||
| 87945-74010D6 |
NCP120,125,NSP120..G,LEPIC,X BORDEAUX MC.,3P3 |
1 | ||
| 87945-74010E2 |
NCP12#,NSP12# DK. BROWN M.M.,4U3 |
1 | ||
| 87945-74010C1 |
NCP12#,NSP12# BLACK MC.,209 |
1 | ||
| 87945-74010D1 |
NCP12#,NSP12# SUPER RED 5,3P0 |
1 | ||
| 87945-74010B0 |
NCP12#,NSP12# SILVER ME.,1F7 |
1 | ||
| 87945-74010H5 |
NCP12#,NSP12#..G,LEPIC,X TURQUOISE ME.,777 |
1 | ||
| 87945-74010A0 |
NCP120,122..G;NCP125,NSP12#..G,X SUPER WHITE 2,040 |
1 | ||
| 87945-74010J6 |
NCP12#,NSP12# LT.BLUE M.M.,8S7 |
1 | ||
| 87945-74010K0 |
NCP12#,NSP12# DEEP AMETHYST M.M.,9AH |
1 | ||
| 87945-74010J7 |
NCP12#,NSP12# SATIN BLUE M.M.,8V9 |
1 | ||
| 87946 - RETRACTOR, OUTER MIRROR, RH | ||||
| 87946-52E80 |
NCP12#,NSP12# 寒冷地仕様 |
1 | ||
| 87946-52B50 |
NCP12#,NSP12# |
1 | ||
| 87948 - COVER, OUTER MIRROR HOLE, LH | ||||
| 87948-52B50 |
NCP12#,NSP12# |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-22A40 |
NCP12#,NSP12# |
1 | ||
| 87961-52B70 |
NCP12#,NSP12# 寒冷地仕様 |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-22A40 |
NCP12#,NSP12# |
1 | ||
| 87961-52B70 |
NCP12#,NSP12# 寒冷地仕様 |
1 | ||
| 87966 - RETRACTOR, OUTER MIRROR, LH | ||||
| 87966-52E70 |
NCP12#,NSP12# 寒冷地仕様 |
1 | ||
| 87966-52B50 |
NCP12#,NSP12# |
1 | ||
| Common parts | ||||
| 90163-60024 | ||||

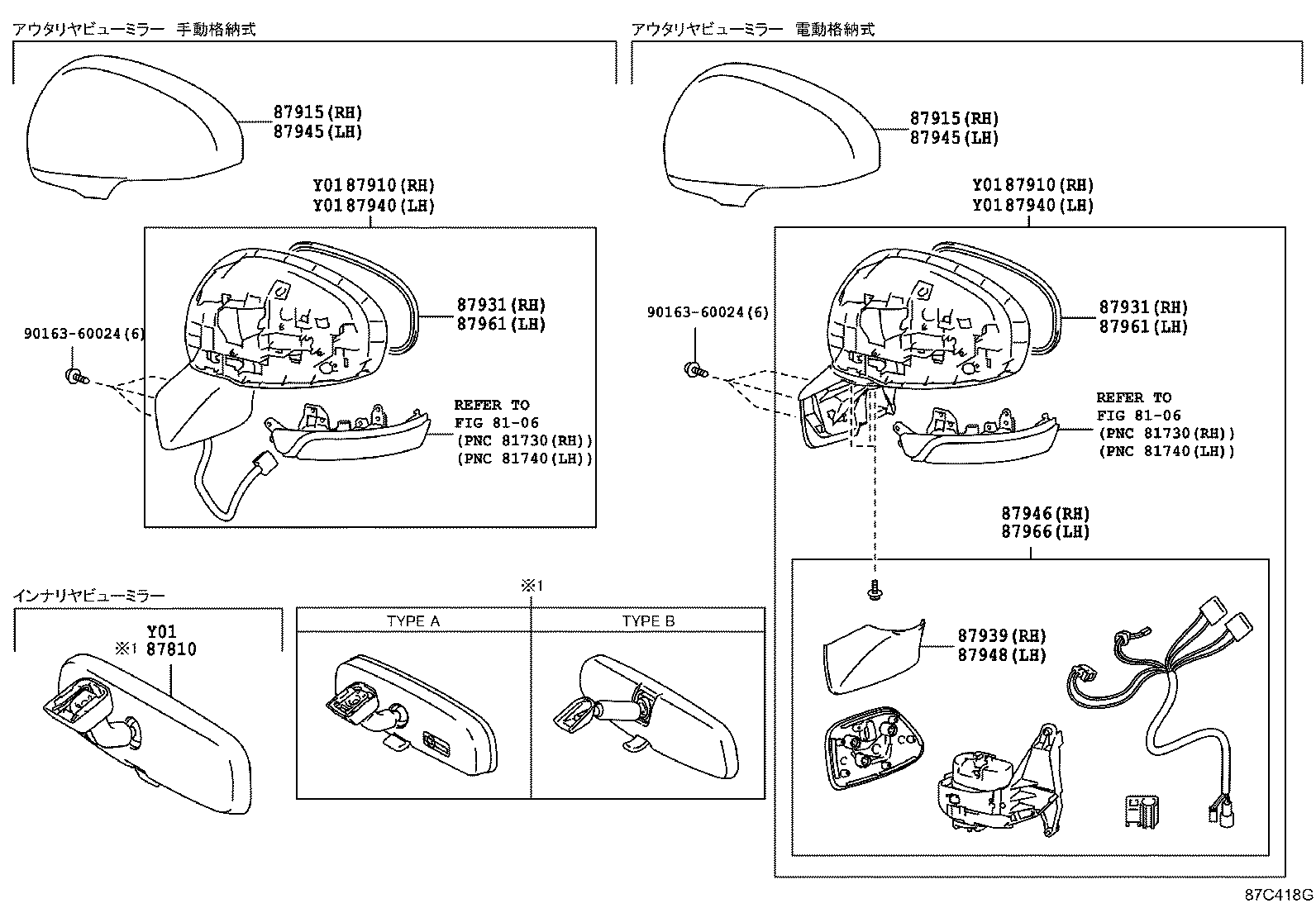

| Linked diagrams | ||||
| 8106 | ||||
