NCP125-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )HTWC

Click highlighted areas on diagram

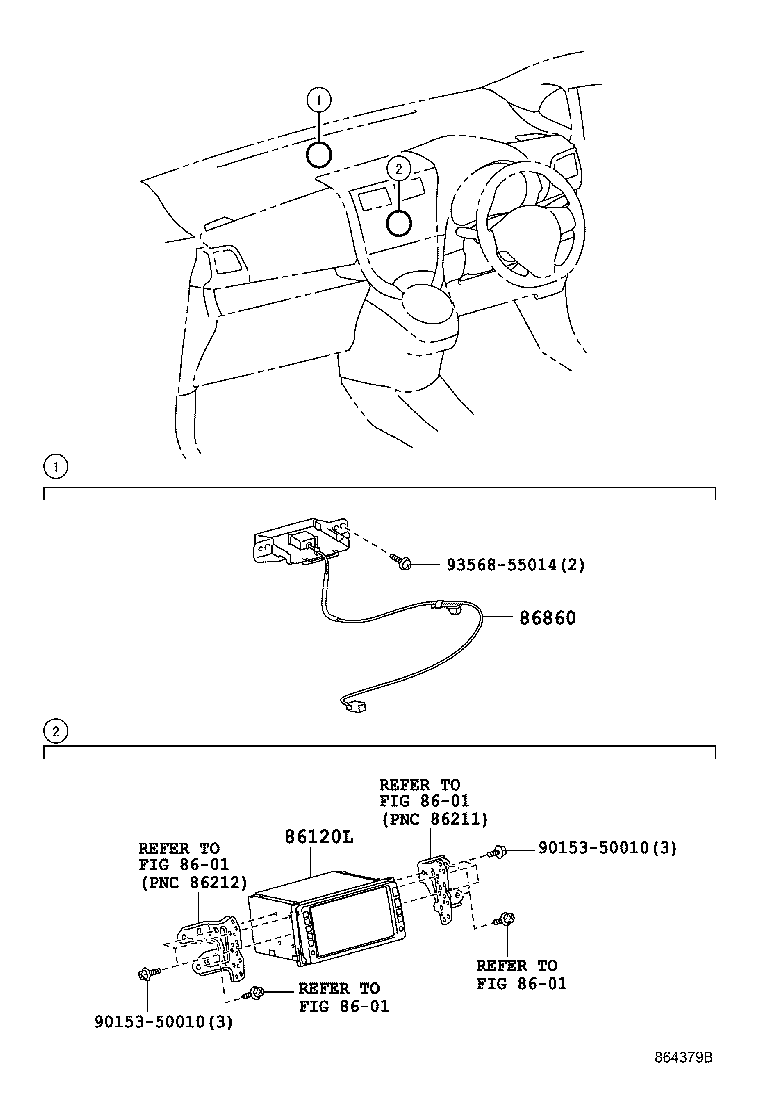

diagram 8601 8601 8601 8601 86120L 86860 9015350010 9015350010 9356855014
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86100-52050B0

NCP12#,NSP120..G

FUJITSU TEN,ID=26055,ｵｰﾃﾞｨｵ(日本向け)−AVN 6ｽﾋﾟｰJ,GRAY ME.,TRIM2#,4#

 1
86100-52051B0

NCP120,125,NSP12#..X

FUJITSU TEN,ID=26055,ｵｰﾃﾞｨｵ(日本向け)−AVN 4ｽﾋﾟｰJ,GRAY ME.,TRIM2#

 1
86100-52051B0

NCP12#,NSP120..G

FUJITSU TEN,ID=26055,ｵｰﾃﾞｨｵ(日本向け)−AVN 6ｽﾋﾟｰJ,GRAY ME.,TRIM2#,4#

 1
86100-52052B0

NCP12#,NSP120..G

FUJITSU TEN,ID=26055,ｵｰﾃﾞｨｵ(日本向け)−AVN 6ｽﾋﾟｰJ,GRAY ME.,TRIM2#,4#

 1
86100-52050B0

NCP125,NSP120..X

FUJITSU TEN,ID=26055,ｵｰﾃﾞｨｵ(日本向け)−AVN 4ｽﾋﾟｰJ,GRAY ME.,TRIM2#,4#,8#

 1
86100-52053B0

NCP120,125,NSP12#..X

FUJITSU TEN,ｵｰﾃﾞｨｵ(日本向け)−AVN 4ｽﾋﾟｰｶ,GRAY ME.,TRIM2#

 1
86100-52052B0

NCP120,125,NSP12#..X

FUJITSU TEN,ID=26055,ｵｰﾃﾞｨｵ(日本向け)−AVN 4ｽﾋﾟｰJ,GRAY ME.,TRIM2#

 1
86100-52053B0

NCP12#,NSP120..G

FUJITSU TEN,ｵｰﾃﾞｨｵ(日本向け)−AVN 6ｽﾋﾟｰｶ,GRAY ME.,TRIM2#,4#

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-52180

NCP12#,NSP120..(G,S)..HTWC

ｵｰﾃﾞｨｵ(日本向け)−AVN 6ｽﾋﾟｰｶ

 1
86860-52180

NCP120,125,NSP12#..X..HTWC

ｵｰﾃﾞｨｵ(日本向け)−AVN 4ｽﾋﾟｰｶ

 1
Common parts
90153-50010
93568-55014
Linked diagrams
8601
