NCP125-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )NCP125

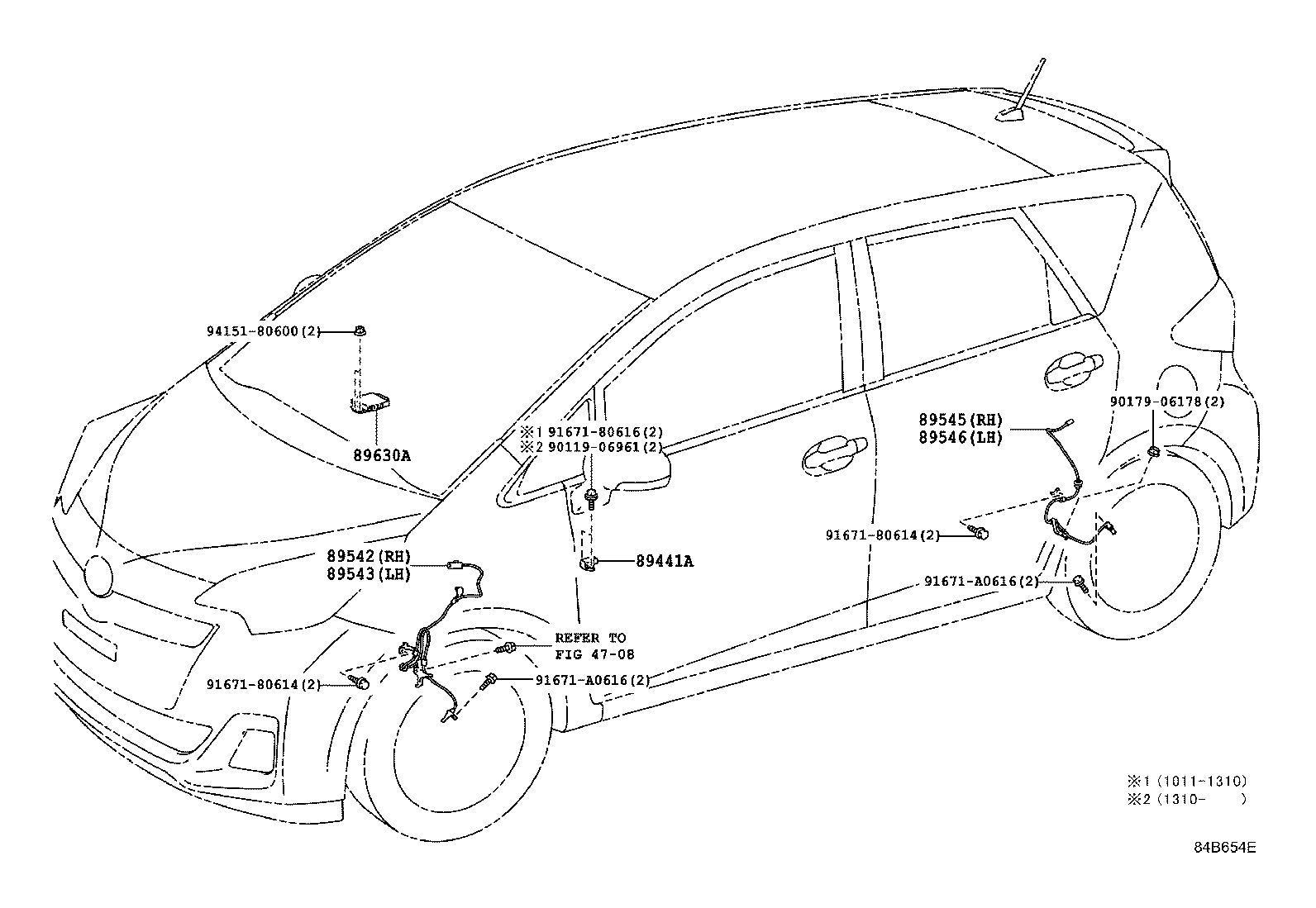

Click highlighted areas on diagram

diagram 4708 89441A 89542 89543 89545 89546 89630A 9011906961 9017906178 9167180614 9167180614 9167180616 91671A0616 91671A0616 9415180600
Part # Description Qty Price
89441A - SENSOR, DECELERATION
89441-12060

NCP125

 1
89542 - SENSOR, SPEED, FRONT RH
89542-52100

NCP12#,NSP12#

 1
89542-52090

NCP12#,NSP12#

 1
89543 - SENSOR, SPEED, FRONT LH
89543-52090

NCP12#,NSP12#

 1
89543-52100

NCP12#,NSP12#

 1
89545 - SENSOR, SPEED, REAR RH
89545-52050

NCP125

 1
89546 - SENSOR, SPEED, REAR LH
89546-52050

NCP125

 1
89630A - COMPUTER ASSY, 4WD
89630-52040

NCP125

 1
89630-52050

NCP125

 1
Common parts
90119-06961
90179-06178
91671-80614
91671-80616
91671-A0616
94151-80600
Linked diagrams
4708
