NCP125-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

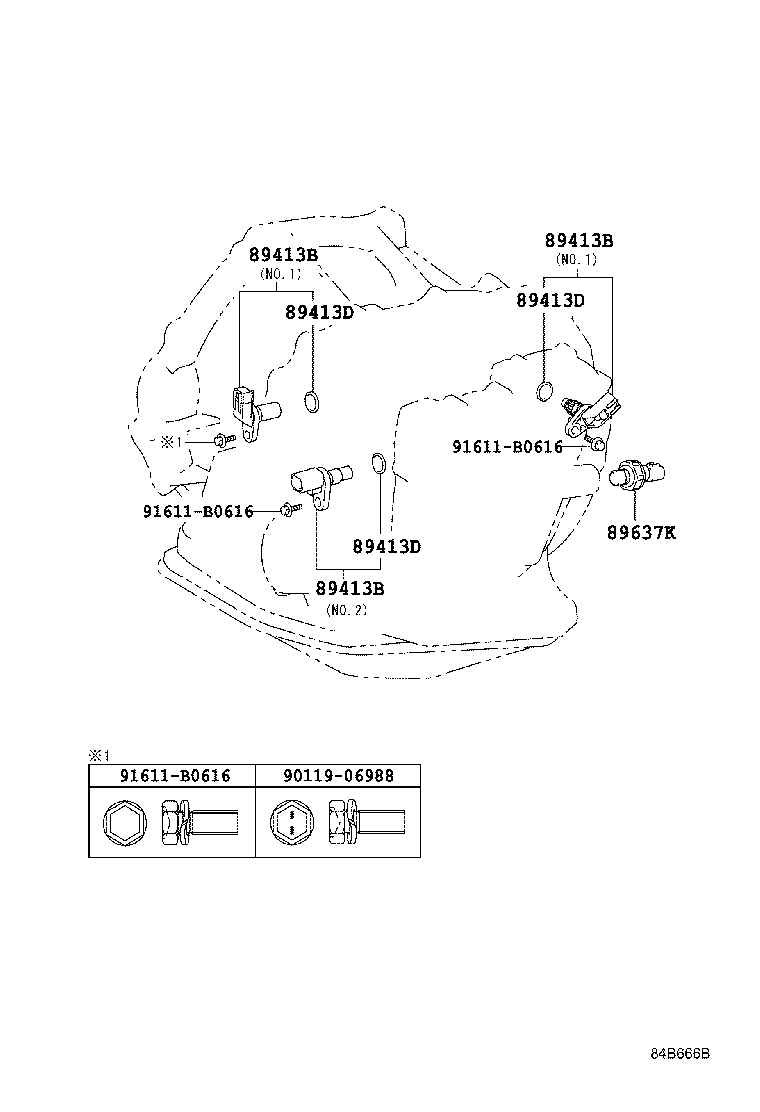

ILLUST NO. 2 OF 2(1011-1208)NCP120,122 ; (1011- )NCP125

Click highlighted areas on diagram

diagram 89413B 89413B 89413B 89413D 89413D 89413D 89637K 9011906988 91611B0616 91611B0616 91611B0616
Part # Description Qty Price
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-12020

NCP125

NO.1

 2
89413-60020

NCP125

NO.2

 1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-12020

NCP125

NO.1

 2
89413-60020

NCP125

NO.2

 1
89413B - SENSOR, TRANSMISSION REVOLUTION
89413-12020

NCP125

NO.1

 2
89413-60020

NCP125

NO.2

 1
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

NCP125,NSP12#

 3
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

NCP125,NSP12#

 3
89413D - RING, O(FOR TRANSMISSION REVOLUTION SENSOR)
90301-11008

NCP125,NSP12#

 3
89637K - SENSOR, OIL PRESSURE
89637-63010

NCP12#,NSP12#

 1
Common parts
90119-06988
91611-B0616
