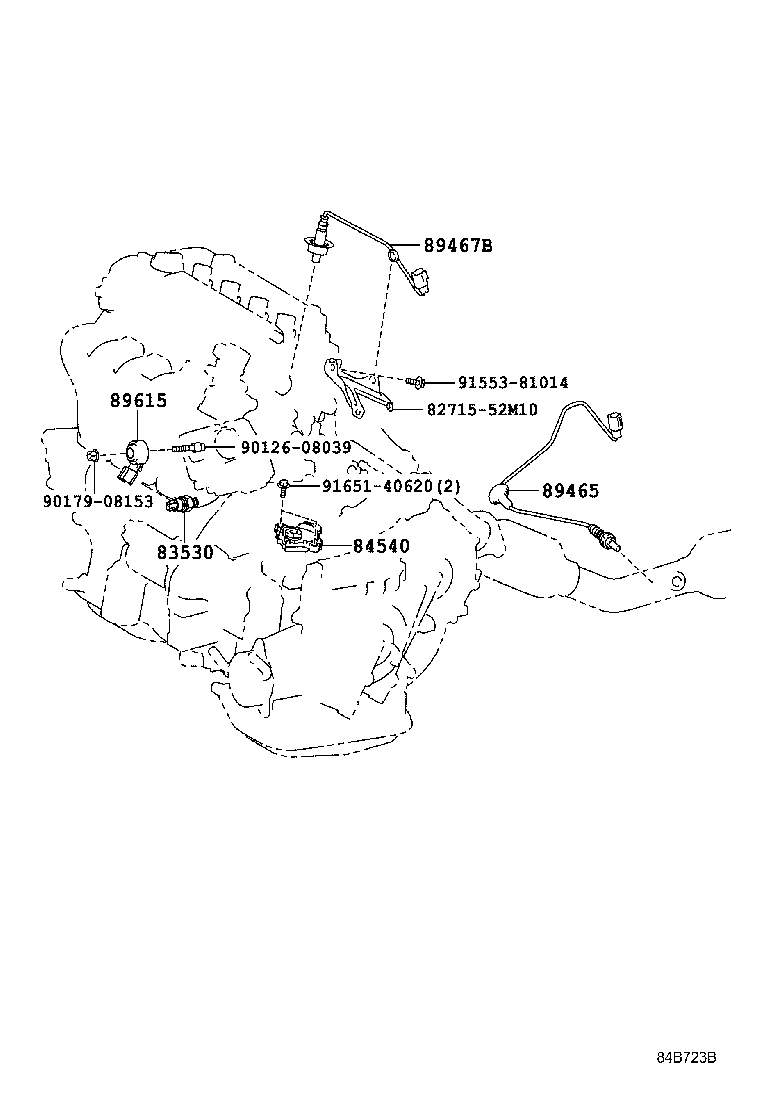

NCP125-CHXGK (2010)
Toyota Ractis
ILLUST NO. 1 OF 8(1011- )NCP125
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-60020 |
NCP12#,NSP12# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-52070 |
NCP12#,NSP12# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-52630 |
NCP125 |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-52120 |
NCP125 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
NCP12#,NSP12# |
1 | ||
| Common parts | ||||
| 82715-52M10 | ||||
| 90126-08039 | ||||
| 90179-08153 | ||||
| 91553-81014 | ||||
| 91651-40620 | ||||

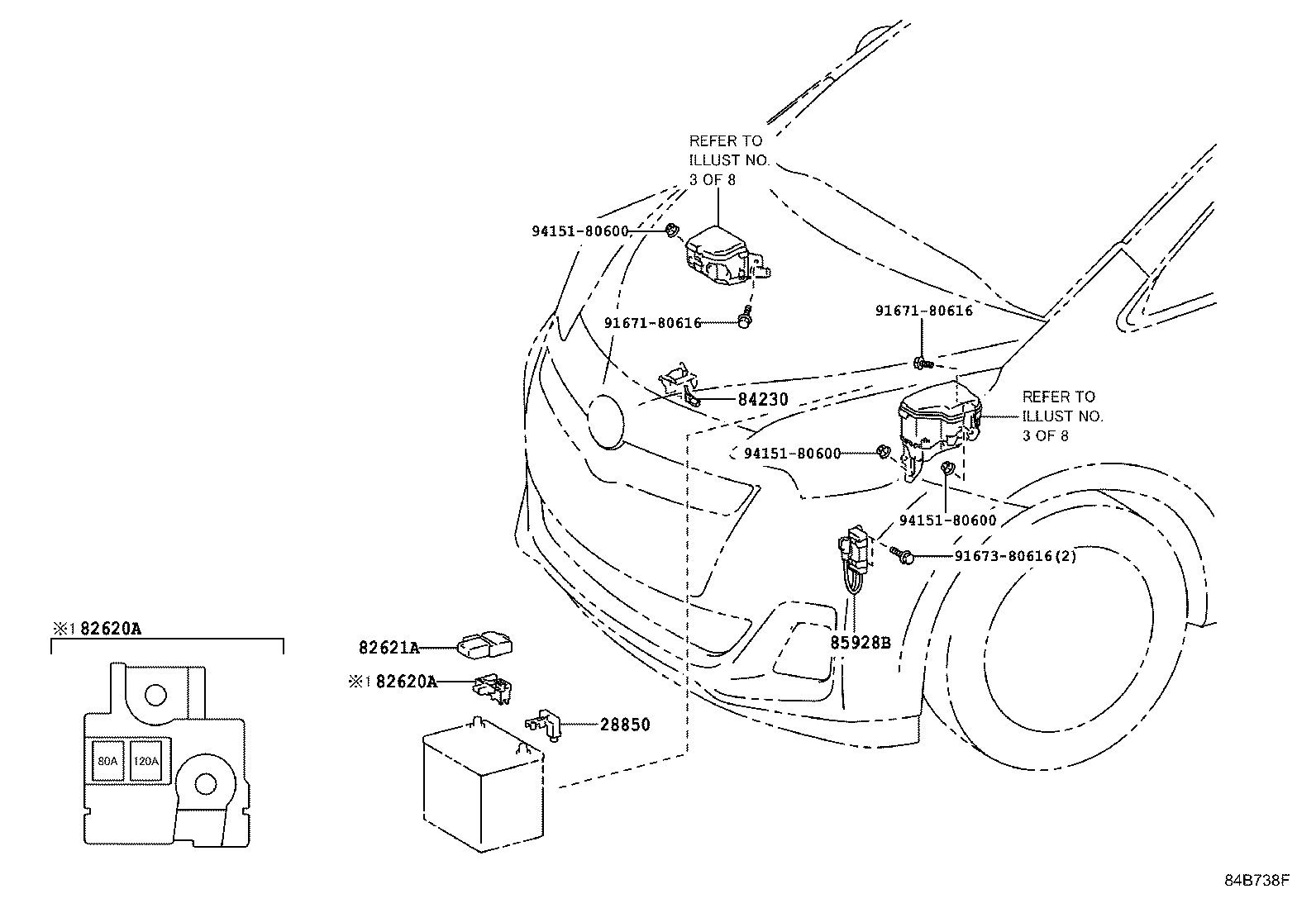

ILLUST NO. 2 OF 8(1011- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850 - SENSOR ASSY, BATTERY CURRENT | ||||
| 28850-40010 |
1N#..NCP12#,NSP12# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52070 |
NCP12#,NSP12# |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-52070 |
NCP12#,NSP12# |
1 | ||
| 82621A - COVER, FUSIBLE LINK | ||||
| 82621-52140 |
NCP12#,NSP12# |
1 | ||
| 85928B - RESISTOR, COOLING FAN | ||||
| 85928-52030 |
NCP12#,NSP12# |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||

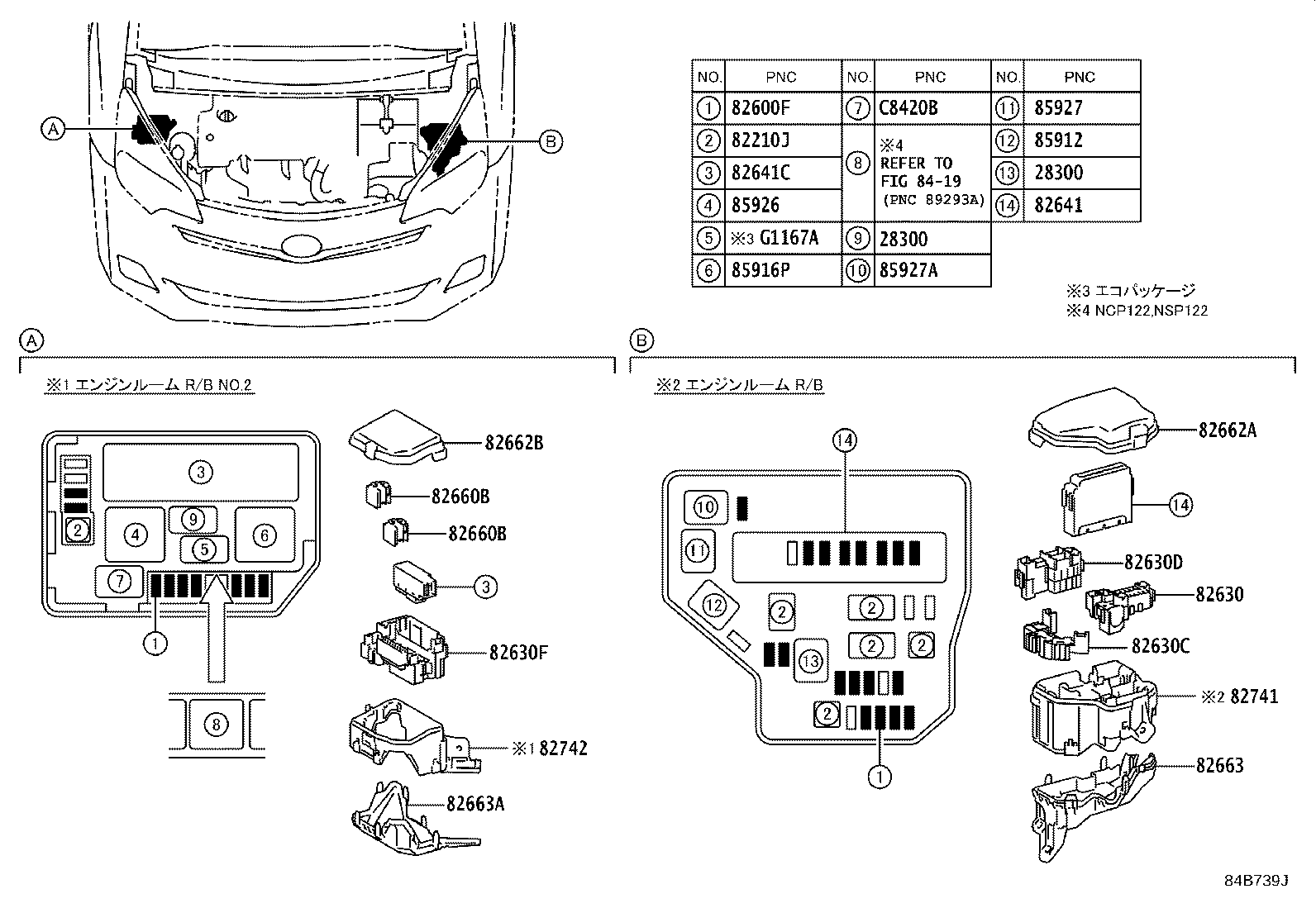

ILLUST NO. 3 OF 8(1011-1405)
ｴﾝｼﾞﾝﾙｰﾑ ﾘﾚｰﾌﾞﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1N#..NCP12#,NSP12#..G,S,X |
1 | ||
| 28300-21020 |
1N#..NCP12#,NSP12# |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1N#..NCP12#,NSP12#..G,S,X |
1 | ||
| 28300-21020 |
1N#..NCP12#,NSP12# |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
NCP12#,NSP12# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08305 |
NCP122,125;NCP120,NSP122..LEPIC,X 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08300 |
NCP12#,NSP12# 50A−30A−30A,ﾒｽ端子,赤 |
1 | ||
| 90982-08306 |
NCP12#,NSP12# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08296 |
NCP12#,NSP12# 50A,ﾒｽ端子,赤 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09022 |
NCP12#,NSP12# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
NCP12#,NSP12# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
NCP12#,NSP12# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09019 |
NCP12#,NSP12# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09025 |
NCP12#,NSP12# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09020 |
NCP12#,NSP12# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
NCP12#,NSP12# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82630 - HOLDER ASSY, FUSE | ||||
| 82631-52010 |
NCP12#,NSP12# |
1 | ||
| 82630C - HOLDER ASSY, FUSE | ||||
| 82631-52020 |
NCP12#,NSP12# |
1 | ||
| 82630D - HOLDER, FUSE | ||||
| 82631-52030 |
NCP12#,NSP12# |
1 | ||
| 82630F - HOLDER, FUSE | ||||
| 82631-52040 |
NCP120,125,NSP120 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-52050 |
NCP125 |
1 | ||
| 82641C - RELAY, INTEGRATION NO.2 | ||||
| 82641-52060 |
NCP12#,NSP12# 寒冷地仕様 |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NCP12#,NSP12# |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-0H070 |
NCP12#,NSP12# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-52481 |
NCP120,125,NSP120 |
1 | ||
| 82662-52480 |
NCP120,125,NSP120 |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-52660 |
NCP120,125,NSP120 |
1 | ||
| 82662-52700 |
NCP120,125,NSP120 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52701 |
NCP120,125,NSP120 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82662-52661 |
NCP120,125,NSP120 |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-52080 |
NCP12#,NSP12# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-52090 |
NCP12#,NSP12# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-52070 |
NCP125,NSP12# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-52080 |
NCP12#,NSP12# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02027 |
NCP12#,NSP12# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
NCP12#,NSP12# |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 90987-04010 |
NCP12#,NSP12# |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02027 |
NCP12#,NSP12# |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-04004 |
NCP12#,NSP12# |
1 | ||
| Linked diagrams | ||||
| 8419 | ||||

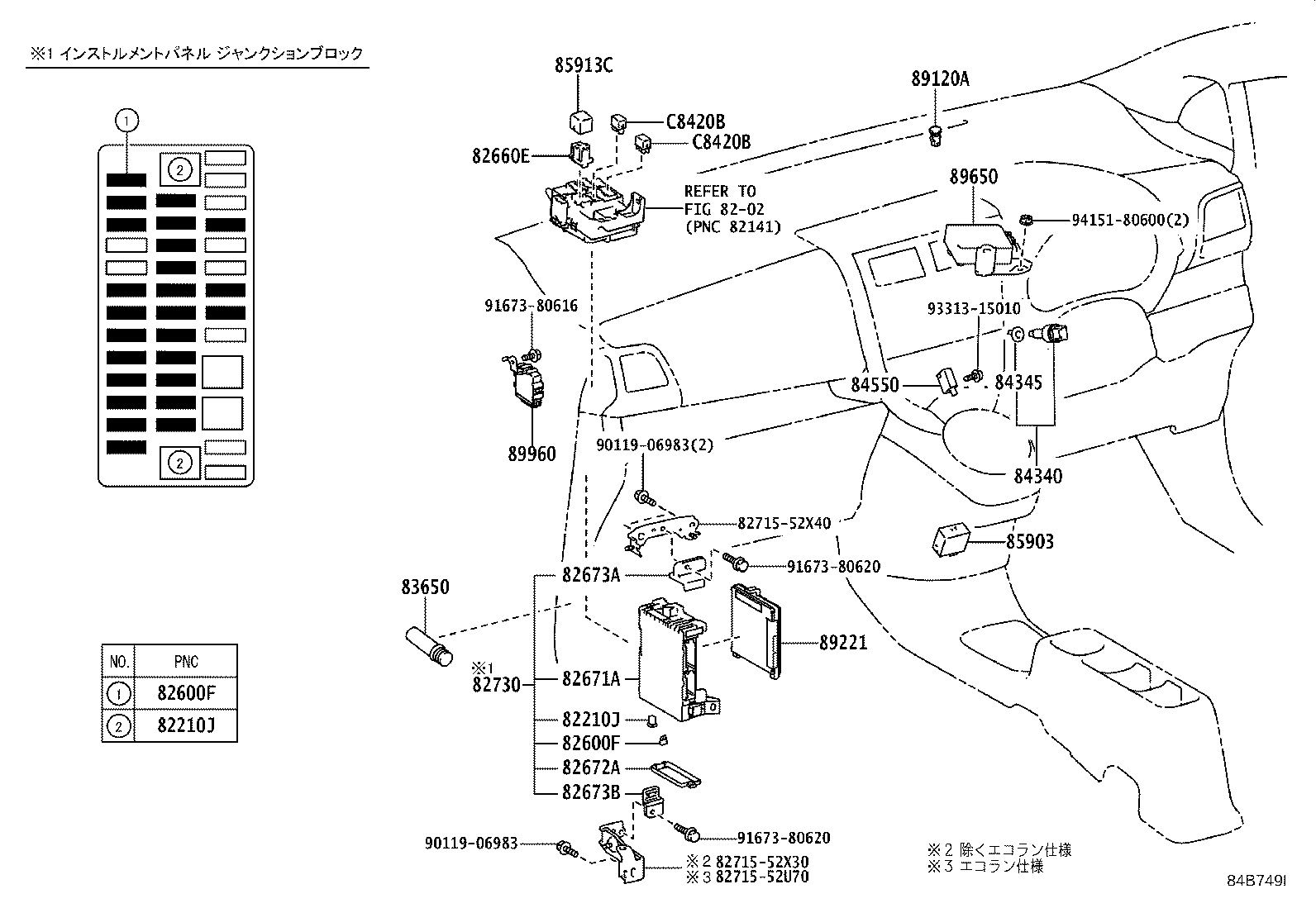

ILLUST NO. 4 OF 8(1011- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
NCP12#,NSP12# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08305 |
NCP122,125;NCP120,NSP122..LEPIC,X 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08300 |
NCP12#,NSP12# 50A−30A−30A,ﾒｽ端子,赤 |
1 | ||
| 90982-08306 |
NCP12#,NSP12# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08296 |
NCP12#,NSP12# 50A,ﾒｽ端子,赤 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08294 |
NCP12#,NSP12# 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08305 |
NCP122,125;NCP120,NSP122..LEPIC,X 80A,ﾒｽ端子,黒 |
1 | ||
| 90982-08300 |
NCP12#,NSP12# 50A−30A−30A,ﾒｽ端子,赤 |
1 | ||
| 90982-08306 |
NCP12#,NSP12# 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08296 |
NCP12#,NSP12# 50A,ﾒｽ端子,赤 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09022 |
NCP12#,NSP12# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
NCP12#,NSP12# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
NCP12#,NSP12# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09019 |
NCP12#,NSP12# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09025 |
NCP12#,NSP12# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09020 |
NCP12#,NSP12# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
NCP12#,NSP12# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09022 |
NCP12#,NSP12# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
NCP12#,NSP12# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09024 |
NCP12#,NSP12# 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09019 |
NCP12#,NSP12# 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 90982-09025 |
NCP12#,NSP12# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09020 |
NCP12#,NSP12# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09023 |
NCP12#,NSP12# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82660E - BLOCK ASSY, RELAY | ||||
| 82660-52100 |
NCP120,125,NSP12#..LEPIC,X |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82732-52190 |
NCP12#,NSP12# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-52150 |
NCP12#,NSP12# |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-52160 |
NCP12#,NSP12# |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-52L60 |
NCP12#,NSP12# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
NCP12#,NSP12# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-69075 |
NCP12# |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
NCP12#,NSP12# |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
NCP12#,NSP12# |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-52030 |
NCP122;NCP120,125,NSP12#..LEPIC,X |
1 | ||
| 85903-52020 |
NCP120,125,NSP120..G,S |
1 | ||
| 85913C - RELAY, HEATER, NO.1 | ||||
| 90987-04010 |
NCP120,125,NSP12#..LEPIC,X |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-52010 |
NCP12#,NSP120..G,S |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-52030 |
NCP12#,NSP120..G,S |
1 | ||
| 89220-52031 |
NCP12#,NSP120..G,S |
1 | ||
| 89220-52012 |
NCP120,125,NSP12#..LEPIC,X |
1 | ||
| 89220-52011 |
NCP120,125,NSP12#..LEPIC,X |
1 | ||
| 89220-52010 |
NCP120,125,NSP12#..LEPIC,X |
1 | ||
| 89650 - COMPUTER ASSY, POWER STEERING | ||||
| 89650-52560 |
NCP125 JTEKT/DENSO |
1 | ||
| 89650-52561 |
NCP125 JTEKT/DENSO |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-52420 |
NCP125 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| Common parts | ||||
| 82715-52U70 | ||||
| 82715-52X30 | ||||
| 82715-52X40 | ||||
| 90119-06983 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 93313-15010 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 5 OF 8(1011- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-52090 |
NCP12#,NSP12# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-52060 |
NCP12#,NSP12# |
1 | ||
| 84720J - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-52100 |
NCP12# |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84724-52010 |
NCP125 |
1 | ||
| 84794 - SWITCH, FR WIPER DEICER | ||||
| 84794-35010 |
NCP12#,NSP12# 寒冷地仕様 |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
NCP125..X “Vﾊﾟｯｹｰｼﾞ”*(V)or*(W) |
1 | ||
| 84870-28020 |
NCP12#,NSP12# |
1 | ||
| 84988L - SWITCH, VSC OFF | ||||
| 84988-52080 |
NCP125,NSP120;NCP120,122,NSP122..G,S,X |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-26040 |
NCP12#,NSP12# ｼｶﾞﾚｯﾄﾗｲﾀ−有り(照明無し) |
1 | ||
| 85510 - SOCKET & RETAINER ASSY, CIGARLIGHTER | ||||
| 85510-26040 |
NCP12#,NSP12# ｼｶﾞﾚｯﾄﾗｲﾀ−有り(照明無し) |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
NCP12#,NSP12# ｼｶﾞﾚｯﾄﾗｲﾀ−有り(照明無し) |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
NCP12#,NSP12# ｼｶﾞﾚｯﾄﾗｲﾀ−有り(照明無し) |
1 | ||
| 85530E - SOCKET ASSY, POWER OUTLET, NO.3 | ||||
| 85530-42010 |
NCP12#,NSP12# |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-30060 |
NCP12#,NSP12# ｼｶﾞﾚｯﾄﾗｲﾀ−有り(照明無し) |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-52051 |
NCP12#,NSP12# ﾏｰｸ=450 |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-52030 |
NCP120,125,NSP120..G,S |
1 | ||
| 89611-52032 |
NCP120,125,NSP120..G,S |
1 | ||
| 89611-52031 |
NCP120,125,NSP120..G,S |
1 | ||

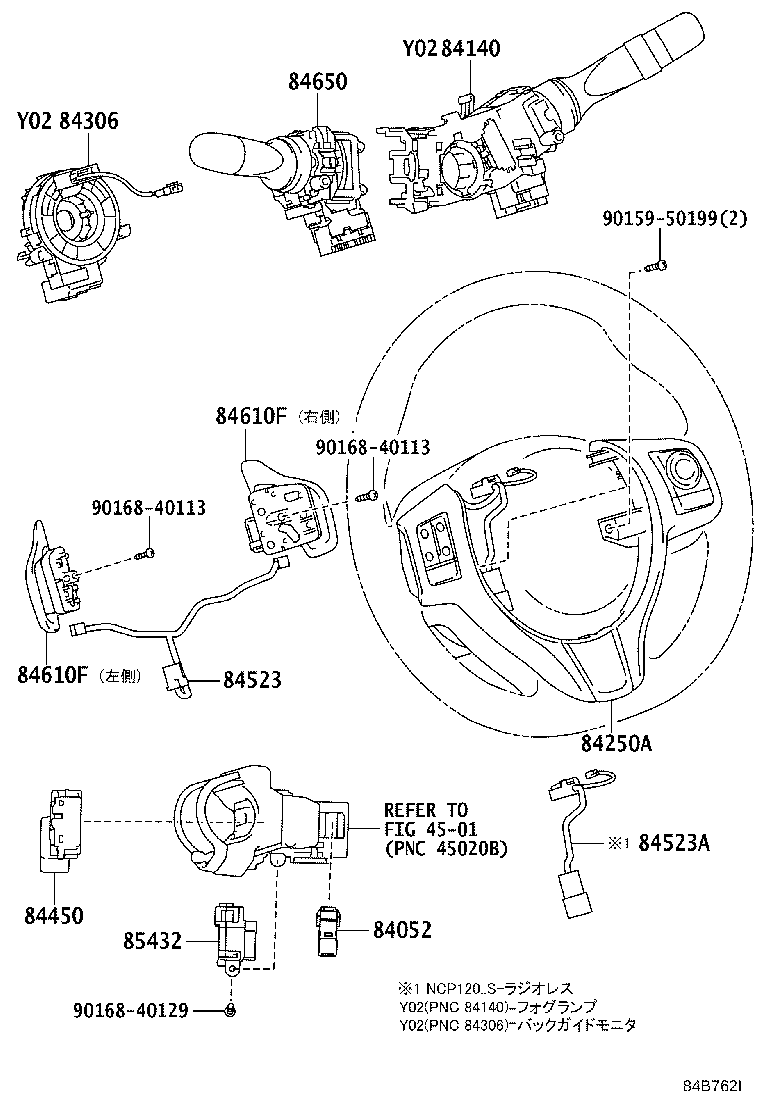

ILLUST NO. 6 OF 8(1011- )
ｽﾃｱﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-71010 |
NCP122;NCP120,125,NSP12#..LEPIC,X |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-52090 |
NCP120,125,NSP12#..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ｺﾝﾋﾞﾈｰｼｮﾝｽｲｯﾁ−ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ付 |
1 | ||
| 84140-12590 |
NCP120,125,NSP120..X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 84140-52100 |
NCP120,125,NSP120..X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ｺﾝﾋﾞﾈｰｼｮﾝｽｲｯﾁ−ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ付 |
1 | ||
| 84140-42070 |
NCP12#,NSP120..G ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ｺﾝﾋﾞﾈｰｼｮﾝｽｲｯﾁ−ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ&ｺﾝﾗｲﾄ付き |
1 | ||
| 84140-52120 |
NCP120,125,NSP120..X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｺﾝﾋﾞﾈｰｼｮﾝｽｲｯﾁ−ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ付 |
1 | ||
| 84140-52110 |
NCP120,125,NSP12#..X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｺﾝﾋﾞﾈｰｼｮﾝｽｲｯﾁ−ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ付 |
1 | ||
| 84140-42080 |
NCP12#,NSP120..G ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｺﾝﾋﾞﾈｰｼｮﾝｽｲｯﾁ−ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ&ｺﾝﾗｲﾄ付き |
1 | ||
| 84140-52180 |
NCP120,125,NSP12#..X |
1 | ||
| 84140-12570 |
NCP12#,NSP120..G |
1 | ||
| 84140-12580 |
NCP12#,NSP120..G ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-42030 |
NCP120,125,NSP12#..LEPIC,X |
1 | ||
| 84140-52130 |
NCP120,125,NSP12#..X ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-20740 |
NCP120,125,NSP12#..LEPIC,X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り&ｺﾝﾋﾞﾈｰｼｮﾝｽｲｯﾁ−ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ付 |
1 | ||
| 84140-20750 |
NCP120,125,NSP12#..LEPIC,X ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-12600 |
NCP120,125,NSP120..X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 84140-42040 |
NCP120,125,NSP12#..LEPIC,X ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(DOP)&ｺﾝﾋﾞﾈｰｼｮﾝｽｲｯﾁ−ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ付 |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-52290C0 |
NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 84250-52290C0 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
1 | ||
| 84250-52130C1 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
1 | ||
| 84250-52130C1 |
NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-52100 |
NCP125,NSP12#..LEPIC,X ｵｰﾃﾞｨｵ(日本向け)−ﾗｼﾞｵﾚｽ 4ｽﾋﾟｰｶ |
1 | ||
| 84306-52100 |
NCP125,NSP120..G ｵｰﾃﾞｨｵ(日本向け)−ﾗｼﾞｵﾚｽ 6ｽﾋﾟｰｶ |
1 | ||
| 84306-52090 |
NCP12#,NSP12# |
1 | ||
| 84307-74020 |
NCP12#,NSP12# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-52020 |
NCP122;NCP120,125,NSP12#..LEPIC,X |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-52190 |
NCP12#,NSP12# |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-52010 |
NCP122;NCP120,125,NSP12#..LEPIC,X |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40113 | ||||
| 90168-40129 | ||||
| Linked diagrams | ||||
| 4501 | ||||
ILLUST NO. 7 OF 8(1011- )NSP120..X ; (1011- )NCP125..G,X ;(1011- )NCP120,122..G
ｼﾞｮｼｭｾｷｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84290 - SWITCH ASSY, LIMIT | ||||
| 84290-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 84290-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-D1040C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
3 | ||
| 84920-D1040C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
3 | ||
| 84920-D1040C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
3 | ||
| 84920-D1040C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
3 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-D1040C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
3 | ||
| 84920-D1040C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
3 | ||
| 84920-D1040C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
3 | ||
| 84920-D1040C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
3 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-D1040C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
3 | ||
| 84920-D1040C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
3 | ||
| 84920-D1040C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
3 | ||
| 84920-D1040C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
3 | ||
| 84920L - SWITCH ASSY, POWER SEAT, NO.2 | ||||
| 84920-D1050C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
2 | ||
| 84920-D1050C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
2 | ||
| 84920-D1050C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
2 | ||
| 84920-D1050C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
2 | ||
| 84920L - SWITCH ASSY, POWER SEAT, NO.2 | ||||
| 84920-D1050C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
2 | ||
| 84920-D1050C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
2 | ||
| 84920-D1050C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
2 | ||
| 84920-D1050C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
2 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-D1330 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 85999-D1330 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C8410A - SWITCH ASSY, POWER LIFT CONTROL | ||||
| C8410-D1161 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C8410-D1161 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C8545A - RELAY, POWER LIFT CONTROL | ||||
| C8545-D1400 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C8545-D1400 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| 82711-1E360 | ||||
| 93269-63016 | ||||
| 93530-54010 | ||||
| 93560-54010 | ||||
| C9916-40001 | ||||

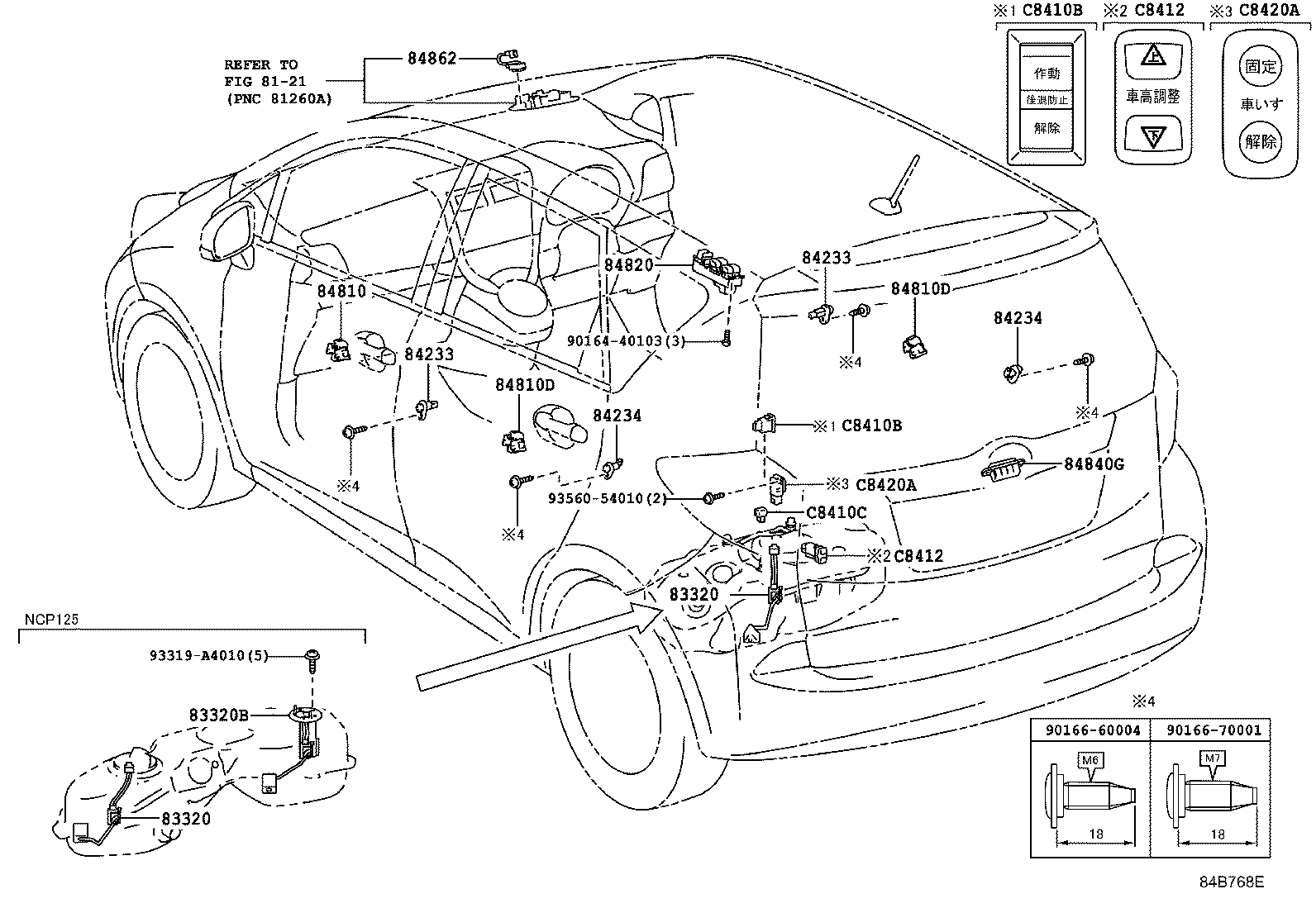

ILLUST NO. 8 OF 8(1011- )
ﾄﾞｱ,ﾙｰﾌ,ﾌﾛｱ & ﾊﾞｯｸﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52190 |
NCP125 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-52190 |
NCP125 |
1 | ||
| 83320B - GAGE ASSY, FUEL SENDER, NO.2 | ||||
| 83320-59505 |
NCP125 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
NCP12#,NSP12# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-52010 |
NCP12#,NSP12# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
NCP12#,NSP12# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-52020 |
NCP12#,NSP12# |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-52030 |
NCP12#,NSP12# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
NCP12#,NSP12# |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-52030 |
NCP12#,NSP12# |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-52430 |
NCP12#,NSP12# |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-28030 |
NCP122;NCP120,125,NSP12#..LEPIC,X |
1 | ||
| 84840-28040 |
NCP120,125,NSP120..G,S |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90166-60004 | ||||
| 90166-70001 | ||||
| 93319-A4010 | ||||
| 93560-54010 | ||||
| Linked diagrams | ||||
| 8121 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
