NCP125-CHXGK (2010)
Toyota Ractis
ILLUST NO. 1 OF 9(1011- )
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-5CL30 |
NCP120,125..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-5CL20 |
NCP120,125..LEPIC,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-5CL00 |
NCP120,125..LEPIC,X |
1 | ||
| 82111-5CL10 |
NCP120..S;NCP125..G |
1 | ||
| 82111-5CL21 |
NCP120,125..LEPIC,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-5CL31 |
NCP120,125..G,S ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-5CL11 |
NCP125..G |
1 | ||
| 82111-5CL01 |
NCP125..LEPIC,X |
1 | ||
| 82111-5CL22 |
NCP125..LEPIC,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-5CL32 |
NCP125..G ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-5CL12 |
NCP125..G |
1 | ||
| 82111-5CL23 |
NCP125..LEPIC,X ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-5CL33 |
NCP125..G ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82111-5CL02 |
NCP125..LEPIC,X |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF 9(1011- )NCP12#

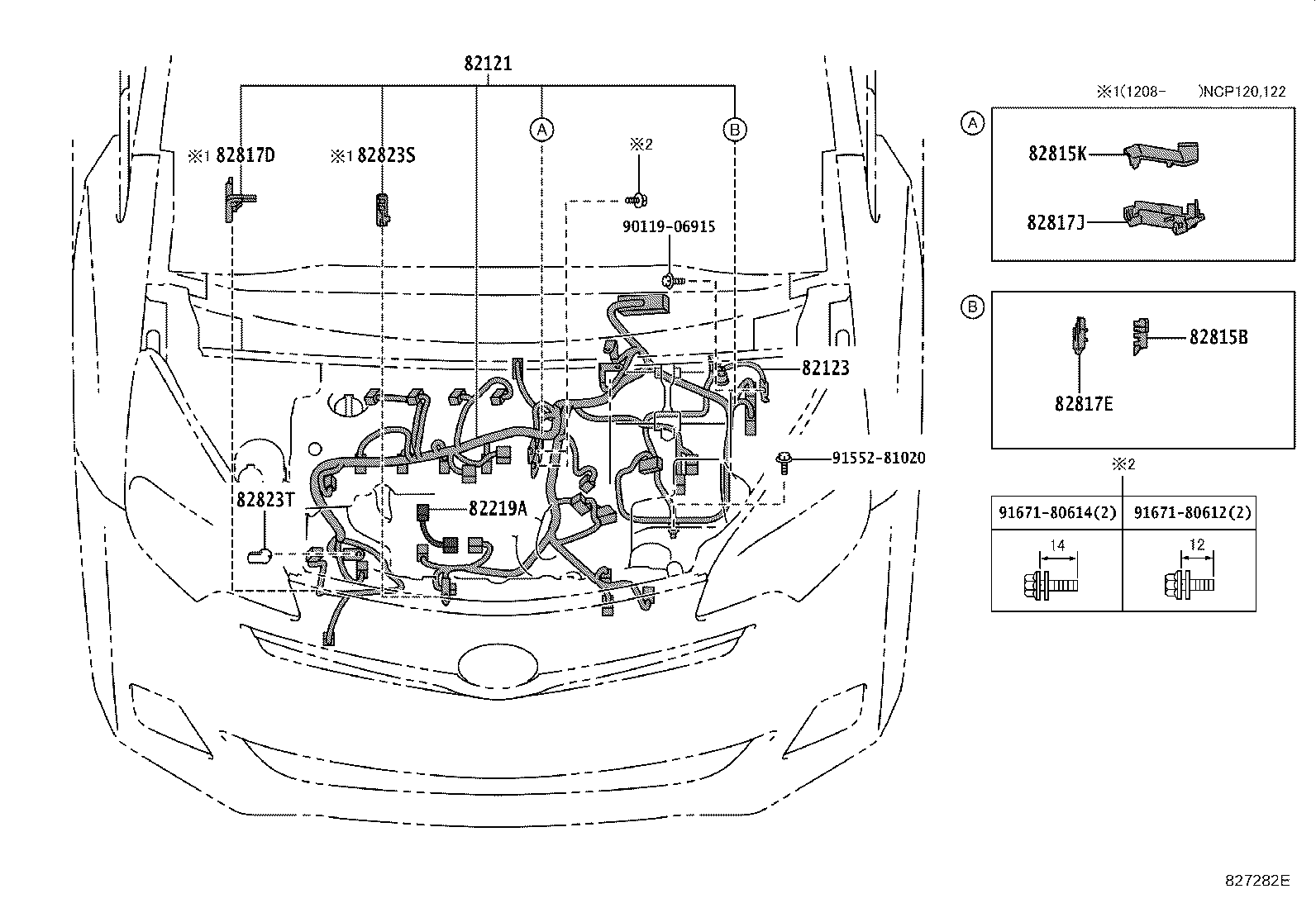

ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-52K31 |
NCP125 |
1 | ||
| 82121-52K30 |
NCP12# |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-52350 |
NCP12# |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-52040 |
NCP12# |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-52120 |
NCP12#,NSP12# |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-52050 |
NCP12# |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-52850 |
NCP12#,NSP12# |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-52610 |
NCP12# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NCP12#,NSP12# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91552-81020 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
ILLUST NO. 4 OF 9(1011- )

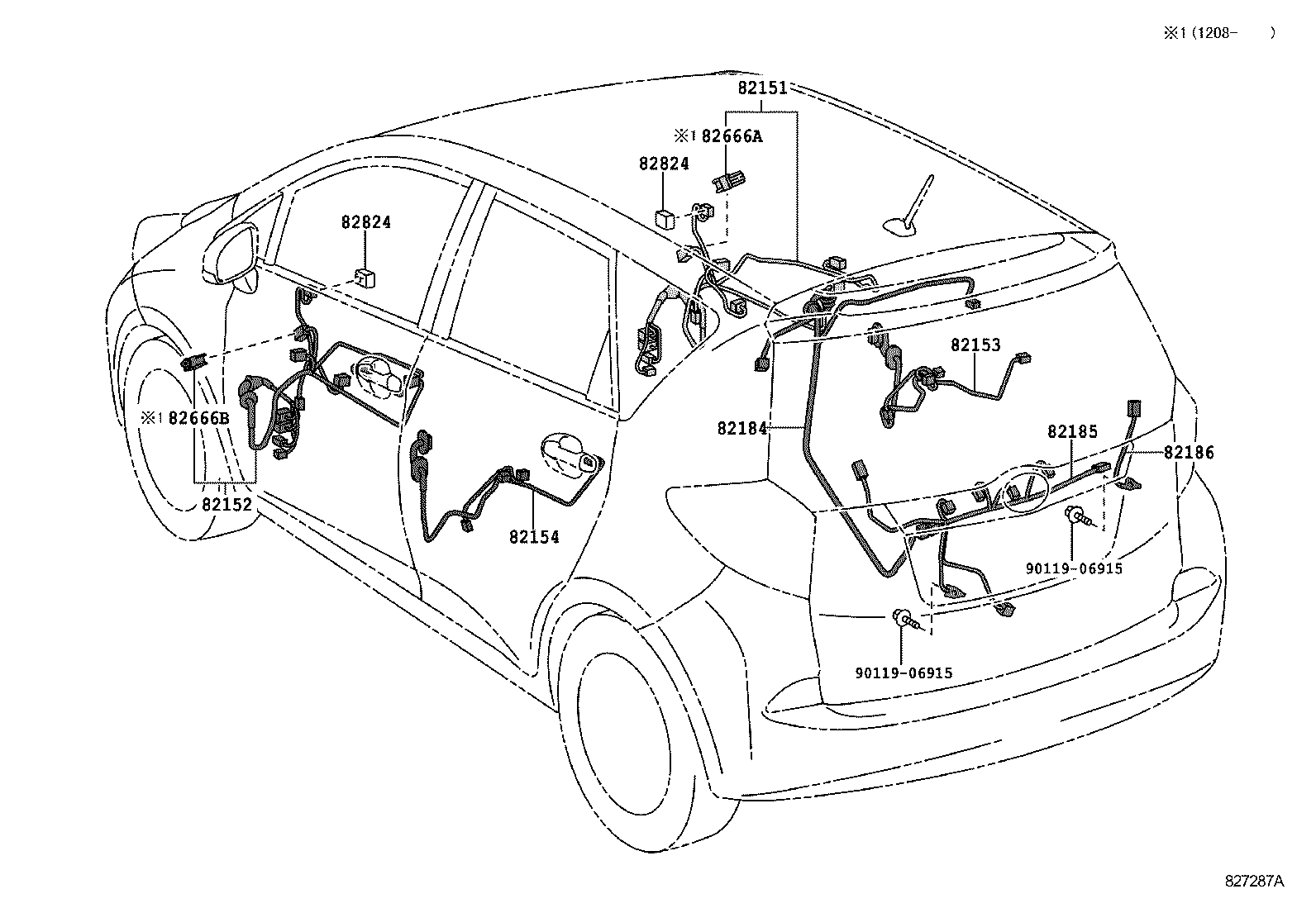

ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-52M80 |
NCP120,125,NSP120..G,S |
1 | ||
| 82151-52S90 |
NCP125..X “Vﾊﾟｯｹｰｼﾞ”*(V)or*(W) |
1 | ||
| 82151-52S90 |
NCP125..X “Vﾊﾟｯｹｰｼﾞ”*(V)or*(W)&寒冷地仕様 |
1 | ||
| 82151-52M70 |
NCP122;NCP120,125,NSP12#..LEPIC,X |
1 | ||
| 82151-52V50 |
NCP120,125,NSP120..G,S 寒冷地仕様 |
1 | ||
| 82151-52M40 |
NCP122;NCP120,125,NSP12#..LEPIC,X 寒冷地仕様 |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-52J80 |
NCP120,125,NSP120..G,S |
1 | ||
| 82152-52Q20 |
NCP125..X “Vﾊﾟｯｹｰｼﾞ”*(V)or*(W)&寒冷地仕様 |
1 | ||
| 82152-52J70 |
NCP122;NCP120,125,NSP12#..LEPIC,X |
1 | ||
| 82152-52F60 |
NCP122;NCP120,125,NSP12#..LEPIC,X 寒冷地仕様 |
1 | ||
| 82152-52J30 |
NCP120,125,NSP120..G,S 寒冷地仕様 |
1 | ||
| 82152-52Q20 |
NCP125..X “Vﾊﾟｯｹｰｼﾞ”*(V)or*(W) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-52610 |
NCP12#,NSP12# |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-52290 |
NCP12#,NSP12# |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-52480 |
NCP120,125,NSP120..G,S |
1 | ||
| 82184-52420 |
NCP120,125,NSP120..LEPIC,X |
1 | ||
| 82184-52510 |
NCP120,125,NSP120..X ｵｰﾃﾞｨｵ(日本向け)−AVN 4ｽﾋﾟｰｶ |
1 | ||
| 82184-52510 |
NCP120,125,NSP120..G,S ｵｰﾃﾞｨｵ(日本向け)−AVN 6ｽﾋﾟｰｶ |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-52580 |
NCP120,125,NSP120..X ｵｰﾃﾞｨｵ(日本向け)−AVN 4ｽﾋﾟｰｶ |
1 | ||
| 82185-52550 |
NCP120,125,NSP120..LEPIC,X |
1 | ||
| 82185-52580 |
NCP120,125,NSP120..G,S ｵｰﾃﾞｨｵ(日本向け)−AVN 6ｽﾋﾟｰｶ |
1 | ||
| 82185-52570 |
NCP120,125,NSP120..G,S |
1 | ||
| 82185-52581 |
NCP120,125,NSP120..X ｵｰﾃﾞｨｵ(日本向け)−AVN 4ｽﾋﾟｰｶ |
1 | ||
| 82185-52581 |
NCP120,125,NSP120..G,S ｵｰﾃﾞｨｵ(日本向け)−AVN 6ｽﾋﾟｰｶ |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-52150 |
NCP12#,NSP12# |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-52140 |
NCP12#,NSP12# 寒冷地仕様 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-52140 |
NCP12#,NSP12# 寒冷地仕様 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-52300 |
NCP120,125,NSP12#..LEPIC,X |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-52300 |
NCP120,125,NSP12#..LEPIC,X |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
ILLUST NO. 5 OF 9(1011- )NCP120,125,NSP120

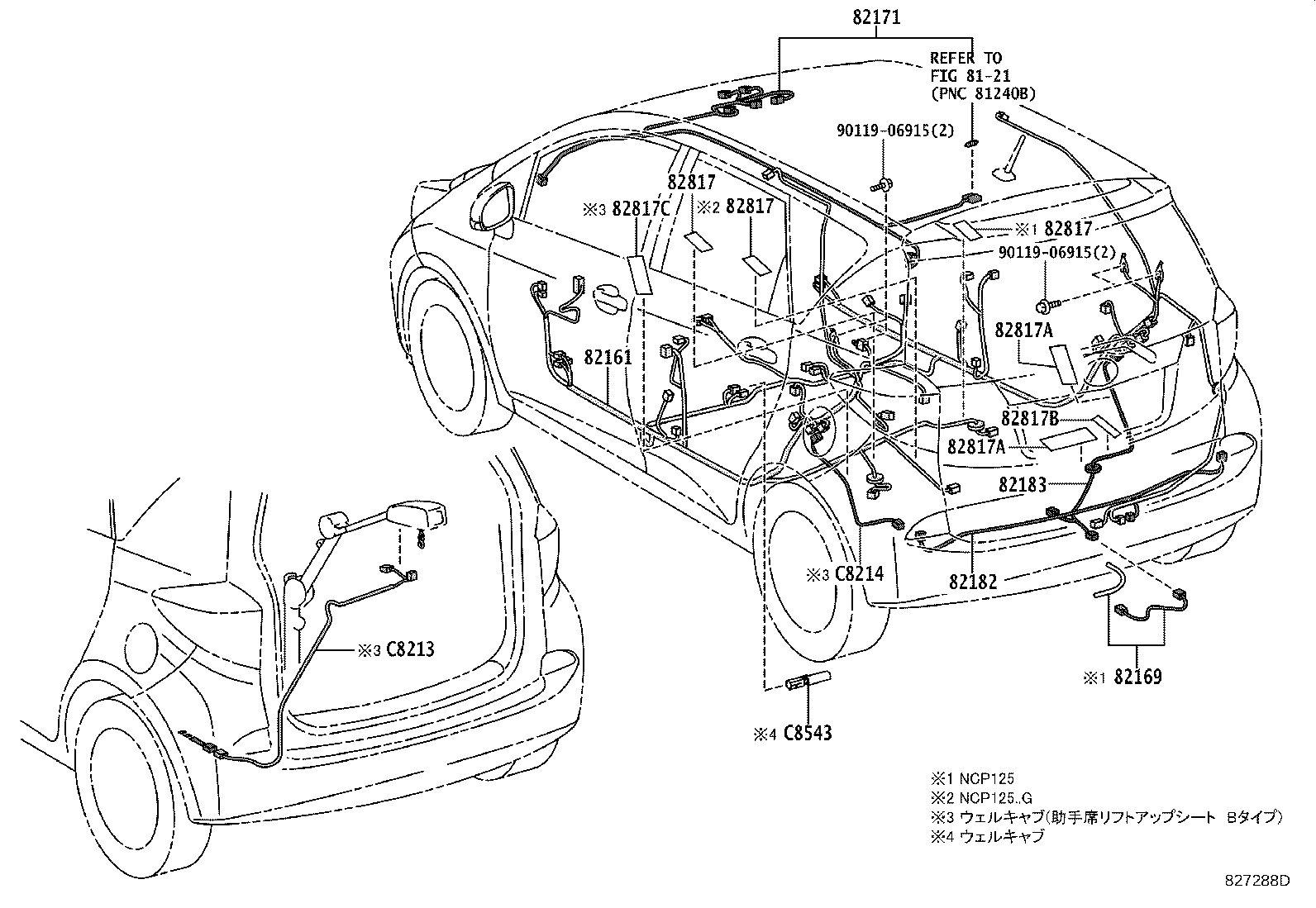

ﾌﾛｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-5CA30 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| 82161-5CA30 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| 82161-5CA50 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| 82161-5CA20 |
NCP125..LEPIC,X |
1 | ||
| 82161-5CA50 |
NCP125..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
1 | ||
| 82161-5CA40 |
NCP125..G |
1 | ||
| 82161-5CA50 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| 82161-5CA30 |
NCP125..LEPIC,X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
1 | ||
| 82161-5CA31 |
NCP125..LEPIC,X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
1 | ||
| 82161-5CA51 |
NCP125..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
1 | ||
| 82161-5CA21 |
NCP125..LEPIC,X |
1 | ||
| 82161-5CA41 |
NCP125..G |
1 | ||
| 82161-5CQ50 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| 82161-5CQ20 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 82161-5CQ40 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 82161-5CQ50 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| 82161-5CQ30 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| 82161-5CQ30 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| 82161-5CQ40 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 82161-5CQ20 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 82161-5CA52 |
NCP125..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
1 | ||
| 82161-5CA32 |
NCP125..LEPIC,X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
1 | ||
| 82161-5CA22 |
NCP125..LEPIC,X |
1 | ||
| 82161-5CA42 |
NCP125..G |
1 | ||
| 82161-5CQ41 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 82161-5CQ51 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| 82161-5CQ41 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 82161-5CQ21 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 82161-5CQ31 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| 82161-5CQ31 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| 82161-5CQ21 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 82161-5CQ51 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-52010 |
NCP125 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-52450 |
NCP120,125,NSP120 |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-52200 |
NCP120,125,NSP120 |
1 | ||
| 82182-52210 |
NCP120,125,NSP120 寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り |
1 | ||
| 82183 - WIRE, LUGGAGE ROOM, NO.3 | ||||
| 82183-52070 |
NCP125 ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 82183-52050 |
NCP125 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-52710 |
NCP125..G |
3 | ||
| 82817-52710 |
NCP125..LEPIC,X |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-52710 |
NCP125..G |
3 | ||
| 82817-52710 |
NCP125..LEPIC,X |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-52710 |
NCP125..G |
3 | ||
| 82817-52710 |
NCP125..LEPIC,X |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-52710 |
NCP125 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-52710 |
NCP125 |
2 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-52A60 |
NCP125 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-52710 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C8213 - WIRE, POWER LIFT MOTOR TO BODY | ||||
| C8213-12010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C8214 - WIRE, POWER LIFT MOTOR | ||||
| C8214-52010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C8543 - RESISTOR, EMERGENCY | ||||
| C8543-12010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| C8543-12010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| C8543-12010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C8543-12010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 6 OF 9(1011- )NCP120..G ; (1011- )NSP120..X ; (1011- )NCP125..G,X

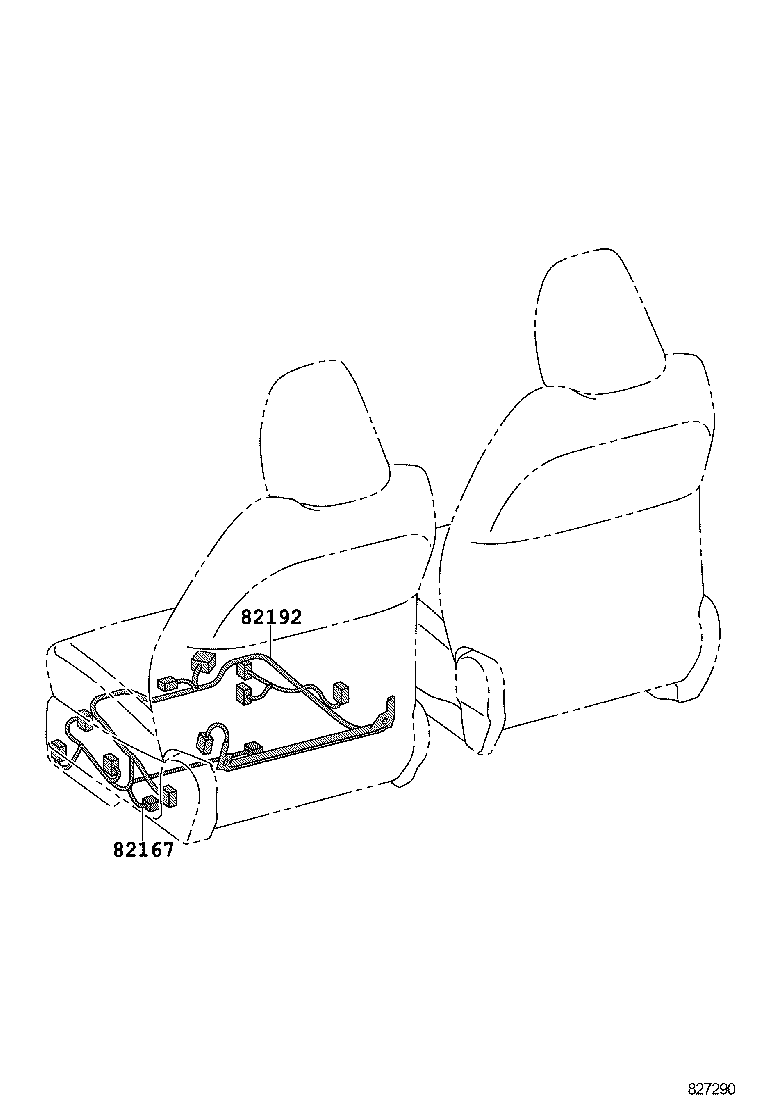

ｼﾞｮｼｭｾｷﾘﾌﾄｱｯﾌﾟｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-52010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 82167-52010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 82167-52020 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 82167-52020 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 82192-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||

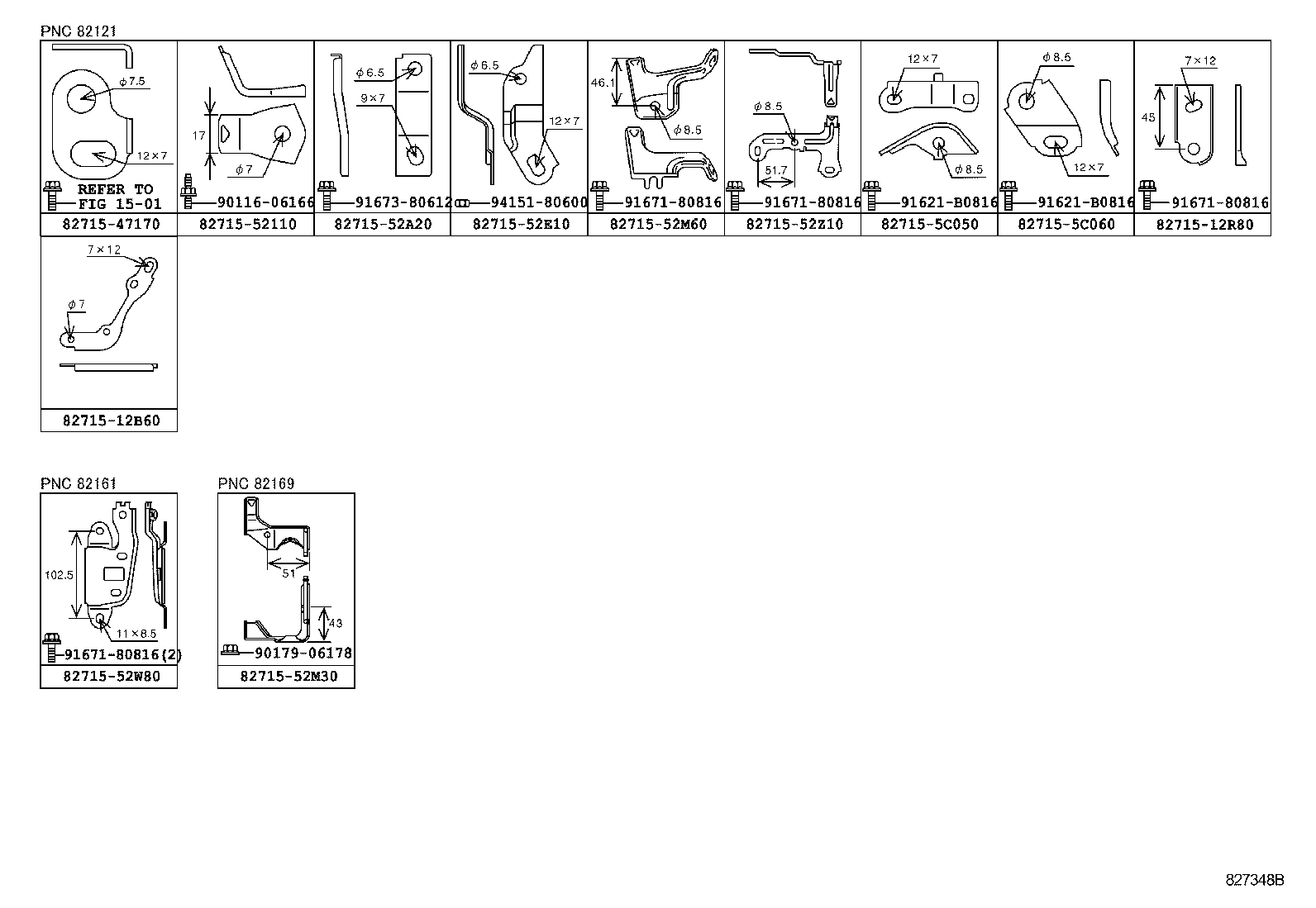

ILLUST NO. 7 OF 9(1011- )NCP12#
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-12B60 | ||||
| 82715-12R80 | ||||
| 82715-47170 | ||||
| 82715-52110 | ||||
| 82715-52A20 | ||||
| 82715-52E10 | ||||
| 82715-52M30 | ||||
| 82715-52M60 | ||||
| 82715-52W80 | ||||
| 82715-52Z10 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 90116-06166 | ||||
| 90179-06178 | ||||
| 91621-B0816 | ||||
| 91671-80816 | ||||
| 91673-80612 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1501 | ||||
ILLUST NO. 8 OF 9(1011- )HTWC

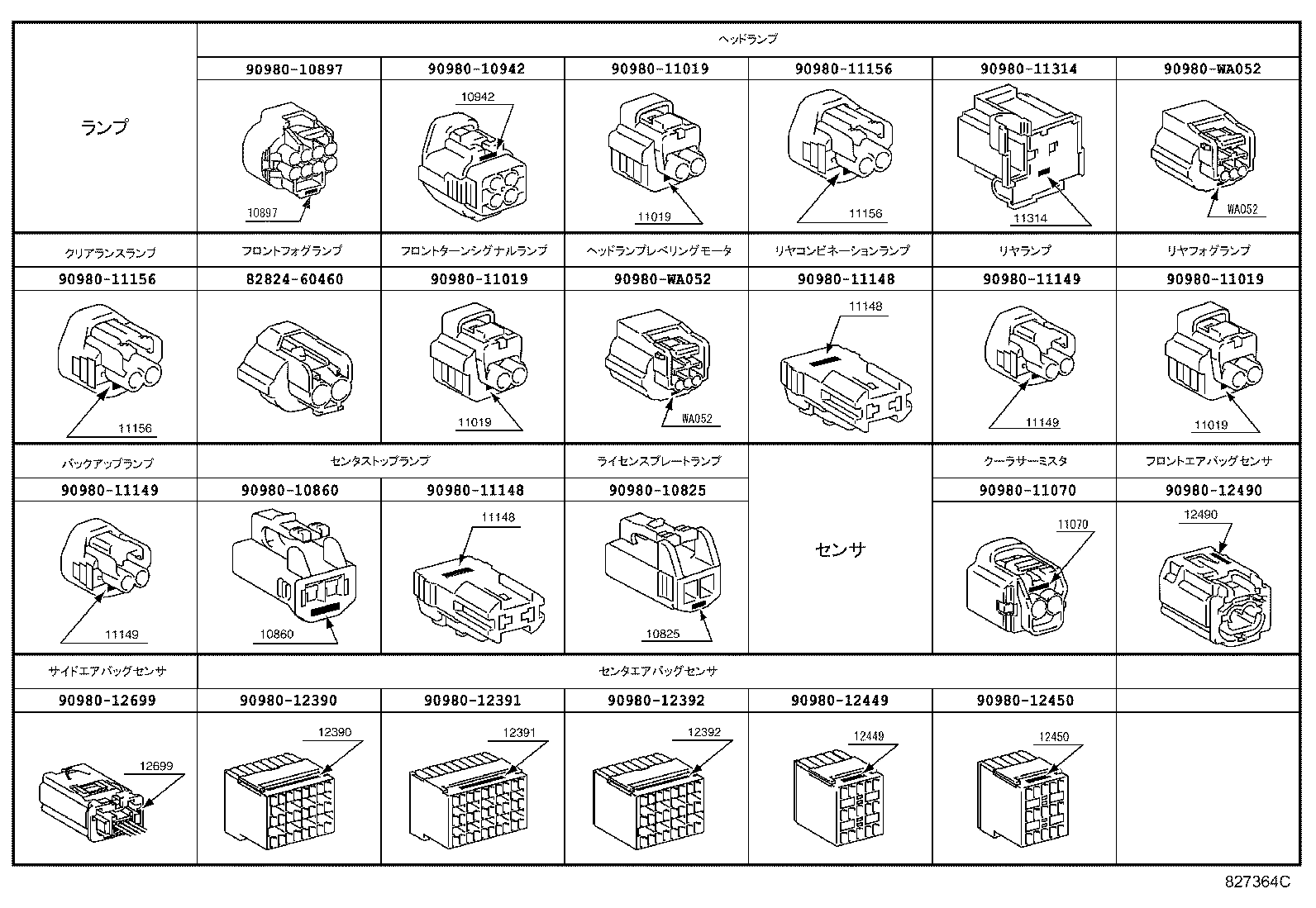

ｺﾈｸﾀ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-10897 | ||||
| 90980-10942 | ||||
| 90980-11019 | ||||
| 90980-11070 | ||||
| 90980-11148 | ||||
| 90980-11149 | ||||
| 90980-11156 | ||||
| 90980-11314 | ||||
| 90980-12390 | ||||
| 90980-12391 | ||||
| 90980-12392 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||
| 90980-WA052 | ||||
ILLUST NO. 3 OF 9(1011- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-5DK00 |
NCP125..G |
1 | ||
| 82141-5DJ90 |
NCP125..LEPIC,X |
1 | ||
| 82141-5DK01 |
NCP125..G |
1 | ||
| 82141-5DJ91 |
NCP125..LEPIC,X |
1 | ||
| 82141-5DJ92 |
NCP125..LEPIC,X |
1 | ||
| 82141-5DK02 |
NCP125..G |
1 | ||
| 82141-5DJ93 |
NCP125..LEPIC,X |
1 | ||
| 82141-5DK03 |
NCP125..G |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-74010 |
NCP12#,NSP12# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-70004 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||
ILLUST NO. 9 OF 9(1011- )HTWC

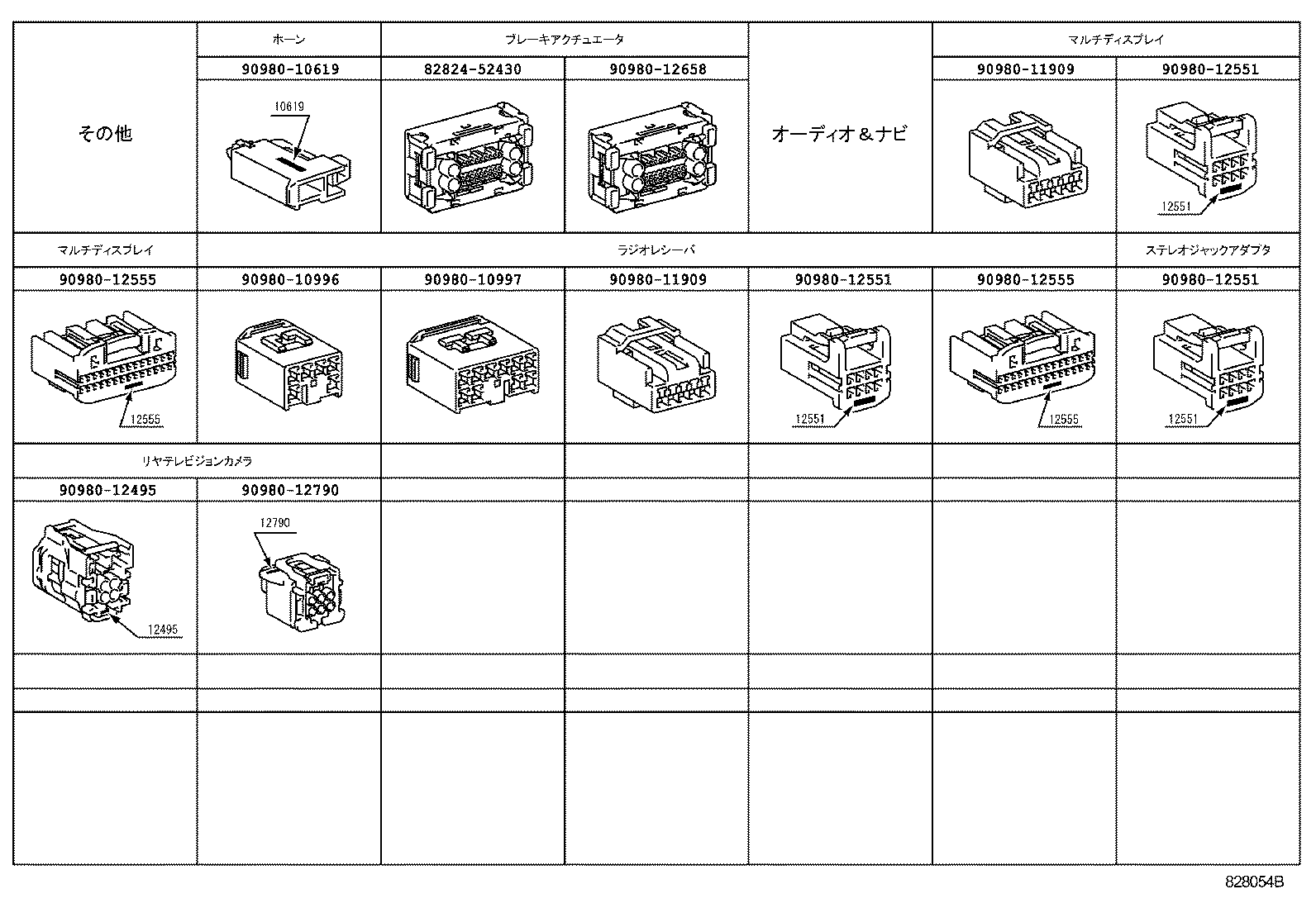

ｺﾈｸﾀ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52430 | ||||
| 90980-10619 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11909 | ||||
| 90980-12495 | ||||
| 90980-12551 | ||||
| 90980-12555 | ||||
| 90980-12658 | ||||
| 90980-12790 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
