NCP125-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )

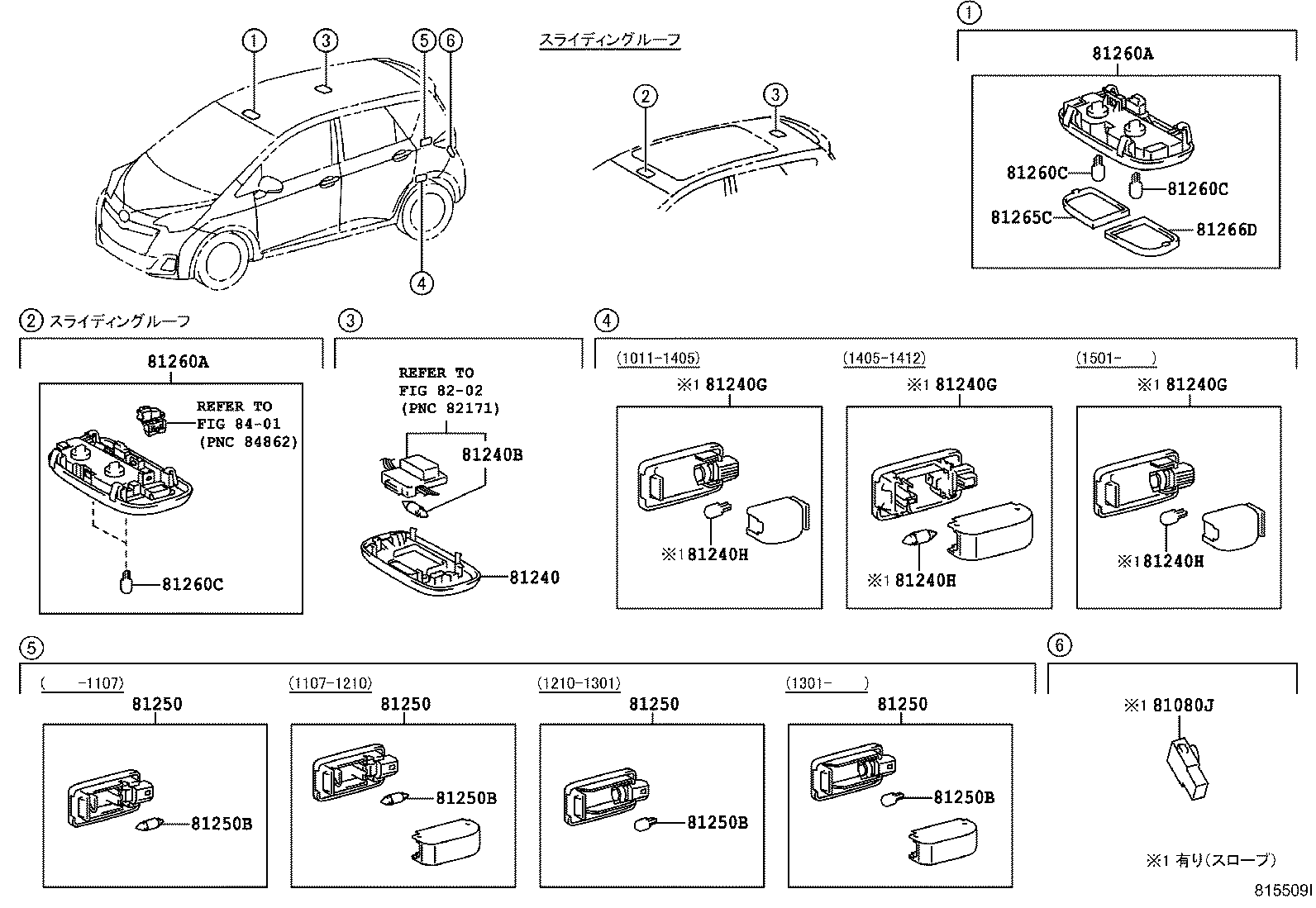

Click highlighted areas on diagram

diagram 81080J 81240 81240B 81240G 81240G 81240G 81240H 81240H 81240H 81250 81250 81250 81250 81250B 81250B 81250B 81250B 81260A 81260A 81260C 81260C 81260C 81265C 81266D 8202 8401
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-35020B0

NSP122;NCP12#,NSP120..G

LT.GRAY,TRIM2#,4#

 1
81240-35020B0

NCP125,NSP120..X

LT.GRAY,TRIM2#,4#,8#

 1
81240-35020B0

NCP120,125,NSP12#..X

LT.GRAY,TRIM2#

 1
81240B - BULB, ROOM LAMP, NO.1
90981-14011

NCP12#,NSP12#

12V 8W

 1
81250 - LAMP ASSY, ROOM, NO.2
81330-30100

NCP120,125,NSP120

 1
81330-05050

NCP120,125,NSP120

 1
81250-30210

NCP120,125,NSP120

 1
81250-05040

NCP120,125,NSP120

 1
81250 - LAMP ASSY, ROOM, NO.2
81330-30100

NCP120,125,NSP120

 1
81330-05050

NCP120,125,NSP120

 1
81250-30210

NCP120,125,NSP120

 1
81250-05040

NCP120,125,NSP120

 1
81250 - LAMP ASSY, ROOM, NO.2
81330-30100

NCP120,125,NSP120

 1
81330-05050

NCP120,125,NSP120

 1
81250-30210

NCP120,125,NSP120

 1
81250-05040

NCP120,125,NSP120

 1
81250 - LAMP ASSY, ROOM, NO.2
81330-30100

NCP120,125,NSP120

 1
81330-05050

NCP120,125,NSP120

 1
81250-30210

NCP120,125,NSP120

 1
81250-05040

NCP120,125,NSP120

 1
81250B - BULB, ROOM LAMP, NO.2
90981-WE003

NCP120,125,NSP120

12V 5W

 1
99132-12050

NCP120,125,NSP120

12V 5W

 1
81250B - BULB, ROOM LAMP, NO.2
90981-WE003

NCP120,125,NSP120

12V 5W

 1
99132-12050

NCP120,125,NSP120

12V 5W

 1
81250B - BULB, ROOM LAMP, NO.2
90981-WE003

NCP120,125,NSP120

12V 5W

 1
99132-12050

NCP120,125,NSP120

12V 5W

 1
81250B - BULB, ROOM LAMP, NO.2
90981-WE003

NCP120,125,NSP120

12V 5W

 1
99132-12050

NCP120,125,NSP120

12V 5W

 1
81260A - LAMP ASSY, MAP
81260-52030B1

NCP120,125,NSP12#..X

LT.GRAY,TRIM2#

 1
81260-52030B1

NCP125,NSP120..X

LT.GRAY,TRIM2#,4#,8#

 1
81260-52030B1

NSP122;NCP12#,NSP120..G

LT.GRAY,TRIM2#,4#

 1
81260A - LAMP ASSY, MAP
81260-52030B1

NCP120,125,NSP12#..X

LT.GRAY,TRIM2#

 1
81260-52030B1

NCP125,NSP120..X

LT.GRAY,TRIM2#,4#,8#

 1
81260-52030B1

NSP122;NCP12#,NSP120..G

LT.GRAY,TRIM2#,4#

 1
81260C - BULB(FOR MAP LAMP)
90981-11062

NCP12#,NSP12#

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

NCP12#,NSP12#

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

NCP12#,NSP12#

12V 8W

 2
81265C - LENS, MAP LAMP, NO.1
81265-52020

NCP12#,NSP12#

 1
81266D - LENS, MAP LAMP, NO.2
81266-52020

NCP12#,NSP12#

 1
Linked diagrams
8202
8401
