NCP125-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )

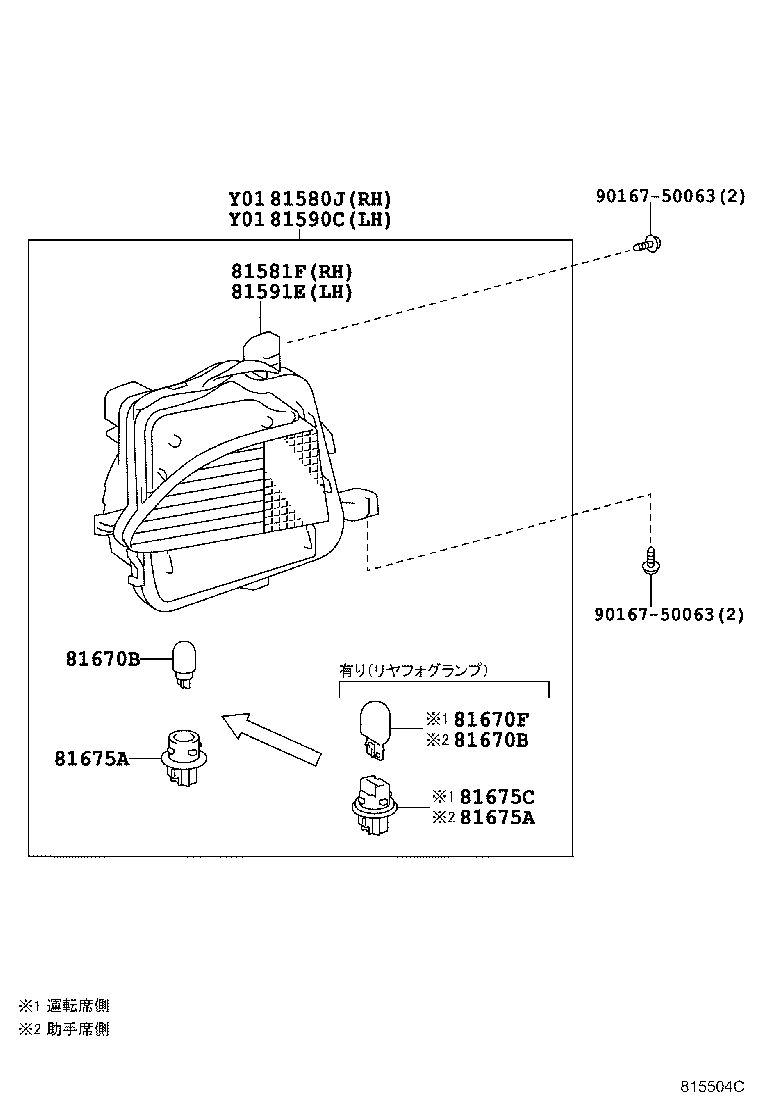

Click highlighted areas on diagram

diagram 81580J 81581F 81590C 81591E 81670B 81670B 81670F 81675A 81675A 81675C 9016750063 9016750063
Part # Description Qty Price
81580J - LAMP ASSY, REAR, RH
81580-52240

NCP12#,NSP12#

寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81580-52250

NCP12#,NSP12#

 1
81581F - LENS & BODY, REAR LAMP, RH
81581-52240

NCP12#,NSP12#

寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81581-52250

NCP12#,NSP12#

 1
81590C - LAMP ASSY, REAR, LH
81590-52140

NCP12#,NSP12#

 1
81591E - LENS & BODY, REAR LAMP, LH
81591-52140

NCP12#,NSP12#

 1
81670B - BULB(FOR BACK-UP LAMP)
90981-11059

NCP12#,NSP12#

12V 16W,寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
90981-11059

NCP12#,NSP12#

12V 16W

 2
81670B - BULB(FOR BACK-UP LAMP)
90981-11059

NCP12#,NSP12#

12V 16W,寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
90981-11059

NCP12#,NSP12#

12V 16W

 2
81670F - BULB(FOR REAR FOG LAMP)
90981-13043

NCP12#,NSP12#

12V 21W,寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81675A - PLUG, SOCKET(FOR BACK-UP LAMP)
90075-99109

NCP12#,NSP12#

 2
90075-99109

NCP12#,NSP12#

寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81675A - PLUG, SOCKET(FOR BACK-UP LAMP)
90075-99109

NCP12#,NSP12#

 2
90075-99109

NCP12#,NSP12#

寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
81675C - PLUG, SOCKET(FOR REAR FOG LAMP)
90075-99080

NCP12#,NSP12#

寒冷地仕様&ﾘﾔﾌｫｸﾞﾗﾝﾌﾟ−有り

 1
Common parts
90167-50063
