NCP125-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011-1405)

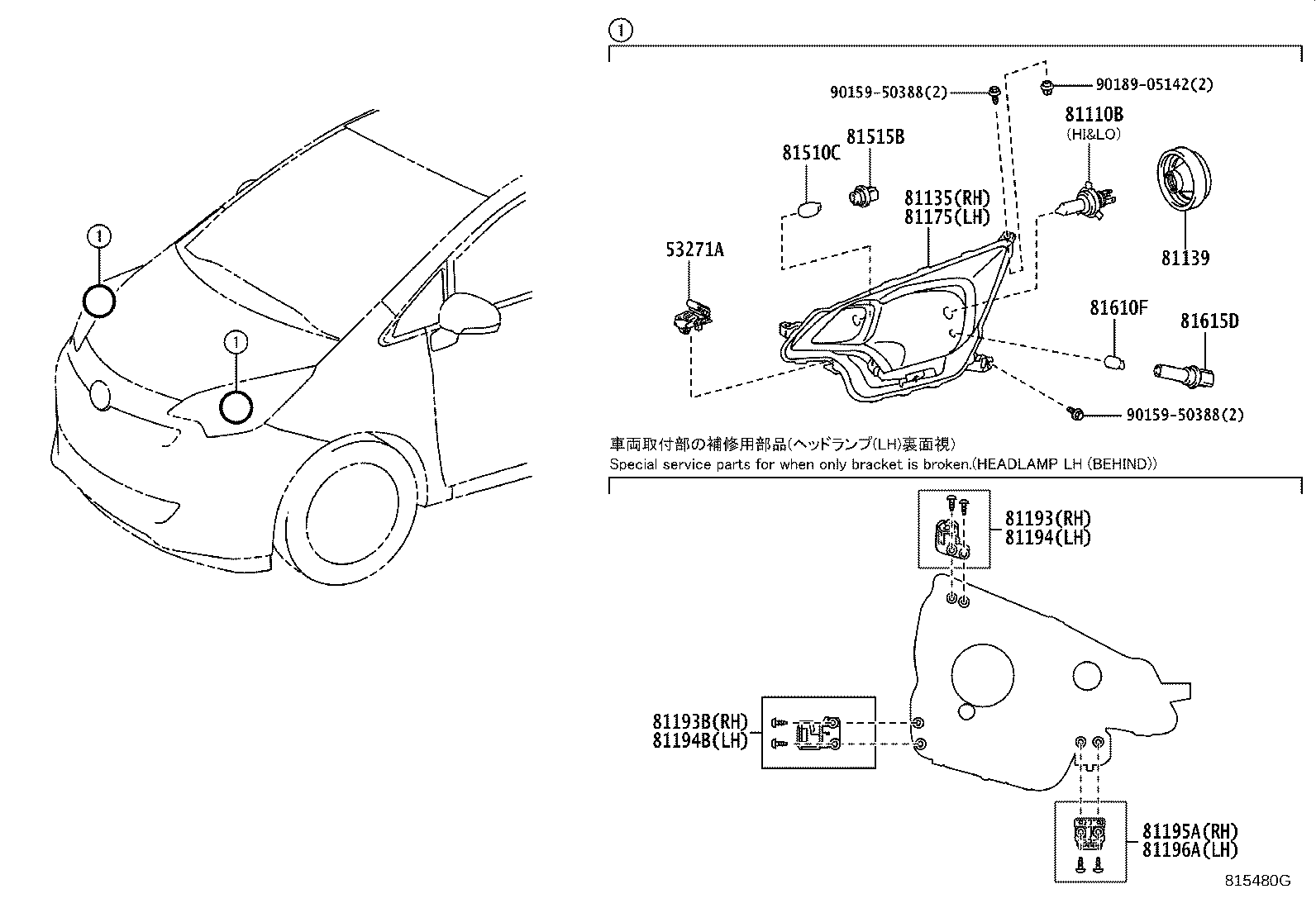

Click highlighted areas on diagram

ﾊﾛｹﾞﾝﾍｯﾄﾞﾗﾝﾌﾟ

diagram 53271A 81110B 81135 81139 81175 81193 81193B 81194 81194B 81195A 81196A 81510C 81515B 81610F 81615D 9015950388 9015950388 9018905142
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-44010

NCP12#,NSP12#

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058

NCP12#,NSP12#

12V 60/55W,ﾊﾛｹﾞﾝ

 2
90981-13082

NCP120,125,NSP120

12V 55W,ﾊﾛｹﾞﾝ,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-52C60

NCP12#,NSP12#..G,LEPIC,X

 1
81145-52C70

NCP120,125,NSP120

ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ

 1
81139 - COVER, HEADLAMP SOCKET
81139-52570

NCP12#,NSP12#

 2
81175 - UNIT ASSY, HEADLAMP, LH
81170-52C60

NCP12#,NSP12#..G,LEPIC,X

 1
81185-52C70

NCP120,125,NSP120

ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ

 1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-52170

NCP12#,NSP12#

 1
81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193-52160

NCP12#,NSP12#

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-52170

NCP12#,NSP12#

 1
81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194-52160

NCP12#,NSP12#

 1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-52140

NCP12#,NSP12#

 1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81195-52140

NCP12#,NSP12#

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011

NCP12#,NSP12#

12V 21W,ｱﾝﾊﾞｰ

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
81515-42050

NCP12#,NSP12#

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

NCP12#,NSP12#

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
90075-60077

NCP12#,NSP12#

 2
Common parts
90159-50388
90189-05142

(1011-1405)NCP120,125,NSP120

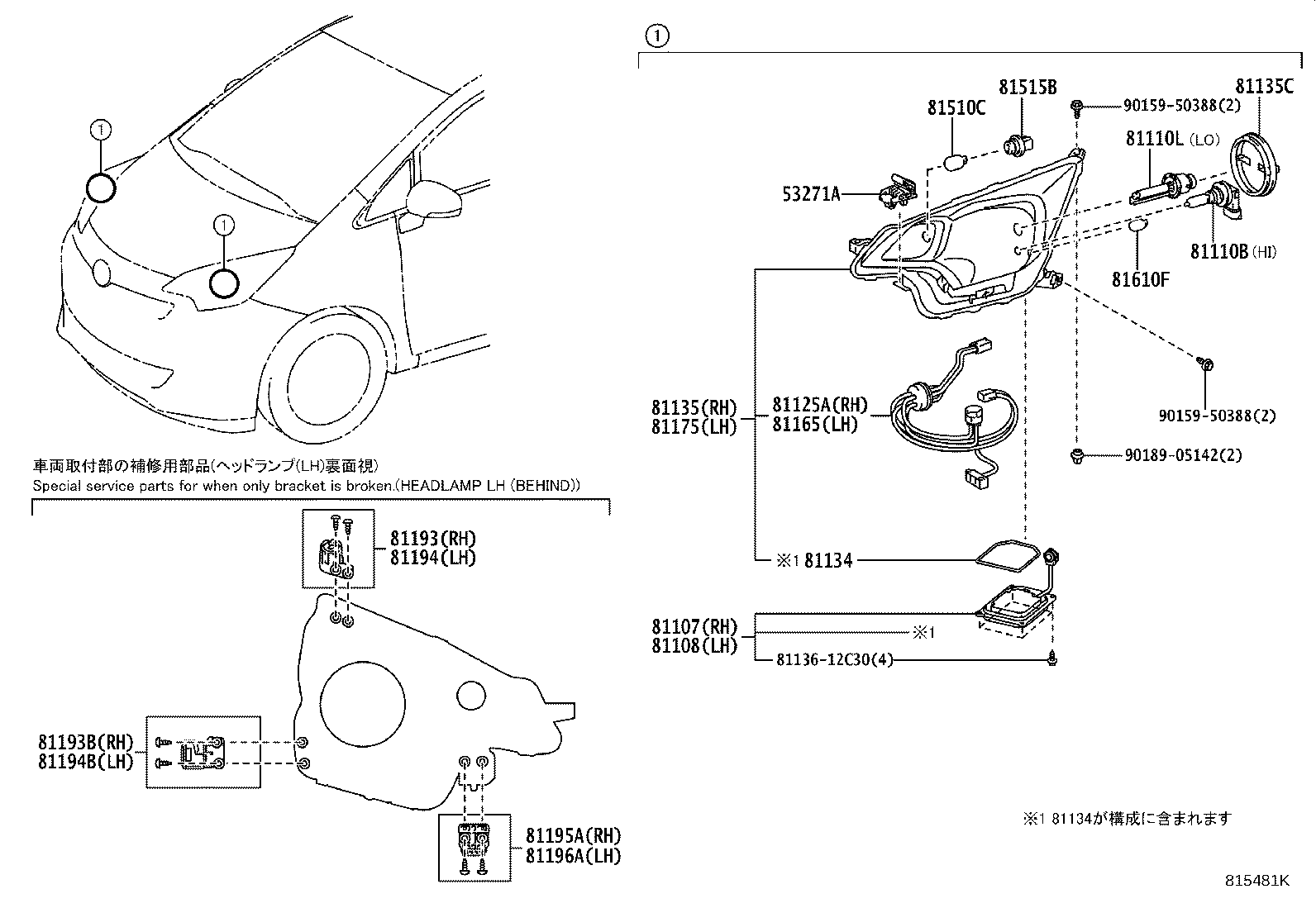

Click highlighted areas on diagram

ﾃﾞｨｽﾁｬｰｼﾞﾍｯﾄﾞﾗﾝﾌﾟ

diagram 53271A 81107 81108 81110B 81110L 81125A 81134 81135 81135C 8113612C30 81165 81175 81193 81193B 81194 81194B 81195A 81196A 81510C 81515B 81610F 9015950388 9015950388 9018905142
Part # Description Qty Price
53271A - BRACKET, HEADLAMP MOUNTING
53271-44010

NCP12#,NSP12#

 2
81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81107-52C70

NCP120,125,NSP120

ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ

 1
81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81107-52C70

NCP120,125,NSP120

ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13058

NCP12#,NSP12#

12V 60/55W,ﾊﾛｹﾞﾝ

 2
90981-13082

NCP120,125,NSP120

12V 55W,ﾊﾛｹﾞﾝ,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ

 2
81110L - BULB, DISCHARGE HEADLAMP
90981-20030

NCP120,125,NSP120

45V 35W,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ

 2
81125A - CORD, HEADLAMP, RH
81125-52C70

NCP120,125,NSP120

ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ

 1
81134 - GASKET, HEADLAMP
90075-68007

NCP120,125,NSP120

ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ

 1
90075-68007

NCP120,125,NSP120

ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ

 4
81135 - UNIT ASSY, HEADLAMP, RH
81130-52C60

NCP12#,NSP12#..G,LEPIC,X

 1
81145-52C70

NCP120,125,NSP120

ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ

 1
81135C - COVER, HEADLAMP BACK, NO.1
81135-52620

NCP120,125,NSP120

ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ

 2
81165 - CORD, HEADLAMP, LH
81125-52C70

NCP120,125,NSP120

ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-52C60

NCP12#,NSP12#..G,LEPIC,X

 1
81185-52C70

NCP120,125,NSP120

ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ

 1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-52170

NCP12#,NSP12#

 1
81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193-52160

NCP12#,NSP12#

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-52170

NCP12#,NSP12#

 1
81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194-52160

NCP12#,NSP12#

 1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-52140

NCP12#,NSP12#

 1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81195-52140

NCP12#,NSP12#

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15011

NCP12#,NSP12#

12V 21W,ｱﾝﾊﾞｰ

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
81515-42050

NCP12#,NSP12#

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

NCP12#,NSP12#

12V 5W

 2
Common parts
81136-12C30
90159-50388
90189-05142
