NCP125-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

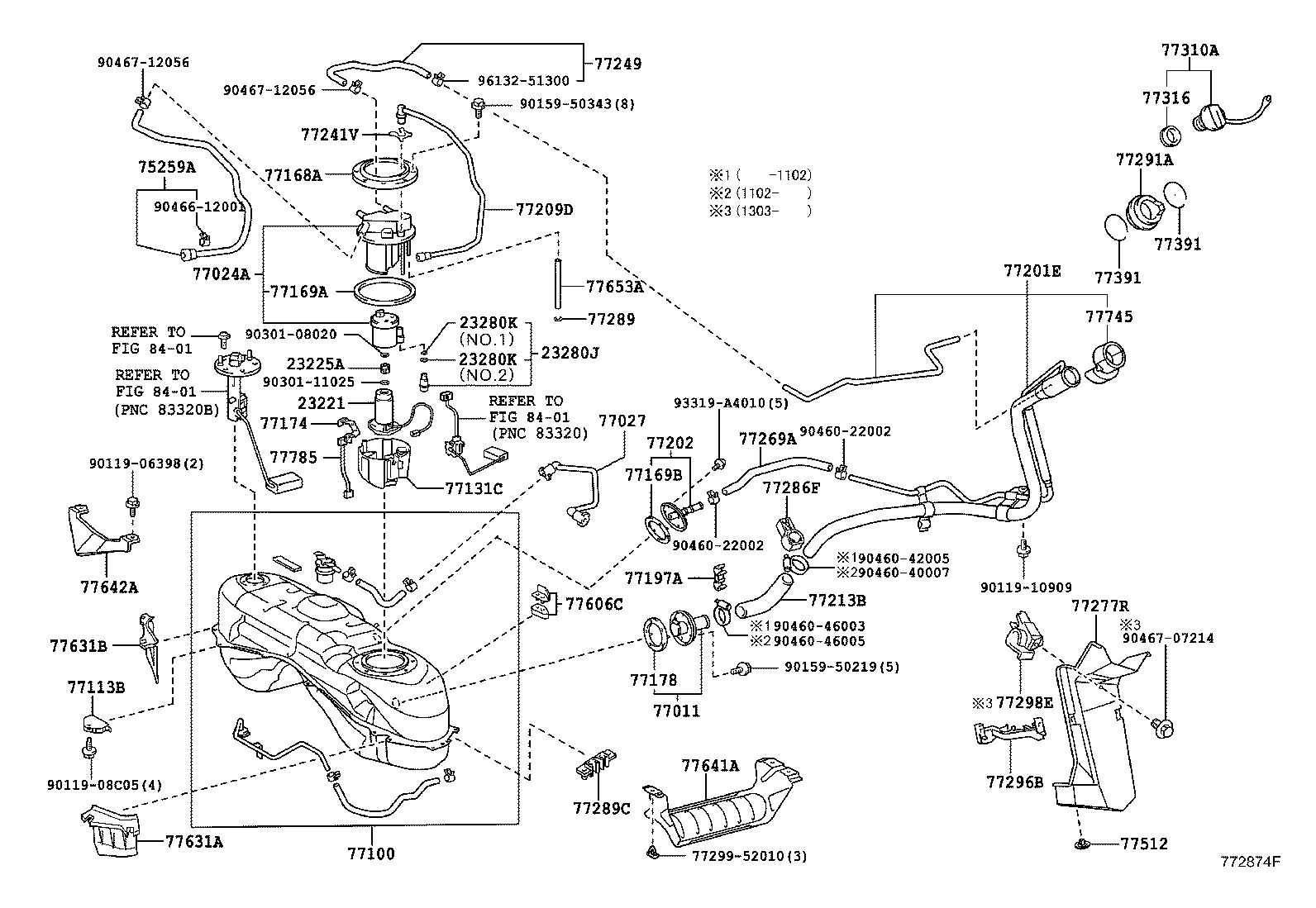

ILLUST NO. 1 OF 3(1011- )NCP125

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾀﾝｸ

diagram 23221 23225A 23280J 23280K 23280K 75259A 77011 77024A 77027 77100 77113B 77131C 77168A 77169A 77169B 77174 77178 77197A 77201E 77202 77209D 77213B 77241V 77249 77269A 77277R 77286F 77289 77289C 77291A 77296B 77298E 7729952010 77310A 77316 77391 77391 77512 77606C 77631A 77631B 77641A 77642A 77653A 77745 77785 8401 8401 8401 9011906398 9011908C05 9011910909 9015950219 9015950343 9030108020 9030111025 9046022002 9046022002 9046040007 9046042005 9046046003 9046046005 9046612001 9046707214 9046712056 9046712056 93319A4010 9613251300
Part # Description Qty Price
23221 - PUMP, FUEL
23220-21220

1NZFE..NCP125

 1
23220-21221

1NZFE..NCP125

 1
23225A - SPACER, FUEL PUMP
23225-21020

1N#..NCP122,125,NSP122

 1
23280J - REGULATOR ASSY, FUEL PRESSURE
23280-21010

1N#..NCP122,125,NSP122

 1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-04013

1N#..NCP122,125,NSP122

NO.1

 1
90301-15024

1N#..NCP122,125,NSP122

NO.2

 1
23280K - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-04013

1N#..NCP122,125,NSP122

NO.1

 1
90301-15024

1N#..NCP122,125,NSP122

NO.2

 1
75259A - HOSE, FUEL
77259-52050

NCP125

 1
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-28010

NCP122,125,NSP122

 1
77024A - PLATE SUB-ASSY, FUEL SUCTION
77024-52191

NCP125

 1
77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77027-52140

NCP125

 1
77100 - TANK ASSY, FUEL
77001-52161

NCP125

 1
77113B - PLATE, FUEL TANK SIDE
77113-52010

NCP125

 4
77131C - SUB-TANK, FUEL, NO.1
77131-52082

NCP125

 1
77168A - PLATE, FUEL TANK VENT TUBE SET
77168-52020

NCP122,125,NSP122

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-52010

NCP122,125,NSP122

 1
77169B - GASKET, FUEL SUCTION TUBE SET, NO.1
77169-14020

NCP125

 1
77174 - SUPPORT, FUEL SUCTION, NO.1
77174-52070

NCP122,125,NSP122

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-20030

NCP122,125,NSP122

 1
77197A - CLAMP, EVAPORATION VENT TUBE, NO.2
77197-52010

NCP125

 1
77201E - PIPE SUB-ASSY, FUEL TANK FILLER
77201-52241

NCP125

 1
77201-52242

NCP125

 1
77202 - TUBE SUB-ASSY, BREATHER
77203-52020

NCP125

 1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-52110

NCP125

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-52150

NCP125

 1
77241V - CLIP, TUBE JOINT
77241-32060

NCP122,125,NSP122

 1
77249 - HOSE, FUEL EMISSION
77249-52040

NCP125

 1
77269A - HOSE, FUEL TANK BREATHER
77269-52070

NCP125

 1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-52100

NCP125

 1
77277-52031

NCP125

 1
77277-52170

NCP125

 1
77286F - CLAMP, FUEL TUBE, NO.2
77286-52081

NCP125

 1
77289 - HOLDER, FUEL TANK PIPE SETTING
77289-52110

NCP122,125,NSP122

 1
77289C - CLAMP, FUEL TUBE, NO.4
77289-52100

NCP125

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-52010

NCP12#,NSP12#

 1
77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1
77296-52020

NCP122,125,NSP122

 1
77298E - SUPPORT, FUEL TUBE PROTECTOR, NO.3
77297-52060

NCP125

 1
77310A - CAP ASSY, FUEL TANK
77300-52030

NCP12#,NSP12#

 1
77316 - GASKET, FUEL TANK CAP
77316-52040

NCP12#,NSP12#

 1
77391 - RING, FUEL INLET BOX
77391-12020

NCP12#,NSP12#

 2
77391 - RING, FUEL INLET BOX
77391-12020

NCP12#,NSP12#

 2
77512 - BRACKET, FUEL TANK, REAR
77512-35140

NCP122,125,NSP122

 1
77606C - PROTECTOR, FUEL TANK, NO.2
77607-52010

NCP125

 1
77631A - PROTECTOR, FUEL TANK, LOWER CENTER
77631-52040

NCP125

 1
77631B - PROTECTOR, FUEL TANK, LOWER CENTER
77632-52010

NCP125

 1
77641A - PROTECTOR, FUEL TANK, NO.1
77641-52100

NCP125

 1
77642A - PROTECTOR, FUEL TANK, NO.2
77642-52060

NCP125

 1
77653A - CUSHION, FUEL TANK, NO.3
77652-52040

NCP125

 1
77745 - FILTER, CHARCOAL CANISTER, NO.1
77745-52030

NCP125

 1
77745-12050

NCP125

 1
77785 - HARNESS, FUEL PUMP
77785-52110

NCP122,125,NSP122

 1
77785-52060

NCP122,125,NSP122

 1
Common parts
77299-52010
90119-06398
90119-08C05
90119-10909
90159-50219
90159-50343
90301-08020
90301-11025
90460-22002
90460-40007
90460-42005
90460-46003
90460-46005
90466-12001
90467-07214
90467-12056
93319-A4010
96132-51300
Linked diagrams
8401

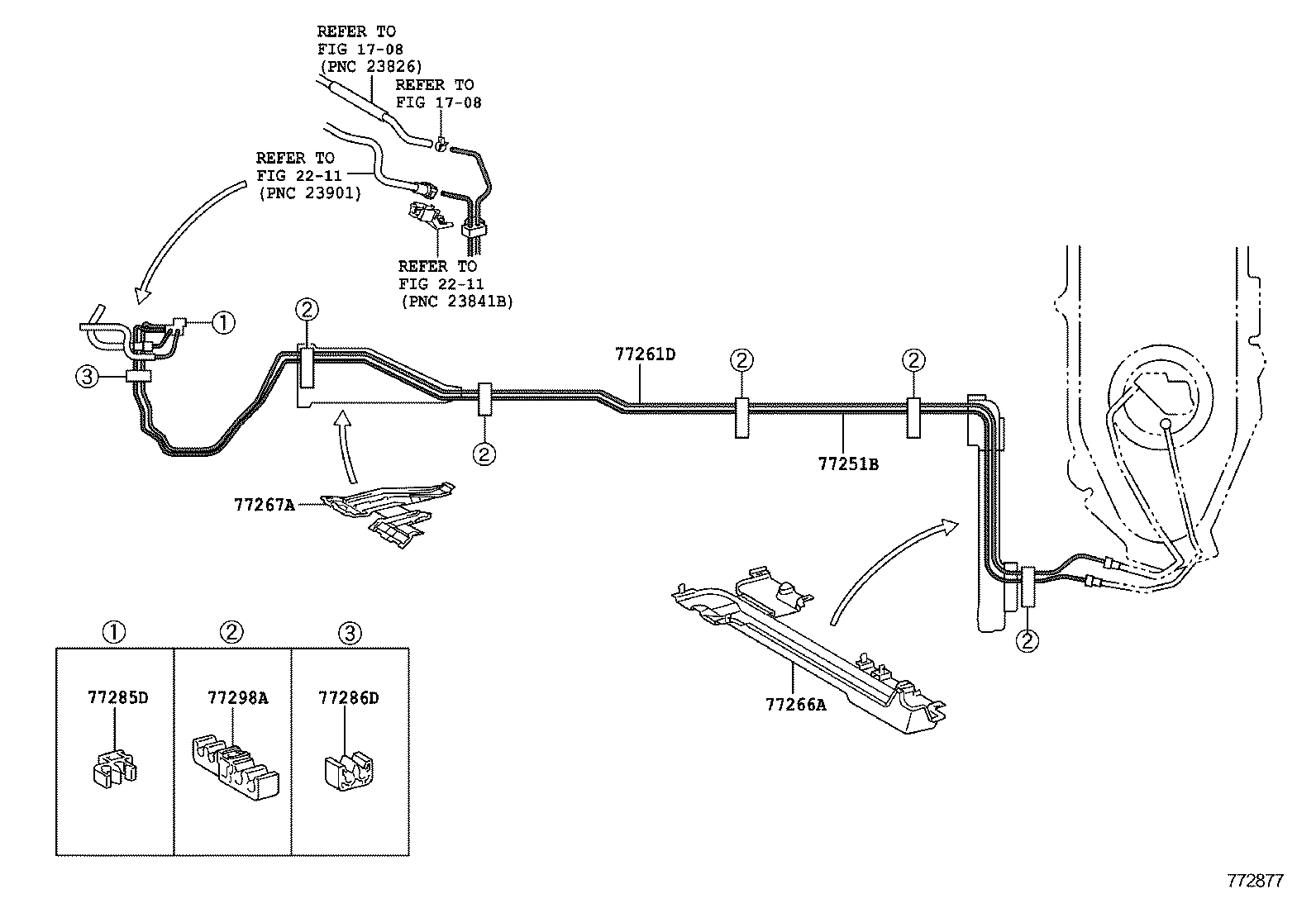

ILLUST NO. 2 OF 3(1011- )NCP125

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ

diagram 1708 1708 2211 2211 77251B 77261D 77266A 77267A 77285D 77286D 77298A
Part # Description Qty Price
77251B - TUBE, FUEL MAIN
77251-52270

NCP125

 1
77261D - TUBE, FUEL TANK TO CANISTER
77261-52270

NCP125

 1
77266A - PROTECTOR, FUEL TUBE, NO.1
77266-52071

NCP125

 1
77267A - PROTECTOR, FUEL TUBE, NO.2
77267-52050

NCP12#,NSP12#

 1
77285D - CLAMP, FUEL TUBE, NO.1
77285-52060

NCP12#,NSP12#

 1
77286D - CLAMP, FUEL TUBE, NO.2
77286-52100

NCP12#,NSP12#

 1
77298A - CLAMP, FUEL TUBE, NO.4
77298-52070

NCP125

 5
Linked diagrams
1708
2211

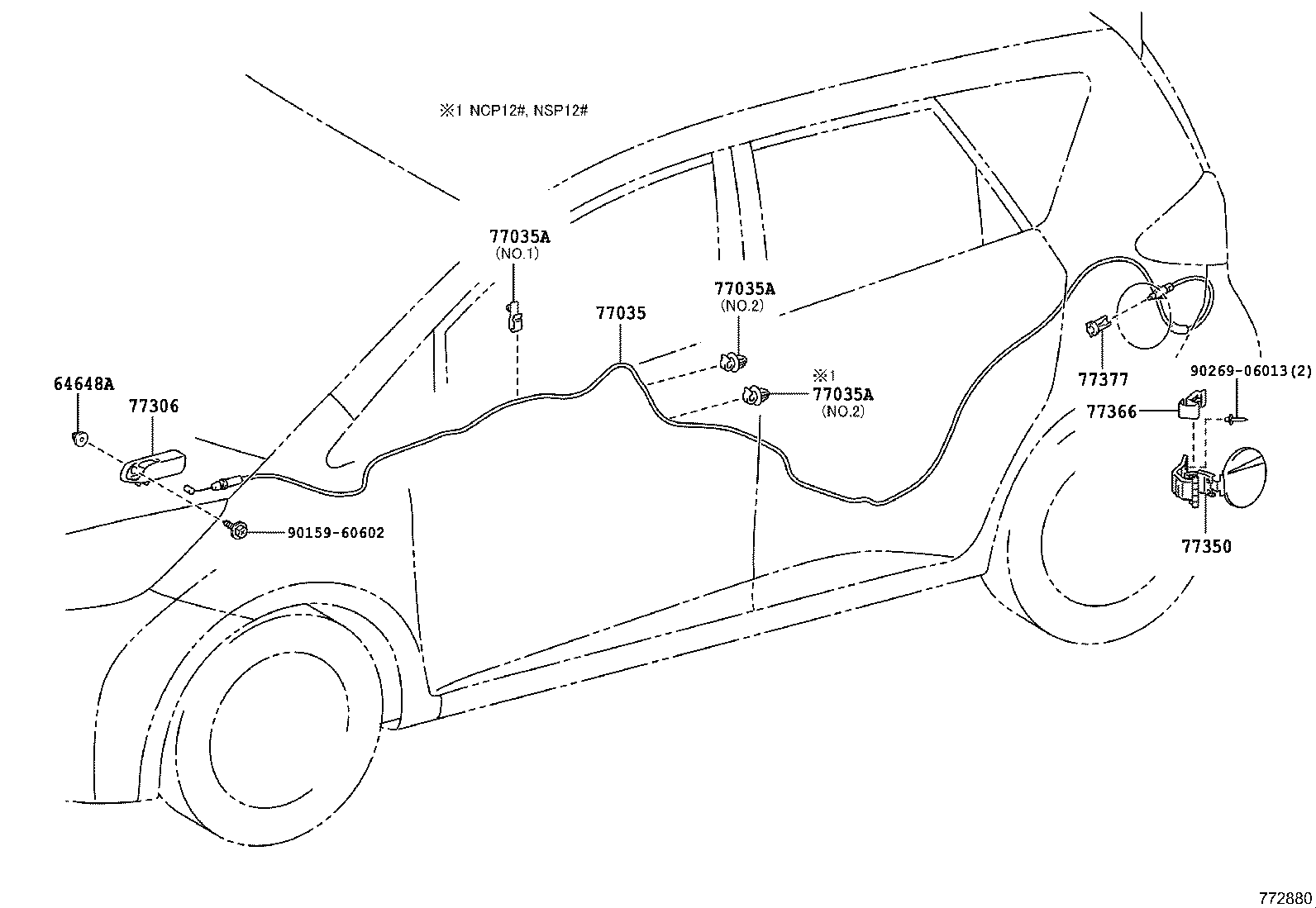

ILLUST NO. 3 OF 3(1011- )

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾘｯﾄﾞｵｰﾌﾟﾅ

diagram 64648A 77035 77035A 77035A 77035A 77306 77350 77366 77377 9015960602 9026906013
Part # Description Qty Price
64648A - GROMMET, LUGGAGE DOOR LOCK OPENER
64648-32020

NCP12#,NSP12#

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-52280

NCP12#,NSP12#

 1
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90469-04004

NCP12#,NSP12#

NO.1

 1
90469-06005

NCP125

NO.2

 1
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90469-04004

NCP12#,NSP12#

NO.1

 1
90469-06005

NCP125

NO.2

 1
77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE)
90469-04004

NCP12#,NSP12#

NO.1

 1
90469-06005

NCP125

NO.2

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-52050

NCP12#,NSP12#

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-52170

NCP12#,NSP12#

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-52011

NCP12#,NSP12#

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-75010

NCP12#,NSP12#

 1
Common parts
90159-60602
90269-06013
