NCP125-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｼｰﾄ

diagram 73210 7321475010 7321475010 73219 73220 73230 73233 73233 73240 9010511053 9010511053 9010911059 9010911059 9010911059 9010911059 9017911010 9017911010 9155380612 9155380612
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-52831C0

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
73210-52830C0

NCP120,125,NSP12#..S,X

BLACK,TRIM2#

 1
73210-52831C0

NCP120,125,NSP12#..S,X

BLACK,TRIM2#

 1
73210-52830C0

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
73219 - STOPPER, TONGUE PLATE
73219-33030

NCP12#,NSP12#

ﾍﾞｰｼﾞｭ

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-52740C1

NCP120,122..G;NCP125,NSP12#..G,X

BLACK,TRIM2#,4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-52550C0

NCP125,NSP120..X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4#

 1
73230-52550C0

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
73230-52550C0

NCP125,NSP120..X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4#

 1
73230-52550C0

NCP120,125,NSP120..LEPIC,X

BLACK,TRIM2#,8#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-52010C0

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 2
73233-52010C0

NCP120,125,NSP12#..S,X

BLACK,TRIM2#

 2
73233 - COVER, LAP BELT OUTER ANCHOR
73233-52010C0

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 2
73233-52010C0

NCP120,125,NSP12#..S,X

BLACK,TRIM2#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-D1290C0

NCP125,NSP120..X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#

 1
73230-52830C0

NCP120,125,NSP120..LEPIC,X

BLACK,TRIM2#,8#

 1
73230-D1290C0

NCP120,125..G

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4#

 1
73230-52680C0

NCP120,125,NSP120..LEPIC,X

BLACK,TRIM2#,8#

 1
73230-D1290C0

NCP120,125..G

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4#

 1
73230-52830C0

NSP122;NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
73230-52680C0

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
73230-D1290C0

NCP125,NSP120..X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#

 1
Common parts
73214-75010
90105-11053
90109-11059
90179-11010
91553-80612

(1011-1111)

Click highlighted areas on diagram

ﾘﾔ ｼｰﾄ

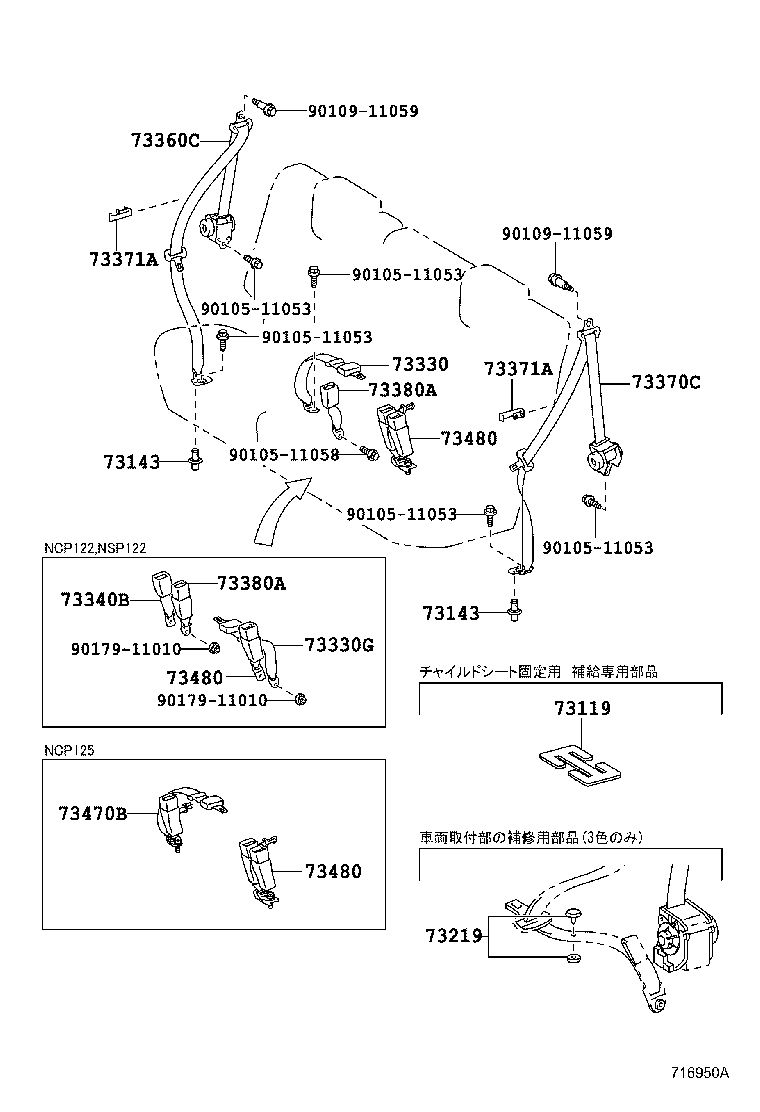

diagram 73119 73143 73143 73219 73330 73330G 73340B 73360C 73370C 73371A 73371A 73380A 73380A 73470B 73480 73480 73480 9010511053 9010511053 9010511053 9010511053 9010511053 9010511058 9010911059 9010911059 9017911010 9017911010
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

NCP12#,NSP12#

 1
73143 - SEAL, SEAT BELT HOLE
73143-52011

NCP12#,NSP12#

 2
73143 - SEAL, SEAT BELT HOLE
73143-52011

NCP12#,NSP12#

 2
73219 - STOPPER, TONGUE PLATE
73219-33030

NCP12#,NSP12#

ﾍﾞｰｼﾞｭ

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-52300C1

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
73360-52300C1

NCP125,NSP12#..X

BLACK,TRIM2#

 1
73360-52300C1

NCP125,NSP12#..X

BLACK,TRIM2#,4#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73370-52260C1

NCP125,NSP12#..X

BLACK,TRIM2#,4#

 1
73370-52260C1

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
73370-52260C1

NCP125,NSP12#..X

BLACK,TRIM2#

 1
73371A - HANGER REAR SEAT SHOULDER BELT
73371-44020C0

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 2
73371-44020C0

NCP125,NSP120..X

BLACK,TRIM2#,4#,8#

 2
73371-44020C0

NCP120,125,NSP12#..X

BLACK,TRIM2#

 2
73371A - HANGER REAR SEAT SHOULDER BELT
73371-44020C0

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 2
73371-44020C0

NCP125,NSP120..X

BLACK,TRIM2#,4#,8#

 2
73371-44020C0

NCP120,125,NSP12#..X

BLACK,TRIM2#

 2
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-52500C0

NCP125..X

BLACK,TRIM2#

 1
73470-52410C0

NCP125..G

BLACK,TRIM2#,4#

 1
73470-52410C0

NCP125..X

BLACK,TRIM2#,4#,8#

 1
73470-52500C0

NCP125..G

BLACK,TRIM2#,4#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52350C0

NCP125..G

BLACK,TRIM2#,4#

 1
73480-52350C0

NCP125..X

BLACK,TRIM2#,4#,8#

 1
73480-52490C0

NCP125..X

BLACK,TRIM2#

 1
73480-52490C0

NCP125..G

BLACK,TRIM2#,4#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52350C0

NCP125..G

BLACK,TRIM2#,4#

 1
73480-52350C0

NCP125..X

BLACK,TRIM2#,4#,8#

 1
73480-52490C0

NCP125..X

BLACK,TRIM2#

 1
73480-52490C0

NCP125..G

BLACK,TRIM2#,4#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52350C0

NCP125..G

BLACK,TRIM2#,4#

 1
73480-52350C0

NCP125..X

BLACK,TRIM2#,4#,8#

 1
73480-52490C0

NCP125..X

BLACK,TRIM2#

 1
73480-52490C0

NCP125..G

BLACK,TRIM2#,4#

 1
Common parts
90105-11053
90105-11058
90109-11059
90179-11010

(1011- )NCP120..G ; (1011- )NSP120..X ; (1011- )NCP125..G,X

Click highlighted areas on diagram

ｼﾞｮｼｭｾｷ ﾘﾌﾄｱｯﾌﾟ ｼｰﾄ

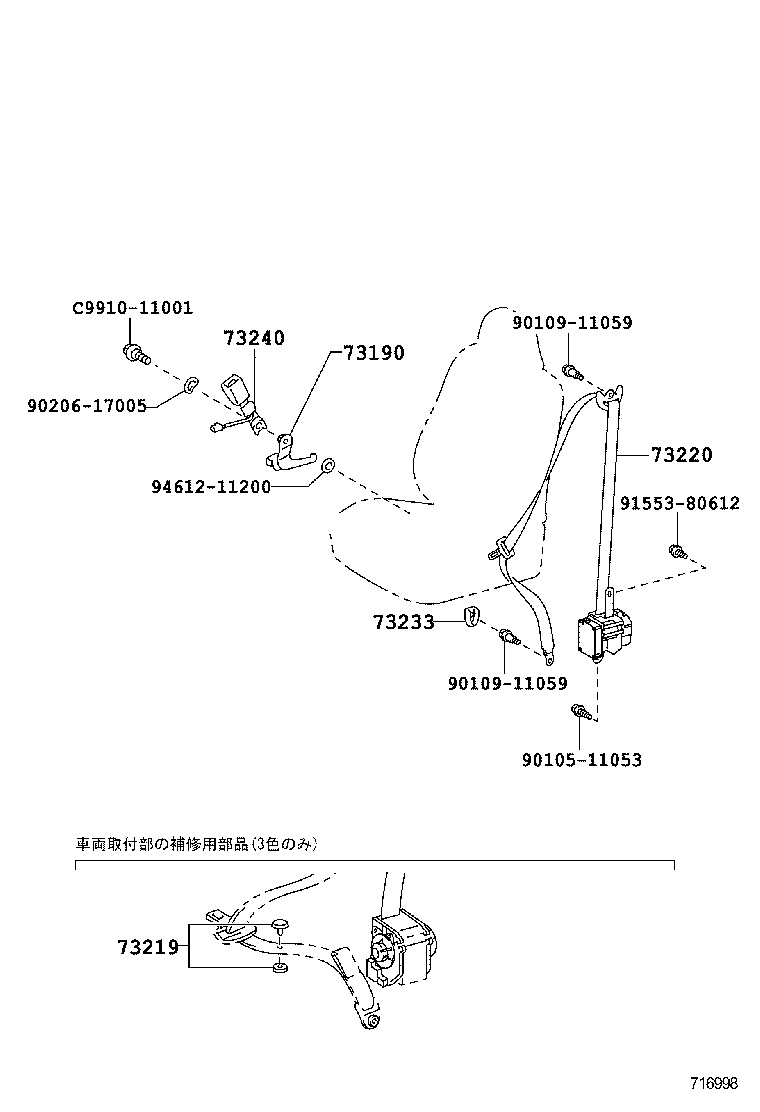

diagram 73190 73219 73220 73233 73240 9010511053 9010911059 9010911059 9020617005 9155380612 9461211200 C991011001
Part # Description Qty Price
73190 - BRACKET ASSY, SEAT BELT INNER ANCHOR, LH
73190-D1010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)

 1
73190-D1010

NCP120..G;NSP120..X;NCP125..G,X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)

 1
73219 - STOPPER, TONGUE PLATE
73219-33030

NCP12#,NSP12#

ﾍﾞｰｼﾞｭ

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-52740C1

NCP120,122..G;NCP125,NSP12#..G,X

BLACK,TRIM2#,4#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-52010C0

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 2
73233-52010C0

NCP120,125,NSP12#..S,X

BLACK,TRIM2#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-D1290C0

NCP125,NSP120..X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#

 1
73230-52830C0

NCP120,125,NSP120..LEPIC,X

BLACK,TRIM2#,8#

 1
73230-D1290C0

NCP120,125..G

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4#

 1
73230-52680C0

NCP120,125,NSP120..LEPIC,X

BLACK,TRIM2#,8#

 1
73230-D1290C0

NCP120,125..G

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4#

 1
73230-52830C0

NSP122;NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
73230-52680C0

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
73230-D1290C0

NCP125,NSP120..X

ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#

 1
Common parts
90105-11053
90109-11059
90206-17005
91553-80612
94612-11200
C9910-11001

(1111- )

Click highlighted areas on diagram

ﾘﾔ ｼｰﾄ

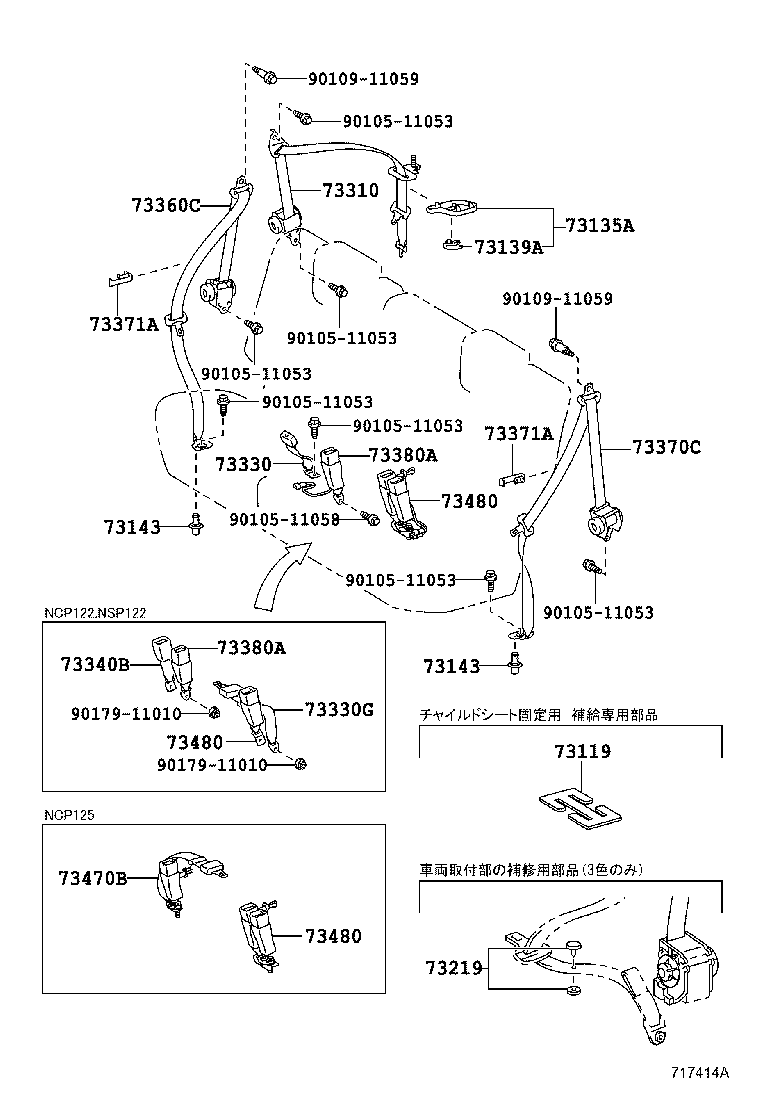

diagram 73119 73135A 73139A 73143 73143 73219 73310 73330 73330G 73340B 73360C 73370C 73371A 73371A 73380A 73380A 73470B 73480 73480 73480 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511053 9010511058 9010911059 9010911059 9017911010 9017911010
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

NCP12#,NSP12#

 1
73135A - COVER, SHOULDER BELT ANCHOR, RH
73137-52050B0

NCP120,125,NSP120..G

LT.GRAY,TRIM2#,4#

 1
73137-52050B0

NCP120,125,NSP120..S,X

LT.GRAY,TRIM2#

 1
73139A - COVER, SEAT BELT ANCHOR
73139-52030B0

NCP120,125,NSP12#..S,X

LT.GRAY,TRIM2#

 1
73139-52030B0

NCP12#,NSP120..G

LT.GRAY,TRIM2#,4#

 1
73143 - SEAL, SEAT BELT HOLE
73143-52011

NCP12#,NSP12#

 2
73143 - SEAL, SEAT BELT HOLE
73143-52011

NCP12#,NSP12#

 2
73219 - STOPPER, TONGUE PLATE
73219-33030

NCP12#,NSP12#

ﾍﾞｰｼﾞｭ

 1
73310 - BELT ASSY, REAR SEAT 3 POINT TYPE, RH
73310-52060C1

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
73310-52060C1

NCP120,125,NSP12#..S,X

BLACK,TRIM2#

 1
73310-52061C1

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
73310-52061C1

NCP120,125,NSP12#..S,X

BLACK,TRIM2#

 1
73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH
73360-52300C1

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
73360-52300C1

NCP125,NSP12#..X

BLACK,TRIM2#

 1
73360-52300C1

NCP125,NSP12#..X

BLACK,TRIM2#,4#

 1
73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH
73370-52260C1

NCP125,NSP12#..X

BLACK,TRIM2#,4#

 1
73370-52260C1

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 1
73370-52260C1

NCP125,NSP12#..X

BLACK,TRIM2#

 1
73371A - HANGER REAR SEAT SHOULDER BELT
73371-44020C0

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 2
73371-44020C0

NCP125,NSP120..X

BLACK,TRIM2#,4#,8#

 2
73371-44020C0

NCP120,125,NSP12#..X

BLACK,TRIM2#

 2
73371A - HANGER REAR SEAT SHOULDER BELT
73371-44020C0

NCP12#,NSP120..G

BLACK,TRIM2#,4#

 2
73371-44020C0

NCP125,NSP120..X

BLACK,TRIM2#,4#,8#

 2
73371-44020C0

NCP120,125,NSP12#..X

BLACK,TRIM2#

 2
73470B - BELT ASSY, REAR SEAT INNER W/CENTER, RH
73470-52500C0

NCP125..X

BLACK,TRIM2#

 1
73470-52410C0

NCP125..G

BLACK,TRIM2#,4#

 1
73470-52410C0

NCP125..X

BLACK,TRIM2#,4#,8#

 1
73470-52500C0

NCP125..G

BLACK,TRIM2#,4#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52350C0

NCP125..G

BLACK,TRIM2#,4#

 1
73480-52350C0

NCP125..X

BLACK,TRIM2#,4#,8#

 1
73480-52490C0

NCP125..X

BLACK,TRIM2#

 1
73480-52490C0

NCP125..G

BLACK,TRIM2#,4#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52350C0

NCP125..G

BLACK,TRIM2#,4#

 1
73480-52350C0

NCP125..X

BLACK,TRIM2#,4#,8#

 1
73480-52490C0

NCP125..X

BLACK,TRIM2#

 1
73480-52490C0

NCP125..G

BLACK,TRIM2#,4#

 1
73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH
73480-52350C0

NCP125..G

BLACK,TRIM2#,4#

 1
73480-52350C0

NCP125..X

BLACK,TRIM2#,4#,8#

 1
73480-52490C0

NCP125..X

BLACK,TRIM2#

 1
73480-52490C0

NCP125..G

BLACK,TRIM2#,4#

 1
Common parts
90105-11053
90105-11058
90109-11059
90179-11010
