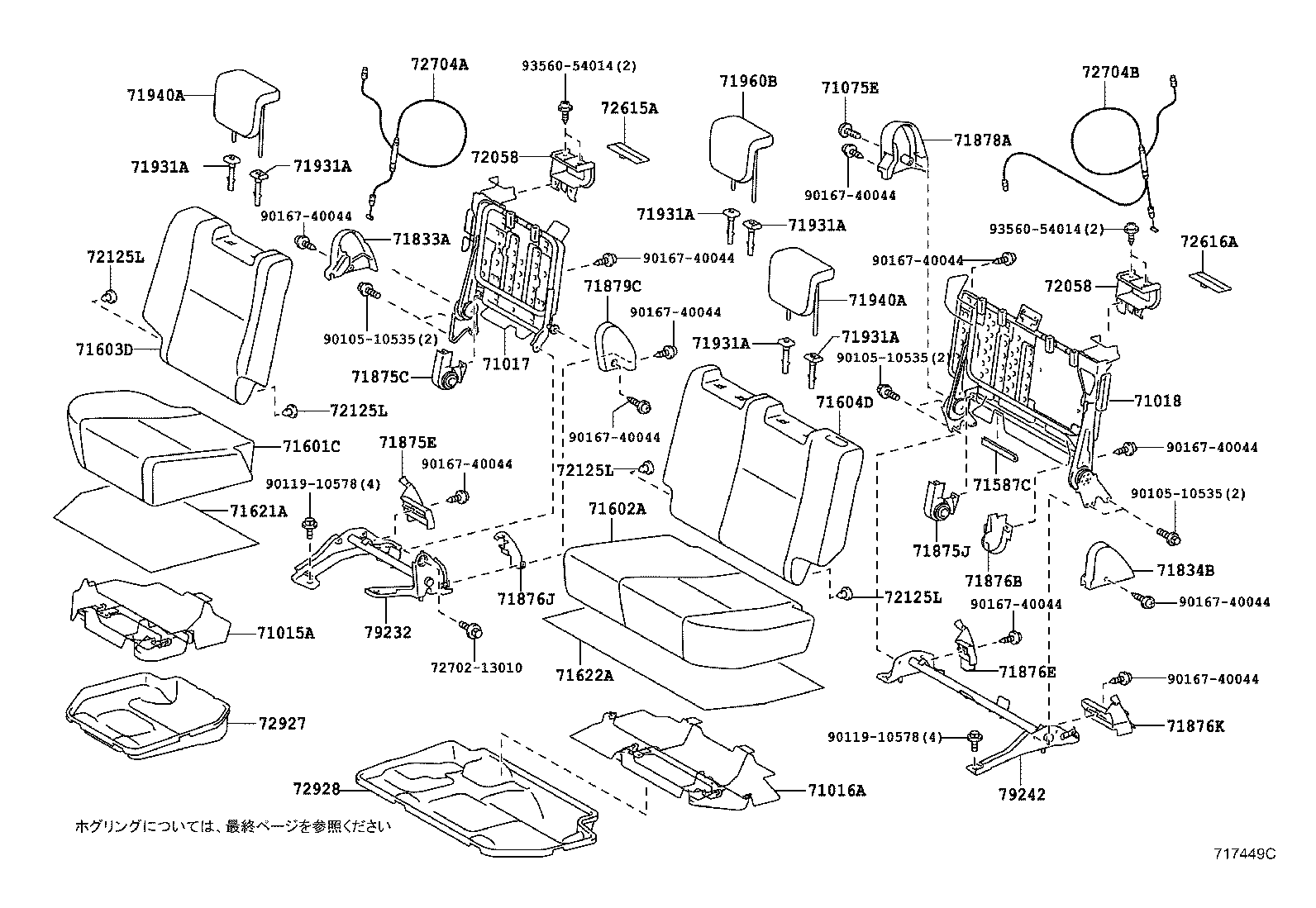

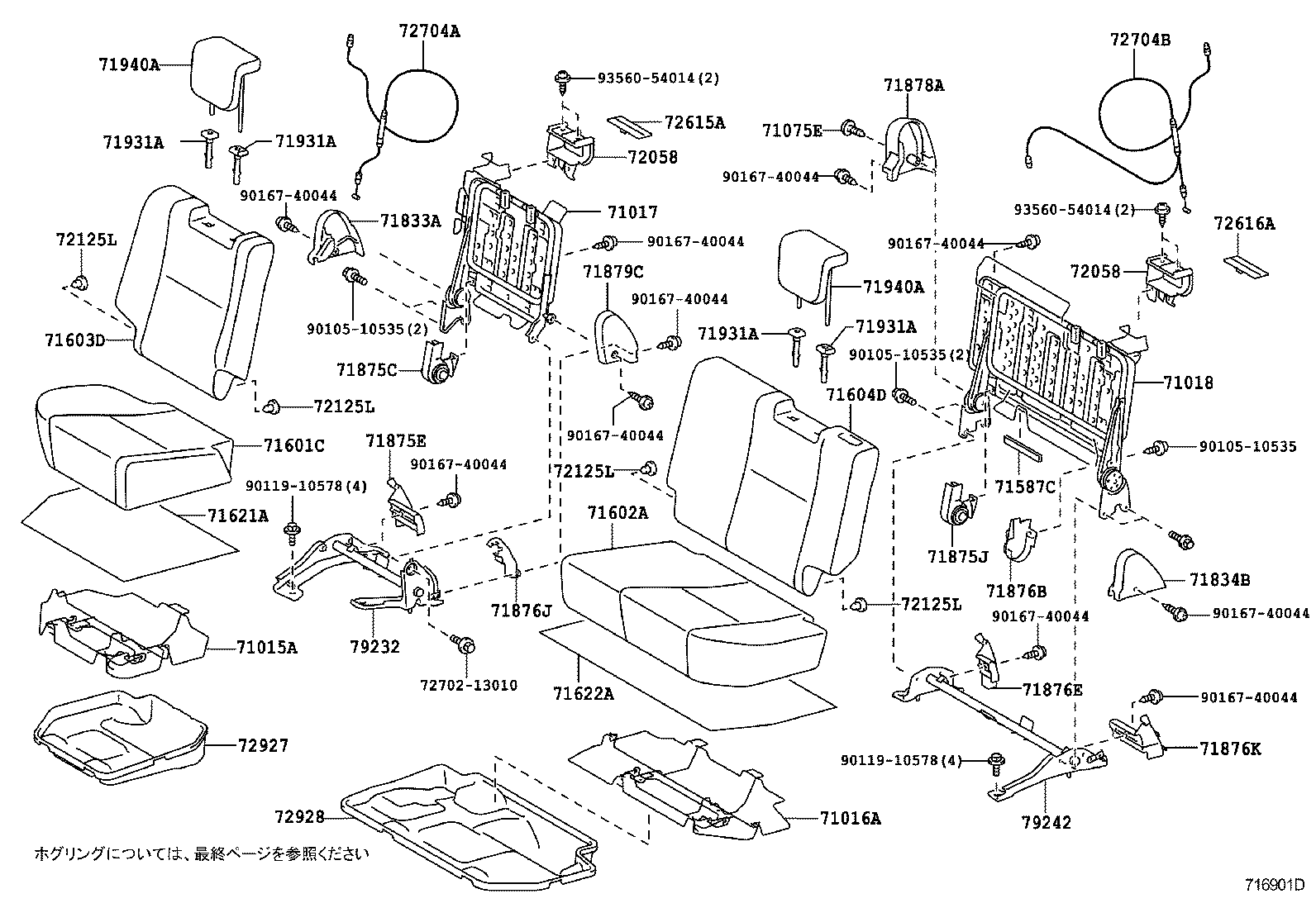

NCP125-CHXGK (2010)
Toyota Ractis
(1011-1111)NCP125
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-52450 |
NCP125 |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-52150 |
NCP125 |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52510 |
NCP125 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52451 |
NCP125 |
1 | ||
| 71018-52450 |
NCP125 |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-08104C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 90467-08104C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71587C - PROTECTOR, REAR SEAT BACK EDGE NO.2 | ||||
| 71587-52020 |
NCP120,125,NSP120 |
1 | ||
| 71601C - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER, RH | ||||
| 71601-52M90C2 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71601-52N10A2 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71601-52N10C1 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71601-52M90C4 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71601-52N10C3 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71601-52N10E0 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71602A - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER, LH | ||||
| 71602-52710A2 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71602-52710C1 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71602-52690C2 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71602-52690C4 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71602-52710E0 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71602-52710C3 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH | ||||
| 71603-52S80C1 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71603-52S60C3 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71603-52S80A2 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71603-52S61C5 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71603-52S81C3 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71603-52S81C4 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71603-52S81A3 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71603-52S81E0 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71603-52S61C6 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71603-52S81C5 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71603-52S81E1 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71603-52S61C7 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH | ||||
| 71604-52P00C1 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71604-52P01A3 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71604-52P00A2 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71604-52N70C3 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71604-52N71C5 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71604-52N71C6 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71604-52P01C3 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71604-52P01E0 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71604-52P01C4 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71604-52N71C7 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71604-52P01C5 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71604-52P01E1 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-52010 |
NCP125 |
1 | ||
| 71622A - PAD, REAR SEAT CUSHION SILENCER, B | ||||
| 71621-52020 |
NCP125 |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-52080C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 71833-52080C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71834B - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71834-52090C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 71834-52090C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52121C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71875-52121C0 |
NCP120,125,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52260C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 71875-52260C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71875J - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52141C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 71875-52141C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52121C0 |
NCP120,125,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71876-52121C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52240C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71876-52240C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 71876J - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52250C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71876-52250C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 71876K - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-52270C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71875-52270C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-52120C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71878-52120C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 71879C - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-52120C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 71879-52120C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-44020C0 |
NCP125,NSP12#..X ﾛｯｸ付,BLACK,TRIM2#,4# |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71931-47010A7 |
NCP120,125,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47010C0 |
NCP125,NSP12#..X ﾛｯｸ無,BLACK,TRIM2#,4# |
2 | ||
| 71930-44020A2 |
NCP120,125,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
3 | ||
| 71930-44020A2 |
NCP12#,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
3 | ||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
3 | ||
| 71931-47010A7 |
NCP12#,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
3 | ||
| 71930-44020C0 |
NCP125,NSP12#..X ﾛｯｸ付,BLACK,TRIM2#,4# |
3 | ||
| 71931-47010C0 |
NCP125,NSP12#..X ﾛｯｸ無,BLACK,TRIM2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-44020C0 |
NCP125,NSP12#..X ﾛｯｸ付,BLACK,TRIM2#,4# |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71931-47010A7 |
NCP120,125,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47010C0 |
NCP125,NSP12#..X ﾛｯｸ無,BLACK,TRIM2#,4# |
2 | ||
| 71930-44020A2 |
NCP120,125,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
3 | ||
| 71930-44020A2 |
NCP12#,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
3 | ||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
3 | ||
| 71931-47010A7 |
NCP12#,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
3 | ||
| 71930-44020C0 |
NCP125,NSP12#..X ﾛｯｸ付,BLACK,TRIM2#,4# |
3 | ||
| 71931-47010C0 |
NCP125,NSP12#..X ﾛｯｸ無,BLACK,TRIM2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-44020C0 |
NCP125,NSP12#..X ﾛｯｸ付,BLACK,TRIM2#,4# |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71931-47010A7 |
NCP120,125,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47010C0 |
NCP125,NSP12#..X ﾛｯｸ無,BLACK,TRIM2#,4# |
2 | ||
| 71930-44020A2 |
NCP120,125,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
3 | ||
| 71930-44020A2 |
NCP12#,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
3 | ||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
3 | ||
| 71931-47010A7 |
NCP12#,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
3 | ||
| 71930-44020C0 |
NCP125,NSP12#..X ﾛｯｸ付,BLACK,TRIM2#,4# |
3 | ||
| 71931-47010C0 |
NCP125,NSP12#..X ﾛｯｸ無,BLACK,TRIM2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-44020C0 |
NCP125,NSP12#..X ﾛｯｸ付,BLACK,TRIM2#,4# |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71931-47010A7 |
NCP120,125,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47010C0 |
NCP125,NSP12#..X ﾛｯｸ無,BLACK,TRIM2#,4# |
2 | ||
| 71930-44020A2 |
NCP120,125,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
3 | ||
| 71930-44020A2 |
NCP12#,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
3 | ||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
3 | ||
| 71931-47010A7 |
NCP12#,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
3 | ||
| 71930-44020C0 |
NCP125,NSP12#..X ﾛｯｸ付,BLACK,TRIM2#,4# |
3 | ||
| 71931-47010C0 |
NCP125,NSP12#..X ﾛｯｸ無,BLACK,TRIM2#,4# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52380C1 |
NCP125..X BLACK,TRIM2# |
2 | ||
| 71940-52A50E2 |
NCP125..G BEIGE,TRIM4# |
2 | ||
| 71940-52A50B1 |
NCP125..G DK.GRAY,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52380C1 |
NCP125..X BLACK,TRIM2# |
2 | ||
| 71940-52A50E2 |
NCP125..G BEIGE,TRIM4# |
2 | ||
| 71940-52A50B1 |
NCP125..G DK.GRAY,TRIM2# |
2 | ||
| 72058 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL | ||||
| 72057-52020C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
2 | ||
| 72057-52020C0 |
NCP125..G BLACK,TRIM2#,40,44 |
2 | ||
| 72057-52020A0 |
NCP125..G SHELL,TRIM40 |
2 | ||
| 72058 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL | ||||
| 72057-52020C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
2 | ||
| 72057-52020C0 |
NCP125..G BLACK,TRIM2#,40,44 |
2 | ||
| 72057-52020A0 |
NCP125..G SHELL,TRIM40 |
2 | ||
| 72125L - RETAINER, REAR SEAT BACK PAD | ||||
| 72125-20030 |
NCP125 |
4 | ||
| 72125L - RETAINER, REAR SEAT BACK PAD | ||||
| 72125-20030 |
NCP125 |
4 | ||
| 72125L - RETAINER, REAR SEAT BACK PAD | ||||
| 72125-20030 |
NCP125 |
4 | ||
| 72125L - RETAINER, REAR SEAT BACK PAD | ||||
| 72125-20030 |
NCP125 |
4 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52070C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 72615-52070C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 72615-52070C0 |
NCP125..G BLACK,TRIM2#,40,44 |
1 | ||
| 72615-52070A1 |
NCP125..G SHELL,TRIM40 |
1 | ||
| 72616A - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-52070A1 |
NCP125..G SHELL,TRIM40 |
1 | ||
| 72615-52070C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 72615-52070C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 72615-52070C0 |
NCP125..G BLACK,TRIM2#,40,44 |
1 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-52120 |
NCP125 |
1 | ||
| 72704B - CABLE, REAR SEAT RECLINING CONTROL, NO.2 | ||||
| 72704-52130 |
NCP125 |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-52060B0 |
NCP125..X DARK GRAY,TRIM2# |
1 | ||
| 72927-52060B0 |
NCP125..G DARK GRAY,TRIM2#,4# |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-52070B0 |
NCP125..G DARK GRAY,TRIM2#,4# |
1 | ||
| 72928-52070B0 |
NCP125..X DARK GRAY,TRIM2# |
1 | ||
| 79232 - LEG, REAR NO.2 SEAT, RH | ||||
| 71308-52050 |
NCP125 |
1 | ||
| 79242 - LEG, REAR NO.2 SEAT, LH | ||||
| 71309-52050 |
NCP125 |
1 | ||
| Common parts | ||||
| 72702-13010 | ||||
| 90105-10535 | ||||
| 90119-10578 | ||||
| 90167-40044 | ||||
| 93560-54014 | ||||
(1111- )NCP125
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-52450 |
NCP125 |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-52150 |
NCP125 |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-52510 |
NCP125 |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-52451 |
NCP125 |
1 | ||
| 71018-52450 |
NCP125 |
1 | ||
| 71075E - CLIP(FOR REAR SEAT) | ||||
| 90467-08104C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 90467-08104C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71587C - PROTECTOR, REAR SEAT BACK EDGE NO.2 | ||||
| 71587-52020 |
NCP120,125,NSP120 |
1 | ||
| 71601C - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER, RH | ||||
| 71601-52M90C2 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71601-52N10A2 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71601-52N10C1 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71601-52M90C4 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71601-52N10C3 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71601-52N10E0 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71602A - PAD SUB-ASSY, REAR SEAT CUSHION W/COVER, LH | ||||
| 71602-52710A2 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71602-52710C1 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71602-52690C2 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71602-52690C4 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71602-52710E0 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71602-52710C3 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71603D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, RH | ||||
| 71603-52S80C1 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71603-52S60C3 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71603-52S80A2 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71603-52S61C5 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71603-52S81C3 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71603-52S81C4 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71603-52S81A3 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71603-52S81E0 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71603-52S61C6 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71603-52S81C5 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71603-52S81E1 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71603-52S61C7 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71604D - PAD SUB-ASSY, REAR SEAT BACK W/COVER, LH | ||||
| 71604-52P00C1 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71604-52P01A3 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71604-52P00A2 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71604-52N70C3 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71604-52N71C5 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71604-52N71C6 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71604-52P01C3 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71604-52P01E0 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71604-52P01C4 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71604-52N71C7 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71604-52P01C5 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71604-52P01E1 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71621A - PAD, REAR SEAT CUSHION SILENCER, A | ||||
| 71621-52010 |
NCP125 |
1 | ||
| 71622A - PAD, REAR SEAT CUSHION SILENCER, B | ||||
| 71621-52020 |
NCP125 |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-52080C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 71833-52080C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71834B - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71834-52090C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 71834-52090C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52121C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71875-52121C0 |
NCP120,125,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71875E - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52260C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 71875-52260C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71875J - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-52141C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 71875-52141C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52121C0 |
NCP120,125,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71876-52121C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71876E - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52240C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71876-52240C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 71876J - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-52250C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71876-52250C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 71876K - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71875-52270C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71875-52270C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 71878A - COVER, REAR SEAT RECLINING, INNER RH | ||||
| 71878-52120C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71878-52120C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 71879C - COVER, REAR SEAT RECLINING, INNER LH | ||||
| 71879-52120C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 71879-52120C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-44020C0 |
NCP125,NSP12#..X ﾛｯｸ付,BLACK,TRIM2#,4# |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71931-47010A7 |
NCP120,125,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47010C0 |
NCP125,NSP12#..X ﾛｯｸ無,BLACK,TRIM2#,4# |
2 | ||
| 71930-44020A2 |
NCP120,125,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
3 | ||
| 71930-44020A2 |
NCP12#,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
3 | ||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
3 | ||
| 71931-47010A7 |
NCP12#,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
3 | ||
| 71930-44020C0 |
NCP125,NSP12#..X ﾛｯｸ付,BLACK,TRIM2#,4# |
3 | ||
| 71931-47010C0 |
NCP125,NSP12#..X ﾛｯｸ無,BLACK,TRIM2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-44020C0 |
NCP125,NSP12#..X ﾛｯｸ付,BLACK,TRIM2#,4# |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71931-47010A7 |
NCP120,125,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47010C0 |
NCP125,NSP12#..X ﾛｯｸ無,BLACK,TRIM2#,4# |
2 | ||
| 71930-44020A2 |
NCP120,125,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
3 | ||
| 71930-44020A2 |
NCP12#,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
3 | ||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
3 | ||
| 71931-47010A7 |
NCP12#,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
3 | ||
| 71930-44020C0 |
NCP125,NSP12#..X ﾛｯｸ付,BLACK,TRIM2#,4# |
3 | ||
| 71931-47010C0 |
NCP125,NSP12#..X ﾛｯｸ無,BLACK,TRIM2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-44020C0 |
NCP125,NSP12#..X ﾛｯｸ付,BLACK,TRIM2#,4# |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71931-47010A7 |
NCP120,125,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47010C0 |
NCP125,NSP12#..X ﾛｯｸ無,BLACK,TRIM2#,4# |
2 | ||
| 71930-44020A2 |
NCP120,125,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
3 | ||
| 71930-44020A2 |
NCP12#,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
3 | ||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
3 | ||
| 71931-47010A7 |
NCP12#,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
3 | ||
| 71930-44020C0 |
NCP125,NSP12#..X ﾛｯｸ付,BLACK,TRIM2#,4# |
3 | ||
| 71931-47010C0 |
NCP125,NSP12#..X ﾛｯｸ無,BLACK,TRIM2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-44020C0 |
NCP125,NSP12#..X ﾛｯｸ付,BLACK,TRIM2#,4# |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71931-47010A7 |
NCP120,125,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47010C0 |
NCP125,NSP12#..X ﾛｯｸ無,BLACK,TRIM2#,4# |
2 | ||
| 71930-44020A2 |
NCP120,125,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
3 | ||
| 71930-44020A2 |
NCP12#,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
3 | ||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
3 | ||
| 71931-47010A7 |
NCP12#,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
3 | ||
| 71930-44020C0 |
NCP125,NSP12#..X ﾛｯｸ付,BLACK,TRIM2#,4# |
3 | ||
| 71931-47010C0 |
NCP125,NSP12#..X ﾛｯｸ無,BLACK,TRIM2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-44020C0 |
NCP125,NSP12#..X ﾛｯｸ付,BLACK,TRIM2#,4# |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71931-47010A7 |
NCP120,125,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47010C0 |
NCP125,NSP12#..X ﾛｯｸ無,BLACK,TRIM2#,4# |
2 | ||
| 71930-44020A2 |
NCP120,125,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
3 | ||
| 71930-44020A2 |
NCP12#,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
3 | ||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
3 | ||
| 71931-47010A7 |
NCP12#,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
3 | ||
| 71930-44020C0 |
NCP125,NSP12#..X ﾛｯｸ付,BLACK,TRIM2#,4# |
3 | ||
| 71931-47010C0 |
NCP125,NSP12#..X ﾛｯｸ無,BLACK,TRIM2#,4# |
3 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-44020C0 |
NCP125,NSP12#..X ﾛｯｸ付,BLACK,TRIM2#,4# |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71931-47010A7 |
NCP120,125,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47010C0 |
NCP125,NSP12#..X ﾛｯｸ無,BLACK,TRIM2#,4# |
2 | ||
| 71930-44020A2 |
NCP120,125,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-44020C0 |
NCP120,125,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
3 | ||
| 71930-44020A2 |
NCP12#,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
3 | ||
| 71931-47010C0 |
NCP120,125,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
3 | ||
| 71931-47010A7 |
NCP12#,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
3 | ||
| 71930-44020C0 |
NCP125,NSP12#..X ﾛｯｸ付,BLACK,TRIM2#,4# |
3 | ||
| 71931-47010C0 |
NCP125,NSP12#..X ﾛｯｸ無,BLACK,TRIM2#,4# |
3 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52380C1 |
NCP125..X BLACK,TRIM2# |
2 | ||
| 71940-52A50E2 |
NCP125..G BEIGE,TRIM4# |
2 | ||
| 71940-52A50B1 |
NCP125..G DK.GRAY,TRIM2# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-52380C1 |
NCP125..X BLACK,TRIM2# |
2 | ||
| 71940-52A50E2 |
NCP125..G BEIGE,TRIM4# |
2 | ||
| 71940-52A50B1 |
NCP125..G DK.GRAY,TRIM2# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-52790E0 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71960-52780C0 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71960-52790B0 |
NCP125..G DK.GRAY,TRIM2# |
1 | ||
| 72058 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL | ||||
| 72057-52020C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
2 | ||
| 72057-52020C0 |
NCP125..G BLACK,TRIM2#,40,44 |
2 | ||
| 72057-52020A0 |
NCP125..G SHELL,TRIM40 |
2 | ||
| 72058 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL | ||||
| 72057-52020C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
2 | ||
| 72057-52020C0 |
NCP125..G BLACK,TRIM2#,40,44 |
2 | ||
| 72057-52020A0 |
NCP125..G SHELL,TRIM40 |
2 | ||
| 72125L - RETAINER, REAR SEAT BACK PAD | ||||
| 72125-20030 |
NCP125 |
4 | ||
| 72125L - RETAINER, REAR SEAT BACK PAD | ||||
| 72125-20030 |
NCP125 |
4 | ||
| 72125L - RETAINER, REAR SEAT BACK PAD | ||||
| 72125-20030 |
NCP125 |
4 | ||
| 72125L - RETAINER, REAR SEAT BACK PAD | ||||
| 72125-20030 |
NCP125 |
4 | ||
| 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH | ||||
| 72615-52070C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 72615-52070C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 72615-52070C0 |
NCP125..G BLACK,TRIM2#,40,44 |
1 | ||
| 72615-52070A1 |
NCP125..G SHELL,TRIM40 |
1 | ||
| 72616A - COVER, REAR SEAT BACK LOCK STRIKER, LH | ||||
| 72615-52070A1 |
NCP125..G SHELL,TRIM40 |
1 | ||
| 72615-52070C0 |
NCP125..X BLACK,TRIM2#,4#,8# |
1 | ||
| 72615-52070C0 |
NCP125..G BLACK,TRIM2#,4# |
1 | ||
| 72615-52070C0 |
NCP125..G BLACK,TRIM2#,40,44 |
1 | ||
| 72704A - CABLE, REAR SEAT RECLINING CONTROL | ||||
| 72704-52120 |
NCP125 |
1 | ||
| 72704B - CABLE, REAR SEAT RECLINING CONTROL, NO.2 | ||||
| 72704-52130 |
NCP125 |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-52060B0 |
NCP125..X DARK GRAY,TRIM2# |
1 | ||
| 72927-52060B0 |
NCP125..G DARK GRAY,TRIM2#,4# |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-52070B0 |
NCP125..G DARK GRAY,TRIM2#,4# |
1 | ||
| 72928-52070B0 |
NCP125..X DARK GRAY,TRIM2# |
1 | ||
| 79232 - LEG, REAR NO.2 SEAT, RH | ||||
| 71308-52050 |
NCP125 |
1 | ||
| 79242 - LEG, REAR NO.2 SEAT, LH | ||||
| 71309-52050 |
NCP125 |
1 | ||
| Common parts | ||||
| 72702-13010 | ||||
| 90105-10535 | ||||
| 90119-10578 | ||||
| 90167-40044 | ||||
| 93560-54014 | ||||
(1011- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
