NCP125-CHXGK (2010)
Toyota Ractis

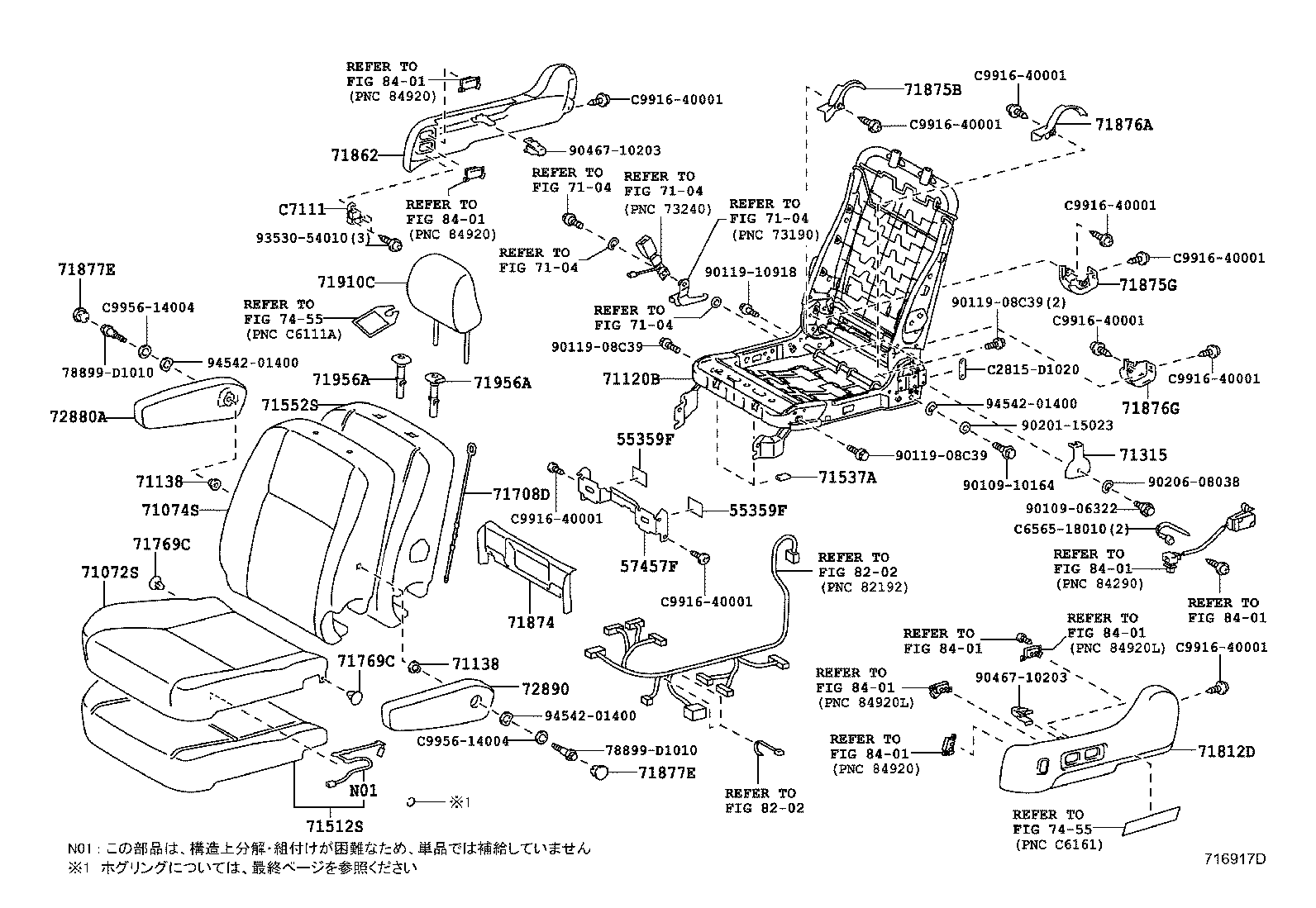

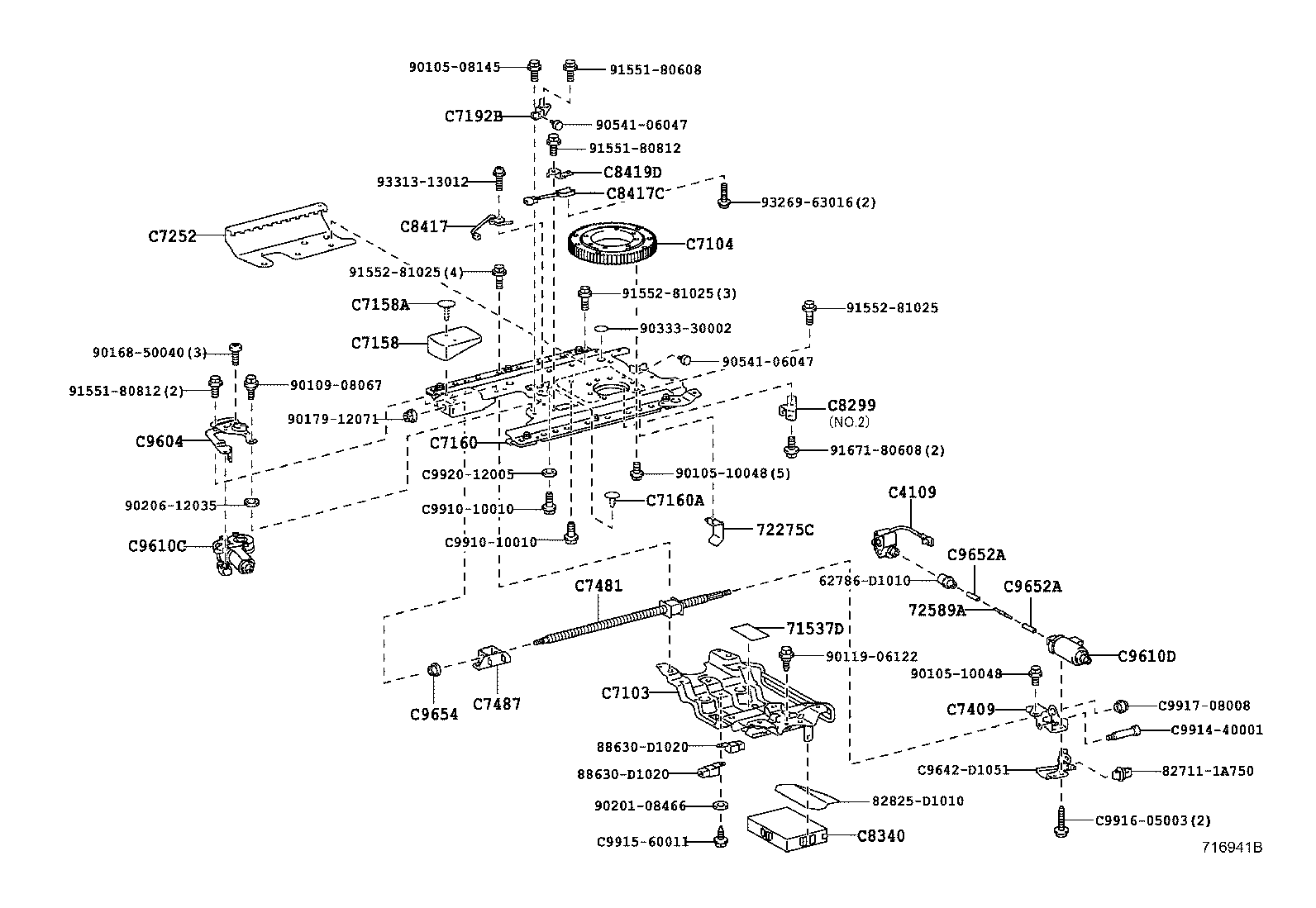

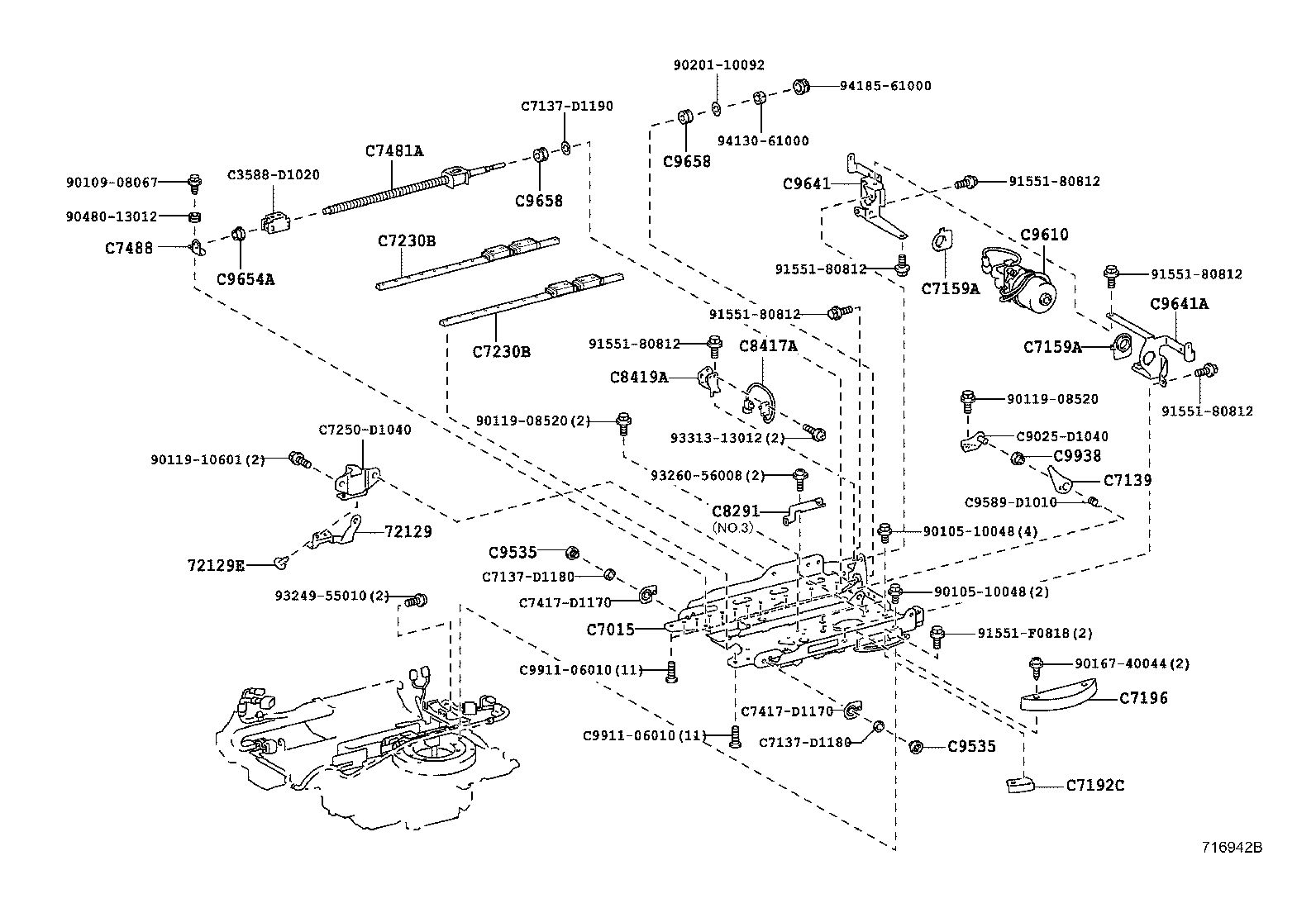

ILLUST NO. 1 OF 6(1011- )NCP120..G ; (1011- )NSP120..X ; (1011- )NCP125..G,X
ｼﾞｮｼｭｾｷ ﾘﾌﾄｱｯﾌﾟｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55359F - CUSHION, WELCAB SEAT | ||||
| 55359-12110 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
2 | ||
| 55359-12110 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
2 | ||
| 55359F - CUSHION, WELCAB SEAT | ||||
| 55359-12110 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
2 | ||
| 55359-12110 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
2 | ||
| 57457F - BRACKET, FRONT SEAT | ||||
| 57457-D1010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 57457-D1010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-52R30C0 |
NCP12#,NSP120..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71072-52R30A0 |
NCP12#,NSP120..G BEIGE,TRIM4# |
1 | ||
| 71072-52R40A0 |
NCP12#,NSP120..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71072-52R30A1 |
NCP12#,NSP120..G BEIGE,TRIM4# |
1 | ||
| 71072-52R40C0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71072-52R40A1 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71072-52R40C0 |
NCP12#,NSP120..G,LEPIC SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71072-52R40A1 |
NCP12#,NSP120..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71072-D1K70A0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BEIGE,TRIM4# |
1 | ||
| 71072-52R40A0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71072-52R30C2 |
NCP12#,NSP120..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71072-D1K60C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71072-52R40C2 |
NCP12#,NSP120..G,LEPIC SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71072-D1K60C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71072-D1K70C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71072-52R40A2 |
NCP12#,NSP120..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71072-52R40A2 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71072-D1K70A0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BEIGE,TRIM4# |
1 | ||
| 71072-52R40C2 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71072-52R30A2 |
NCP12#,NSP120..G BEIGE,TRIM4# |
1 | ||
| 71072-D1K70C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71072-52R40C3 |
NCP12#,NSP120..G,LEPIC SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71072-52R30C3 |
NCP12#,NSP120..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71072-52R40C3 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-D1J40C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71074-D1J50C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71074-D1J50C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71074-D1J50A0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BEIGE,TRIM4# |
1 | ||
| 71074-D1J50A0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BEIGE,TRIM4# |
1 | ||
| 71074-D1J40C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71120B - FRAME ASSY, FRONT SEAT W/ADJUSTER, LH | ||||
| 71120-D1190 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 71120-D1190 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 71138 - SPACER, FRONT SEAT SET | ||||
| 35469-D1030 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
2 | ||
| 35469-D1030 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
2 | ||
| 71138 - SPACER, FRONT SEAT SET | ||||
| 35469-D1030 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
2 | ||
| 35469-D1030 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
2 | ||
| 71315 - PLATE, FRONT SEAT HINGE | ||||
| 71315-D1050 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 71315-D1050 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71512-52590 |
NCP12#,NSP120..G,LEPIC,S |
1 | ||
| 78735-D1050 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 78735-D1050 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 71502-52130 |
NCP12#,NSP120..G,LEPIC,S |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-26010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
2 | ||
| 71537-26010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
2 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-D1060 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 71551-D1060 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 71708D - STRAP SUB-ASSY, SEAT COVER, LH | ||||
| 71708-28010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
2 | ||
| 71708-28010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
2 | ||
| 71769C - CLIP, FRONT SEAT CUSHION COVER | ||||
| 71769-60010B6 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),DK.GRAY |
2 | ||
| 71769-60010B6 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),DK.GRAY |
2 | ||
| 71769C - CLIP, FRONT SEAT CUSHION COVER | ||||
| 71769-60010B6 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),DK.GRAY |
2 | ||
| 71769-60010B6 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),DK.GRAY |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-D1120C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71812-52240C0 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
1 | ||
| 71812-52280C0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2#,4# |
1 | ||
| 71812-52280C0 |
NCP120,125,NSP120..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71812-52240C0 |
NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71812-D1120C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71812-D1120C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71812-52280C0 |
NCP120,125,NSP120..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2#,8# |
1 | ||
| 71812-52280C0 |
NCP12#,NSP120..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2#,4# |
1 | ||
| 71812-D1120C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71812-52240C0 |
NCP120,125,NSP120..X BLACK,TRIM2#,8# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52220C0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT),BLACK,TRIM2#,4# |
1 | ||
| 71862-52180C0 |
NCP120,125,NSP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| 71862-D1080C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71862-52180C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71862-52220C0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2#,4# |
1 | ||
| 71862-D1080C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71862-D1080C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71862-D1080C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-D1010C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71873-D1010C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71873-D1010C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71874-47040 |
NCP12#,NSP12# |
1 | ||
| 71873-D1010C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-D1020C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71875-D1020C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71875-D1020C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71875-D1020C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) | ||||
| 71875-D1010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 71875-D1010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-D1030C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71876-D1030C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71876-D1030C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71876-D1030C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) | ||||
| 71876-D1020 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 71876-D1020 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 71877E - COVER, SEAT ARMREST HOLE, LH | ||||
| 71877-D1010C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
2 | ||
| 71877-D1010C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
2 | ||
| 71877-D1010C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
2 | ||
| 71877-D1010C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
2 | ||
| 71877E - COVER, SEAT ARMREST HOLE, LH | ||||
| 71877-D1010C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
2 | ||
| 71877-D1010C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
2 | ||
| 71877-D1010C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
2 | ||
| 71877-D1010C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
2 | ||
| 71910C - HEADREST ASSY, FRONT SEAT | ||||
| 71910-D1800C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71910-D1800C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71910-D1810B3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),DK.GRAY,TRIM2# |
1 | ||
| 71910-D1810E1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BEIGE,TRIM4# |
1 | ||
| 71910-D1810E1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BEIGE,TRIM4# |
1 | ||
| 71910-D1810B3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),DK.GRAY,TRIM2# |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030A2 |
NCP120,125..G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),SHELL,TRIM40 |
1 | ||
| 71930-52030C0 |
NCP120,125..G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,44 |
1 | ||
| 71930-52030C0 |
NCP125,NSP120..X ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71930-52030C0 |
NCP120,125..G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,44 |
1 | ||
| 71930-52030C0 |
NCP125,NSP120..X ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71930-52030A2 |
NCP120,125..G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),SHELL,TRIM40 |
1 | ||
| 71931-42020C0 |
NCP125,NSP120..X ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71931-42020C0 |
NCP125,NSP120..X ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71931-42020C0 |
NCP120,125..G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,44 |
1 | ||
| 71931-42020A5 |
NCP120,125..G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),SHELL,TRIM40 |
1 | ||
| 71931-42020A5 |
NCP120,125..G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),SHELL,TRIM40 |
1 | ||
| 71931-42020C0 |
NCP120,125..G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,44 |
1 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-52030A2 |
NCP120,125..G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),SHELL,TRIM40 |
1 | ||
| 71930-52030C0 |
NCP120,125..G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,44 |
1 | ||
| 71930-52030C0 |
NCP125,NSP120..X ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71930-52030C0 |
NCP120,125..G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,44 |
1 | ||
| 71930-52030C0 |
NCP125,NSP120..X ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71930-52030A2 |
NCP120,125..G ﾛｯｸ付(ﾎﾞﾀﾝ有り),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),SHELL,TRIM40 |
1 | ||
| 71931-42020C0 |
NCP125,NSP120..X ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71931-42020C0 |
NCP125,NSP120..X ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71931-42020C0 |
NCP120,125..G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,44 |
1 | ||
| 71931-42020A5 |
NCP120,125..G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),SHELL,TRIM40 |
1 | ||
| 71931-42020A5 |
NCP120,125..G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),SHELL,TRIM40 |
1 | ||
| 71931-42020C0 |
NCP120,125..G ﾛｯｸ付(ﾎﾞﾀﾝ無し),ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,44 |
1 | ||
| 72880A - ARMREST ASSY, FRONT SEAT, INNER RH | ||||
| 72880-D1D80B3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),DARK GRAY,TRIM2#,44 |
1 | ||
| 72880-D1D80B3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),DARK GRAY,TRIM2#,44 |
1 | ||
| 72880-D1D80A1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BEIGE,TRIM40 |
1 | ||
| 72880-D1D70C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 72880-D1D70C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 72880-D1D80A1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BEIGE,TRIM40 |
1 | ||
| 72890 - ARMREST ASSY, SEAT, C LH | ||||
| 72890-D1D40C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 72890-D1D50B3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),DARK GRAY,TRIM2#,44 |
1 | ||
| 72890-D1D40C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 72890-D1D50A1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BEIGE,TRIM40 |
1 | ||
| 72890-D1D50A1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BEIGE,TRIM40 |
1 | ||
| 72890-D1D50B3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),DARK GRAY,TRIM2#,44 |
1 | ||
| C7111 - BRACKET, SEAT HOLDER, FRONT | ||||
| C7111-D1310 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7111-D1310 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| 78899-D1010 | ||||
| 90109-06322 | ||||
| 90109-10164 | ||||
| 90119-08C39 | ||||
| 90119-10918 | ||||
| 90201-15023 | ||||
| 90206-08038 | ||||
| 90467-10203 | ||||
| 93530-54010 | ||||
| 94542-01400 | ||||
| C2815-D1020 | ||||
| C6565-18010 | ||||
| C9916-40001 | ||||
| C9956-14004 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 7455 | ||||
| 8202 | ||||
| 8401 | ||||

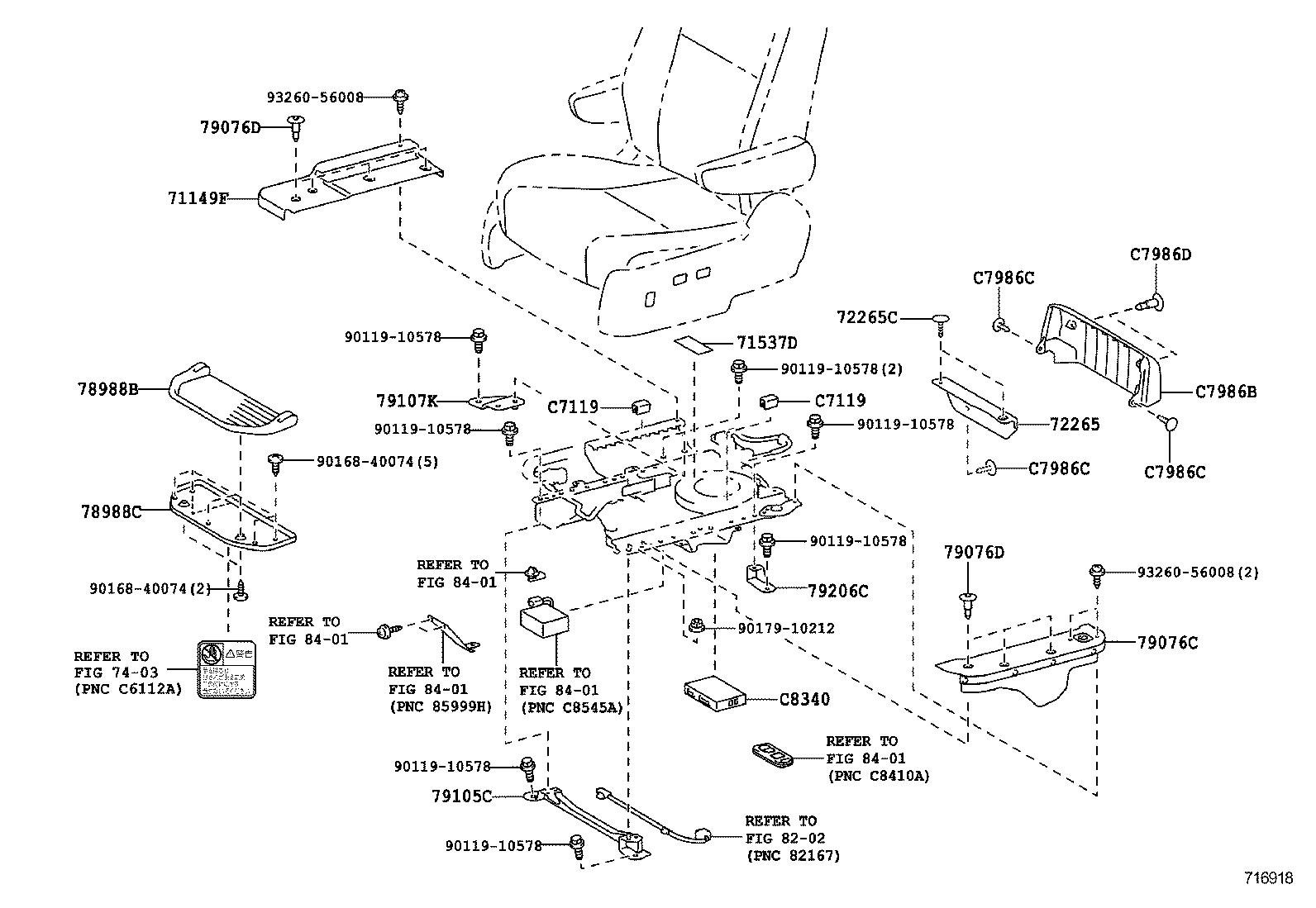

ILLUST NO. 2 OF 6(1011- )NCP120..G ; (1011- )NSP120..X ; (1011- )NCP125..G,X
ｼﾞｮｼｭｾｷ ﾘﾌﾄｱｯﾌﾟｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71149F - COVER, FRONT SEAT LEG, INNER | ||||
| 71149-52030C0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71149-52030C0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71149-52030C0 |
NSP120..X;NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71149-52030C0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71149-52030C0 |
NSP120..X;NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71149-52030C0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-28060 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
2 | ||
| 71537-28060 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
2 | ||
| 72265 - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-D1020C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 72265-D1020C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 72265-D1020C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 72265-D1020C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 72265C - CLIP, SEAT TRACK UPPER RAIL COVER | ||||
| 90467-06020C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
2 | ||
| 90467-06020C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
2 | ||
| 90467-06020C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
2 | ||
| 90467-06020C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
2 | ||
| 78988B - COVER, FRONT SEAT FOOTREST, NO.1 | ||||
| 78987-D1010C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 78987-D1010C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 78987-D1010C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 78987-D1010C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 78988C - COVER, FRONT SEAT FOOTREST, NO.2 | ||||
| 78988-D1040C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 78988-D1040C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 78988-D1040C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 78988-D1040C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 79076C - COVER SUB-ASSY, FRONT SEAT LEG | ||||
| 79076-52010C0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 79076-52010C0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 79076-52010C0 |
NSP120..X;NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 79076-52010C0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 79076-52010C0 |
NSP120..X;NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 79076-52010C0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 79076D - CLIP, SEAT LEG COVER | ||||
| 90467-07055C0 |
NSP120..X;NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
7 | ||
| 90467-07055C0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
7 | ||
| 90467-07055C0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
7 | ||
| 90467-07055C0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
7 | ||
| 90467-07055C0 |
NSP120..X;NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
7 | ||
| 90467-07055C0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
7 | ||
| 79076D - CLIP, SEAT LEG COVER | ||||
| 90467-07055C0 |
NSP120..X;NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
7 | ||
| 90467-07055C0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
7 | ||
| 90467-07055C0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
7 | ||
| 90467-07055C0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
7 | ||
| 90467-07055C0 |
NSP120..X;NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
7 | ||
| 90467-07055C0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
7 | ||
| 79105C - LEG SUB-ASSY, FRONT SEAT | ||||
| 79105-52010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 79105-52010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 79107K - LEG SUB-ASSY, FRONT SEAT, RH | ||||
| 79107-52010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 79107-52010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 79206C - LEG SUB-ASSY, FRONT SEAT, LH | ||||
| 79206-52010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 79206-52010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7119 - PROTECTOR, WELCAB SEAT HOLDER | ||||
| C7119-D1010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
2 | ||
| C7119-D1010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
2 | ||
| C7119 - PROTECTOR, WELCAB SEAT HOLDER | ||||
| C7119-D1010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
2 | ||
| C7119-D1010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
2 | ||
| C7986B - COVER, FRONT SEAT TURN GUARD | ||||
| C7986-D1260C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| C7986-D1260C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| C7986-D1260C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| C7986-D1260C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| C7986C - CLIP, FRONT SEAT TURN GUARD COVER, NO.1 | ||||
| 90467-05164C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
3 | ||
| 90467-05164C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
3 | ||
| 90467-05164C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
3 | ||
| 90467-05164C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
3 | ||
| C7986C - CLIP, FRONT SEAT TURN GUARD COVER, NO.1 | ||||
| 90467-05164C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
3 | ||
| 90467-05164C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
3 | ||
| 90467-05164C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
3 | ||
| 90467-05164C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
3 | ||
| C7986C - CLIP, FRONT SEAT TURN GUARD COVER, NO.1 | ||||
| 90467-05164C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
3 | ||
| 90467-05164C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
3 | ||
| 90467-05164C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
3 | ||
| 90467-05164C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
3 | ||
| C7986D - CLIP, FRONT SEAT TURN GUARD COVER, NO.2 | ||||
| 90467-07055C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
2 | ||
| 90467-07055C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
2 | ||
| 90467-07055C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
2 | ||
| 90467-07055C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
2 | ||
| C8340 - COMPUTER ASSY, WELCAB DEVICE CONTROL | ||||
| C8340-52010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C8340-52010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| 90119-10578 | ||||
| 90168-40074 | ||||
| 90179-10212 | ||||
| 93260-56008 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 6(1011- )NCP120..G ; (1011- )NSP120..X ; (1011- )NCP125..G,X
ｼﾞｮｼｭｾｷ ﾘﾌﾄｱｯﾌﾟｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53019A - SHUTTER SUB-ASSY, RADIATOR | ||||
| 53019-D1100 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 53019-D1100 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 68332A - ROLLER, SLIDE DOOR, LOWER | ||||
| 68332-28040 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
2 | ||
| 68332-28040 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
2 | ||
| 68332A - ROLLER, SLIDE DOOR, LOWER | ||||
| 68332-28040 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
2 | ||
| 68332-28040 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
2 | ||
| C7210 - FOOTREST ASSY, WELCAB SEAT | ||||
| C7210-D1190 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7210-D1190 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7691A - CUSHION, SEAT FLAT, NO.2 RH | ||||
| C7691-D1050 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7691-D1050 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C8284 - WIRE, POWER LIFT MAIN | ||||
| C8284-D1570 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C8284-D1570 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C8299 - BRACKET, WELCAB SEAT HARNESS CONNECTOR | ||||
| C8299-D1630 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),NO.2 |
1 | ||
| C8299-D1580 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),NO.1 |
1 | ||
| C8299-D1580 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),NO.1 |
1 | ||
| C8299-D1630 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),NO.2 |
1 | ||
| Common parts | ||||
| 90157-60014 | ||||
| 90464-00620 | ||||
| 91511-80616 | ||||
| 91551-80610 | ||||
| 91551-80812 | ||||
| 91671-F0820 | ||||
| C3165-D1020 | ||||
| C7025-D1150 | ||||

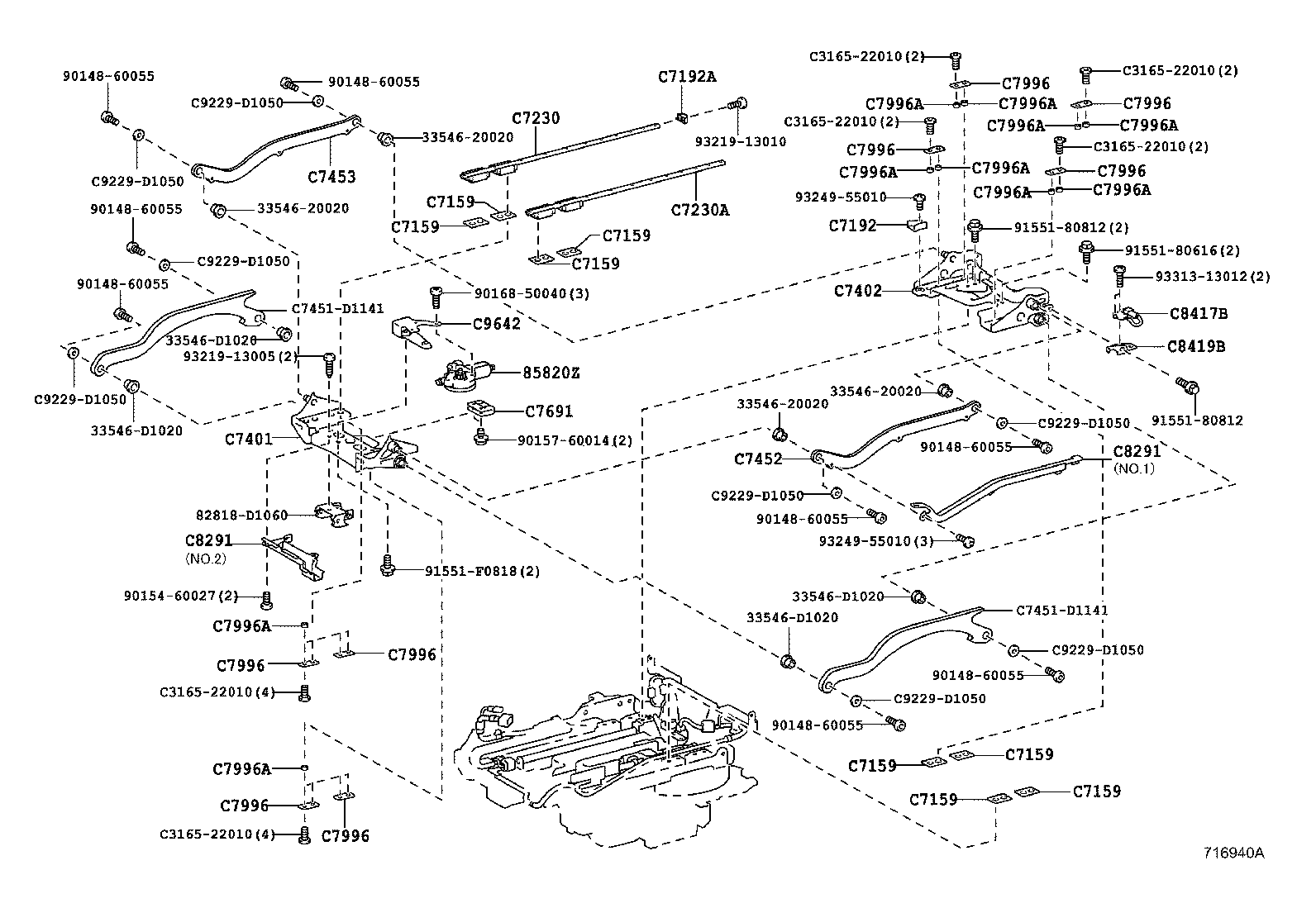

ILLUST NO. 4 OF 6(1011- )NCP120..G ; (1011- )NSP120..X ; (1011- )NCP125..G,X
ｼﾞｮｼｭｾｷ ﾘﾌﾄｱｯﾌﾟｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85820Z - MOTOR ASSY, POWER SEAT | ||||
| 85720-D1020 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 85720-D1020 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7159 - CUSHION, WELCAB SEAT LEG STOPPER | ||||
| C7159-D1120 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
8 | ||
| C7159-D1120 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
8 | ||
| C7159 - CUSHION, WELCAB SEAT LEG STOPPER | ||||
| C7159-D1120 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
8 | ||
| C7159-D1120 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
8 | ||
| C7159 - CUSHION, WELCAB SEAT LEG STOPPER | ||||
| C7159-D1120 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
8 | ||
| C7159-D1120 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
8 | ||
| C7159 - CUSHION, WELCAB SEAT LEG STOPPER | ||||
| C7159-D1120 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
8 | ||
| C7159-D1120 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
8 | ||
| C7159 - CUSHION, WELCAB SEAT LEG STOPPER | ||||
| C7159-D1120 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
8 | ||
| C7159-D1120 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
8 | ||
| C7159 - CUSHION, WELCAB SEAT LEG STOPPER | ||||
| C7159-D1120 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
8 | ||
| C7159-D1120 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
8 | ||
| C7159 - CUSHION, WELCAB SEAT LEG STOPPER | ||||
| C7159-D1120 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
8 | ||
| C7159-D1120 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
8 | ||
| C7159 - CUSHION, WELCAB SEAT LEG STOPPER | ||||
| C7159-D1120 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
8 | ||
| C7159-D1120 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
8 | ||
| C7192 - PLATE, SEAT HOLDER STOPPER, NO.1 | ||||
| C7192-D1030 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7192-D1030 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7192A - PLATE, SEAT HOLDER STOPPER, NO.2 | ||||
| C7192-D1110 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7192-D1110 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7230 - TRACK ASSY, WELCAB SEAT, NO.1 | ||||
| C7230-D1130 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7230-D1130 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7230A - TRACK ASSY, WELCAB SEAT, NO.2 | ||||
| C7230-D1140 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7230-D1140 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7401 - GUIDE SUB-ASSY, WELCAB SEAT, FRONT | ||||
| C7401-D1130 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7401-D1130 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7402 - GUIDE SUB-ASSY, WELCAB SEAT, REAR | ||||
| C7402-D1160 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7402-D1160 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7452 - ARM, WELCAB SEAT LINK, NO.2 | ||||
| C7452-D1150 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7452-D1150 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7453 - ARM, WELCAB SEAT LINK, NO.3 | ||||
| C7452-D1170 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7452-D1170 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7691 - CUSHION, SEAT FLAT, NO.1 RH | ||||
| C7691-D1010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7691-D1010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7996 - SPACER, TURN SEAT, NO.1 | ||||
| C7996-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
8 | ||
| C7996-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
8 | ||
| C7996 - SPACER, TURN SEAT, NO.1 | ||||
| C7996-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
8 | ||
| C7996-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
8 | ||
| C7996 - SPACER, TURN SEAT, NO.1 | ||||
| C7996-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
8 | ||
| C7996-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
8 | ||
| C7996 - SPACER, TURN SEAT, NO.1 | ||||
| C7996-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
8 | ||
| C7996-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
8 | ||
| C7996 - SPACER, TURN SEAT, NO.1 | ||||
| C7996-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
8 | ||
| C7996-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
8 | ||
| C7996 - SPACER, TURN SEAT, NO.1 | ||||
| C7996-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
8 | ||
| C7996-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
8 | ||
| C7996 - SPACER, TURN SEAT, NO.1 | ||||
| C7996-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
8 | ||
| C7996-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
8 | ||
| C7996 - SPACER, TURN SEAT, NO.1 | ||||
| C7996-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
8 | ||
| C7996-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
8 | ||
| C7996A - SPACER, TURN SEAT, NO.2 | ||||
| C7996-D1100 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
16 | ||
| C7996-D1100 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
16 | ||
| C7996A - SPACER, TURN SEAT, NO.2 | ||||
| C7996-D1100 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
16 | ||
| C7996-D1100 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
16 | ||
| C7996A - SPACER, TURN SEAT, NO.2 | ||||
| C7996-D1100 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
16 | ||
| C7996-D1100 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
16 | ||
| C7996A - SPACER, TURN SEAT, NO.2 | ||||
| C7996-D1100 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
16 | ||
| C7996-D1100 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
16 | ||
| C7996A - SPACER, TURN SEAT, NO.2 | ||||
| C7996-D1100 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
16 | ||
| C7996-D1100 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
16 | ||
| C7996A - SPACER, TURN SEAT, NO.2 | ||||
| C7996-D1100 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
16 | ||
| C7996-D1100 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
16 | ||
| C7996A - SPACER, TURN SEAT, NO.2 | ||||
| C7996-D1100 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
16 | ||
| C7996-D1100 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
16 | ||
| C7996A - SPACER, TURN SEAT, NO.2 | ||||
| C7996-D1100 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
16 | ||
| C7996-D1100 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
16 | ||
| C7996A - SPACER, TURN SEAT, NO.2 | ||||
| C7996-D1100 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
16 | ||
| C7996-D1100 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
16 | ||
| C7996A - SPACER, TURN SEAT, NO.2 | ||||
| C7996-D1100 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
16 | ||
| C7996-D1100 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
16 | ||
| C8291 - PROTECTOR, TECS WIRING HARNESS | ||||
| C8291-D1290 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),NO.3 |
1 | ||
| C8291-D1270 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),NO.1 |
1 | ||
| C8291-D1280 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),NO.2 |
1 | ||
| C8291-D1290 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),NO.3 |
1 | ||
| C8291-D1270 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),NO.1 |
1 | ||
| C8291-D1291 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),NO.3 |
1 | ||
| C8291-D1280 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),NO.2 |
1 | ||
| C8291-D1291 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),NO.3 |
1 | ||
| C8291 - PROTECTOR, TECS WIRING HARNESS | ||||
| C8291-D1290 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),NO.3 |
1 | ||
| C8291-D1270 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),NO.1 |
1 | ||
| C8291-D1280 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),NO.2 |
1 | ||
| C8291-D1290 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),NO.3 |
1 | ||
| C8291-D1270 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),NO.1 |
1 | ||
| C8291-D1291 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),NO.3 |
1 | ||
| C8291-D1280 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),NO.2 |
1 | ||
| C8291-D1291 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),NO.3 |
1 | ||
| C8417B - SWITCH, LIMIT, NO.3 | ||||
| C8417-D1140 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C8417-D1140 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C8419B - BRACKET, LIMIT SWITCH | ||||
| C8419-D1640 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C8419-D1640 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C9642 - BRACKET, POWER LIFT MOTOR, NO.2 | ||||
| C9642-D1040 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C9642-D1040 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| 33546-20020 | ||||
| 33546-D1020 | ||||
| 82818-D1060 | ||||
| 90148-60055 | ||||
| 90157-60014 | ||||
| 90168-50040 | ||||
| 91551-80812 | ||||
| 91551-F0818 | ||||
| 93219-13005 | ||||
| 93219-13010 | ||||
| 93249-55010 | ||||
| 93313-13012 | ||||
| C3165-22010 | ||||
| C7451-D1141 | ||||
| C9229-D1050 | ||||
ILLUST NO. 5 OF 6(1011- )NCP120..G ; (1011- )NSP120..X ; (1011- )NCP125..G,X
ｼﾞｮｼｭｾｷ ﾘﾌﾄｱｯﾌﾟｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71537-28060 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
2 | ||
| 71537-28060 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
2 | ||
| 72275C - STOPPER, FRONT SEAT TRACK SLIDE | ||||
| 72275-D1120 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 72275-D1120 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 72589A - CABLE, RECLINING REMOTE CONTROL | ||||
| 72589-D1010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 72589-D1010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C4109 - HOUSING SUB-ASSY, SLIDE DOOR LOCK, REAR | ||||
| C4109-D1020 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C4109-D1020 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7103 - PANEL SUB-ASSY, WELCAB SEAT LEG, NO.1 | ||||
| C7103-D1E50 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7103-D1E50 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7104 - PLATE SUB-ASSY, SEAT TURN | ||||
| C7104-D1260 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7104-D1260 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7158 - COVER, WELCAB SEAT LEG | ||||
| C7158-D1060 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7158-D1060 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7158A - CLIP, WELCAB SEAT LEG COVER | ||||
| 90467-05161C0 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK |
2 | ||
| 90467-05161C0 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK |
2 | ||
| C7160 - PANEL ASSY, SLIDE TABLE | ||||
| C7160-D1300 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7160-D1300 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7160A - CLIP, SLIDE TABLE PANEL | ||||
| 90467-05162C0 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK |
1 | ||
| 90467-05162C0 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK |
1 | ||
| C7192B - PLATE, SEAT HOLDER STOPPER, NO.3 | ||||
| C7192-D1270 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7192-D1270 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7252 - BRACKET, WELCAB SEAT TRACK STOPPER, NO.2 | ||||
| C7252-D1030 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7252-D1030 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7409 - BRACKET SUB-ASSY, WELCAB SEAT ROD SUPPORT, NO.1 | ||||
| C7409-D1150 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7409-D1150 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7481 - ROD, WELCAB SEAT, NO.1 | ||||
| C7408-D1251 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7408-D1251 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7487 - PLATE, WELCAB SEAT ROD SUPPORT, NO.1 | ||||
| C7488-D1060 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7488-D1060 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C8299 - BRACKET, WELCAB SEAT HARNESS CONNECTOR | ||||
| C8299-D1630 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),NO.2 |
1 | ||
| C8299-D1580 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),NO.1 |
1 | ||
| C8299-D1580 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),NO.1 |
1 | ||
| C8299-D1630 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),NO.2 |
1 | ||
| C8340 - COMPUTER ASSY, WELCAB DEVICE CONTROL | ||||
| C8340-52010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C8340-52010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C8417 - SWITCH, LIMIT, NO.1 | ||||
| C8417-D1120 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C8417-D1120 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C8417C - SWITCH, LIMIT, NO.4 | ||||
| C8417-D1150 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C8417-D1150 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C8419D - BRACKET, LIMIT SWITCH, NO.1 | ||||
| C8419-D1650 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C8419-D1650 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C9604 - BRACKET SUB-ASSY, POWER LIFT MOTOR | ||||
| C9604-D1060 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C9604-D1060 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C9610C - MOTOR ASSY, LIFT UP SEAT TURN | ||||
| 85820-D1010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 85820-D1010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C9610D - MOTOR ASSY, LIFT UP SEAT SLIDE | ||||
| 85820-50320 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 85820-50320 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C9652A - CAP, POWER LIFT CYLINDER | ||||
| C9652-D1010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C9652-D1010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C9652A - CAP, POWER LIFT CYLINDER | ||||
| C9652-D1010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C9652-D1010 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C9654 - COLLAR, POWER LIFT CYLINDER | ||||
| C9654-D1040 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C9654-D1040 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| 62786-D1010 | ||||
| 82711-1A750 | ||||
| 82825-D1010 | ||||
| 88630-D1020 | ||||
| 90105-08145 | ||||
| 90105-10048 | ||||
| 90109-08067 | ||||
| 90119-06122 | ||||
| 90168-50040 | ||||
| 90179-12071 | ||||
| 90201-08466 | ||||
| 90206-12035 | ||||
| 90333-30002 | ||||
| 90541-06047 | ||||
| 91551-80608 | ||||
| 91551-80812 | ||||
| 91552-81025 | ||||
| 91671-80608 | ||||
| 93269-63016 | ||||
| 93313-13012 | ||||
| C9642-D1051 | ||||
| C9910-10010 | ||||
| C9914-40001 | ||||
| C9915-60011 | ||||
| C9916-05003 | ||||
| C9917-08008 | ||||
| C9920-12005 | ||||
ILLUST NO. 6 OF 6(1011- )NCP120..G ; (1011- )NSP120..X ; (1011- )NCP125..G,X
ｼﾞｮｼｭｾｷ ﾘﾌﾄｱｯﾌﾟｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1 | ||||
| 72129-D1060 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 72129-D1060 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 72129E - CLIP(FOR SEAT TRACK LOWER RAIL PROTECTOR) | ||||
| 90467-05162C0 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK |
2 | ||
| 90467-05162C0 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK |
2 | ||
| C7015 - PANEL SUB-ASSY, TURN TABLE | ||||
| C7015-D1241 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7015-D1242 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7015-D1242 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7015-D1241 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7139 - BRACKET, HOOK | ||||
| C7139-D1290 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7139-D1290 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7159A - CUSHION, WELCAB SEAT LEG STOPPER, NO.1 | ||||
| C7159-D1250 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
2 | ||
| C7159-D1250 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
2 | ||
| C7159A - CUSHION, WELCAB SEAT LEG STOPPER, NO.1 | ||||
| C7159-D1250 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
2 | ||
| C7159-D1250 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
2 | ||
| C7192C - PLATE, SEAT HOLDER STOPPER, NO.4 | ||||
| C7192-D1280 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7192-D1280 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7196 - COVER, TURN TABLE, NO.1 | ||||
| C7196-D1320 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7196-D1320 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7230B - TRACK ASSY, WELCAB SEAT, NO.3 | ||||
| C7230-D1200 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
2 | ||
| C7230-D1200 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
2 | ||
| C7230B - TRACK ASSY, WELCAB SEAT, NO.3 | ||||
| C7230-D1200 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
2 | ||
| C7230-D1200 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
2 | ||
| C7481A - ROD, WELCAB SEAT, NO.2 | ||||
| C7408-D1170 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7408-D1170 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C7488 - PLATE, WELCAB SEAT ROD SUPPORT, NO.2 | ||||
| C7488-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C7488-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C8291 - PROTECTOR, TECS WIRING HARNESS | ||||
| C8291-D1290 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),NO.3 |
1 | ||
| C8291-D1270 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),NO.1 |
1 | ||
| C8291-D1280 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),NO.2 |
1 | ||
| C8291-D1290 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),NO.3 |
1 | ||
| C8291-D1270 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),NO.1 |
1 | ||
| C8291-D1291 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),NO.3 |
1 | ||
| C8291-D1280 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),NO.2 |
1 | ||
| C8291-D1291 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),NO.3 |
1 | ||
| C8417A - SWITCH, LIMIT, NO.2 | ||||
| C8417-D1130 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C8417-D1130 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C8419A - BRACKET, LIMIT SWITCH | ||||
| C8419-D1630 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C8419-D1630 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C9535 - PULLEY, POWER LIFT | ||||
| C9535-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
2 | ||
| C9535-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
2 | ||
| C9535 - PULLEY, POWER LIFT | ||||
| C9535-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
2 | ||
| C9535-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
2 | ||
| C9610 - MOTOR ASSY, POWER LIFT | ||||
| C9610-D1181 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C9610-D1181 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C9641 - BRACKET, POWER LIFT MOTOR, NO.1 | ||||
| C9641-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C9641-D1080 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C9641A - BRACKET, POWER LIFT MOTOR, NO.1 | ||||
| C9641-D1090 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C9641-D1090 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C9654A - COLLAR, POWER LIFT CYLINDER | ||||
| C9654-58040 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C9654-58040 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| C9658 - PLATE, POWER LIFT CYLINDER ROD | ||||
| C9658-22070 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
2 | ||
| C9658-22070 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
2 | ||
| C9658 - PLATE, POWER LIFT CYLINDER ROD | ||||
| C9658-22070 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
2 | ||
| C9658-22070 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
2 | ||
| C9938 - BUSH | ||||
| C9938-20019 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| C9938-20019 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| Common parts | ||||
| 90105-10048 | ||||
| 90109-08067 | ||||
| 90119-08520 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90201-10092 | ||||
| 90480-13012 | ||||
| 91551-80812 | ||||
| 91551-F0818 | ||||
| 93249-55010 | ||||
| 93260-56008 | ||||
| 93313-13012 | ||||
| 94130-61000 | ||||
| 94185-61000 | ||||
| C3588-D1020 | ||||
| C7137-D1180 | ||||
| C7137-D1190 | ||||
| C7250-D1040 | ||||
| C7417-D1170 | ||||
| C9025-D1040 | ||||
| C9589-D1010 | ||||
| C9911-06010 | ||||
(1011-1106)NCP125..G,LEPIC ; (1011- )NCP125..X
ｳﾝﾃﾝｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71162A - BRACKET, FRONT SEAT BACK, LOWER | ||||
| 71162-52030 |
NCP125 |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-52R80A1 |
NCP12#,NSP120..G BEIGE,TRIM4# |
1 | ||
| 71518-52S90A1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71518-52S90A1 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71518-52S90A1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71518-52S90C1 |
NCP12#,NSP120..G,LEPIC SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52S90A1 |
NCP12#,NSP120..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71518-52S90C1 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52S90C1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52S90C1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52S80C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52S80C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52R80C1 |
NCP12#,NSP120..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71518-52S80C3 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52S80C1 |
NCP120,125,NSP12#..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52R70C2 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
1 | ||
| 71518-52R70C4 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
1 | ||
| 71518-52S80C3 |
NCP120,125,NSP12#..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52S80C4 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52R70C5 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
1 | ||
| 71518-52S80C4 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52S80C4 |
NCP120,125,NSP12#..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52S80C3 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-52100C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71537-52100C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-52050C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71538-52050C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-52U70A4 |
NCP12#,NSP120..G BEIGE,TRIM4# |
1 | ||
| 71558-52U60C3 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
1 | ||
| 71558-52W40A3 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71558-52W40C1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W40A3 |
NCP12#,NSP120..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71558-52W40A3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71558-52W40A3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71558-52W40C1 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52U70C2 |
NCP12#,NSP120..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71558-52W30C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52U60C5 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
1 | ||
| 71558-52W40C1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W40C1 |
NCP12#,NSP120..G,LEPIC SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W30C3 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W30C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W40C3 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W40C3 |
NCP12#,NSP120..G,LEPIC SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W30C1 |
NCP120,125,NSP12#..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W40E0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71558-52W30C3 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W40E0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71558-52W40C3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W40C3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W30C3 |
NCP120,125,NSP12#..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W40E0 |
NCP12#,NSP120..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71558-52U70C4 |
NCP12#,NSP120..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71558-52W40E0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71558-52U70E0 |
NCP12#,NSP120..G BEIGE,TRIM4# |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-52011 |
NCP12#,NSP12# |
1 | ||
| 71610-52010 |
NCP12#,NSP12# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-52440 |
NCP12#,NSP120..G,LEPIC,S |
1 | ||
| 71630-52430 |
NCP120,125,NSP12#..X |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52310C0 |
NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71811-52320C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71811-52320C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71811-52320C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4# |
1 | ||
| 71811-52320C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4# |
1 | ||
| 71811-52320C0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2#,4# |
1 | ||
| 71811-52320C0 |
NCP120,125,NSP12#..S,X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71811-52310C0 |
NCP120,125,NSP12#..S,X BLACK,TRIM2# |
1 | ||
| 71811-52320C0 |
NCP12#,NSP120..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2#,4# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52050 |
NCP12#,NSP12# 内側 |
1 | ||
| 71848-52040 |
NCP12#,NSP12# 外側 |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52050 |
NCP12#,NSP12# 内側 |
1 | ||
| 71848-52040 |
NCP12#,NSP12# 外側 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52230C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71861-52230C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-52200C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71873-52200C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-52230C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71873-52230C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-D1010C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71873-D1010C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71873-D1010C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71874-47040 |
NCP12#,NSP12# |
1 | ||
| 71873-D1010C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52C60C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71910-52C60C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71910-52C70B1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C60C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71910-52C60C1 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
2 | ||
| 71910-52C70E2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71910-52C70B1 |
NCP12#,NSP120..G DK.GRAY,TRIM2# |
2 | ||
| 71910-52C70E2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BEIGE,TRIM4# |
1 | ||
| 71910-52C70B1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C70E2 |
NCP12#,NSP120..G BEIGE,TRIM4# |
2 | ||
| 71910-52C70E2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71910-52C60C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71910-52C70B1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C60C2 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71910-52C60C2 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71910-52C70B1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C60C2 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
2 | ||
| 71910-52C60C2 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71910-52C70B2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C70E2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BEIGE,TRIM4# |
1 | ||
| 71910-52C60C2 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71910-52C70B2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C70B2 |
NCP12#,NSP120..G DK.GRAY,TRIM2# |
2 | ||
| 71910-52C70B2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C70B2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C70E3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BEIGE,TRIM4# |
1 | ||
| 71910-52C70E3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71910-52C70E3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BEIGE,TRIM4# |
1 | ||
| 71910-52C70E3 |
NCP12#,NSP120..G BEIGE,TRIM4# |
2 | ||
| 71910-52C70E3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP12#,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,BLACK,TRIM2#,4#,8# |
2 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71930-47020C0 |
NCP12#,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020A0 |
NCP12#,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,BLACK,TRIM2#,4#,8# |
2 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71931-47020C0 |
NCP12#,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP12#,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,BLACK,TRIM2#,4#,8# |
2 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71930-47020C0 |
NCP12#,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020A0 |
NCP12#,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,BLACK,TRIM2#,4#,8# |
2 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71931-47020C0 |
NCP12#,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-52051C0 |
NCP120,125,NSP12#..S,X BLACK,TRIM2# |
1 | ||
| 72137-52051C0 |
NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52091 |
NCP125 |
1 | ||
| 72147-52090 |
NCP125 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 72211-52130 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 72211-52130 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| 72211-52130 |
NCP12#,NSP12# |
2 | ||
| 72211-52130 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-52040C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72494-52040C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72525-47010C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 72820A - ARMREST ASSY, SEAT, LH | ||||
| 72820-52010A1 |
NCP12#,NSP120..G BEIGE,TRIM40 |
1 | ||
| 72820-52010B1 |
NCP12#,NSP120..G DARK GRAY,TRIM2#,44 |
1 | ||
| 72878 - COVER, SEAT ARMREST, LH | ||||
| 71877-52010C0 |
NCP12#,NSP120..G BLACK,TRIM2#,40,44 |
1 | ||
| 71877-52010A0 |
NCP12#,NSP120..G SHELL,TRIM40 |
1 | ||
| Common parts | ||||
| 51186-52040 | ||||
| 71537-47040 | ||||
| 72702-52030 | ||||
| 72702-68020 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90201-06031 | ||||
| 90201-15015 | ||||
| 91553-10820 | ||||
| 94170-60600 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1011-1106)NCP125..G,LEPIC ; (1011- )NCP125..X
ｳﾝﾃﾝｾｷ,ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71162A - BRACKET, FRONT SEAT BACK, LOWER | ||||
| 71162-52030 |
NCP125 |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-52Q20A1 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71430-52Q20C1 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71430-52Q40C0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71430-52Q20A1 |
NCP125..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71430-52Q20A1 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71430-52Q20C1 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71430-52Q20C1 |
NCP125..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71430-52Q40C0 |
NCP125..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71430-52Q40C0 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71430-52Q20A1 |
NCP125..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71430-52Q20C1 |
NCP125..G,LEPIC SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71430-52Q20C3 |
NCP125..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71430-52Q40C2 |
NCP125..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71430-52Q20E0 |
NCP125..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71430-52Q20C3 |
NCP125..G,LEPIC SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71430-52Q20C3 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71430-52Q40C2 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71430-52Q20E0 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71430-52Q40C2 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71430-52Q20C3 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71430-52Q20E0 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71430-52Q20E0 |
NCP125..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71430-52Q21E0 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71430-52Q21C3 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71430-52Q21C3 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71430-52Q21E0 |
NCP125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71430-52Q21C3 |
NCP125..G,LEPIC SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71430-52Q21E0 |
NCP125..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71430-52Q41C2 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71430-52Q21C3 |
NCP125..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71430-52Q41C2 |
NCP125..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71430-52Q41C2 |
NCP125..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71430-52Q21E0 |
NCP125..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71518-52R80A1 |
NCP12#,NSP120..G BEIGE,TRIM4# |
1 | ||
| 71518-52S90A1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71518-52S90A1 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71518-52S90A1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71518-52S90C1 |
NCP12#,NSP120..G,LEPIC SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52S90A1 |
NCP12#,NSP120..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71518-52S90C1 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52S90C1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52S90C1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52S80C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52S80C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52R80C1 |
NCP12#,NSP120..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71518-52S80C3 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52S80C1 |
NCP120,125,NSP12#..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52R70C2 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
1 | ||
| 71518-52R70C4 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
1 | ||
| 71518-52S80C3 |
NCP120,125,NSP12#..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52S80C4 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52R70C5 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
1 | ||
| 71518-52S80C4 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52S80C4 |
NCP120,125,NSP12#..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71518-52S80C3 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-52100C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71537-52100C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-52050C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71538-52050C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71558-52U70A4 |
NCP12#,NSP120..G BEIGE,TRIM4# |
1 | ||
| 71558-52U60C3 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
1 | ||
| 71558-52W40A3 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71558-52W40C1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W40A3 |
NCP12#,NSP120..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71558-52W40A3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71558-52W40A3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71558-52W40C1 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52U70C2 |
NCP12#,NSP120..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71558-52W30C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52U60C5 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
1 | ||
| 71558-52W40C1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W40C1 |
NCP12#,NSP120..G,LEPIC SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W30C3 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W30C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W40C3 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W40C3 |
NCP12#,NSP120..G,LEPIC SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W30C1 |
NCP120,125,NSP12#..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W40E0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71558-52W30C3 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W40E0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71558-52W40C3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W40C3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W30C3 |
NCP120,125,NSP12#..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71558-52W40E0 |
NCP12#,NSP120..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71558-52U70C4 |
NCP12#,NSP120..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71558-52W40E0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71558-52U70E0 |
NCP12#,NSP120..G BEIGE,TRIM4# |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-52011 |
NCP12#,NSP12# |
1 | ||
| 71610-52010 |
NCP12#,NSP12# |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-52440 |
NCP12#,NSP120..G,LEPIC,S |
1 | ||
| 71630-52430 |
NCP120,125,NSP12#..X |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-52310C0 |
NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71811-52320C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71811-52320C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71811-52320C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4# |
1 | ||
| 71811-52320C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4# |
1 | ||
| 71811-52320C0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2#,4# |
1 | ||
| 71811-52320C0 |
NCP120,125,NSP12#..S,X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71811-52310C0 |
NCP120,125,NSP12#..S,X BLACK,TRIM2# |
1 | ||
| 71811-52320C0 |
NCP12#,NSP120..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2#,4# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52050 |
NCP12#,NSP12# 内側 |
1 | ||
| 71848-52040 |
NCP12#,NSP12# 外側 |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-52050 |
NCP12#,NSP12# 内側 |
1 | ||
| 71848-52040 |
NCP12#,NSP12# 外側 |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-52230C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71861-52230C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-52200C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71873-52200C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71873-52230C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71873-52230C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-D1010C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71873-D1010C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71873-D1010C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71874-47040 |
NCP12#,NSP12# |
1 | ||
| 71873-D1010C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52C60C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71910-52C60C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71910-52C70B1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C60C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71910-52C60C1 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
2 | ||
| 71910-52C70E2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71910-52C70B1 |
NCP12#,NSP120..G DK.GRAY,TRIM2# |
2 | ||
| 71910-52C70E2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BEIGE,TRIM4# |
1 | ||
| 71910-52C70B1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C70E2 |
NCP12#,NSP120..G BEIGE,TRIM4# |
2 | ||
| 71910-52C70E2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71910-52C60C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71910-52C70B1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C60C2 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71910-52C60C2 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71910-52C70B1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C60C2 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
2 | ||
| 71910-52C60C2 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71910-52C70B2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C70E2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BEIGE,TRIM4# |
1 | ||
| 71910-52C60C2 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71910-52C70B2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C70B2 |
NCP12#,NSP120..G DK.GRAY,TRIM2# |
2 | ||
| 71910-52C70B2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C70B2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C70E3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BEIGE,TRIM4# |
1 | ||
| 71910-52C70E3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71910-52C70E3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BEIGE,TRIM4# |
1 | ||
| 71910-52C70E3 |
NCP12#,NSP120..G BEIGE,TRIM4# |
2 | ||
| 71910-52C70E3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP12#,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,BLACK,TRIM2#,4#,8# |
2 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71930-47020C0 |
NCP12#,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020A0 |
NCP12#,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,BLACK,TRIM2#,4#,8# |
2 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71931-47020C0 |
NCP12#,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP12#,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,BLACK,TRIM2#,4#,8# |
2 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71930-47020C0 |
NCP12#,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020A0 |
NCP12#,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,BLACK,TRIM2#,4#,8# |
2 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71931-47020C0 |
NCP12#,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-52051C0 |
NCP120,125,NSP12#..S,X BLACK,TRIM2# |
1 | ||
| 72137-52051C0 |
NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72147 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR RH | ||||
| 72147-52091 |
NCP125 |
1 | ||
| 72147-52090 |
NCP125 |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 72211-52130 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 72211-52130 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| 72211-52130 |
NCP12#,NSP12# |
2 | ||
| 72211-52130 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-52040C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72494-52040C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72525-47010C0 |
NCP125,NSP120..X BLACK,TRIM2#,4#,8# |
1 | ||
| 72820A - ARMREST ASSY, SEAT, LH | ||||
| 72820-52010A1 |
NCP12#,NSP120..G BEIGE,TRIM40 |
1 | ||
| 72820-52010B1 |
NCP12#,NSP120..G DARK GRAY,TRIM2#,44 |
1 | ||
| 72878 - COVER, SEAT ARMREST, LH | ||||
| 71877-52010C0 |
NCP12#,NSP120..G BLACK,TRIM2#,40,44 |
1 | ||
| 71877-52010A0 |
NCP12#,NSP120..G SHELL,TRIM40 |
1 | ||
| Common parts | ||||
| 51186-52040 | ||||
| 71537-47040 | ||||
| 72702-52030 | ||||
| 72702-68020 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90168-50078 | ||||
| 90201-06031 | ||||
| 90201-15015 | ||||
| 91553-10820 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| 94542-01400 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1011-1106)NCP125..G,LEPIC ; (1011- )NCP125..X
ｼﾞｮｼｭｾｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71161A - BRACKET, FRONT SEAT BACK | ||||
| 71161-52020 |
NCP125 |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-52S00C1 |
NCP12#,NSP120..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71528-52S00A1 |
NCP12#,NSP120..G BEIGE,TRIM4# |
1 | ||
| 71528-52S20C1 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71528-52S20A1 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71528-52S20C1 |
NCP12#,NSP120..G,LEPIC SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71528-52S20A1 |
NCP12#,NSP120..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71528-52R90C1 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
1 | ||
| 71528-52R10C4 |
NCP120,125,NSP12#..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71528-52R91C3 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
1 | ||
| 71528-52S10C1 |
NCP120,125,NSP12#..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71528-52R10C3 |
NCP120,125,NSP12#..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71528-52R91C4 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-52110C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71537-52110C0 |
NCP120,125,NSP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-52060C0 |
NCP120,125,NSP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| 71538-52060C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-52L50C0 |
NCP125..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71568-52L70C0 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71568-52R80A0 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71568-52R80C0 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71568-52R70C0 |
NCP125..G,LEPIC SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71568-52R70A0 |
NCP125..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71568-52R70A0 |
NCP125..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71568-52R70C0 |
NCP125..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71568-52L50C2 |
NCP125..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71568-52L70C2 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71568-52R70E0 |
NCP125..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71568-52R70C2 |
NCP125..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71568-52R80C2 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71568-52R70C2 |
NCP125..G,LEPIC SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71568-52R70E0 |
NCP125..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71568-52R80E0 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-52010 |
NCP12#,NSP12# |
1 | ||
| 71620-52011 |
NCP12#,NSP12# |
1 | ||
| 71620-52010 |
NCP12#,NSP12# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
1 | ||
| 71620-52010 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
1 | ||
| 71620-52210 |
NCP12#,NSP12# |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-52280 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT) |
1 | ||
| 71640-52280 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
1 | ||
| 71640-52220 |
NCP12#,NSP12# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52240C0 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
1 | ||
| 71812-52280C0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2#,4# |
1 | ||
| 71812-52280C0 |
NCP120,125,NSP120..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71812-D1120C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71812-52240C0 |
NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71812-D1120C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71812-D1120C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71812-52280C0 |
NCP120,125,NSP120..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2#,8# |
1 | ||
| 71812-52280C0 |
NCP12#,NSP120..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2#,4# |
1 | ||
| 71812-D1120C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71812-52240C0 |
NCP120,125,NSP120..X BLACK,TRIM2#,8# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52040 |
NCP12#,NSP12# 外側 |
1 | ||
| 71848-52050 |
NCP12#,NSP12# 内側 |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52040 |
NCP12#,NSP12# 外側 |
1 | ||
| 71848-52050 |
NCP12#,NSP12# 内側 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52220C0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT),BLACK,TRIM2#,4# |
1 | ||
| 71862-52180C0 |
NCP120,125,NSP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| 71862-D1080C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71862-52180C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71862-52220C0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2#,4# |
1 | ||
| 71862-D1080C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71862-D1080C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71862-D1080C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52C60C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71910-52C60C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71910-52C70B1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C60C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71910-52C60C1 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
2 | ||
| 71910-52C70E2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71910-52C70B1 |
NCP12#,NSP120..G DK.GRAY,TRIM2# |
2 | ||
| 71910-52C70E2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BEIGE,TRIM4# |
1 | ||
| 71910-52C70B1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C70E2 |
NCP12#,NSP120..G BEIGE,TRIM4# |
2 | ||
| 71910-52C70E2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71910-52C60C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71910-52C70B1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C60C2 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71910-52C60C2 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71910-52C70B1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C60C2 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
2 | ||
| 71910-52C60C2 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71910-52C70B2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C70E2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BEIGE,TRIM4# |
1 | ||
| 71910-52C60C2 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71910-52C70B2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C70B2 |
NCP12#,NSP120..G DK.GRAY,TRIM2# |
2 | ||
| 71910-52C70B2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C70B2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C70E3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BEIGE,TRIM4# |
1 | ||
| 71910-52C70E3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71910-52C70E3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BEIGE,TRIM4# |
1 | ||
| 71910-52C70E3 |
NCP12#,NSP120..G BEIGE,TRIM4# |
2 | ||
| 71910-52C70E3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP12#,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,BLACK,TRIM2#,4#,8# |
2 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71930-47020C0 |
NCP12#,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020A0 |
NCP12#,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,BLACK,TRIM2#,4#,8# |
2 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71931-47020C0 |
NCP12#,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP12#,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,BLACK,TRIM2#,4#,8# |
2 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71930-47020C0 |
NCP12#,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020A0 |
NCP12#,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,BLACK,TRIM2#,4#,8# |
2 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71931-47020C0 |
NCP12#,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-52061C0 |
NCP120,125,NSP12#..S,X BLACK,TRIM2# |
1 | ||
| 72138-52061C0 |
NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52091 |
NCP125 |
1 | ||
| 72148-52090 |
NCP125 |
1 | ||
| 72148-52141 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 72148-52140 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 72148-52140 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 72148-52141 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 72211-52130 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 72211-52130 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| 72211-52130 |
NCP12#,NSP12# |
2 | ||
| 72211-52130 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47010C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72526-47010C0 |
NCP120,125,NSP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| Common parts | ||||
| 51186-52040 | ||||
| 72702-52030 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90201-06031 | ||||
| 91553-10820 | ||||
| 94170-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1011-1106)NCP125..G,LEPIC ; (1011- )NCP125..X
ｼﾞｮｼｭｾｷ,ｱﾘ(SRSｻｲﾄﾞｴｱﾊﾞｯｸﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71161A - BRACKET, FRONT SEAT BACK | ||||
| 71161-52020 |
NCP125 |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-52R20A0 |
NCP125..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71440-52R00C0 |
NCP125..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71440-52R20C0 |
NCP125..G,LEPIC SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71440-52R70A0 |
NCP125..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71440-52R70C0 |
NCP125..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71440-52R20C2 |
NCP125..G,LEPIC SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71440-52R20E0 |
NCP125..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71440-52R70E0 |
NCP125..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71440-52R00C2 |
NCP125..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71440-52R70C1 |
NCP125..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71440-52R21C2 |
NCP125..G,LEPIC SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71440-52R01C2 |
NCP125..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71440-52R21E0 |
NCP125..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71440-52R71E0 |
NCP125..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71440-52R71C1 |
NCP125..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71528-52S00C1 |
NCP12#,NSP120..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71528-52S00A1 |
NCP12#,NSP120..G BEIGE,TRIM4# |
1 | ||
| 71528-52S20C1 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71528-52S20A1 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71528-52S20C1 |
NCP12#,NSP120..G,LEPIC SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71528-52S20A1 |
NCP12#,NSP120..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71528-52R90C1 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
1 | ||
| 71528-52R10C4 |
NCP120,125,NSP12#..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71528-52R91C3 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
1 | ||
| 71528-52S10C1 |
NCP120,125,NSP12#..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71528-52R10C3 |
NCP120,125,NSP12#..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71528-52R91C4 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-52110C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71537-52110C0 |
NCP120,125,NSP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-52060C0 |
NCP120,125,NSP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| 71538-52060C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71568-52L50C0 |
NCP125..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71568-52L70C0 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71568-52R80A0 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71568-52R80C0 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71568-52R70C0 |
NCP125..G,LEPIC SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71568-52R70A0 |
NCP125..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71568-52R70A0 |
NCP125..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71568-52R70C0 |
NCP125..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71568-52L50C2 |
NCP125..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71568-52L70C2 |
NCP125..X BLACK,TRIM2# |
1 | ||
| 71568-52R70E0 |
NCP125..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71568-52R70C2 |
NCP125..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71568-52R80C2 |
NCP125..G,LEPIC BLACK,TRIM2# |
1 | ||
| 71568-52R70C2 |
NCP125..G,LEPIC SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71568-52R70E0 |
NCP125..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71568-52R80E0 |
NCP125..G BEIGE,TRIM4# |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-52010 |
NCP12#,NSP12# |
1 | ||
| 71620-52011 |
NCP12#,NSP12# |
1 | ||
| 71620-52010 |
NCP12#,NSP12# SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
1 | ||
| 71620-52010 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
1 | ||
| 71620-52210 |
NCP12#,NSP12# |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-52280 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT) |
1 | ||
| 71640-52280 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ) |
1 | ||
| 71640-52220 |
NCP12#,NSP12# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-52240C0 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
1 | ||
| 71812-52280C0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2#,4# |
1 | ||
| 71812-52280C0 |
NCP120,125,NSP120..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71812-D1120C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71812-52240C0 |
NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71812-D1120C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71812-D1120C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71812-52280C0 |
NCP120,125,NSP120..X SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2#,8# |
1 | ||
| 71812-52280C0 |
NCP12#,NSP120..G SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2#,4# |
1 | ||
| 71812-D1120C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71812-52240C0 |
NCP120,125,NSP120..X BLACK,TRIM2#,8# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52040 |
NCP12#,NSP12# 外側 |
1 | ||
| 71848-52050 |
NCP12#,NSP12# 内側 |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-52040 |
NCP12#,NSP12# 外側 |
1 | ||
| 71848-52050 |
NCP12#,NSP12# 内側 |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-52220C0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT),BLACK,TRIM2#,4# |
1 | ||
| 71862-52180C0 |
NCP120,125,NSP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| 71862-D1080C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71862-52180C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 71862-52220C0 |
NCP125,NSP120..G ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ&ｶｰﾃﾝ),BLACK,TRIM2#,4# |
1 | ||
| 71862-D1080C0 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4# |
1 | ||
| 71862-D1080C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71862-D1080C0 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-52C60C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71910-52C60C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71910-52C70B1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C60C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71910-52C60C1 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
2 | ||
| 71910-52C70E2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71910-52C70B1 |
NCP12#,NSP120..G DK.GRAY,TRIM2# |
2 | ||
| 71910-52C70E2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BEIGE,TRIM4# |
1 | ||
| 71910-52C70B1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C70E2 |
NCP12#,NSP120..G BEIGE,TRIM4# |
2 | ||
| 71910-52C70E2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71910-52C60C1 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71910-52C70B1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C60C2 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71910-52C60C2 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71910-52C70B1 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C60C2 |
NCP120,125,NSP12#..X BLACK,TRIM2# |
2 | ||
| 71910-52C60C2 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2# |
1 | ||
| 71910-52C70B2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C70E2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BEIGE,TRIM4# |
1 | ||
| 71910-52C60C2 |
NCP125,NSP120..X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2# |
1 | ||
| 71910-52C70B2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C70B2 |
NCP12#,NSP120..G DK.GRAY,TRIM2# |
2 | ||
| 71910-52C70B2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C70B2 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),DK.GRAY,TRIM2# |
1 | ||
| 71910-52C70E3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BEIGE,TRIM4# |
1 | ||
| 71910-52C70E3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71910-52C70E3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BEIGE,TRIM4# |
1 | ||
| 71910-52C70E3 |
NCP12#,NSP120..G BEIGE,TRIM4# |
2 | ||
| 71910-52C70E3 |
NCP120,125..G ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BEIGE,TRIM4# |
1 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP12#,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,BLACK,TRIM2#,4#,8# |
2 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71930-47020C0 |
NCP12#,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020A0 |
NCP12#,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,BLACK,TRIM2#,4#,8# |
2 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71931-47020C0 |
NCP12#,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP12#,NSP120..G ﾛｯｸ付,SHELL,TRIM40 |
2 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020A0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,BLACK,TRIM2#,4#,8# |
2 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71930-47020C0 |
NCP12#,NSP120..G ﾛｯｸ付,BLACK,TRIM2#,40,44 |
2 | ||
| 71930-47020C0 |
NCP125,NSP120..X ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71930-47020C0 |
NCP120,125..G ﾛｯｸ付,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020A0 |
NCP12#,NSP120..G ﾛｯｸ無,SHELL,TRIM40 |
2 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),SHELL,TRIM40,運転席側 |
1 | ||
| 71931-47020A0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),SHELL,TRIM40,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,40,44,運転席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ),BLACK,TRIM2#,4#,8#,運]席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有閨i運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ),BLACK,TRIM2#,4#,8#,運転席側 |
1 | ||
| 71931-47020C0 |
NCP125,NSP120..X ﾛｯｸ無,BLACK,TRIM2#,4#,8# |
2 | ||
| 71931-47020C0 |
NCP120,125..G ﾛｯｸ無,ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ),BLACK,TRIM2#,40,44,運]席側 |
1 | ||
| 71931-47020C0 |
NCP12#,NSP120..G ﾛｯｸ無,BLACK,TRIM2#,40,44 |
2 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-52061C0 |
NCP120,125,NSP12#..S,X BLACK,TRIM2# |
1 | ||
| 72138-52061C0 |
NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72148 - BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH | ||||
| 72148-52091 |
NCP125 |
1 | ||
| 72148-52090 |
NCP125 |
1 | ||
| 72148-52141 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 72148-52140 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 72148-52140 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 72148-52141 |
NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-52130 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ) |
1 | ||
| 72211-52130 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ) |
1 | ||
| 72211-52130 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Bﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| 72211-52130 |
NCP12#,NSP12# |
2 | ||
| 72211-52130 |
NCP120..G;NSP120..X;NCP125..G,X ｳｪﾙｷｬﾌﾞ(助手席ﾘﾌﾄｱｯﾌﾟｼｰﾄ=Aﾀｲﾌﾟ)&SRSｴｱﾊﾞｯｸﾞ−有り(運転席&助手席&ｻｲﾄﾞ=運転席のみ&ｶｰﾃﾝ) |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47010C0 |
NSP122;NCP12#,NSP120..G BLACK,TRIM2#,4# |
1 | ||
| 72526-47010C0 |
NCP120,125,NSP120..LEPIC,X BLACK,TRIM2#,8# |
1 | ||
| Common parts | ||||
| 51186-52040 | ||||
| 72702-52030 | ||||
| 90119-10601 | ||||
| 90167-40044 | ||||
| 90201-06031 | ||||
| 91553-10820 | ||||
| 94170-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
(1011- )
ﾎｸﾞﾘﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
