NCP125-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )NCP122 ; (1011- )LEPIC,X

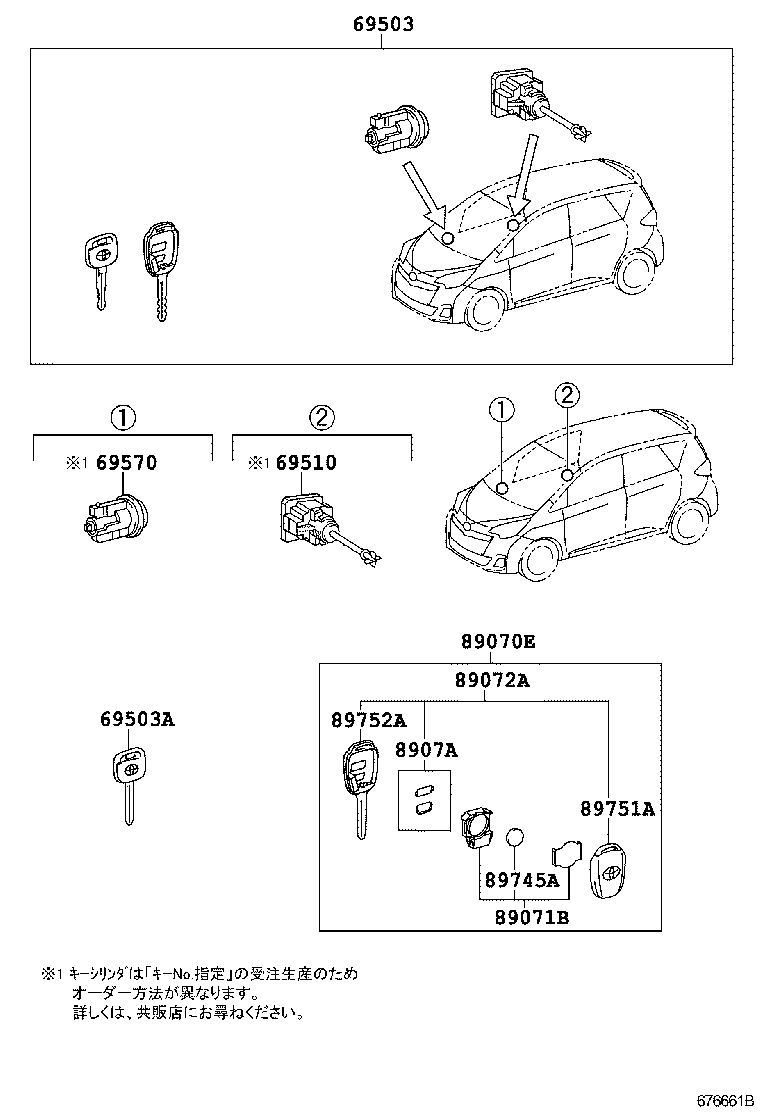

Click highlighted areas on diagram

ﾅｼ(ｽﾏｰﾄｴﾝﾄﾘ)

diagram 69503 69503A 69510 69570 89070E 89071B 89072A 8907A 89745A 89751A 89752A
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-52E90

NCP122;NCP120,125,NSP12#..LEPIC,X

 1
69005-52J20

NCP120,125,NSP120..G,S

 1
69503A - KEY, BLANK
90999-00199

NCP122;NCP120,125,NSP12#..LEPIC,X

ﾏｽﾀｰｷｰ,*68付き

 1
69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH
69510-22300

NCP122;NCP120,125,NSP12#..LEPIC,X

 1
69570 - CYLINDER ASSY, IGNITION SWITCH LOCK
69570-52080

NCP122;NCP120,125,NSP12#..LEPIC,X

 1
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-52C50

NCP122;NCP120,125,NSP12#..LEPIC,X

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-52240

NCP122;NCP120,125,NSP12#..LEPIC,X

 1
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-52540

NCP122;NCP120,125,NSP12#..LEPIC,X

 1
8907A - SWITCH SET, TRANSMITTER
8907A-52010

NCP122;NCP120,125,NSP12#..LEPIC,X

 1
89745A - BATTERY, TRANSMITTER
89745-52020

NCP120,125,NSP120..G,S

CR1632

 1
89745-71010

NCP122;NCP120,125,NSP12#..LEPIC,X

CR2016

 1
89751A - COVER, TRANSMITTER HOUSING
89751-52130

NCP122;NCP120,125,NSP12#..LEPIC,X

 1
89752A - CASE, TRANSMITTER HOUSING
89752-52070

NCP122;NCP120,125,NSP12#..LEPIC,X

 1

(1011- )NCP120,125,NSP120..G,LEPIC,S

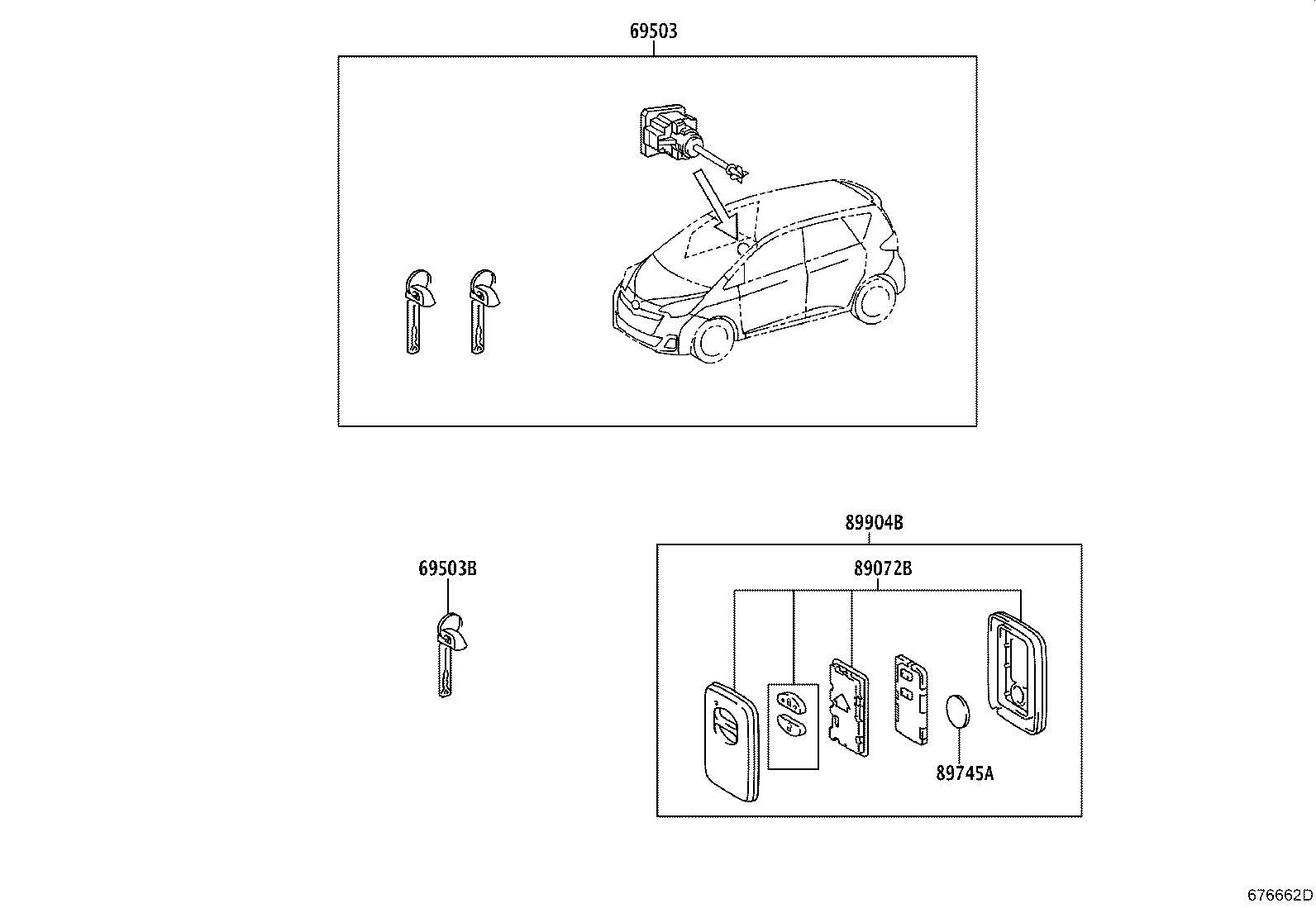

Click highlighted areas on diagram

ｱﾘ(ｽﾏｰﾄｴﾝﾄﾘ)

diagram 69503 69503B 89072B 89745A 89904B
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-52E90

NCP122;NCP120,125,NSP12#..LEPIC,X

 1
69005-52J20

NCP120,125,NSP120..G,S

 1
69503B - KEY, CUT
69515-52110

NCP120,125,NSP120..G,S

ﾏｽﾀｰｷｰ,W(*68)

 2
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-47150

NCP120,125,NSP120..G,S

 2
89745A - BATTERY, TRANSMITTER
89745-52020

NCP120,125,NSP120..G,S

CR1632

 1
89745-71010

NCP122;NCP120,125,NSP12#..LEPIC,X

CR2016

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-47170

NCP120,125,NSP120..G,S

 2
