NCP125-CHXGK (2010)

Toyota Ractis

Production Nov 2010 - May 2014
Engine 1NZFE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1011- )

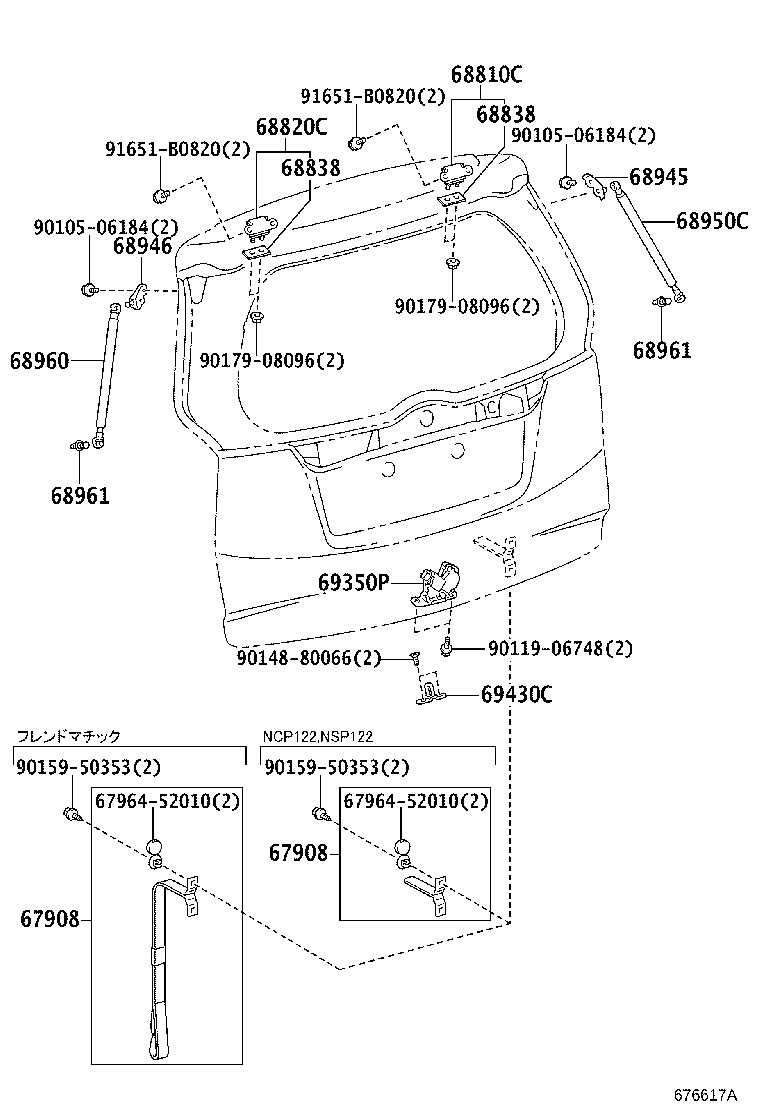

Click highlighted areas on diagram

diagram 67908 67908 6796452010 6796452010 68810C 68820C 68838 68838 68945 68946 68950C 68960 68961 68961 69350P 69430C 9010506184 9010506184 9011906748 9014880066 9015950353 9015950353 9017908096 9017908096 91651B0820 91651B0820
Part # Description Qty Price
67908 - STRAP SUB-ASSY, BACK DOOR PULL
67908-52030C0

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT),BLACK,TRIM2#,4#

 1
67908-52030C0

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟV),BLACK,TRIM2#,4#

 1
67908 - STRAP SUB-ASSY, BACK DOOR PULL
67908-52030C0

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟT),BLACK,TRIM2#,4#

 1
67908-52030C0

NCP125,NSP120..G

ｳｪﾙｷｬﾌﾞ(ﾌﾚﾝﾄﾞﾏﾁｯｸ取付用専用車 ﾀｲﾌﾟV),BLACK,TRIM2#,4#

 1
68810C - HINGE ASSY, BACK DOOR, RH
68810-52080

NCP12#,NSP12#

 1
68820C - HINGE ASSY, BACK DOOR, LH
68810-52080

NCP12#,NSP12#

 1
68838 - PAD, BACK DOOR HINGE, NO.1
68838-32010

NCP12#,NSP12#

厚さ=2.0

 2
68838-52060

NCP12#,NSP12#

厚さ=1.6

 2
68838-52030

NCP12#,NSP12#

厚さ=1.0

 2
68838 - PAD, BACK DOOR HINGE, NO.1
68838-32010

NCP12#,NSP12#

厚さ=2.0

 2
68838-52060

NCP12#,NSP12#

厚さ=1.6

 2
68838-52030

NCP12#,NSP12#

厚さ=1.0

 2
68945 - BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945-52090

NCP120,125,NSP120

 1
68946 - BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68946-52050

NCP120,125,NSP120

 1
68950C - STAY ASSY, BACK DOOR, RH
68950-52301

NCP120,125,NSP120

 1
68950-52300

NCP120,125,NSP120

 1
68950-52370

NCP120,125,NSP120

ﾗｲｾﾝｽﾌﾟﾚｰﾄﾌﾞﾗｹｯﾄ−字光式対応(DOP)

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-52270

NCP120,125,NSP120

 1
68960-52271

NCP120,125,NSP120

 1
68960-52330

NCP120,125,NSP120

ﾗｲｾﾝｽﾌﾟﾚｰﾄﾌﾞﾗｹｯﾄ−字光式対応(DOP)

 1
68961 - BOLT, BACK DOOR STAY
68961-20140

NCP12#,NSP12#

 2
68961 - BOLT, BACK DOOR STAY
68961-20140

NCP12#,NSP12#

 2
69350P - LOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
69350-52350

NCP12#,NSP12#

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-52040

NCP12#,NSP12#

 1
Common parts
67964-52010
90105-06184
90119-06748
90148-80066
90159-50353
90179-08096
91651-B0820
